ZRT265-AEXEK (2007)
Toyota Premio/Allion

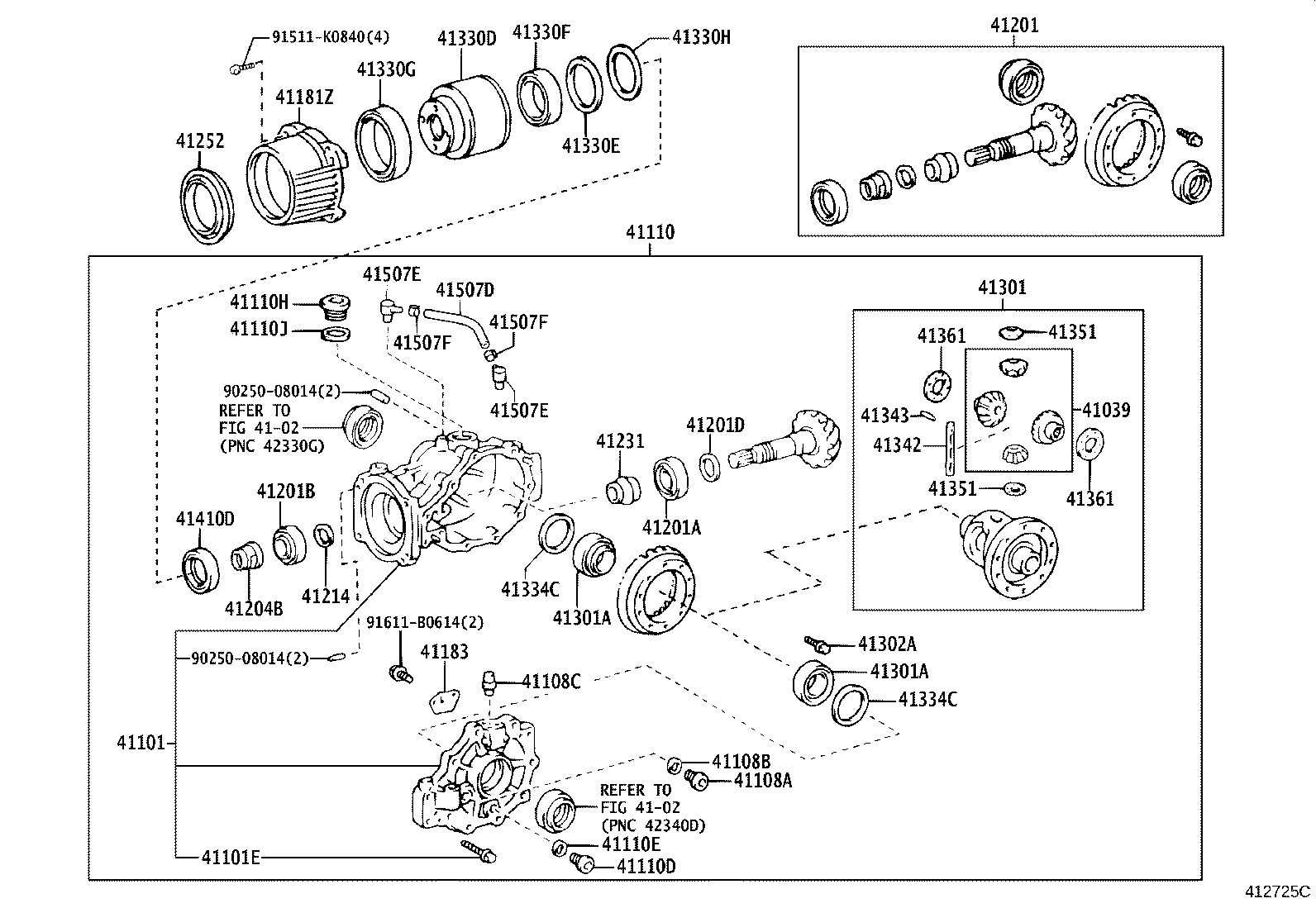

ILLUST NO. 1 OF 2(0705-1409)ZRT265
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41039 - GEAR KIT, DIFFERENTIAL, REAR | ||||
| 41039-44011 |
ZRT265..CBU |
1 | ||
| 41101 - CARRIER SUB-ASSY, DIFFERENTIAL, REAR | ||||
| 41101-33032 |
ZRT265..CBU |
1 | ||
| 41101E - BOLT (FOR REAR DIFFERENTIAL CARRIER) | ||||
| 90105-10371 |
ZRT265..CBU |
10 | ||
| 41108A - PLUG (FOR REAR DIFFERENTIAL CARRIER COVER) | ||||
| 90341-18023 |
ZRT265..CBU |
1 | ||
| 41108B - GASKET (FOR REAR DIFFERENTIAL CARRIER COVER) | ||||
| 12157-10010 |
ZRT265..CBU |
1 | ||
| 41108C - PLUG, BREATHER (FOR REAR DIFFERENTIAL CARRIER COVER) | ||||
| 90930-03170 |
ZRT265..CBU |
1 | ||
| 41110 - CARRIER ASSY, DIFFERENTIAL, REAR | ||||
| 41110-73010 |
ZRT265..CBU *FGR=41:18=2.277 |
1 | ||
| 41110D - PLUG (FOR REAR DIFFERENTIAL DRAIN) | ||||
| 90341-18051 |
ZRT265..CBU |
1 | ||
| 41110E - GASKET (FOR REAR DIFFERENTIAL DRAIN PLUG) | ||||
| 12157-10010 |
ZRT265..CBU |
1 | ||
| 41110H - PLUG (FOR REAR DIFFERENTIAL FILLER) | ||||
| 90341-36001 |
ZRT265..CBU |
1 | ||
| 41110J - GASKET (FOR REAR DIFFERENTIAL FILLER PLUG) | ||||
| 90430-36003 |
ZRT265..CBU |
1 | ||
| 41181Z - COVER, REAR DIFFERENTIAL CARRIER | ||||
| 41181-33041 |
ZRT265..CBU |
1 | ||
| 41183 - DEFLECTOR, REAR DIFFERENTIAL BREATHER PLUG OIL | ||||
| 41183-33010 |
ZRT265..CBU |
1 | ||
| 41201 - FINAL GEAR KIT, DIFFERENTIAL, REAR | ||||
| 41201-80124 |
ZRT265..CBU *FGR=41:18=2.277 |
1 | ||
| 41201A - BEARING (FOR REAR DRIVE PINION REAR) | ||||
| 90366-35093 |
ZRT265..CBU |
1 | ||
| 41201B - BEARING (FOR REAR DRIVE PINION FRONT) | ||||
| 90366-30047 |
ZRT265..CBU |
1 | ||
| 41201D - WASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION) | ||||
| 90564-35041 |
ZRT265..CBU 厚さ=1.70,ﾏｰｸ 41 |
1 | ||
| 90564-35049 |
ZRT265..CBU 厚さ=1.78,ﾏｰｸ 49 |
1 | ||
| 90564-35042 |
ZRT265..CBU 厚さ=1.71,ﾏｰｸ 42 |
1 | ||
| 90564-35045 |
ZRT265..CBU 厚さ=1.74,ﾏｰｸ 45 |
1 | ||
| 90564-35050 |
ZRT265..CBU 厚さ=1.79,ﾏｰｸ 50 |
1 | ||
| 90564-35047 |
ZRT265..CBU 厚さ=1.76,ﾏｰｸ 47 |
1 | ||
| 90564-35044 |
ZRT265..CBU 厚さ=1.73,ﾏｰｸ 44 |
1 | ||
| 90564-35053 |
ZRT265..CBU 厚さ=1.82,ﾏｰｸ 53 |
1 | ||
| 90564-35048 |
ZRT265..CBU 厚さ=1.77,ﾏｰｸ 48 |
1 | ||
| 90564-35056 |
ZRT265..CBU 厚さ=1.85,ﾏｰｸ 56 |
1 | ||
| 90564-35051 |
ZRT265..CBU 厚さ=1.80,ﾏｰｸ 51 |
1 | ||
| 90564-35052 |
ZRT265..CBU 厚さ=1.81,ﾏｰｸ 52 |
1 | ||
| 90564-35054 |
ZRT265..CBU 厚さ=1.83,ﾏｰｸ 54 |
1 | ||
| 90564-35055 |
ZRT265..CBU 厚さ=1.84,ﾏｰｸ 55 |
1 | ||
| 90564-35058 |
ZRT265..CBU 厚さ=1.87,ﾏｰｸ 58 |
1 | ||
| 90564-35059 |
ZRT265..CBU 厚さ=1.88,ﾏｰｸ 59 |
1 | ||
| 90564-35060 |
ZRT265..CBU 厚さ=1.89,ﾏｰｸ 60 |
1 | ||
| 90564-35046 |
ZRT265..CBU 厚さ=1.75,ﾏｰｸ 46 |
1 | ||
| 90564-35062 |
ZRT265..CBU 厚さ=1.91,ﾏｰｸ 62 |
1 | ||
| 90564-35061 |
ZRT265..CBU 厚さ=1.90,ﾏｰｸ 61 |
1 | ||
| 90564-35064 |
ZRT265..CBU 厚さ=1.93,ﾏｰｸ 64 |
1 | ||
| 90564-35065 |
ZRT265..CBU 厚さ=1.94,ﾏｰｸ 65 |
1 | ||
| 90564-35043 |
ZRT265..CBU 厚さ=1.72,ﾏｰｸ 43 |
1 | ||
| 90564-35057 |
ZRT265..CBU 厚さ=1.86,ﾏｰｸ 57 |
1 | ||
| 90564-35073 |
ZRT265..CBU 厚さ=1.98,ﾏｰｸ 73 |
1 | ||
| 90564-35081 |
ZRT265..CBU 厚さ=2.06,ﾏｰｸ 81 |
1 | ||
| 90564-35063 |
ZRT265..CBU 厚さ=1.92,ﾏｰｸ 63 |
1 | ||
| 90564-35083 |
ZRT265..CBU 厚さ=2.08,ﾏｰｸ 83 |
1 | ||
| 90564-35074 |
ZRT265..CBU 厚さ=1.99,ﾏｰｸ 74 |
1 | ||
| 90564-35077 |
ZRT265..CBU 厚さ=2.02,ﾏｰｸ 77 |
1 | ||
| 90564-35082 |
ZRT265..CBU 厚さ=2.07,ﾏｰｸ 82 |
1 | ||
| 90564-35079 |
ZRT265..CBU 厚さ=2.04,ﾏｰｸ 79 |
1 | ||
| 90564-35075 |
ZRT265..CBU 厚さ=2.00,ﾏｰｸ 75 |
1 | ||
| 90564-35084 |
ZRT265..CBU 厚さ=2.09,ﾏｰｸ 84 |
1 | ||
| 90564-35087 |
ZRT265..CBU 厚さ=2.12,ﾏｰｸ 87 |
1 | ||
| 90564-35078 |
ZRT265..CBU 厚さ=2.03,ﾏｰｸ 78 |
1 | ||
| 90564-35076 |
ZRT265..CBU 厚さ=2.01,ﾏｰｸ 76 |
1 | ||
| 90564-35072 |
ZRT265..CBU 厚さ=1.97,ﾏｰｸ 72 |
1 | ||
| 90564-35089 |
ZRT265..CBU 厚さ=2.14,ﾏｰｸ 89 |
1 | ||
| 90564-35080 |
ZRT265..CBU 厚さ=2.05,ﾏｰｸ 80 |
1 | ||
| 90564-35094 |
ZRT265..CBU 厚さ=2.19,ﾏｰｸ 94 |
1 | ||
| 90564-35086 |
ZRT265..CBU 厚さ=2.11,ﾏｰｸ 86 |
1 | ||
| 90564-35071 |
ZRT265..CBU 厚さ=1.96,ﾏｰｸ 71 |
1 | ||
| 90564-35095 |
ZRT265..CBU 厚さ=2.20,ﾏｰｸ 95 |
1 | ||
| 90564-35085 |
ZRT265..CBU 厚さ=2.10,ﾏｰｸ 85 |
1 | ||
| 90564-35088 |
ZRT265..CBU 厚さ=2.13,ﾏｰｸ 88 |
1 | ||
| 90564-35090 |
ZRT265..CBU 厚さ=2.15,ﾏｰｸ 90 |
1 | ||
| 90564-35070 |
ZRT265..CBU 厚さ=1.95,ﾏｰｸ 70 |
1 | ||
| 90564-35091 |
ZRT265..CBU 厚さ=2.16,ﾏｰｸ 91 |
1 | ||
| 90564-35093 |
ZRT265..CBU 厚さ=2.18,ﾏｰｸ 93 |
1 | ||
| 90564-35092 |
ZRT265..CBU 厚さ=2.17,ﾏｰｸ 92 |
1 | ||
| 41204B - NUT (FOR REAR DRIVE PINION) | ||||
| 90178-30001 |
ZRT265..CBU 外径=41.6 |
1 | ||
| 41214 - SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL | ||||
| 90560-30012 |
ZRT265..CBU |
1 | ||
| 41231 - SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING | ||||
| 41231-33030 |
ZRT265..CBU |
1 | ||
| 41252 - DEFLECTOR, DUST (FOR REAR DIFFERENTIAL) | ||||
| 41252-33010 |
ZRT265..CBU |
1 | ||
| 41301 - CASE SUB-ASSY, REAR DIFFERENTIAL | ||||
| 41301-21030 |
ZRT265..CBU |
1 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90366-38017 |
ZRT265..CBU |
2 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90366-38017 |
ZRT265..CBU |
2 | ||
| 41302A - BOLT(FOR REAR DIFFERENTIAL CASE) | ||||
| 90105-11034 |
ZRT265..CBU |
10 | ||
| 41330D - COUPLING ASSY, TRANSMISSION | ||||
| 41330-12020 |
ZRT265..CBU |
1 | ||
| 41330E - WASHER, CONICAL SPRING (FOR TRANSMISSION COUPLING) | ||||
| 90208-74002 |
ZRT265..CBU |
1 | ||
| 41330F - BEARING, RADIAL BALL, NO.1 (FOR TRANSMISSION COUPLING) | ||||
| 90363-65002 |
ZRT265..CBU |
1 | ||
| 41330G - BEARING, RADIAL BALL, NO.2 (FOR TRANSMISSION COUPLING) | ||||
| 90363-95003 |
ZRT265..CBU |
1 | ||
| 41330H - SPACER (FOR TRANSMISSION COUPLING) | ||||
| 90560-68001 |
ZRT265..CBU |
1 | ||
| 41334C - WASHER, PLATE (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT) | ||||
| 90564-55025 |
ZRT265..CBU 厚さ=1.60 |
1 | ||
| 90564-55026 |
ZRT265..CBU 厚さ=1.63 |
1 | ||
| 90564-55029 |
ZRT265..CBU 厚さ=1.72 |
1 | ||
| 90564-55027 |
ZRT265..CBU 厚さ=1.66 |
1 | ||
| 90564-55028 |
ZRT265..CBU 厚さ=1.69 |
1 | ||
| 90564-55035 |
ZRT265..CBU 厚さ=1.90 |
1 | ||
| 90564-55031 |
ZRT265..CBU 厚さ=1.78 |
1 | ||
| 90564-55041 |
ZRT265..CBU 厚さ=2.08 |
1 | ||
| 90564-55040 |
ZRT265..CBU 厚さ=2.05 |
1 | ||
| 90564-55038 |
ZRT265..CBU 厚さ=1.99 |
1 | ||
| 90564-55034 |
ZRT265..CBU 厚さ=1.87 |
1 | ||
| 90564-55043 |
ZRT265..CBU 厚さ=2.14 |
1 | ||
| 90564-55037 |
ZRT265..CBU 厚さ=1.96 |
1 | ||
| 90564-55045 |
ZRT265..CBU 厚さ=2.20 |
1 | ||
| 90564-55048 |
ZRT265..CBU 厚さ=2.29 |
1 | ||
| 90564-55030 |
ZRT265..CBU 厚さ=1.75 |
1 | ||
| 90564-55036 |
ZRT265..CBU 厚さ=1.93 |
1 | ||
| 90564-55039 |
ZRT265..CBU 厚さ=2.03 |
1 | ||
| 90564-55032 |
ZRT265..CBU 厚さ=1.81 |
1 | ||
| 90564-55046 |
ZRT265..CBU 厚さ=2.23 |
1 | ||
| 90564-55050 |
ZRT265..CBU 厚さ=2.35 |
1 | ||
| 90564-55049 |
ZRT265..CBU 厚さ=2.32 |
1 | ||
| 90564-55053 |
ZRT265..CBU 厚さ=2.44 |
1 | ||
| 90564-55042 |
ZRT265..CBU 厚さ=2.11 |
1 | ||
| 90564-55052 |
ZRT265..CBU 厚さ=2.41 |
1 | ||
| 90564-55054 |
ZRT265..CBU 厚さ=2.47 |
1 | ||
| 90564-55047 |
ZRT265..CBU 厚さ=2.26 |
1 | ||
| 90564-55051 |
ZRT265..CBU 厚さ=2.38 |
1 | ||
| 90564-55056 |
ZRT265..CBU 厚さ=2.53 |
1 | ||
| 90564-55057 |
ZRT265..CBU 厚さ=2.56 |
1 | ||
| 90564-55055 |
ZRT265..CBU 厚さ=2.50 |
1 | ||
| 90564-55033 |
ZRT265..CBU 厚さ=1.84 |
1 | ||
| 90564-55044 |
ZRT265..CBU 厚さ=2.17 |
1 | ||
| 90564-55060 |
ZRT265..CBU 厚さ=2.65 |
1 | ||
| 90564-55058 |
ZRT265..CBU 厚さ=2.59 |
1 | ||
| 90564-55059 |
ZRT265..CBU 厚さ=2.62 |
1 | ||
| 41334C - WASHER, PLATE (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT) | ||||
| 90564-55025 |
ZRT265..CBU 厚さ=1.60 |
1 | ||
| 90564-55026 |
ZRT265..CBU 厚さ=1.63 |
1 | ||
| 90564-55029 |
ZRT265..CBU 厚さ=1.72 |
1 | ||
| 90564-55027 |
ZRT265..CBU 厚さ=1.66 |
1 | ||
| 90564-55028 |
ZRT265..CBU 厚さ=1.69 |
1 | ||
| 90564-55035 |
ZRT265..CBU 厚さ=1.90 |
1 | ||
| 90564-55031 |
ZRT265..CBU 厚さ=1.78 |
1 | ||
| 90564-55041 |
ZRT265..CBU 厚さ=2.08 |
1 | ||
| 90564-55040 |
ZRT265..CBU 厚さ=2.05 |
1 | ||
| 90564-55038 |
ZRT265..CBU 厚さ=1.99 |
1 | ||
| 90564-55034 |
ZRT265..CBU 厚さ=1.87 |
1 | ||
| 90564-55043 |
ZRT265..CBU 厚さ=2.14 |
1 | ||
| 90564-55037 |
ZRT265..CBU 厚さ=1.96 |
1 | ||
| 90564-55045 |
ZRT265..CBU 厚さ=2.20 |
1 | ||
| 90564-55048 |
ZRT265..CBU 厚さ=2.29 |
1 | ||
| 90564-55030 |
ZRT265..CBU 厚さ=1.75 |
1 | ||
| 90564-55036 |
ZRT265..CBU 厚さ=1.93 |
1 | ||
| 90564-55039 |
ZRT265..CBU 厚さ=2.03 |
1 | ||
| 90564-55032 |
ZRT265..CBU 厚さ=1.81 |
1 | ||
| 90564-55046 |
ZRT265..CBU 厚さ=2.23 |
1 | ||
| 90564-55050 |
ZRT265..CBU 厚さ=2.35 |
1 | ||
| 90564-55049 |
ZRT265..CBU 厚さ=2.32 |
1 | ||
| 90564-55053 |
ZRT265..CBU 厚さ=2.44 |
1 | ||
| 90564-55042 |
ZRT265..CBU 厚さ=2.11 |
1 | ||
| 90564-55052 |
ZRT265..CBU 厚さ=2.41 |
1 | ||
| 90564-55054 |
ZRT265..CBU 厚さ=2.47 |
1 | ||
| 90564-55047 |
ZRT265..CBU 厚さ=2.26 |
1 | ||
| 90564-55051 |
ZRT265..CBU 厚さ=2.38 |
1 | ||
| 90564-55056 |
ZRT265..CBU 厚さ=2.53 |
1 | ||
| 90564-55057 |
ZRT265..CBU 厚さ=2.56 |
1 | ||
| 90564-55055 |
ZRT265..CBU 厚さ=2.50 |
1 | ||
| 90564-55033 |
ZRT265..CBU 厚さ=1.84 |
1 | ||
| 90564-55044 |
ZRT265..CBU 厚さ=2.17 |
1 | ||
| 90564-55060 |
ZRT265..CBU 厚さ=2.65 |
1 | ||
| 90564-55058 |
ZRT265..CBU 厚さ=2.59 |
1 | ||
| 90564-55059 |
ZRT265..CBU 厚さ=2.62 |
1 | ||
| 41342 - SHAFT, REAR DIFFERENTIAL PINION | ||||
| 41342-33020 |
ZRT265..CBU |
1 | ||
| 41343 - PIN, REAR DIFFERENTIAL PINION SHAFT | ||||
| 90250-04053 |
ZRT265..CBU |
1 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-10030 |
ZRT265..CBU |
2 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-10030 |
ZRT265..CBU |
2 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-10080 |
ZRT265..CBU 厚さ=1.55 |
1 | ||
| 41361-10090 |
ZRT265..CBU 厚さ=1.60 |
1 | ||
| 41361-10070 |
ZRT265..CBU 厚さ=1.50 |
1 | ||
| 41361-10110 |
ZRT265..CBU 厚さ=1.70 |
1 | ||
| 41361-10100 |
ZRT265..CBU 厚さ=1.65 |
1 | ||
| 41361-10120 |
ZRT265..CBU 厚さ=1.75 |
1 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-10080 |
ZRT265..CBU 厚さ=1.55 |
1 | ||
| 41361-10090 |
ZRT265..CBU 厚さ=1.60 |
1 | ||
| 41361-10070 |
ZRT265..CBU 厚さ=1.50 |
1 | ||
| 41361-10110 |
ZRT265..CBU 厚さ=1.70 |
1 | ||
| 41361-10100 |
ZRT265..CBU 厚さ=1.65 |
1 | ||
| 41361-10120 |
ZRT265..CBU 厚さ=1.75 |
1 | ||
| 41410D - SEAL, OIL DIAPHRAGM | ||||
| 90310-54001 |
ZRT265..CBU |
1 | ||
| 41507D - HOSE, DIFFERENTIAL PRESSURE CONTROL | ||||
| 95337-06020 |
ZRT265..CBU |
1 | ||
| 41507E - ELBOW,DIFFERENTIAL PRESSURE CONTROL HOSE | ||||
| 90407-10027 |
ZRT265..CBU |
2 | ||
| 90407-10026 |
ZRT265..CBU |
2 | ||
| 41507E - ELBOW,DIFFERENTIAL PRESSURE CONTROL HOSE | ||||
| 90407-10027 |
ZRT265..CBU |
2 | ||
| 90407-10026 |
ZRT265..CBU |
2 | ||
| 41507F - CLIP, DIFFERENTIAL PRESSURE CONTROL HOSE | ||||
| 96132-51100 |
ZRT265..CBU |
2 | ||
| 41507F - CLIP, DIFFERENTIAL PRESSURE CONTROL HOSE | ||||
| 96132-51100 |
ZRT265..CBU |
2 | ||
| Common parts | ||||
| 90250-08014 | ||||
| 91511-K0840 | ||||
| 91611-B0614 | ||||
| Linked diagrams | ||||
| 4102 | ||||

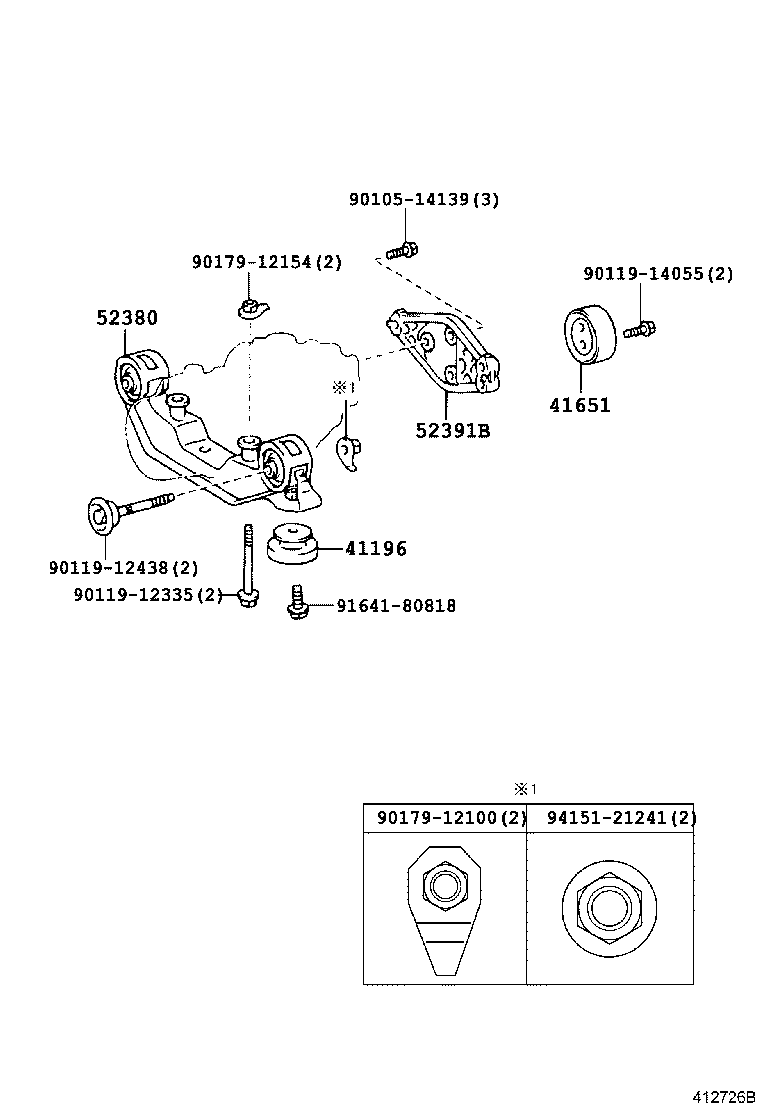

ILLUST NO. 2 OF 2(0705- )ZRT265
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41196 - DAMPER, REAR DIFFERENTIAL DYNAMIC | ||||
| 41196-33010 |
ZRT265..CBU |
1 | ||
| 41651 - CUSHION, REAR DIFFERENTIAL MOUNT, NO.1 | ||||
| 41651-33020 |
ZRT265..CBU |
1 | ||
| 52380 - SUPPORT, REAR DIFFERENTIAL, NO.1 | ||||
| 52380-32020 |
ZRT265..CBU |
1 | ||
| 52391B - SUPPORT, DIFFERENTIAL | ||||
| 52391-32030 |
ZRT265..CBU |
1 | ||
| Common parts | ||||
| 90105-14139 | ||||
| 90119-12335 | ||||
| 90119-12438 | ||||
| 90119-14055 | ||||
| 90179-12100 | ||||
| 90179-12154 | ||||
| 91641-80818 | ||||
| 94151-21241 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
