ZRT265-AEXEK (2007)

Toyota Premio/Allion

Production May 2007 - Apr 2010
Engine 2ZRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0705- )NZT260,ZRT260,265

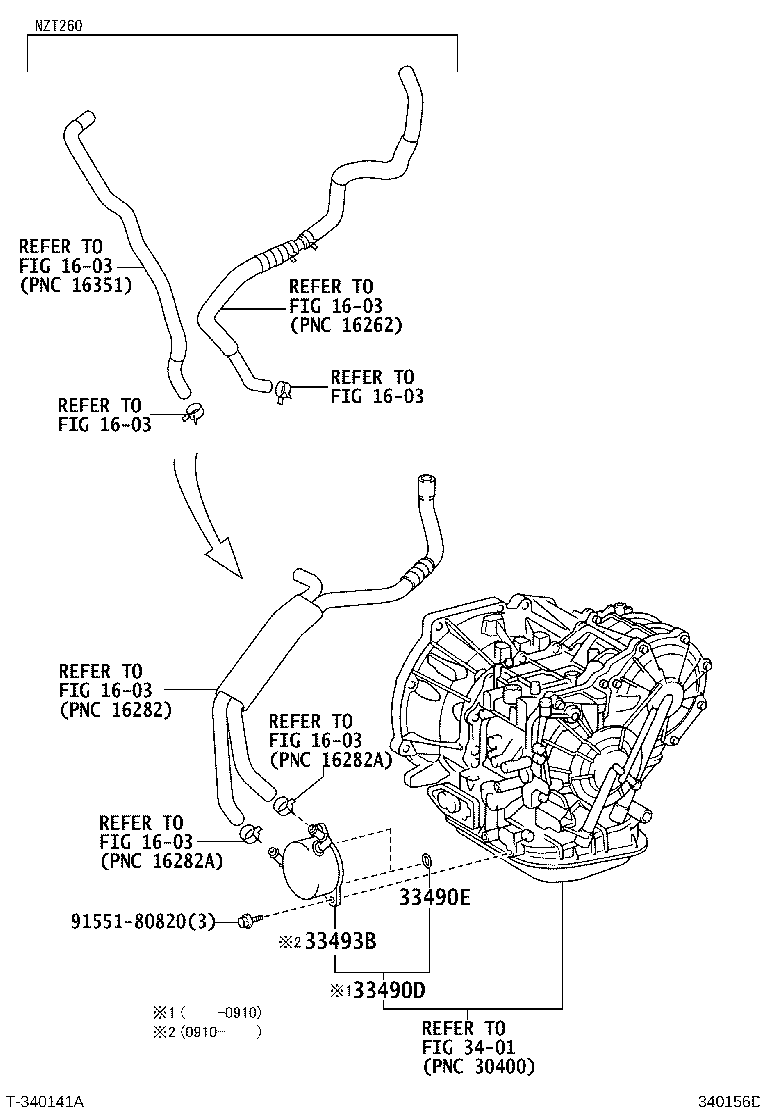

Click highlighted areas on diagram

diagram 1603 1603 1603 1603 1603 1603 1603 33490D 33490E 33493B 3401 9155180820
Part # Description Qty Price
33490D - COOLER ASSY, TRANSMISSION OIL
33490-20140

ZRT260,265..CBU

 1
33490E - RING, O (FOR TRANSMISSION OIL COOLER)
90301-20012

NZT260,ZRT260,265..CBU

 2
90301-19020

NZT260,ZRT260,265..CBU

 2
33493B - COOLER, OIL
33493-20050

ZRT260,265..CBU

 1
Common parts
91551-80820
Linked diagrams
1603
3401
