ZRT265-AEXEK (2007)
Toyota Premio/Allion
Production
May 2007
-
Apr 2010
Engine
2ZRFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0705-1212) ; (1212- )ZRT26#

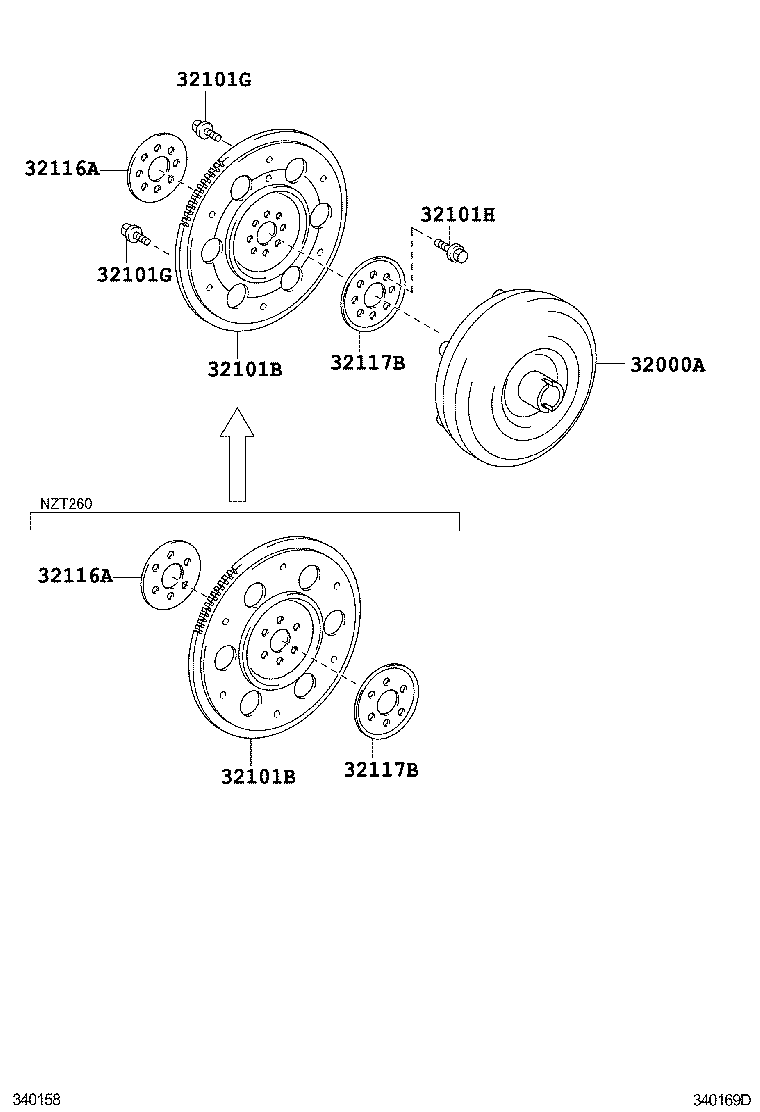

Click highlighted areas on diagram
K111,K310,K311,K311F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 32000A - CONVERTER ASSY, TORQUE | ||||
| 32000-12400 |
ZRT260,265..CBU |
1 | ||
| 32101B - GEAR SUB-ASSY, DRIVE PLATE & RING | ||||
| 32101-12100 |
ZRT260,265..CBU |
1 | ||
| 32101B - GEAR SUB-ASSY, DRIVE PLATE & RING | ||||
| 32101-12100 |
ZRT260,265..CBU |
1 | ||
| 32101G - BOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING) | ||||
| 90109-08107 |
ZRT260,265..CBU *8−1.25PX12−8.4,ﾌﾞﾗｯｸ |
1 | ||
| 90119-08269 |
ZRT260,265..CBU *8−1.25PX12−8,ｲｴﾛｰ |
5 | ||
| 90119-08498 |
ZRT260,265..CBU *8−1.25PX12−8,ｲｴﾛｰ |
5 | ||
| 90109-08113 |
ZRT260,265..CBU *8−1.25PX12−8.4,ﾌﾞﾗｯｸ |
1 | ||
| 32101G - BOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING) | ||||
| 90109-08107 |
ZRT260,265..CBU *8−1.25PX12−8.4,ﾌﾞﾗｯｸ |
1 | ||
| 90119-08269 |
ZRT260,265..CBU *8−1.25PX12−8,ｲｴﾛｰ |
5 | ||
| 90119-08498 |
ZRT260,265..CBU *8−1.25PX12−8,ｲｴﾛｰ |
5 | ||
| 90109-08113 |
ZRT260,265..CBU *8−1.25PX12−8.4,ﾌﾞﾗｯｸ |
1 | ||
| 32101H - BOLT, HEXAGON(FOR DRIVE PLATE SETTING) | ||||
| 90105-A0022 |
ZRT26#..CBU (L) |
8 | ||
| 90105-10048 |
ZRT26#..CBU (J) |
8 | ||
| 32116A - SPACER, DRIVE PLATE, FRONT | ||||
| 32116-12030 |
ZRT26#..CBU |
1 | ||
| 32116A - SPACER, DRIVE PLATE, FRONT | ||||
| 32116-12030 |
ZRT26#..CBU |
1 | ||
| 32117B - SPACER, DRIVE PLATE, REAR | ||||
| 32117-12040 |
ZRT26#..CBU |
1 | ||
| 32117B - SPACER, DRIVE PLATE, REAR | ||||
| 32117-12040 |
ZRT26#..CBU |
1 | ||
