ZRT265-AEXEK (2007)

Toyota Premio/Allion

Production May 2007 - Apr 2010
Engine 2ZRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 3(0705-1212)NZT260,ZRT260,265 ; (1212- )ZRT260,265

Click highlighted areas on diagram

K310,K311,K311F

diagram 30400 30400L 30400M 30400N 30400P 33621J 3402 3414 3414 35106L 35106P 35125E 35125F 35125G 35150B 35150B 35150C 35168C 35330D 35330E 35394D 35410J 35518A 35572C 8202 8202 8202 8202 82125M 82125Q 8401 8401 8410 8410 8410 8410 8410 8410 8410 89429L 9046400905 9155180616 9155180616 91611B0616 9413000802 9451200800
Part # Description Qty Price
30400 - TRANSAXLE ASSY, CONTINUOUSLY VARIABLE
30400-20050

ZRT265..CBU

K311F

 1
30400L - PLUG , FILLER(CVT)
90341-12025

ZRT260,265..CBU

 1
30400M - GASKET , FILLER PLUG(CVT)
90430-12221

ZRT260,265..CBU

 1
30400N - PLUG, REFILL(CVT)
90341-18061

NZT260,ZRT260,265..CBU

 1
30400P - GASKET, REFILL PLUG(CVT)
90430-18008

NZT260,ZRT26#..CBU

 1
33621J - LABEL, TRANSAXLE OIL INFORMATION
33621-12150

ZRT265..CBU

 1
35106L - PAN SUB-ASSY, TRANSAXLE OIL(CVT)
35106-12130

NZT260,ZRT260,265..CBU

 1
35106P - BOLT(FOR TRANSAXLE OIL PAN)
90119-06173

NZT260,ZRT260,265..CBU

 16
35125E - TUBE, OVERFLOW(CVT)
35125-12400

NZT260,ZRT260,265..CBU

 1
35125F - PLUG, OVERFLOW(CVT)
90341-12034

NZT260,ZRT26#..CBU

 1
35125G - GASKET, OVERFLOW PLUG(CVT)
90430-12008

NZT260,ZRT26#..CBU

 1
35150B - PLUG ASSY, TRANSMISSION CASE
35150-44010

NZT260,ZRT260,265..CBU

TYPE A:ｲﾗｽﾄ参照

 1
35150B - PLUG ASSY, TRANSMISSION CASE
35150-44010

NZT260,ZRT260,265..CBU

TYPE A:ｲﾗｽﾄ参照

 1
35168C - GASKET, TRANSAXLE OIL PAN(CVT)
35168-12090

NZT260,ZRT260,265..CBU

 1
35330D - STRAINER ASSY, OIL
35330-0W060

NZT260,ZRT260,265..CBU

 1
35330E - RING, O (FOR OIL STRAINER)
90301-22014

NZT260,ZRT260,265..CBU

 1
35394D - MAGNET, OIL CLEANER(CVT)
35394-30011

NZT260,ZRT26#..CBU

 3
35518A - LABEL, AUTOMATIC TRANSAXLE INFORMATION, NO.2
35518-63010

ZRT26#..CBU

 1
35572C - LEVER, TRANSMISSION CONTROL SHAFT
35572-12160

ZRT260,265..CBU

 1
Common parts
90464-00905
91551-80616
91611-B0616
94130-00802
94512-00800
Linked diagrams
3402
3414
8202
8401
8410

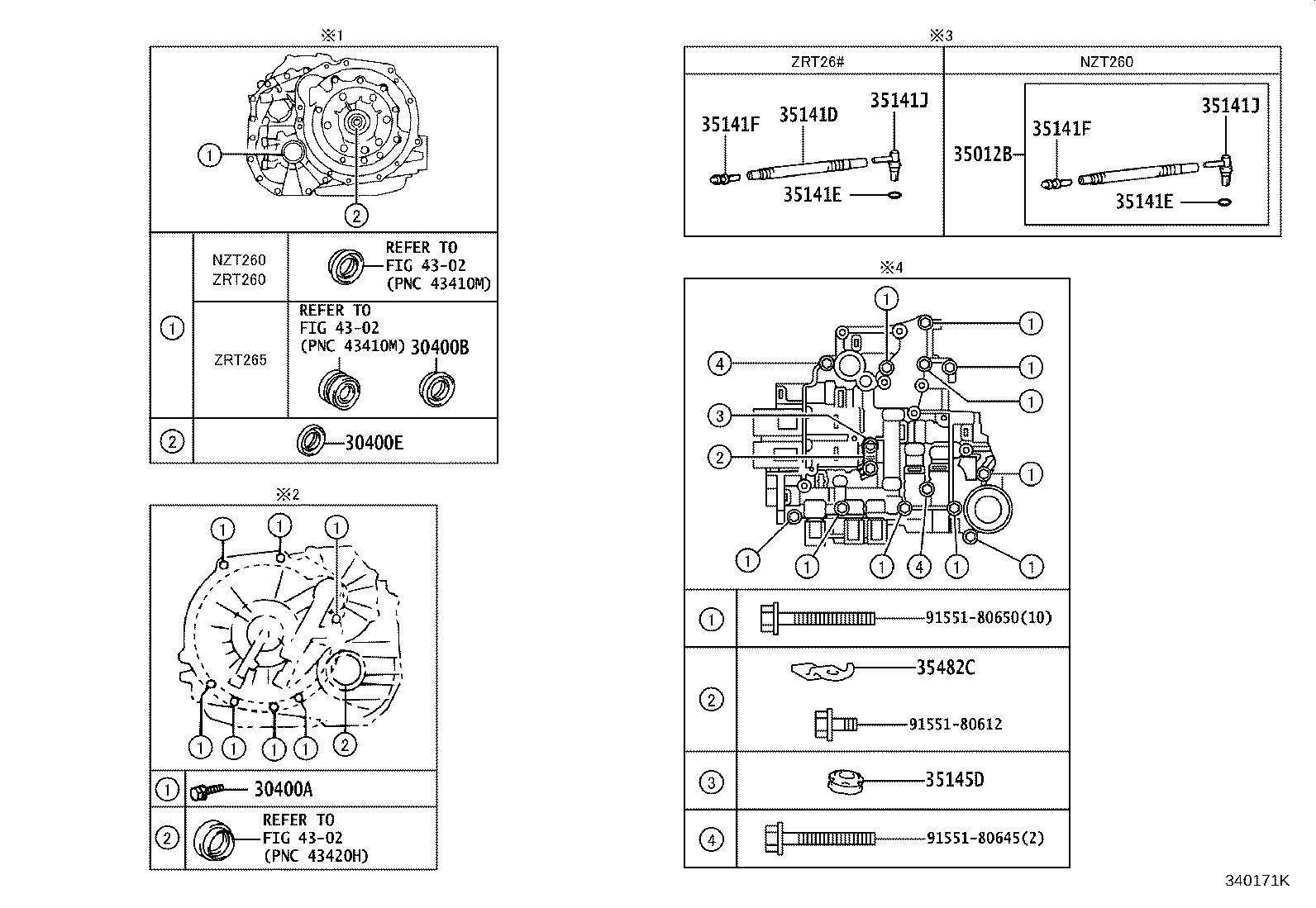

ILLUST NO. 3 OF 3(0705-1212)NZT260,ZRT260,265 ; (1212- )ZRT260,265

Click highlighted areas on diagram

K310,K311,K311F

diagram 30400A 30400B 30400E 35012B 35141D 35141E 35141E 35141F 35141F 35141J 35141J 35145D 35482C 4302 4302 4302 9155180612 9155180645 9155180650
Part # Description Qty Price
30400A - BOLT(FOR TRANSAXLE & ENGINE SETTING)
91612-61045

NZT260,ZRT260,265..CBU

 7
30400B - SEAL, TYPE T OIL, NO.1(FOR CVT)
90311-49002

ZRT265..CBU

 1
30400E - SEAL, TYPE T OIL(FOR CVT OIL PUMP)
90311-45025

NZT260,ZRT26#..CBU

 1
35141D - HOSE(FOR BREATHER PLUG)
35121-12090

ZRT260,265..CBU

 1
35141E - RING, O(FOR BREATHER PLUG)
90301-06005

NZT260,ZRT26#..CBU

 1
35141E - RING, O(FOR BREATHER PLUG)
90301-06005

NZT260,ZRT26#..CBU

 1
35141F - PLUG, BREATHER, NO.1(CVT)
90930-03149

NZT260,ZRT26#..CBU

 1
35141F - PLUG, BREATHER, NO.1(CVT)
90930-03149

NZT260,ZRT26#..CBU

 1
35141J - PLUG, BREATHER, NO.2(CVT)
90930-03191

NZT260,ZRT260,265..CBU

 1
35141J - PLUG, BREATHER, NO.2(CVT)
90930-03191

NZT260,ZRT260,265..CBU

 1
Common parts
91551-80612
91551-80645
91551-80650
Linked diagrams
4302

ILLUST NO. 1 OF 3(0705- )

Click highlighted areas on diagram

K111,K310,K311,K311F,K312

diagram 30140
Part # Description Qty Price
30140 - TRANSAXLE ASSY, CVT, REBUILT(W/O TORQUE CONVERTER)
30140-12100

ZRT265..CBU

K311F

 1
