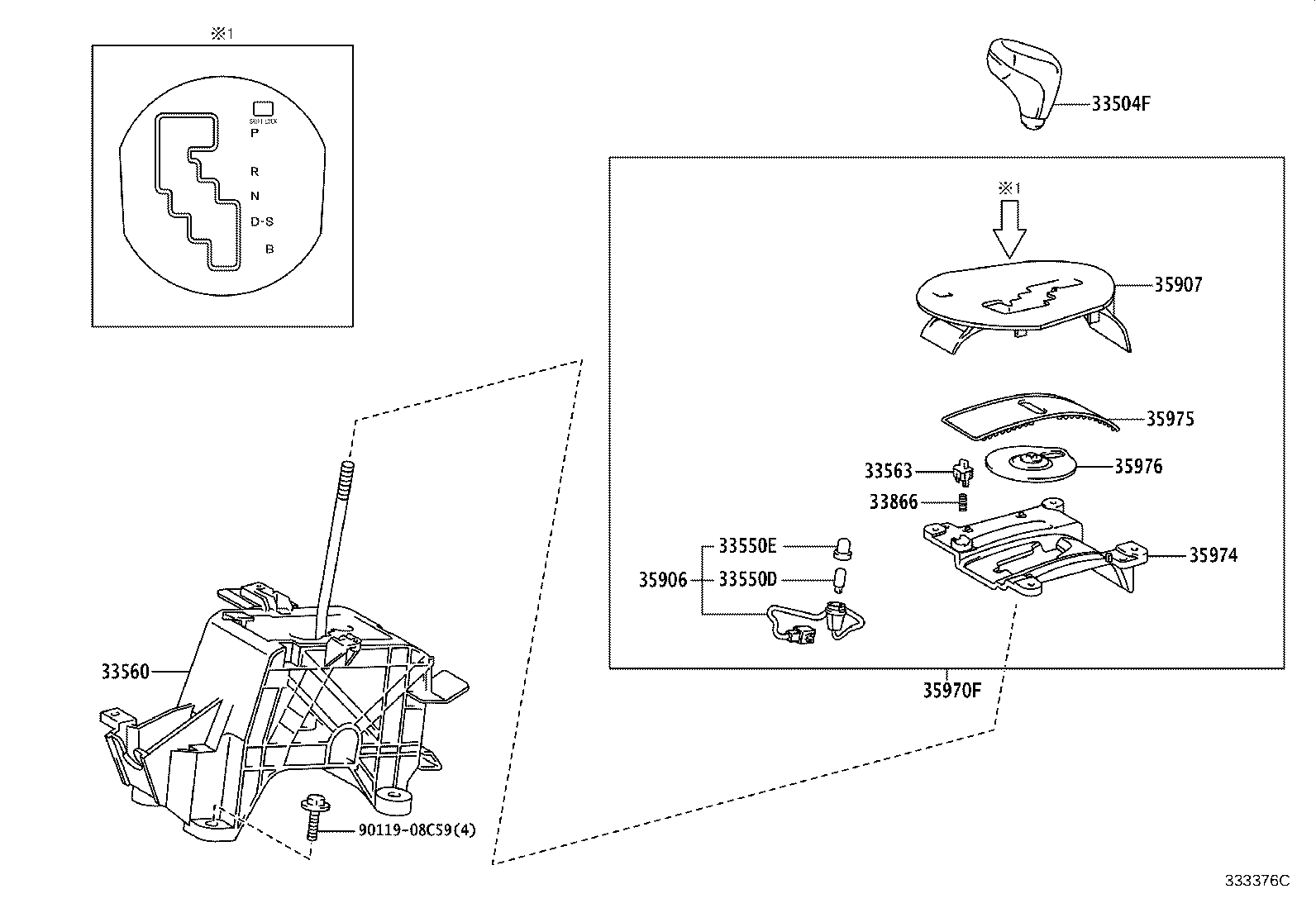

Toyota Premio/allion ZRT265 SHIFT LEVER & RETAINER

Part #	Description	Period	Qty
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-22200B0	ZRT260,265..PRM..CBU L,Gﾊﾟｯｹｰｼﾞ,DK.GRAY,TRIM1#	05/2007 - 04/2010	1
33504-22200B0	ZRT260,265..PRM..CBU EXﾊﾟｯｹｰｼﾞ,DK.GRAY,TRIM1#	05/2007 - 04/2010	1
33504-22200E0	ZRT260,265..PRM..CBU EXﾊﾟｯｹｰｼﾞ,ASH BROWN,TRIM4#	05/2007 - 04/2010	1
33504-20270E0	ZRT261..ALN..CBU;NZT260,ZRT260,265..CBU ASH BROWN,TRIM4#	05/2007 - 04/2010	1
33504-20270B0	ZRT261..ALN..CBU;NZT260,ZRT260,265..CBU DK.GRAY,TRIM1#	05/2007 - 04/2010	1
33504-22200E0	ZRT260,265..PRM..CBU “L package･Prime Selection” *(P),ASH BROWN,TRIM4#	05/2009 - 04/2010	1
33504-22200E0	ZRT260,265..PRM..CBU L,Gﾊﾟｯｹｰｼﾞ,ASH BROWN,TRIM4#	05/2007 - 04/2010	1
33550D - BULB, POSITION INDICATOR LAMP
90981-11018	NZT260,ZRT26#..CBU 12V 1.2W ｿｹｯﾄ無し	05/2007 - 04/2010	1
33550E - CAP, POSITION INDICATOR LAMP
90339-04049	NZT260,ZRT26#..CBU	05/2007 - 04/2010	1
33560 - UNIT ASSY, SHIFT LOCK CONTROL
33560-20160	NZT260,ZRT26#..CBU	05/2007 - 10/2009	1
33550-20A21	NZT260,ZRT26#..CBU	10/2009 - 04/2010	1
33550-20A31	NZT260,ZRT260,265..CBU Standard Package (U) or “Version C”(C)	10/2009 - 04/2010	1
33560-20170	NZT260,ZRT260,265..CBU Standard Package (U) or “Version C”(C)	12/2007 - 10/2009	1
33563 - BUTTON, SHIFT LOCK RELEASE
33563-20200	NZT260,ZRT26#..CBU	05/2007 - 04/2010	1
33866 - SPRING, SHIFT LOCK RELEASE
33866-42020	NZT260,ZRT26#..CBU	05/2007 - 04/2010	1
35906 - WIRE SUB-ASSY, INDICATOR LAMP
35906-20160	NZT260,ZRT26#..CBU	05/2007 - 04/2010	1
35907 - HOUSING SUB-ASSY, POSITION INDICATOR (FOR FLOOR SHIFT)
35907-20310	NZT260,ZRT26#..CBU	05/2007 - 04/2010	1
35970F - HOUSING ASSY, POSITION INDICATOR
35970-20120	NZT260,ZRT26#..CBU	05/2007 - 04/2010	1
35974 - HOUSING, POSITION INDICATOR, LOWER
35974-20290	NZT260,ZRT26#..CBU	05/2007 - 04/2010	1
35975 - COVER, SLIDE (FOR POSITION INDICATOR)
35975-20250	NZT260,ZRT26#..CBU	05/2007 - 04/2010	1
35976 - COVER, SLIDE, NO.2 (FOR POSITION INDICATOR)
35976-20170	NZT260,ZRT26#..CBU	05/2007 - 04/2010	1
Common parts
90119-08C59

ZRT265-AEXEK (2007)

ILLUST NO. 1 OF 2(0705-1606)

ILLUST NO. 2 OF 2(0705- )NZT260,ZRT260,265

Part Price Details

Part #	Description	Period	Qty

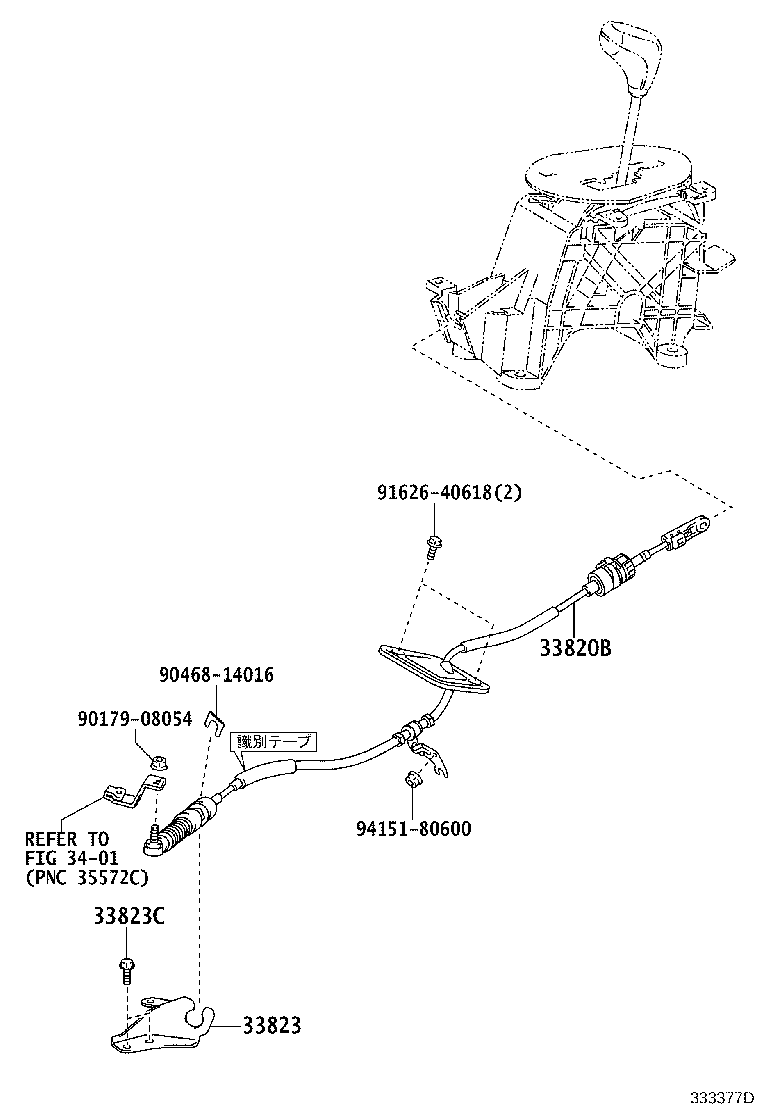

33820B - CABLE ASSY, TRANSMISSION CONTROL
33820-20A30	NZT260,ZRT260,265..CBU	05/2007 - 04/2010	1
33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1
33823-12190	NZT260,ZRT260,265..CBU	05/2007 - 04/2010	1
33823C - BOLT (FOR TRANSMISSION CONTROL CABLE BRACKET)
91611-60814	NZT260,ZRT26#..CBU	05/2007 - 04/2010	2
Common parts
90179-08054
90468-14016
91626-40618
94151-80600
Linked diagrams
3401
