ZRT265-AEXEK (2007)
Toyota Premio/Allion
Production
May 2007
-
Apr 2010
Engine
2ZRFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0705- )2ZRFE

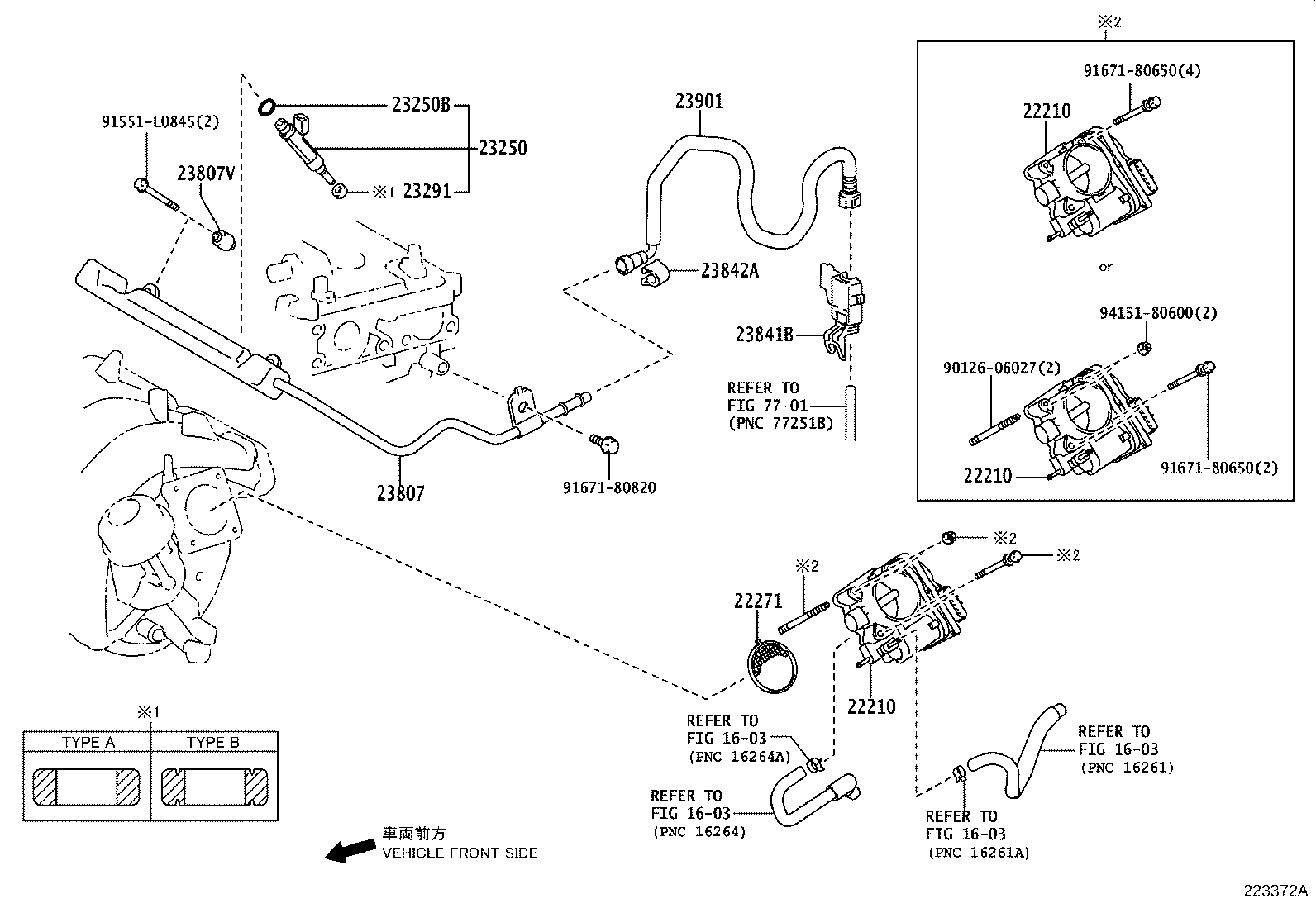

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22210 - BODY ASSY, THROTTLE | ||||
| 22030-37010 |
2ZRFE..ZRT260,265 |
1 | ||
| 22210 - BODY ASSY, THROTTLE | ||||
| 22030-37010 |
2ZRFE..ZRT260,265 |
1 | ||
| 22210 - BODY ASSY, THROTTLE | ||||
| 22030-37010 |
2ZRFE..ZRT260,265 |
1 | ||
| 22271 - GASKET, THROTTLE BODY | ||||
| 22271-75031 |
2ZRFE..ZRT260,265 |
1 | ||
| 22271-75031 |
2ZRFE..ZRT260,265 |
1 | ||
| 23250 - INJECTOR ASSY, FUEL | ||||
| 23209-39145 |
2ZRFE,3ZRFAE..ZRT26#..CBU |
4 | ||
| 23209-39146 |
2ZRFE,3ZRFAE..ZRT26#..CBU |
4 | ||
| 23250B - RING, O(FOR FUEL INJECTOR) | ||||
| 90301-07037 |
2ZRFE,3ZRFAE..ZRT26#..CBU |
4 | ||
| 23291 - INSULATOR, INJECTOR VIBRATION | ||||
| 23291-28020 |
2ZRFE,3ZRFAE..ZRT26#..CBU TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 23291-23010 |
2ZRFE,3ZRFAE..ZRT26#..CBU TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 23291-41010 |
2ZRFE,3ZRFAE..ZRT26#..CBU TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 23291-23010 |
2ZRFE,3ZRFAE..ZRT26#..CBU TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 23807 - PIPE SUB-ASSY, FUEL DELIVERY | ||||
| 23814-37050 |
2ZRFE,3ZRFAE..ZRT26#..CBU |
1 | ||
| 23807V - SPACER, NO.1(FOR DELIVERY PIPE) | ||||
| 23891-37010 |
2ZRFE,3ZRFAE..ZRT26#..CBU |
2 | ||
| 23841B - CLAMP, FUEL PIPE, NO.1(FOR EFI) | ||||
| 23841-21040 |
2ZRFE,3ZRFAE..ZRT26#..CBU |
1 | ||
| 23842A - CLAMP, FUEL PIPE, NO.2(FOR EFI) | ||||
| 23842-28010 |
2ZRFE,3ZRFAE..ZRT26#..CBU |
1 | ||
| 23901 - TUBE SUB-ASSY, FUEL | ||||
| 23901-37060 |
2ZRFE..ZRT26# |
1 | ||
| 23901-37090 |
2ZRFE,3ZRFAE..ZRT26#..CBU |
1 | ||
| Common parts | ||||
| 90126-06027 | ||||
| 91551-L0845 | ||||
| 91671-80650 | ||||
| 91671-80820 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 1603 | ||||
| 7701 | ||||
