ZRT265-AEXEK (2007)
Toyota Premio/Allion
Production
May 2007
-
Apr 2010
Engine
2ZRFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0705-1212)2ZR#,3ZRFAE

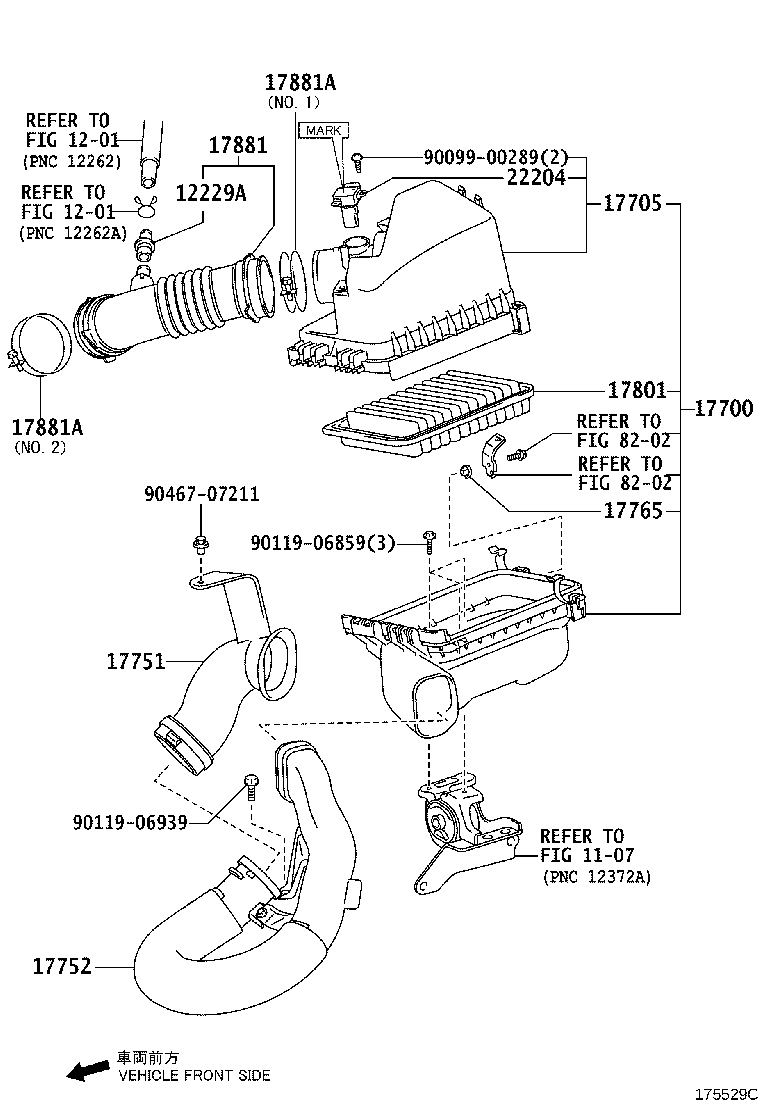

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12229A - PIPE, VENTILATION | ||||
| 12229-21010 |
2ZRFE,3ZRFAE..ZRT26#..CBU |
1 | ||
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-37191 |
2ZRFE..ZRT260,265 |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-37061 |
2ZRFE..ZRT260,265 |
1 | ||
| 17751 - INLET, AIR CLEANER, NO.1 | ||||
| 17751-37070 |
2ZRFE,3ZRFAE..ZRT26#..CBU |
1 | ||
| 17752 - INLET, AIR CLEANER, NO.2 | ||||
| 17752-37050 |
2ZRFE,3ZRFAE..ZRT26#..CBU |
1 | ||
| 17765 - STAY, AIR CLEANER, NO.1 | ||||
| 17706-21010 |
2ZRFE,3ZRFAE..ZRT26#..CBU |
1 | ||
| 17706-22010 |
2ZRFE,3ZRFAE..ZRT26#..CBU |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-21050 |
2ZRFE,3ZRFAE..ZRT26#..CBU |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17880-37040 |
2ZRFE..ZRT260,265 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10780 |
2ZRFE,3ZRFAE..ZRT26#..CBU NO.2 |
1 | ||
| 96111-10830 |
2ZRFE..ZRT260,265 NO.1 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10780 |
2ZRFE,3ZRFAE..ZRT26#..CBU NO.2 |
1 | ||
| 96111-10830 |
2ZRFE..ZRT260,265 NO.1 |
1 | ||
| 22204 - METER SUB-ASSY, INTAKE AIR FLOW | ||||
| 22204-31020 |
2ZRFE..ZRT260,265 |
1 | ||
| Common parts | ||||
| 90099-00289 | ||||
| 90119-06859 | ||||
| 90119-06939 | ||||
| 90467-07211 | ||||
| Linked diagrams | ||||
| 1107 | ||||
| 1201 | ||||
| 8202 | ||||
