ZRT265-AEXEK (2007)

Toyota Premio/Allion

Production May 2007 - Apr 2010
Engine 2ZRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0705- )2ZR#..ZRT265

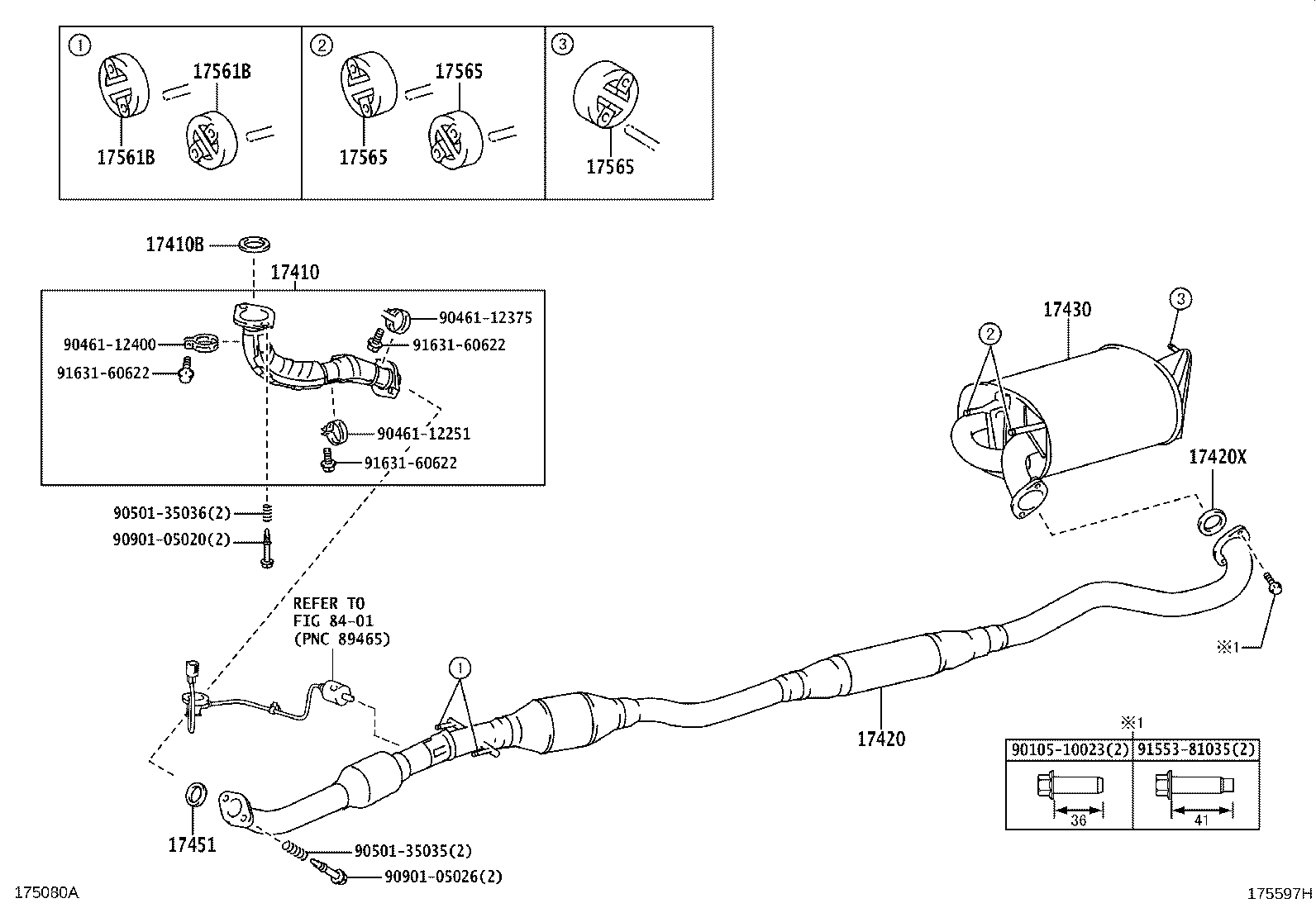

Click highlighted areas on diagram

diagram 17410 17410B 17420 17420X 17430 17451 17561B 17561B 17565 17565 17565 8401 9010510023 9046112251 9046112375 9046112400 9050135035 9050135036 9090105020 9090105026 9155381035 9163160622 9163160622 9163160622
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-37180

2ZRFE..ZRT265

 1
17410B - GASKET, EXHAUST PIPE
17451-21070

1NZFE,2ZRFE..NZT260,ZRT265..CBU

 1
17420 - PIPE ASSY, EXHAUST, CENTER
17420-37031

2ZRFE..ZRT265

 1
17420-37030

2ZRFE..ZRT265

 1
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06045

2ZRFE..ZRT265

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-37270

2ZRFE..ZRT265

 1
17451 - GASKET, EXHAUST PIPE
17451-21080

2ZRFE..ZRT265

 1
17561B - SUPPORT, EXHAUST PIPE, NO.1
17565-31040

2ZRFE..ZRT265

 2
17561B - SUPPORT, EXHAUST PIPE, NO.1
17565-31040

2ZRFE..ZRT265

 2
17565 - SUPPORT, EXHAUST PIPE, NO.5
17565-22040

2ZRFE..ZRT265

 3
17565 - SUPPORT, EXHAUST PIPE, NO.5
17565-22040

2ZRFE..ZRT265

 3
17565 - SUPPORT, EXHAUST PIPE, NO.5
17565-22040

2ZRFE..ZRT265

 3
Common parts
90105-10023
90461-12251
90461-12375
90461-12400
90501-35035
90501-35036
90901-05020
90901-05026
91553-81035
91631-60622
Linked diagrams
8401
