ZRT265-AEXEK (2007)
Toyota Premio/Allion

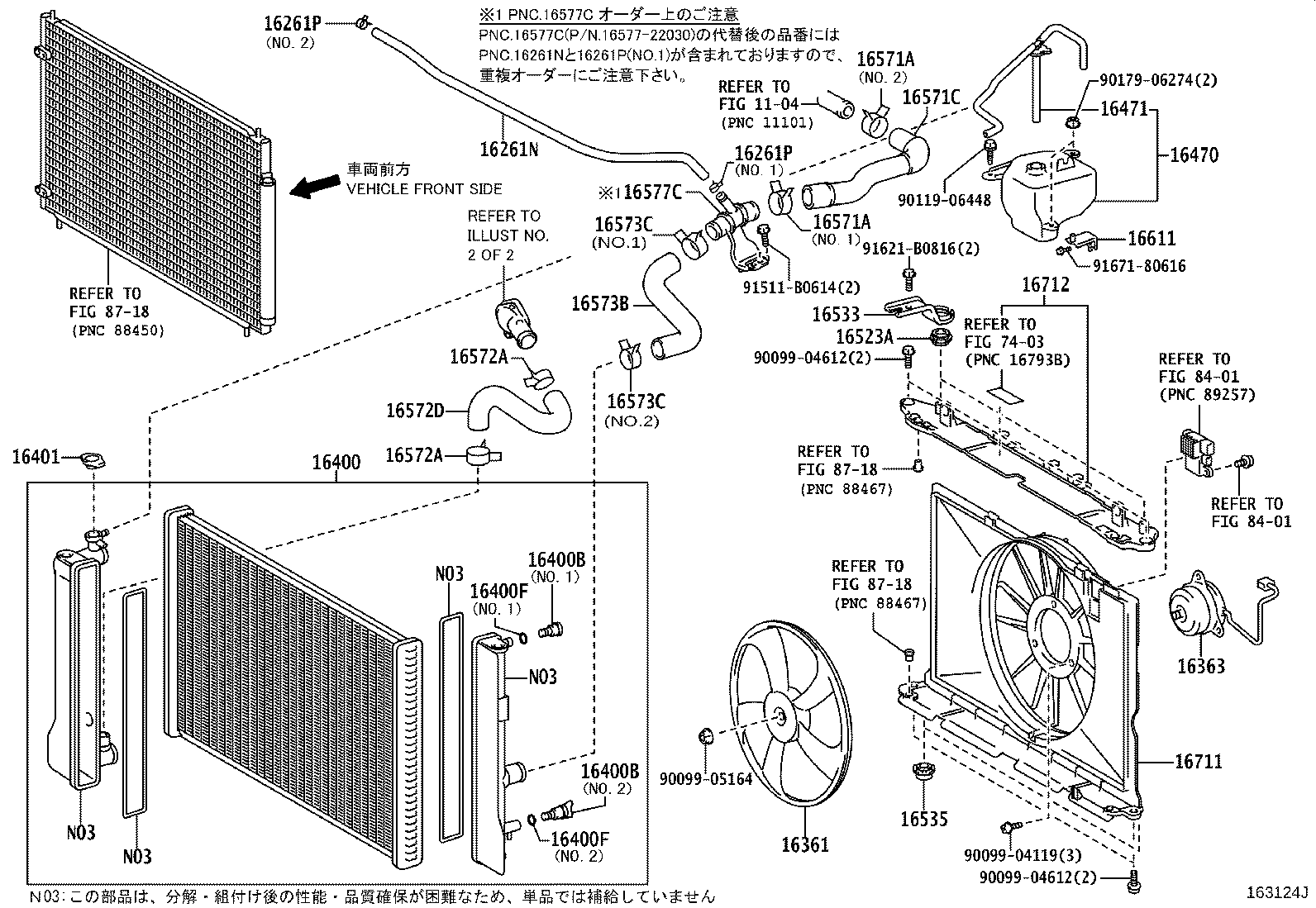

ILLUST NO. 1 OF 2(0705-1606)2ZR#,3ZRFAE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261N - HOSE, WATER BY-PASS, NO.2 | ||||
| 16261-21140 |
2ZRFE,3ZRFAE..ZRT26#..CBU |
1 | ||
| 16261P - CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-15022 |
2ZRFE,3ZRFAE..ZRT26#..CBU NO.1 & NO.2 |
2 | ||
| 16261P - CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-15022 |
2ZRFE,3ZRFAE..ZRT26#..CBU NO.1 & NO.2 |
2 | ||
| 16361 - FAN | ||||
| 16361-22100 |
2ZRFE..ZRT26# |
1 | ||
| 16361-21110 |
2ZRFE,3ZRFAE..ZRT26#..CBU |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-22120 |
2ZRFE,3ZRFAE..ZRT26#..CBU |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16410-22150 |
2ZRFE,3ZRFAE..ZRT26#..CBU |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-21280 |
2ZRFE,3ZRFAE..ZRT26#..CBU NO.2 |
1 | ||
| 16417-28530 |
2ZRFE,3ZRFAE..ZRT26#..CBU NO.1 |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-21280 |
2ZRFE,3ZRFAE..ZRT26#..CBU NO.2 |
1 | ||
| 16417-28530 |
2ZRFE,3ZRFAE..ZRT26#..CBU NO.1 |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16418-20290 |
2ZRFE,3ZRFAE..ZRT26#..CBU NO.1 |
1 | ||
| 16492-21050 |
2ZRFE,3ZRFAE..ZRT26#..CBU NO.2 |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16418-20290 |
2ZRFE,3ZRFAE..ZRT26#..CBU NO.1 |
1 | ||
| 16492-21050 |
2ZRFE,3ZRFAE..ZRT26#..CBU NO.2 |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-72090 |
2ZRFE,3ZRFAE..ZRT26#..CBU |
1 | ||
| 16401-20353 |
2ZRFE,3ZRFAE..ZRT26#..CBU |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-21030 |
2ZRFE,3ZRFAE..ZRT26#..CBU |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-21070 |
2ZRFE,3ZRFAE..ZRT26#..CBU |
1 | ||
| 16523A - CUSHION, RADIATOR SUPPORT | ||||
| 16523-21050 |
2ZRFE,3ZRFAE..ZRT26#..CBU |
2 | ||
| 16533 - SUPPORT, RADIATOR, UPPER | ||||
| 16533-21040 |
2ZRFE,3ZRFAE..ZRT26#..CBU |
2 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 16535-21090 |
2ZRFE,3ZRFAE..ZRT26#..CBU |
2 | ||
| 16535-21091 |
2ZRFE,3ZRFAE..ZRT26#..CBU |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 96136-43901 |
2ZRFE,3ZRFAE..ZRT26#..CBU NO.2 |
1 | ||
| 96136-44301 |
2ZRFE,3ZRFAE..ZRT26#..CBU NO.1 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 96136-43901 |
2ZRFE,3ZRFAE..ZRT26#..CBU NO.2 |
1 | ||
| 96136-44301 |
2ZRFE,3ZRFAE..ZRT26#..CBU NO.1 |
1 | ||
| 16571C - HOSE, RADIATOR, NO.1 | ||||
| 16571-37110 |
2ZRFE..ZRT260,265 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96136-44301 |
2ZRFE,3ZRFAE..ZRT26#..CBU |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96136-44301 |
2ZRFE,3ZRFAE..ZRT26#..CBU |
2 | ||
| 16572D - HOSE, RADIATOR, NO.2 | ||||
| 16572-37100 |
2ZRFE,3ZRFAE..ZRT26#..CBU |
1 | ||
| 16573B - HOSE, RADIATOR, NO.3 | ||||
| 16573-21090 |
2ZRFE,3ZRFAE..ZRT26#..CBU |
1 | ||
| 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 | ||||
| 96136-44301 |
2ZRFE,3ZRFAE..ZRT26#..CBU NO.2 |
1 | ||
| 90466-35001 |
2ZRFE,3ZRFAE..ZRT26#..CBU NO.1 |
1 | ||
| 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 | ||||
| 96136-44301 |
2ZRFE,3ZRFAE..ZRT26#..CBU NO.2 |
1 | ||
| 90466-35001 |
2ZRFE,3ZRFAE..ZRT26#..CBU NO.1 |
1 | ||
| 16577C - PIPE, RADIATOR | ||||
| 16577-22030 |
2ZRFE,3ZRFAE..ZRT26#..CBU ｲﾗｽﾄ参照 |
1 | ||
| 16611 - BRACKET, RADIATOR RESERVE TANK | ||||
| 16611-21030 |
2ZRFE,3ZRFAE..ZRT26#..CBU |
1 | ||
| 16711 - SHROUD, FAN | ||||
| 16711-22171 |
2ZRFE,3ZRFAE..ZRT26#..CBU |
1 | ||
| 16711-22170 |
2ZRFE..ZRT26# |
1 | ||
| 16712 - SHROUD, FAN, NO.2 | ||||
| 16712-37020 |
2ZRFE,3ZRFAE..ZRT26#..CBU |
1 | ||
| Common parts | ||||
| 90099-04119 | ||||
| 90099-04612 | ||||
| 90099-05164 | ||||
| 90119-06448 | ||||
| 90179-06274 | ||||
| 91511-B0614 | ||||
| 91621-B0816 | ||||
| 91671-80616 | ||||
| Linked diagrams | ||||
| 1104 | ||||
| 7403 | ||||
| 8401 | ||||
| 8718 | ||||

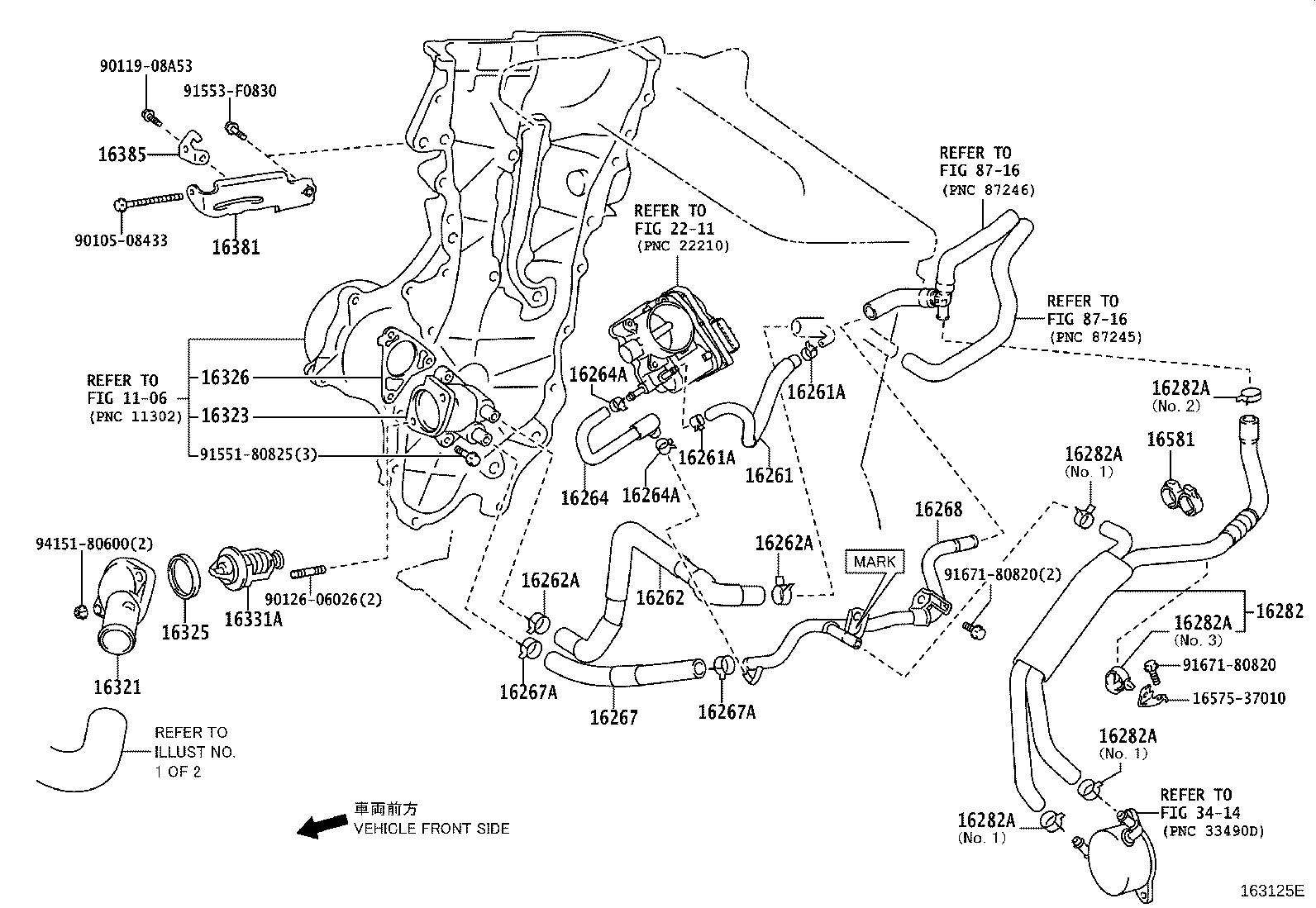

ILLUST NO. 2 OF 2(0705-1212)2ZR#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-37021 |
2ZRFE..ZRT260,265 |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96137-41501 |
2ZRFE,3ZRFAE..ZRT26#..CBU |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96137-41501 |
2ZRFE,3ZRFAE..ZRT26#..CBU |
2 | ||
| 16262 - HOSE, WATER INLET | ||||
| 16262-37010 |
2ZRFE,3ZRFAE..ZRT26#..CBU |
1 | ||
| 16262A - CLIP(FOR WATER INLET HOSE) | ||||
| 96136-42501 |
2ZRFE,3ZRFAE..ZRT26#..CBU |
2 | ||
| 16262A - CLIP(FOR WATER INLET HOSE) | ||||
| 96136-42501 |
2ZRFE,3ZRFAE..ZRT26#..CBU |
2 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-37021 |
2ZRFE..ZRT260,265 |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96137-41501 |
2ZRFE,3ZRFAE..ZRT26#..CBU |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96137-41501 |
2ZRFE,3ZRFAE..ZRT26#..CBU |
2 | ||
| 16267 - HOSE, WATER BY-PASS, NO.3 | ||||
| 16267-37010 |
2ZRFE..ZRT260,265 |
1 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 96136-42501 |
2ZRFE..ZRT260,265 |
2 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 96136-42501 |
2ZRFE..ZRT260,265 |
2 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-37020 |
2ZRFE..ZRT260,265 |
1 | ||
| 16268-37021 |
2ZRFE..ZRT260,265 識別ﾏｰｸ=ﾋﾟﾝｸ OR ﾌﾞﾗｯｸ |
1 | ||
| 16282 - HOSE, WATER BY-PASS, NO.5 | ||||
| 16260-37040 |
2ZRFE..ZRT260,265 |
1 | ||
| 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 96136-42501 |
2ZRFE..ZRT260,265 NO.2 |
1 | ||
| 96136-52201 |
2ZRFE..ZRT260,265 NO.1 |
3 | ||
| 90929-01401 |
2ZRFE..ZRT260,265 NO.3 |
1 | ||
| 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 96136-42501 |
2ZRFE..ZRT260,265 NO.2 |
1 | ||
| 96136-52201 |
2ZRFE..ZRT260,265 NO.1 |
3 | ||
| 90929-01401 |
2ZRFE..ZRT260,265 NO.3 |
1 | ||
| 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 96136-42501 |
2ZRFE..ZRT260,265 NO.2 |
1 | ||
| 96136-52201 |
2ZRFE..ZRT260,265 NO.1 |
3 | ||
| 90929-01401 |
2ZRFE..ZRT260,265 NO.3 |
1 | ||
| 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 96136-42501 |
2ZRFE..ZRT260,265 NO.2 |
1 | ||
| 96136-52201 |
2ZRFE..ZRT260,265 NO.1 |
3 | ||
| 90929-01401 |
2ZRFE..ZRT260,265 NO.3 |
1 | ||
| 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 96136-42501 |
2ZRFE..ZRT260,265 NO.2 |
1 | ||
| 96136-52201 |
2ZRFE..ZRT260,265 NO.1 |
3 | ||
| 90929-01401 |
2ZRFE..ZRT260,265 NO.3 |
1 | ||
| 16321 - INLET, WATER | ||||
| 16321-37010 |
2ZRFE,3ZRFAE..ZRT26#..CBU |
1 | ||
| 16323 - HOUSING, WATER INLET | ||||
| 16323-37020 |
2ZRFE..ZRT260,265 |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-62010 |
2ZRFE,3ZRFAE..ZRT26#..CBU |
1 | ||
| 16325-28010 |
2ZRFE,3ZRFAE..ZRT26#..CBU |
1 | ||
| 16326 - GASKET, WATER INLET HOUSING, NO.2 | ||||
| 16326-37010 |
2ZRFE,3ZRFAE..ZRT26#..CBU |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03129 |
2ZRFE,3ZRFAE..ZRT26#..CBU *WAX 82−95 |
1 | ||
| 90916-03144 |
2ZRFE,3ZRFAE..ZRT26#..CBU *WAX 82−95,ｸｾﾞ− |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-37010 |
2ZRFE..ZRT260,265 |
1 | ||
| 16385 - SLIDER, FAN BELT ADJUSTING | ||||
| 16385-37010 |
2ZRFE,3ZRFAE..ZRT26#..CBU |
1 | ||
| 16581 - CLAMP, HOSE(FOR WATER HOSE) | ||||
| 16581-37050 |
2ZRFE..ZRT260,265 |
1 | ||
| Common parts | ||||
| 16575-37010 | ||||
| 90105-08433 | ||||
| 90119-08A53 | ||||
| 90126-06026 | ||||
| 91551-80825 | ||||
| 91553-F0830 | ||||
| 91671-80820 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 1106 | ||||
| 2211 | ||||
| 3414 | ||||
| 8716 | ||||
