ZRT265-AEXEK (2007)

Toyota Premio/Allion

Production May 2007 - Apr 2010
Engine 2ZRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0705-1212)2ZR#,3ZRFAE

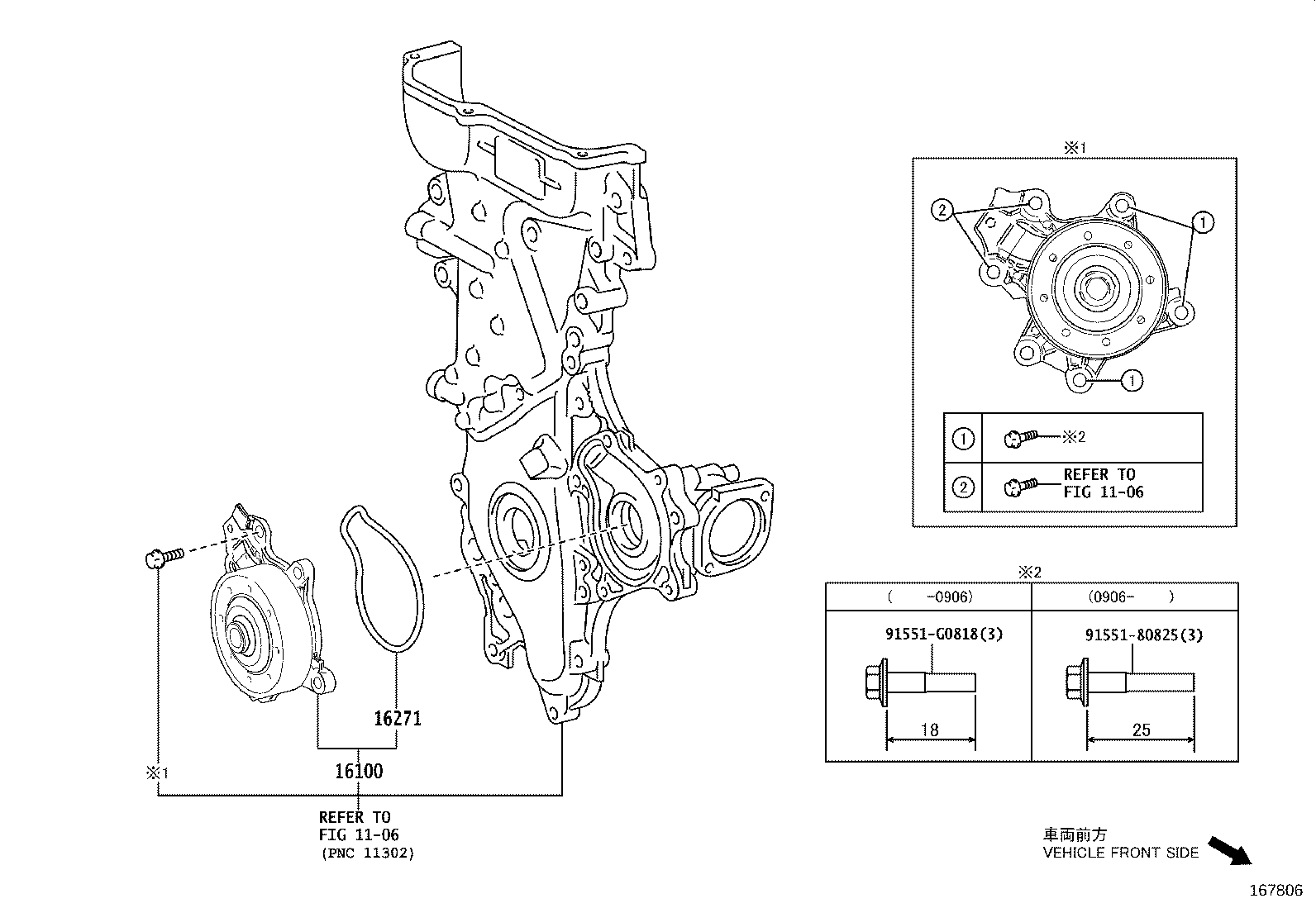

Click highlighted areas on diagram

diagram 1106 1106 16100 16271 9155180825 91551G0818
Part # Description Qty Price
16100 - PUMP ASSY, ENGINE WATER
16100-39466

2ZRFE,3ZRFAE..ZRT26#..CBU

 1
16100-39465

2ZRFE,3ZRFAE..ZRT26#..CBU

 1
16271 - GASKET, WATER PUMP
16271-37010

2ZRFE,3ZRFAE..ZRT26#..CBU

 1
Common parts
91551-80825
91551-G0818
Linked diagrams
1106
