ZRT265-AEXEK (2007)

Toyota Premio/Allion

Production May 2007 - Apr 2010
Engine 2ZRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0705- )2ZR#,3ZRFAE

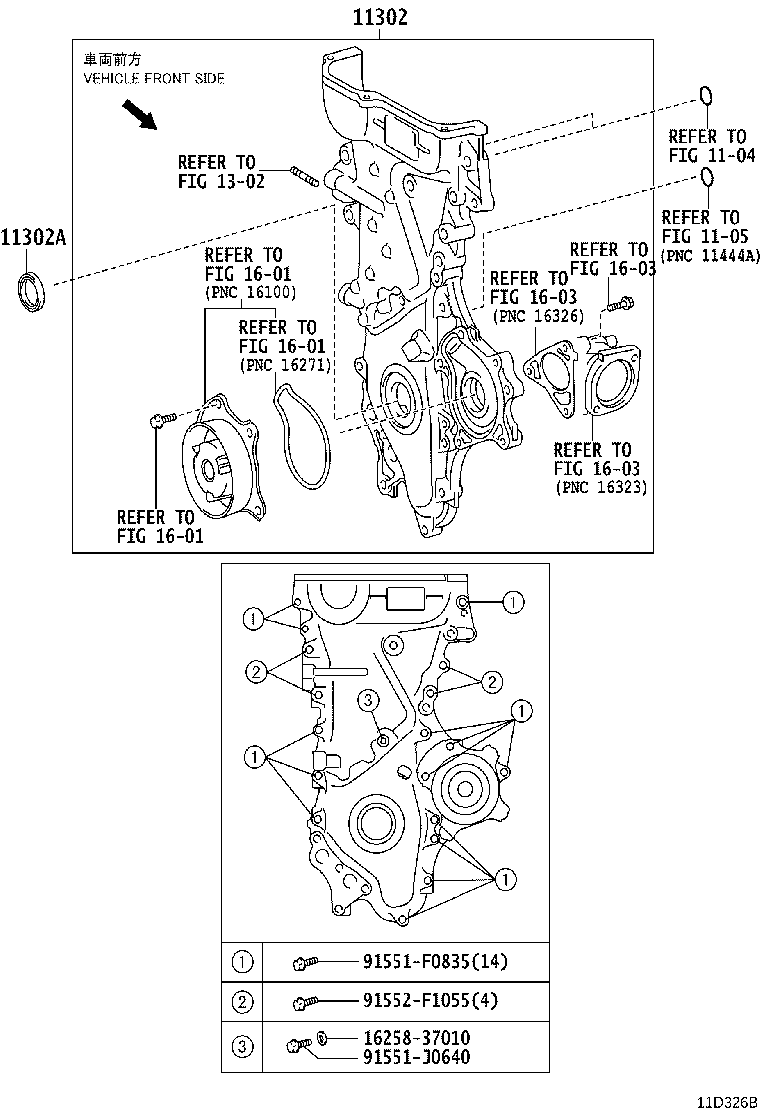

Click highlighted areas on diagram

diagram 1104 1105 11302 11302A 1302 1601 1601 1601 1603 1603 1603 1625837010 91551F0835 91551J0640 91552F1055
Part # Description Qty Price
11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT
11310-37010

2ZRFE..ZRT260,265

 1
11302A - SEAL, OIL(FOR TIMING CHAIN OR BELT COVER)
90311-38089

2ZRFE,3ZRFAE..ZRT26#..CBU

 1
Common parts
16258-37010
91551-F0835
91551-J0640
91552-F1055
Linked diagrams
1104
1105
1302
1601
1603
