Toyota Premio/allion ZRT265 ENGINE OVERHAUL GASKET KIT - JDM Part Detective

Home Blog About Contact Search

Manufacturers Home
Toyota
JP
PREMIO/ALLION
ZRT265-AEXEK (2007)
1103 - ENGINE OVERHAUL GASKET KIT

ZRT265-AEXEK (2007)

Toyota Premio/Allion

Production May 2007 - Apr 2010

Engine 2ZRFE

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

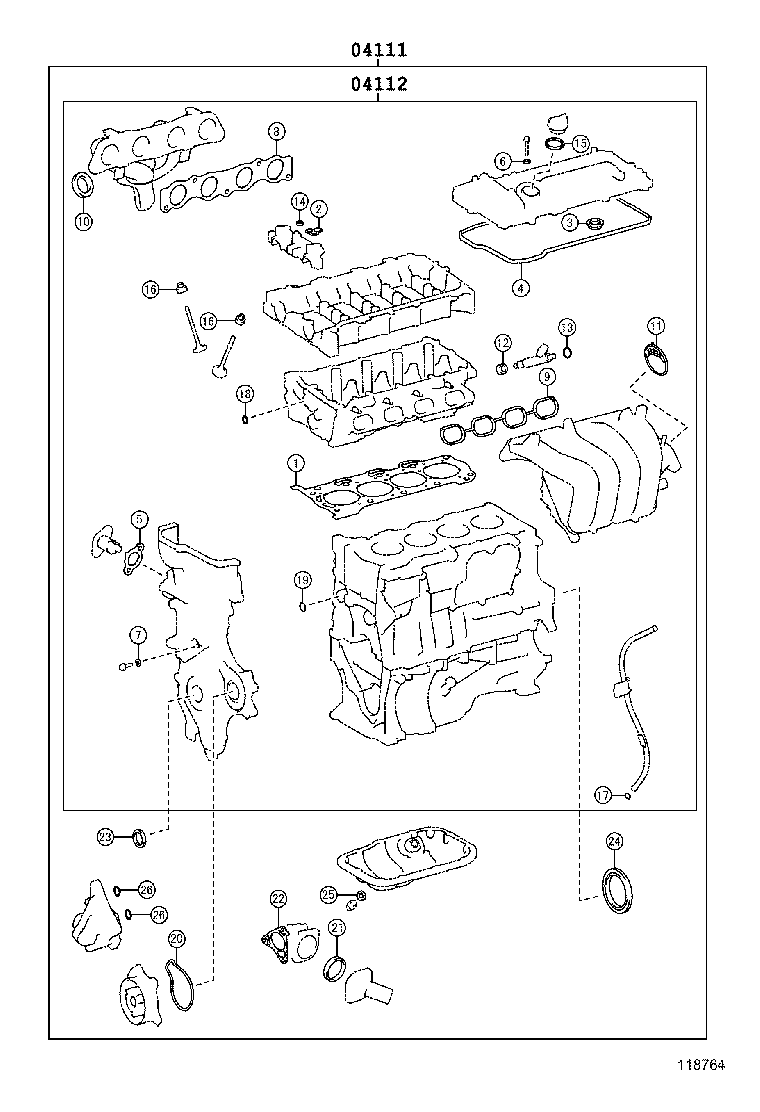

ILLUST NO. 1 OF 2(0705- )2ZRFE

Click highlighted areas on diagram

diagram

Part #	Description	Period	Qty	Price
04111 - GASKET KIT, ENGINE OVERHAUL
04111-37104	2ZRFE..ZRT265	03/2009 - 04/2010	1
04111-37101	2ZRFE..ZRT265	05/2007 - 06/2008	1
04111-37103	2ZRFE..ZRT265	06/2008 - 03/2009	1
04112 - GASKET KIT, ENGINE VALVE GRIND
04112-37081	2ZRFE..ZRT265	05/2007 - 06/2008	1
04112-37084	2ZRFE..ZRT265	03/2009 - 04/2010	1
04112-37083	2ZRFE..ZRT265	06/2008 - 03/2009	1

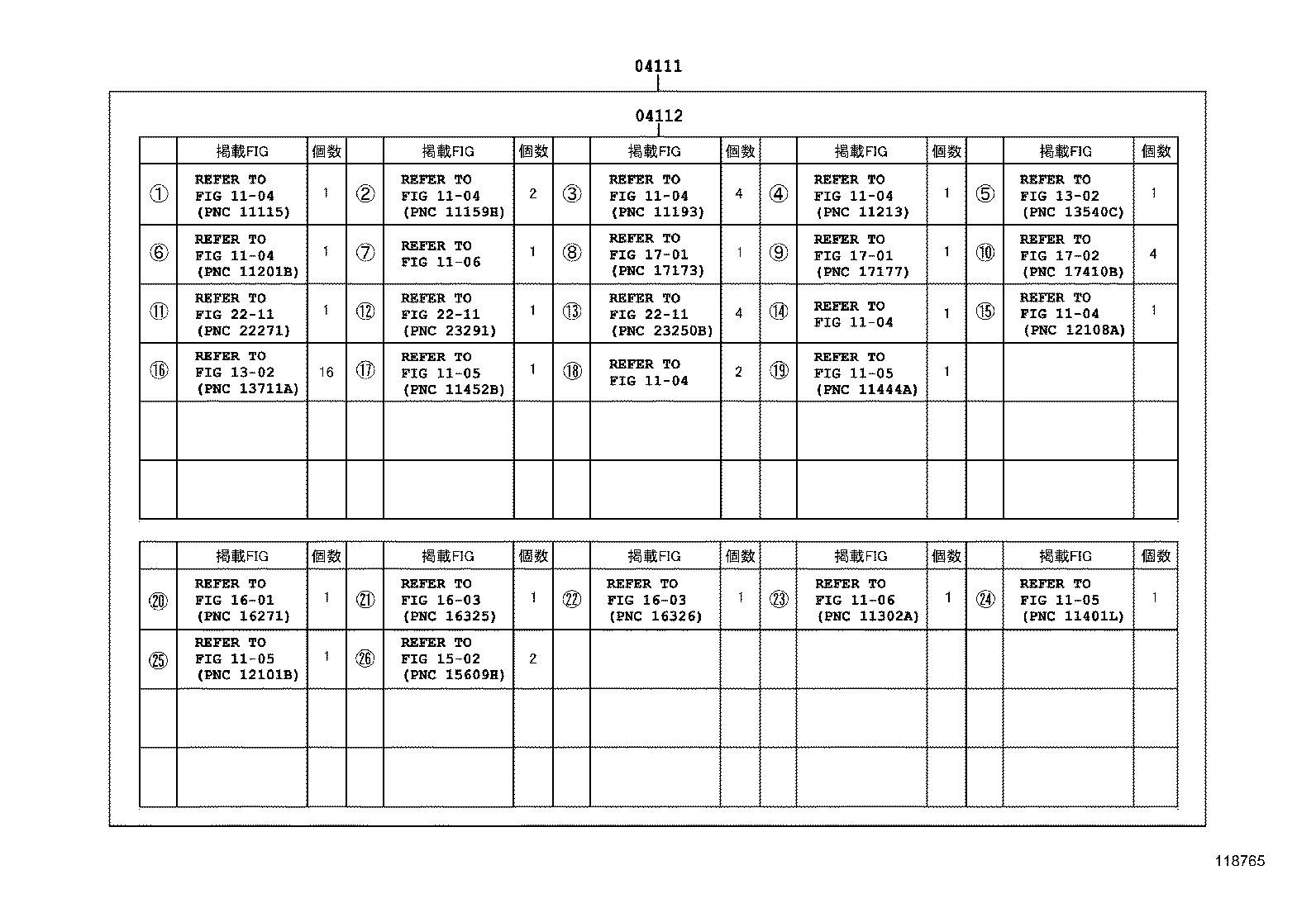

ILLUST NO. 2 OF 2(0705- )2ZRFE

Click highlighted areas on diagram

diagram

Part #	Description	Period	Qty	Price
04111 - GASKET KIT, ENGINE OVERHAUL
04111-37104	2ZRFE..ZRT265	03/2009 - 04/2010	1
04111-37101	2ZRFE..ZRT265	05/2007 - 06/2008	1
04111-37103	2ZRFE..ZRT265	06/2008 - 03/2009	1
04112 - GASKET KIT, ENGINE VALVE GRIND
04112-37081	2ZRFE..ZRT265	05/2007 - 06/2008	1
04112-37084	2ZRFE..ZRT265	03/2009 - 04/2010	1
04112-37083	2ZRFE..ZRT265	06/2008 - 03/2009	1
Linked diagrams
1104
1105
1106
1302
1502
1601
1603
1701
1702
2211
