ZRT265-AEXEK (2007)

Toyota Premio/Allion

Production May 2007 - Apr 2010
Engine 2ZRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0705- )

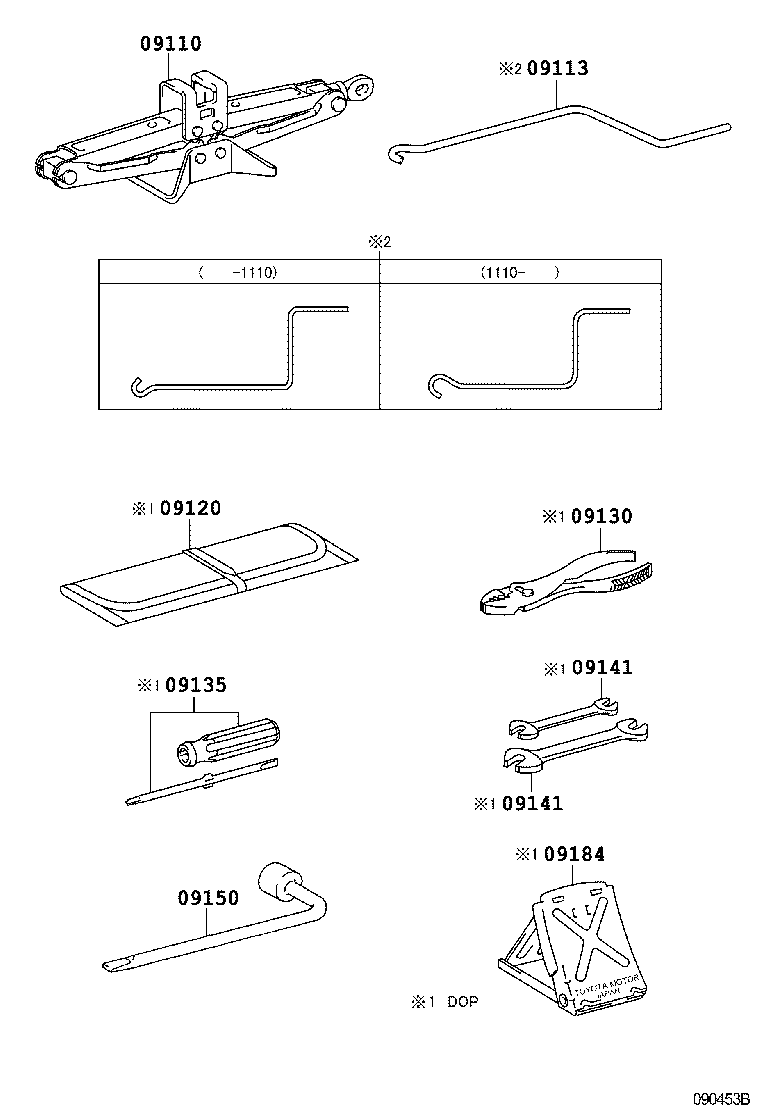

Click highlighted areas on diagram

diagram 09110 09113 09120 09130 09135 09141 09141 09150 09184
Part # Description Qty Price
09110 - JACK ASSY
09111-02090

NZT260,ZRT26#..CBU

 1
09111-0W041

NZT260,ZRT26#..CBU

 1
09113 - HANDLE, JACK
09113-20030

NZT260,ZRT26#..CBU

 1
09120 - BAG, TOOL
09120-16030

NZT260,ZRT26#..CBU

ﾂｰﾙ(DOP)−有り

 1
09130 - PLIERS
99913-11500

NZT260,ZRT26#..CBU

ﾂｰﾙ(DOP)−有り

 1
09135 - DRIVER, SCREW
99915-10700

NZT260,ZRT26#..CBU

ﾂｰﾙ(DOP)−有り

 1
09141 - SPANNER
99914-10810

NZT260,ZRT26#..CBU

8 X 10,ﾂｰﾙ(DOP)−有り

 1
99914-11214

NZT260,ZRT26#..CBU

12 X 14,ﾂｰﾙ(DOP)−有り

 1
09141 - SPANNER
99914-10810

NZT260,ZRT26#..CBU

8 X 10,ﾂｰﾙ(DOP)−有り

 1
99914-11214

NZT260,ZRT26#..CBU

12 X 14,ﾂｰﾙ(DOP)−有り

 1
09150 - WRENCH, HUB NUT BOX
09150-40010

NZT260,ZRT26#..CBU

 1
09184 - STOPPER, WHEEL
09184-00010

NZT260,ZRT26#..CBU

ﾂｰﾙ(DOP)−有り

 1
