ZRT261-CEXGP (2010)

Toyota Premio/Allion

Production Apr 2010 - Jun 2016
Engine 3ZRFAE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1212- )2ZRFAE,3ZRFAE

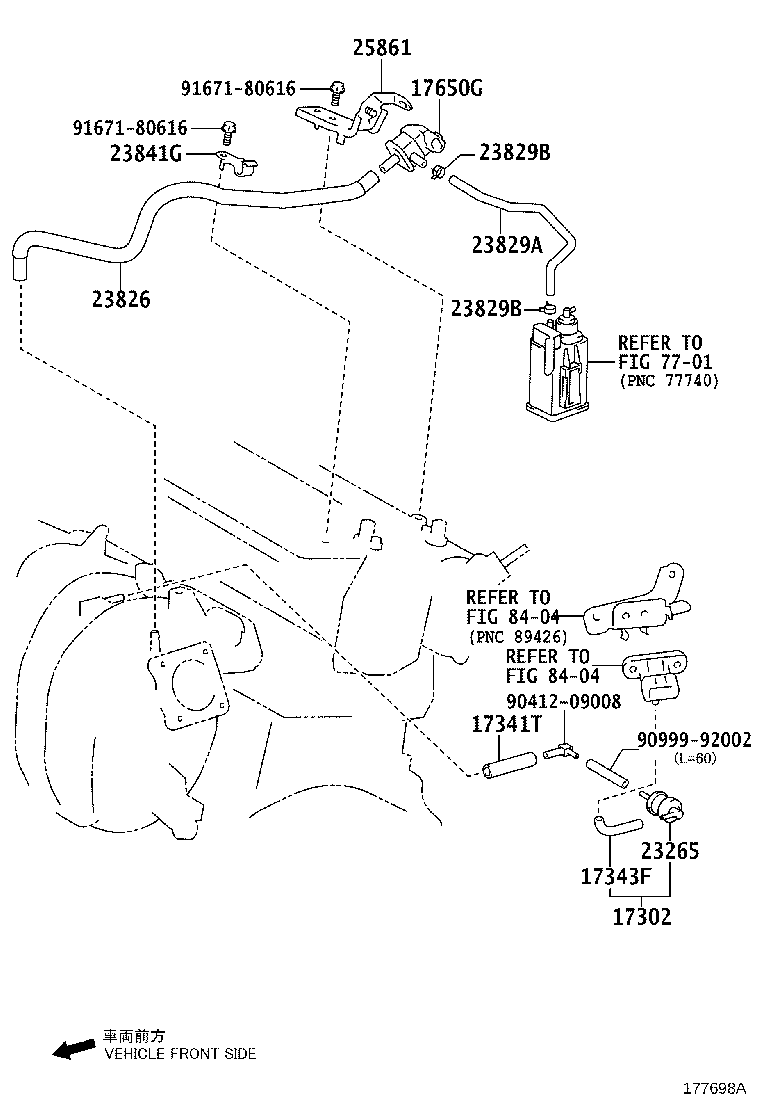

Click highlighted areas on diagram

diagram 17302 17341T 17343F 17650G 23265 23826 23829A 23829B 23829B 23841G 25861 7701 8404 8404 9041209008 9099992002 9167180616 9167180616
Part # Description Qty Price
17302 - HOSE SUB-ASSY, AIR
17302-37010

2ZRFAE,3ZRFAE..ZRT26#..CBU

 1
17341T - HOSE, AIR, NO.1
17341-37070

2ZRFAE,3ZRFAE..ZRT26#..CBU

 1
17341-37060

2ZRFAE,3ZRFAE..ZRT26#..CBU

 1
17343F - HOSE, AIR, NO.3
17343-37050

2ZRFAE,3ZRFAE..ZRT26#..CBU

 1
17650G - VALVE, DUTY VACUUM SWITCHING
90910-12276

2ZRFAE,3ZRFAE..ZRT26#..CBU

 1
23265 - FILTER, GAS, NO.1
90917-11038

2ZRFAE,3ZRFAE..ZRT26#..CBU

 1
90917-11022

2ZRFAE,3ZRFAE..ZRT26#..CBU

 1
23826 - HOSE, FUEL VAPOR FEED, NO.1
23826-37220

2ZRFAE,3ZRFAE..ZRT26#..CBU

 1
23826-37050

2ZRFAE,3ZRFAE..ZRT26#..CBU

 1
23829A - HOSE, FUEL VAPOR FEED
23826-37120

2ZRFAE,3ZRFAE..ZRT26#..CBU

 1
23829B - CLIP(FOR FUEL VAPOR FEED HOSE)
96132-51100

2ZRFAE,3ZRFAE..ZRT26#..CBU

 2
23829B - CLIP(FOR FUEL VAPOR FEED HOSE)
96132-51100

2ZRFAE,3ZRFAE..ZRT26#..CBU

 2
23841G - CLAMP, FUEL HOSE
23841-37060

2ZRFAE,3ZRFAE..ZRT26#..CBU

 1
25861 - BRACKET, VACUUM SWITCHING VALVE
25861-37010

2ZRFAE,3ZRFAE..ZRT26#..CBU

 1
25861-37030

2ZRFAE,3ZRFAE..ZRT26#..CBU

 1
Common parts
90412-09008
90999-92002
91671-80616
Linked diagrams
7701
8404
