ZRT261-AEXGP (2016)

Toyota Premio/Allion

Production Jun 2016 - Sep 2020
Engine 3ZRFAE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1606- )PRM

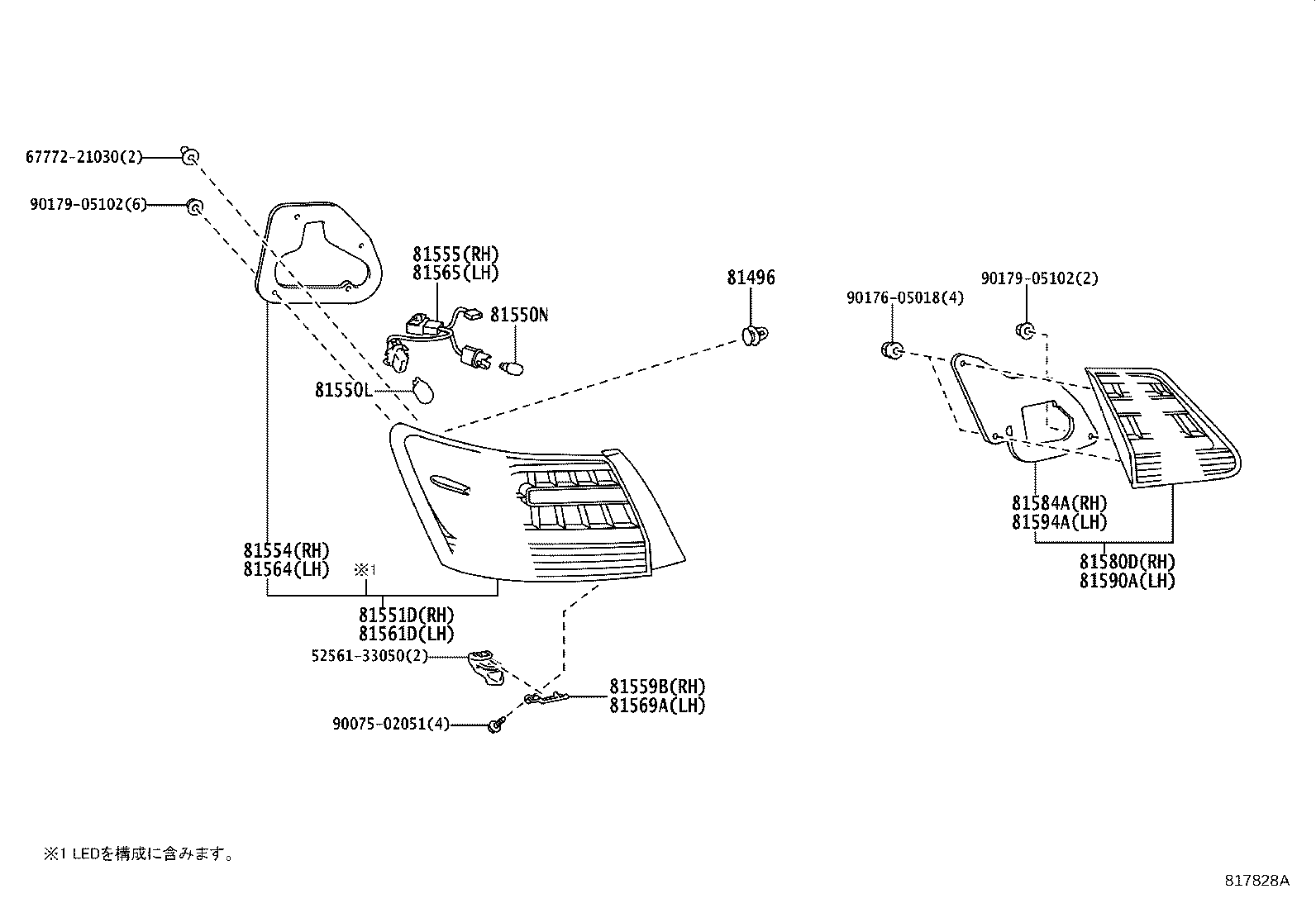

Click highlighted areas on diagram

diagram 5256133050 6777221030 81496 81550L 81550N 81551D 81554 81555 81559B 81561D 81564 81565 81569A 81580D 81584A 81590A 81594A 9007502051 9017605018 9017905102 9017905102
Part # Description Qty Price
81496 - GUIDE, REAR COMBINATION LAMP
81496-60010

ZRT261..CBU

 2
81550L - BULB, REAR TURN SIGNAL LAMP
90981-15021

ZRT261..CBU

12V 21W,ｱﾝﾊﾞｰ

 2
81550N - BULB, BACK UP LAMP
90981-11059

ZRT261..CBU

12V 16W

 2
81551D - LENS & BODY, REAR COMBINATION LAMP, RH
81551-20A60

ZRT261..PRM..CBU

 1
81554 - GASKET, REAR COMBINATION LAMP BODY, RH
81552-20A60

ZRT261..PRM..CBU

 1
81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81555-20A60

ZRT261..PRM..CBU

 1
81559B - BRACKET, REAR COMBINATION LAMP, RH
81559-20A20

ZRT261..PRM..CBU

 1
81561D - LENS & BODY, REAR COMBINATION LAMP, LH
81561-20A60

ZRT261..PRM..CBU

 1
81564 - GASKET, REAR COMBINATION LAMP BODY, LH
81562-20A60

ZRT261..PRM..CBU

 1
81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81555-20A60

ZRT261..PRM..CBU

 1
81569A - BRACKET, REAR COMBINATION LAMP, LH
81569-20A20

ZRT261..PRM..CBU

 1
81580D - LAMP ASSY, REAR, RH
81580-20330

ZRT261..PRM..CBU

 1
81584A - GASKET, REAR LAMP RH
81584-20330

ZRT261..PRM..CBU

 1
81590A - LAMP ASSY, REAR, LH
81590-20260

ZRT261..PRM..CBU

 1
81594A - GASKET, REAR LAMP LH
81594-20260

ZRT261..PRM..CBU

 1
Common parts
52561-33050
67772-21030
90075-02051
90176-05018
90179-05102
