ZRT261-AEXGP (2007)
Toyota Premio/Allion
Production
Dec 2007
-
Apr 2010
Engine
3ZRFAE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0712- )ZRT261

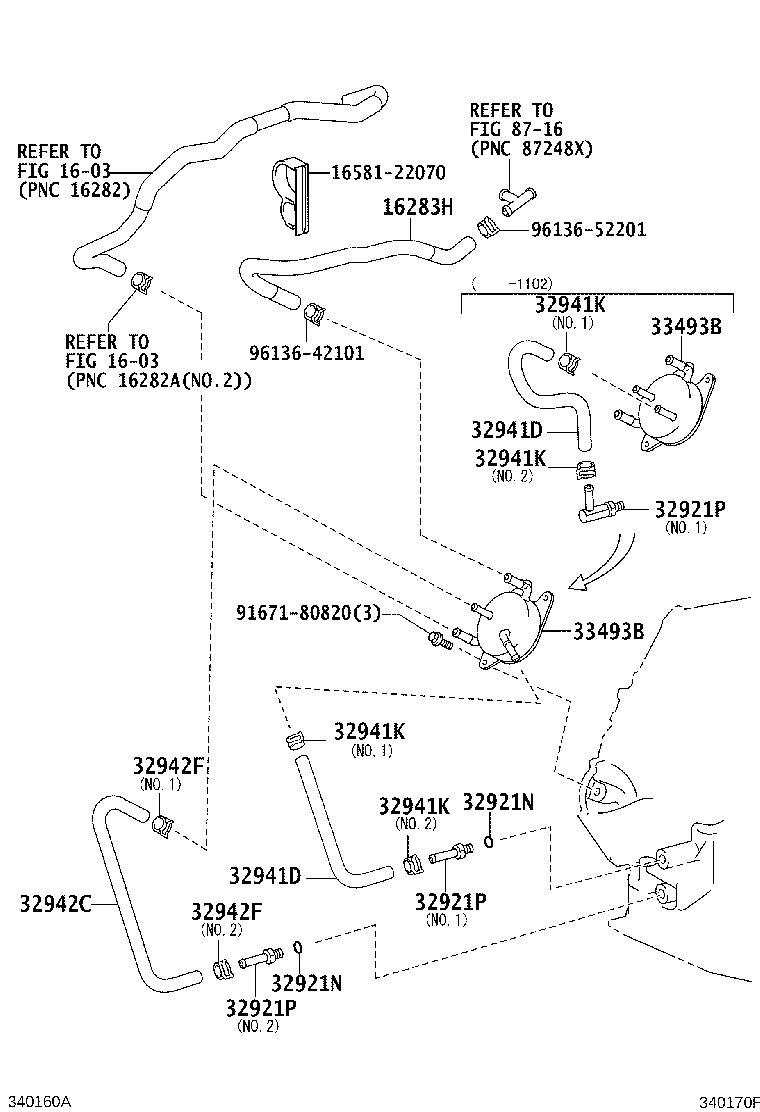

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16283H - HOSE, WATER BY-PASS, NO.6 | ||||
| 16261-37060 |
3ZRFAE..ZRT261..CBU |
1 | ||
| 32921N - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-10189 |
ZRT261..CBU |
2 | ||
| 32921N - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-10189 |
ZRT261..CBU |
2 | ||
| 32921P - UNION(FOR OIL COOLER TUBE) | ||||
| 90407-13009 |
ZRT261..CBU NO.1 |
1 | ||
| 90404-13004 |
ZRT261..CBU NO.2 |
1 | ||
| 32921P - UNION(FOR OIL COOLER TUBE) | ||||
| 90407-13009 |
ZRT261..CBU NO.1 |
1 | ||
| 90404-13004 |
ZRT261..CBU NO.2 |
1 | ||
| 32921P - UNION(FOR OIL COOLER TUBE) | ||||
| 90407-13009 |
ZRT261..CBU NO.1 |
1 | ||
| 90404-13004 |
ZRT261..CBU NO.2 |
1 | ||
| 32941D - HOSE, OIL COOLER INLET | ||||
| 32943-28070 |
ZRT261..CBU |
1 | ||
| 32941D - HOSE, OIL COOLER INLET | ||||
| 32943-28070 |
ZRT261..CBU |
1 | ||
| 32941K - CLIP, NO.1(FOR OIL COOLER HOSE) | ||||
| 90467-16022 |
ZRT261..CBU NO.2 |
1 | ||
| 90466-16004 |
ZRT261..CBU NO.1 |
1 | ||
| 90466-16004 |
ZRT261..CBU NO.2 |
1 | ||
| 32941K - CLIP, NO.1(FOR OIL COOLER HOSE) | ||||
| 90467-16022 |
ZRT261..CBU NO.2 |
1 | ||
| 90466-16004 |
ZRT261..CBU NO.1 |
1 | ||
| 90466-16004 |
ZRT261..CBU NO.2 |
1 | ||
| 32941K - CLIP, NO.1(FOR OIL COOLER HOSE) | ||||
| 90467-16022 |
ZRT261..CBU NO.2 |
1 | ||
| 90466-16004 |
ZRT261..CBU NO.1 |
1 | ||
| 90466-16004 |
ZRT261..CBU NO.2 |
1 | ||
| 32941K - CLIP, NO.1(FOR OIL COOLER HOSE) | ||||
| 90467-16022 |
ZRT261..CBU NO.2 |
1 | ||
| 90466-16004 |
ZRT261..CBU NO.1 |
1 | ||
| 90466-16004 |
ZRT261..CBU NO.2 |
1 | ||
| 32942C - HOSE, OIL COOLER OUTLET, NO.1 | ||||
| 32943-28080 |
ZRT261..CBU |
1 | ||
| 32942F - CLIP, NO.2(FOR OIL COOLER HOSE) | ||||
| 90467-16022 |
ZRT261..CBU NO.2 |
1 | ||
| 90466-16004 |
ZRT261..CBU NO.2 |
1 | ||
| 90466-16004 |
ZRT261..CBU NO.1 |
1 | ||
| 32942F - CLIP, NO.2(FOR OIL COOLER HOSE) | ||||
| 90467-16022 |
ZRT261..CBU NO.2 |
1 | ||
| 90466-16004 |
ZRT261..CBU NO.2 |
1 | ||
| 90466-16004 |
ZRT261..CBU NO.1 |
1 | ||
| 33493B - COOLER, OIL | ||||
| 33493-28040 |
ZRT261..CBU |
1 | ||
| 33493B - COOLER, OIL | ||||
| 33493-28040 |
ZRT261..CBU |
1 | ||
| Common parts | ||||
| 16581-22070 | ||||
| 91671-80820 | ||||
| 96136-42101 | ||||
| 96136-52201 | ||||
| Linked diagrams | ||||
| 1603 | ||||
| 8716 | ||||
