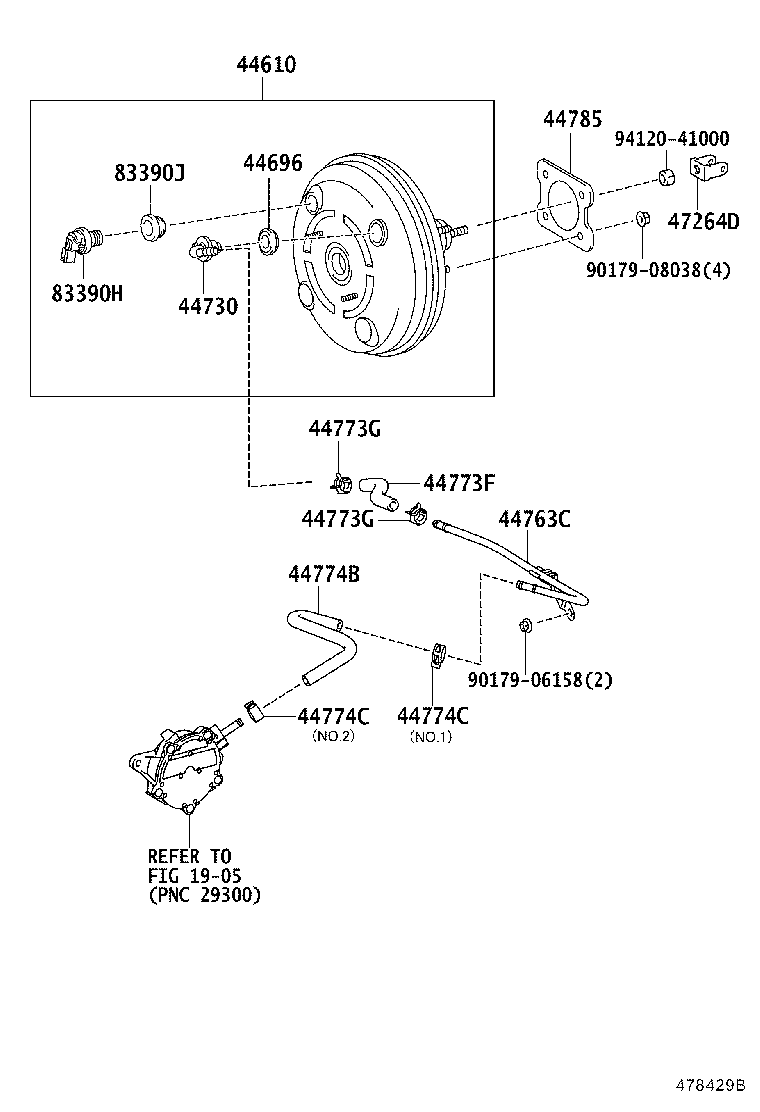

Toyota Premio/allion ZRT260 BRAKE BOOSTER & VACUUM TUBE

Part #	Description	Period	Qty
44610 - BOOSTER ASSY, BRAKE
44610-20A50	ZRT26#..CBU	12/2012 - 09/2014	1
44610-20A11	ZRT26#..CBU	04/2010 - 12/2012	1
44610-20A21	ZRT26#..CBU	09/2014 - 06/2016	1
44696 - GROMMET, CHECK VALVE
90480-24439	NZT260,ZRT26#..CBU	04/2010 - 06/2016	1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-20170	ZRT26#..CBU	04/2010 - 06/2016	1
44763C - TUBE, HOSE TO HOSE, NO.2
44763-12460	ZRT26#..CBU	04/2010 - 12/2012	1
44763-68020	ZRT26#..CBU	12/2012 - 06/2016	1
44773F - HOSE, UNION TO CHECK VALVE
44773-12820	NZT260,ZRT26#..CBU	04/2010 - 06/2016	1
44773G - CLIP(FOR UNION TO CHECK VALVE HOSE)
96133-41500	ZRT26#..CBU	04/2010 - 12/2012	2
90467-16014	ZRT26#..CBU	12/2012 - 06/2016	2
44773G - CLIP(FOR UNION TO CHECK VALVE HOSE)
96133-41500	ZRT26#..CBU	04/2010 - 12/2012	2
90467-16014	ZRT26#..CBU	12/2012 - 06/2016	2
44774B - HOSE, UNION TO CONNECTOR TUBE
44774-68020	ZRT26#..CBU	12/2012 - 06/2016	1
44774-12650	ZRT26#..CBU	04/2010 - 12/2012	1
44774C - CLIP(FOR UNION TO CONNECTOR TUBE HOSE)
96133-41500	ZRT26#..CBU NO.1	12/2012 - 06/2016	1
96133-41500	ZRT26#..CBU	04/2010 - 12/2012	2
90467-16014	ZRT26#..CBU NO.2	12/2012 - 06/2016	1
44774C - CLIP(FOR UNION TO CONNECTOR TUBE HOSE)
96133-41500	ZRT26#..CBU NO.1	12/2012 - 06/2016	1
96133-41500	ZRT26#..CBU	04/2010 - 12/2012	2
90467-16014	ZRT26#..CBU NO.2	12/2012 - 06/2016	1
44785 - GASKET, BRAKE BOOSTER
44785-12040	NZT260,ZRT26#..CBU	04/2010 - 06/2016	1
47264D - CLEVIS, BRAKE MASTER CYLINDER PUSH ROD
47264-63020	NZT260,ZRT26#..CBU	04/2010 - 11/2010	1
47264-68010	NZT260,ZRT26#..CBU	12/2010 - 06/2016	1
83390H - SWITCH ASSY, VACUUM WARNING
83390-28120	ZRT26#..CBU	04/2010 - 06/2016	1
83390J - GROMMET, VACUUM WARNING SWITCH
90480-24439	ZRT26#..CBU	04/2010 - 06/2016	1
Common parts
90179-06158
90179-08038
94120-41000
Linked diagrams
1905

ZRT260-CEXEP (2010)

(1212- )ZRT26#
