ZRT260-CEXEK (2007)

Toyota Premio/Allion

Production May 2007 - Apr 2010
Engine 2ZRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0705- )NZT260,ZRT260,261

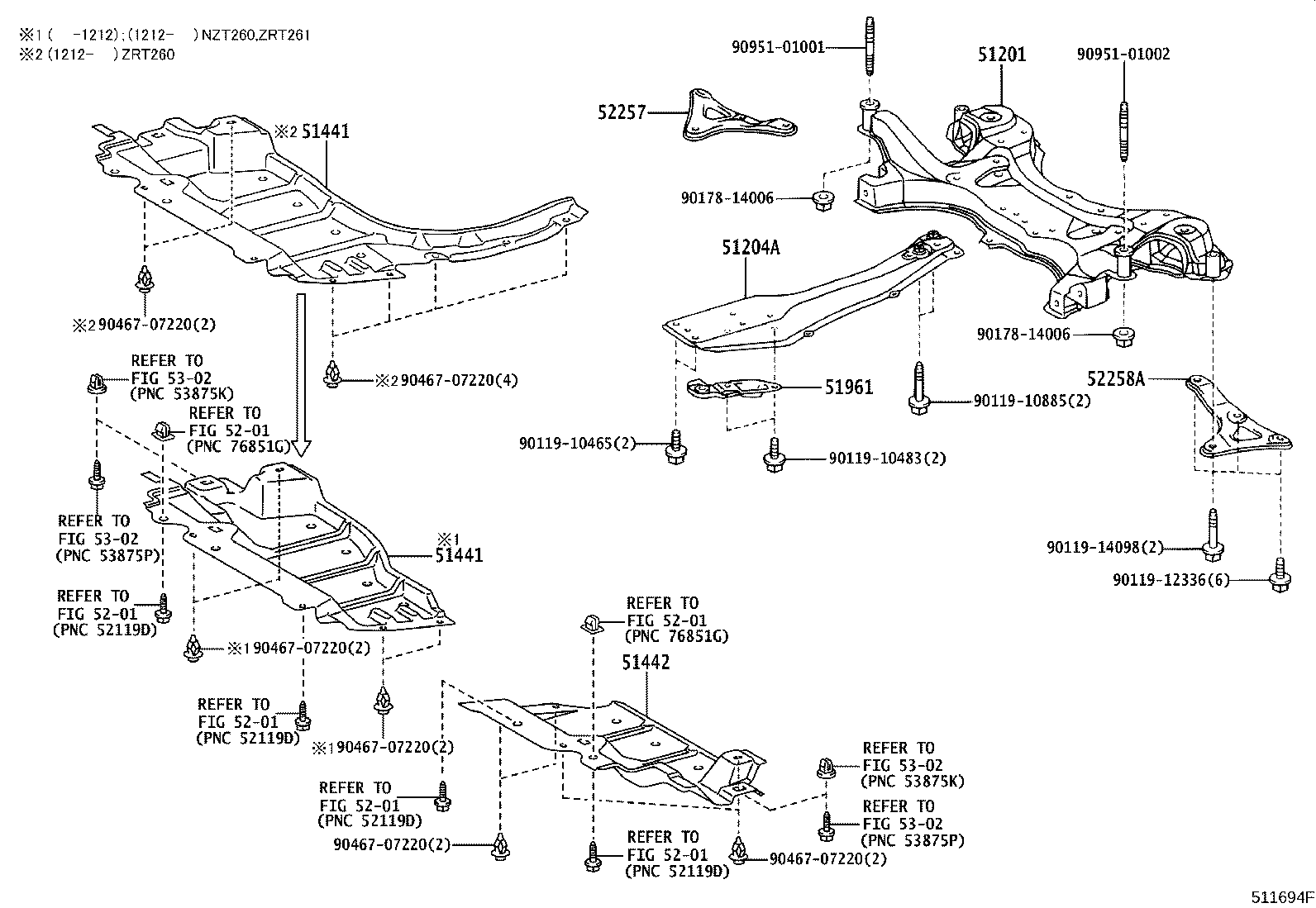

Click highlighted areas on diagram

diagram 51201 51204A 51441 51441 51442 51961 5201 5201 5201 5201 5201 5201 52257 52258A 5302 5302 5302 5302 9011910465 9011910483 9011910885 9011912336 9011914098 9017814006 9017814006 9046707220 9046707220 9046707220 9046707220 9046707220 9046707220 9095101001 9095101002
Part # Description Qty Price
51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION
51201-20361

NZT260,ZRT260,261..CBU

 1
51204A - MEMBER SUB-ASSY, ENGINE MOUNTING, CENTER
51204-44010

NZT260,ZRT260,261..CBU

 1
51441 - COVER, ENGINE UNDER, NO.1
51441-20450

NZT260,ZRT26#..CBU

 1
51441 - COVER, ENGINE UNDER, NO.1
51441-20450

NZT260,ZRT26#..CBU

 1
51442 - COVER, ENGINE UNDER, NO.2
51442-20570

NZT260,ZRT26#..CBU

 1
51961 - HOOK, NO.1
51963-32040

NZT260,ZRT26#..CBU

 1
52257 - BRACE, FRONT SUSPENSION MEMBER, REAR RH
52257-20070

NZT260,ZRT26#..CBU

 1
52258A - BRACE, FRONT SUSPENSION MEMBER, REAR LH
52258-20070

NZT260,ZRT26#..CBU

 1
Common parts
90119-10465
90119-10483
90119-10885
90119-12336
90119-14098
90178-14006
90467-07220
90951-01001
90951-01002
Linked diagrams
5201
5302
