NZT260-CEXEK (2016)
Toyota Premio/Allion
Production
Jun 2016
-
Sep 9999
Engine
1NZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(1606- )

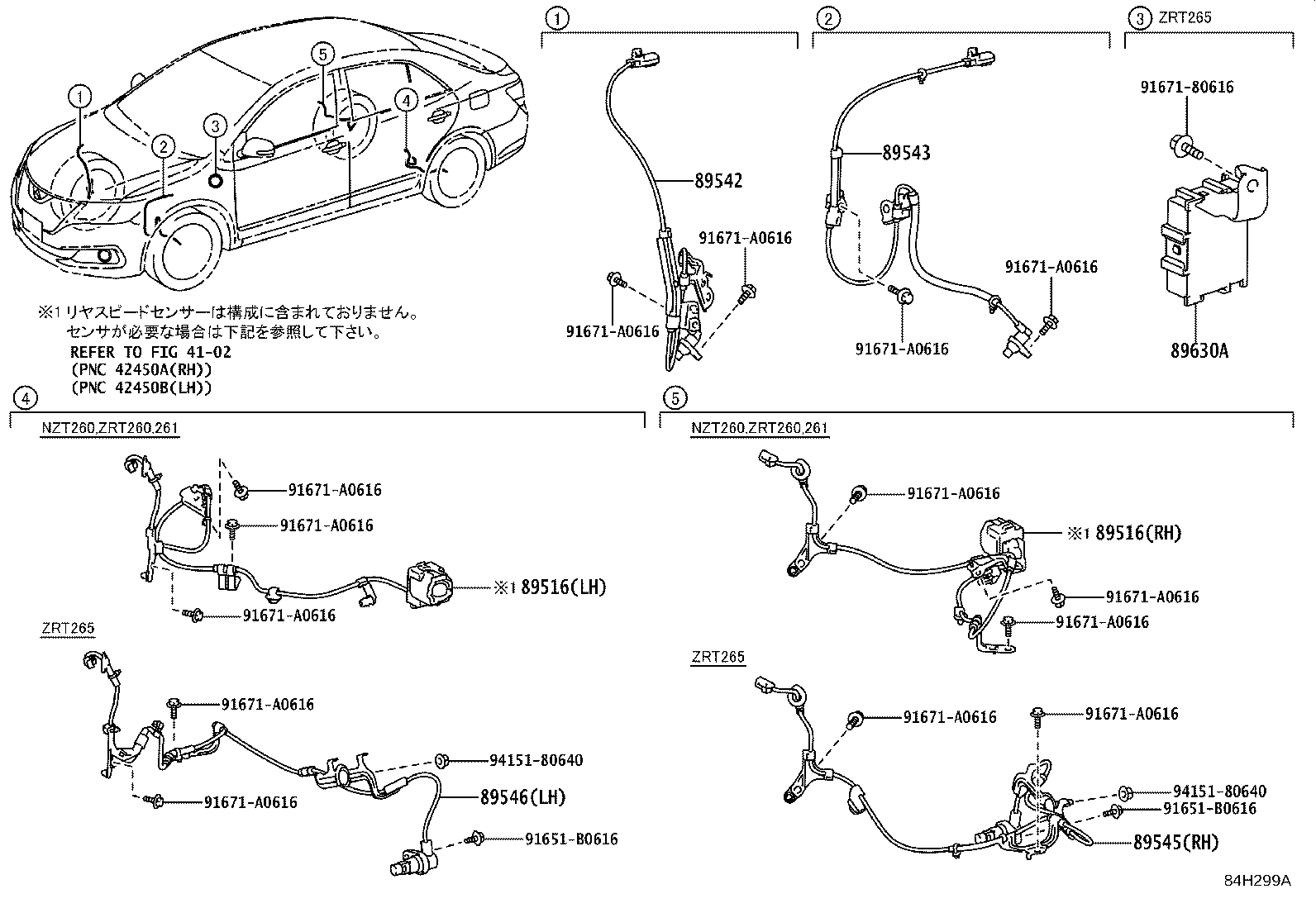

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89516 - WIRE, SKID CONTROL SENSOR | ||||
| 89516-20030 |
NZT260,ZRT260..CBU 右側 |
1 | ||
| 89516-20040 |
NZT260,ZRT260..CBU 左側 |
1 | ||
| 89516 - WIRE, SKID CONTROL SENSOR | ||||
| 89516-20030 |
NZT260,ZRT260..CBU 右側 |
1 | ||
| 89516-20040 |
NZT260,ZRT260..CBU 左側 |
1 | ||
| 89542 - SENSOR, SPEED, FRONT RH | ||||
| 89542-20180 |
NZT260,ZRT260,265..CBU |
1 | ||
| 89543 - SENSOR, SPEED, FRONT LH | ||||
| 89543-20200 |
NZT260,ZRT260,265..CBU |
1 | ||
| Common parts | ||||
| 91651-B0616 | ||||
| 91671-80616 | ||||
| 91671-A0616 | ||||
| 94151-80640 | ||||
| Linked diagrams | ||||
| 4102 | ||||
