NZT260-AEXEK (2007)
Toyota Premio/Allion
Production
May 2007
-
Apr 2010
Engine
1NZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0705- )NZT260

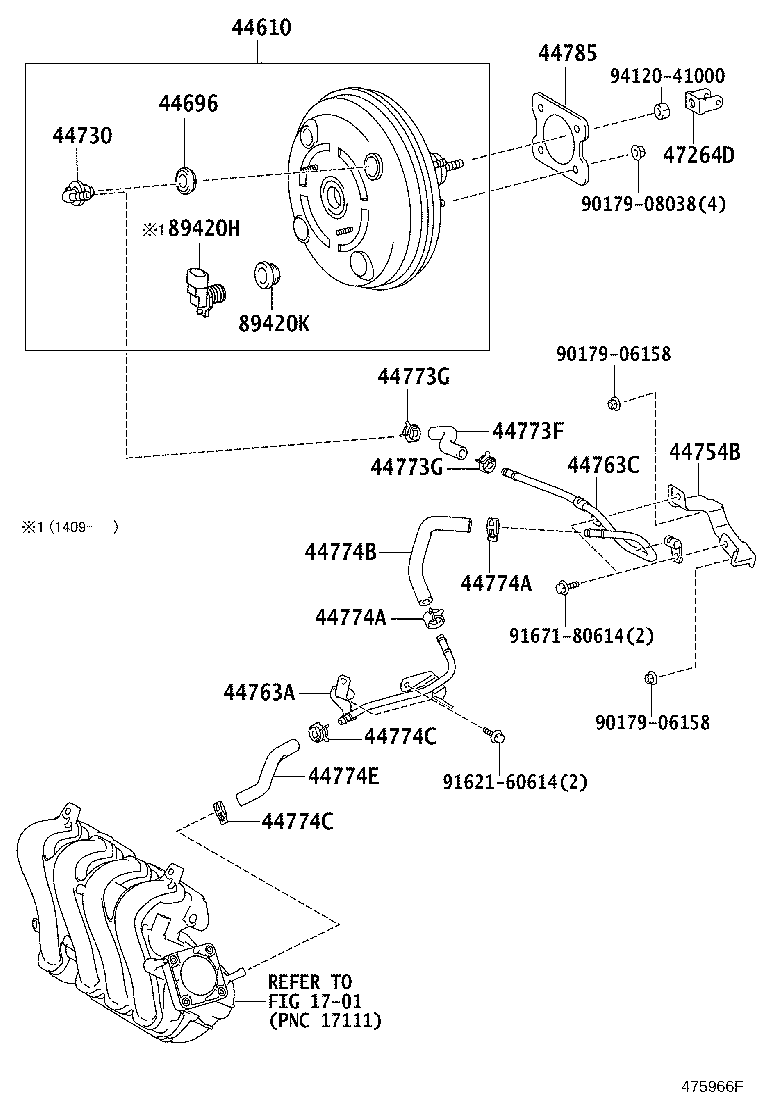

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-20A01 |
NZT260..CBU ﾀｲﾔ&ﾃﾞｨｽｸﾎｲｰﾙ−195/65R15 91S,6J ｽﾁｰﾙ |
1 | ||
| 44610-12C50 |
NZT260..CBU |
1 | ||
| 44610-20A00 |
NZT260..CBU ﾀｲﾔ&ﾃﾞｨｽｸﾎｲｰﾙ−195/65R15 91S,6J ｽﾁｰﾙ |
1 | ||
| 44610-20A00 |
NZT260..CBU ﾀｲﾔ&ﾃﾞｨｽｸﾎｲｰﾙ−195/55R16 88V,6J ｱﾙﾐ |
1 | ||
| 44610-12C51 |
NZT260..CBU |
1 | ||
| 44610-20A01 |
NZT260..CBU ﾀｲﾔ&ﾃﾞｨｽｸﾎｲｰﾙ−195/55R16 88V,6J ｱﾙﾐ |
1 | ||
| 44696 - GROMMET, CHECK VALVE | ||||
| 90480-24439 |
NZT260,ZRT26#..CBU |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-12070 |
NZT260,ZRT260,265..CBU |
1 | ||
| 44754B - BRACKET, VACUUM TUBE | ||||
| 44754-12040 |
NZT260,ZRT26#..CBU |
1 | ||
| 44763A - TUBE, HOSE TO HOSE, NO.1 | ||||
| 44763-52030 |
NZT260..CBU |
1 | ||
| 44763C - TUBE, HOSE TO HOSE, NO.2 | ||||
| 44763-12460 |
NZT260,ZRT26#..CBU |
1 | ||
| 44773F - HOSE, UNION TO CHECK VALVE | ||||
| 44773-12820 |
NZT260,ZRT26#..CBU |
1 | ||
| 44773G - CLIP(FOR UNION TO CHECK VALVE HOSE) | ||||
| 96133-41500 |
NZT260,ZRT26#..CBU |
2 | ||
| 44773G - CLIP(FOR UNION TO CHECK VALVE HOSE) | ||||
| 96133-41500 |
NZT260,ZRT26#..CBU |
2 | ||
| 44774A - CLIP(FOR UNION TO CONNECTOR TUBE HOSE) | ||||
| 96133-41500 |
NZT260,ZRT26#..CBU |
2 | ||
| 44774A - CLIP(FOR UNION TO CONNECTOR TUBE HOSE) | ||||
| 96133-41500 |
NZT260,ZRT26#..CBU |
2 | ||
| 44774B - HOSE, UNION TO CONNECTOR TUBE | ||||
| 44774-12640 |
NZT260..CBU |
1 | ||
| 44774C - CLIP(FOR UNION TO CONNECTOR TUBE HOSE) | ||||
| 96133-41500 |
NZT260,ZRT261..CBU |
2 | ||
| 44774C - CLIP(FOR UNION TO CONNECTOR TUBE HOSE) | ||||
| 96133-41500 |
NZT260,ZRT261..CBU |
2 | ||
| 44774E - HOSE, UNION TO CONNECTOR TUBE | ||||
| 44774-52070 |
NZT260..CBU |
1 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-12040 |
NZT260,ZRT26#..CBU |
1 | ||
| 47264D - CLEVIS, BRAKE MASTER CYLINDER PUSH ROD | ||||
| 47264-63020 |
NZT260,ZRT26#..CBU |
1 | ||
| Common parts | ||||
| 90179-06158 | ||||
| 90179-08038 | ||||
| 91621-60614 | ||||
| 91671-80614 | ||||
| 94120-41000 | ||||
| Linked diagrams | ||||
| 1701 | ||||
