NZT240-CEPEK (2001)
Toyota Premio/Allion
Production
Dec 2001
-
May 2007
Engine
1NZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0112- )

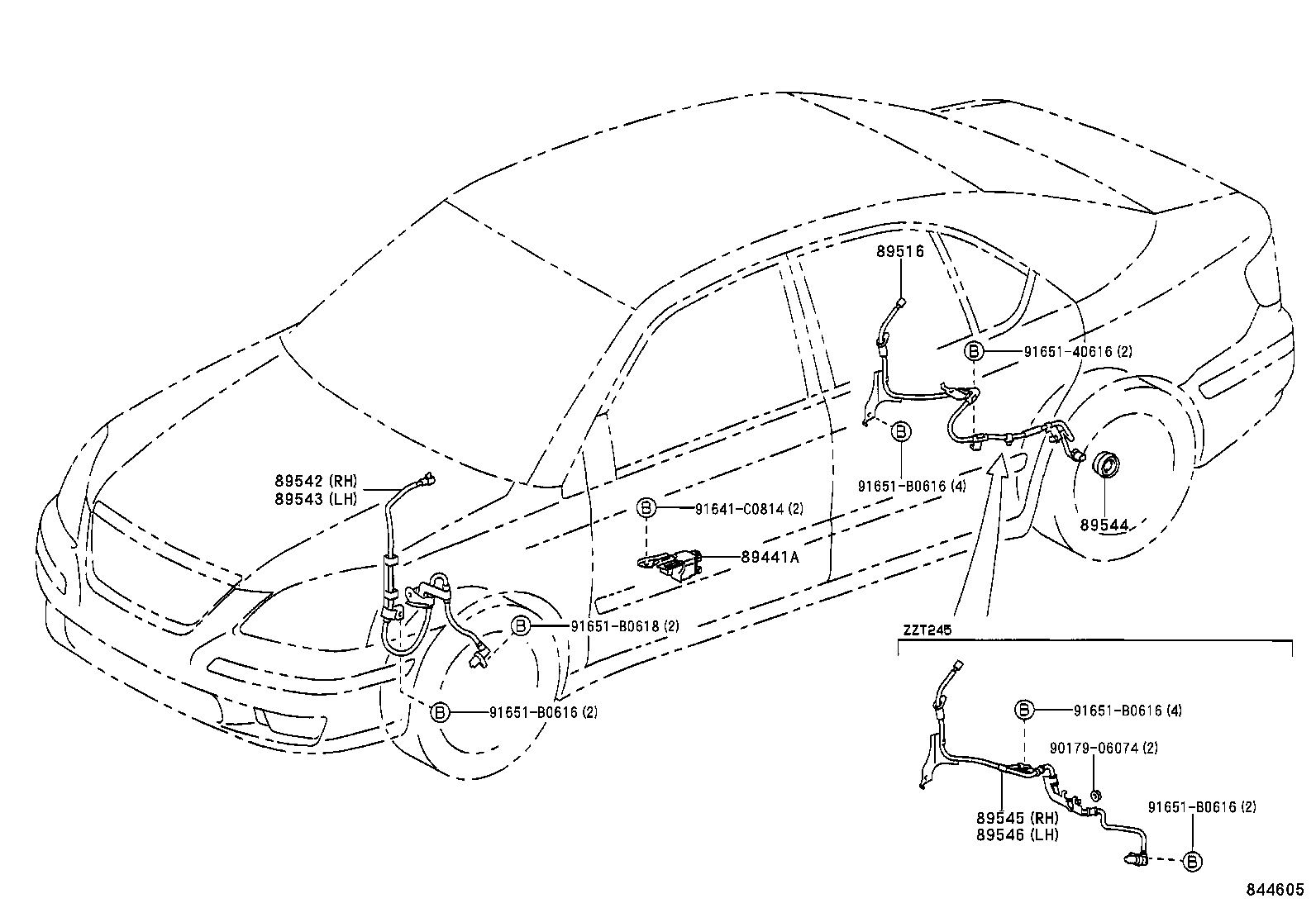

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89516 - WIRE, SKID CONTROL SENSOR | ||||
| 89516-32031 |
AZT240,NZT240,ZZT240 右側 |
1 | ||
| 89516-32031 |
AZT240,NZT240,ZZT240 右側 |
1 | ||
| 89516-32041 |
AZT240,NZT240,ZZT240 左側 |
1 | ||
| 89516-32041 |
AZT240,NZT240,ZZT240 左側 |
1 | ||
| 89542 - SENSOR, SPEED, FRONT RH | ||||
| 89542-20170 |
AZT240,NZT240,ZZT24# |
1 | ||
| 89542-20170 |
AZT240,NZT240,ZZT24# |
1 | ||
| 89543 - SENSOR, SPEED, FRONT LH | ||||
| 89543-20170 |
AZT240,NZT240,ZZT24# |
1 | ||
| 89543-20170 |
AZT240,NZT240,ZZT24# |
1 | ||
| 89544 - SENSOR, SKID CONTROL | ||||
| 89544-32030 |
AZT240,NZT240,ZZT240 TOYOTA |
2 | ||
| 89544-32040 |
AZT240,NZT240,ZZT240 |
2 | ||
| 89544-32040 |
AZT240,NZT240,ZZT240 KOYO |
2 | ||
| 89544-32040 |
AZT240,NZT240,ZZT240 |
2 | ||
| Common parts | ||||
| 90179-06074 | ||||
| 91641-C0814 | ||||
| 91651-40616 | ||||
| 91651-B0616 | ||||
| 91651-B0618 | ||||
