NZT240-CEPEK (2001)
Toyota Premio/Allion
ILLUST NO. 1 OF 7(0112- )
ｴﾝｼﾞﾝ ﾙ-ﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82115-20040 |
NZT240,ZZT240..ALN ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82115-20040 |
1 | ||
| 82115-20050 |
NZT240,ZZT24#..ALN ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82115-20050 |
1 | ||
| 82115-20060 |
NZT240,ZZT24#..ALN ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82115-20060 |
1 | ||
| 82111-20A10 |
NZT240,ZZT24#..ALN ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82111-20A10 |
1 | ||
| 82111-20A00 |
NZT240,ZZT240..ALN ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82111-20A00 |
1 | ||
| 82111-20A20 |
NZT240,ZZT24#..ALN ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82111-20A20 |
1 | ||
| 82112 - WIRE, ENGINE ROOM, NO.2 | ||||
| 82112-20460 |
AZT240,NZT240,ZZT24#..ALN |
1 | ||
| 82112-20630 |
AZT240,NZT240,ZZT24#..ALN |
1 | ||
| 82113 - WIRE, ENGINE ROOM, NO.3 | ||||
| 82113-20030 |
AZT240,NZT240,ZZT24#..ALN |
1 | ||
| 82113-20050 |
AZT240,NZT240,ZZT24#..ALN |
1 | ||
| 82824 - CONNECTOR, WIRING HARNESS | ||||
| 82824-44030 |
AZT240,NZT240,ZZT24# |
1 | ||
| 82824-44030 |
AZT240,NZT240,ZZT24# |
1 | ||
| Common parts | ||||
| 90119-06382 | ||||
| 90119-06915 | ||||
| Linked diagrams | ||||
| 8401 | ||||

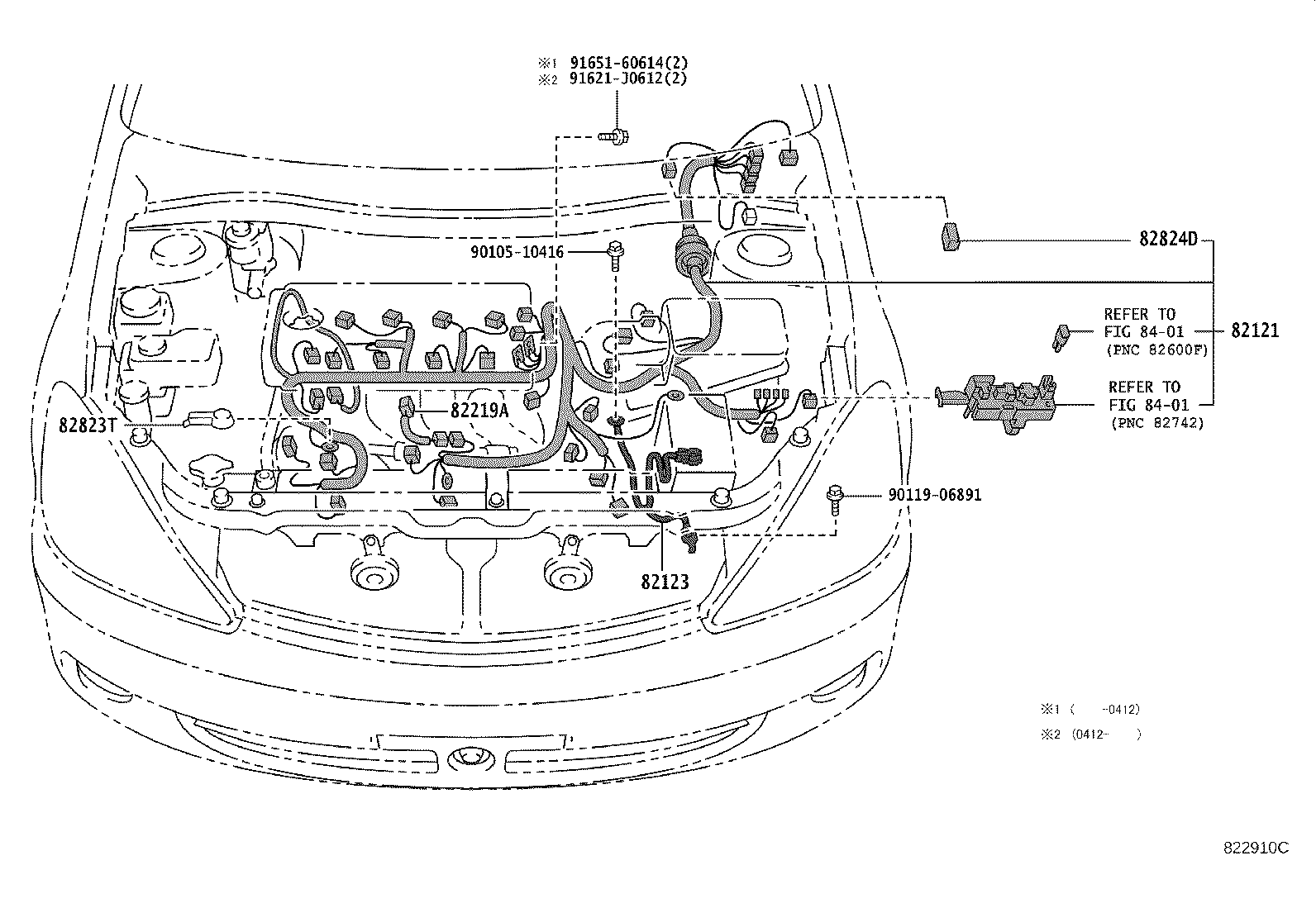

ILLUST NO. 2 OF 7(0112- )NZT240
ｴﾝｼﾞﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-2M580 |
NZT240 |
1 | ||
| 82121-2M581 |
NZT240 |
1 | ||
| 82123 - WIRE, ENGINE, NO.3 | ||||
| 82123-63010 |
NZT240,ZZT24# |
1 | ||
| 82123-63010 |
NZT240,ZZT24# |
1 | ||
| 82219A - WIRE, SENSOR | ||||
| 82219-52010 |
NZT240 |
1 | ||
| 82219-52010 |
NZT240 |
1 | ||
| 82823T - CAP, ALTERNATOR TERMINAL | ||||
| 82823-22050 |
AZT240,NZT240,ZZT24# |
1 | ||
| 82823-22050 |
AZT240,NZT240,ZZT24# |
1 | ||
| 82824D - CONNECTOR, WIRING HARNESS | ||||
| 82824-22070 |
NZT240,ZZT24# |
1 | ||
| 82824-22070 |
NZT240 |
1 | ||
| Common parts | ||||
| 90105-10416 | ||||
| 90119-06891 | ||||
| 91621-J0612 | ||||
| 91651-60614 | ||||
| Linked diagrams | ||||
| 8401 | ||||

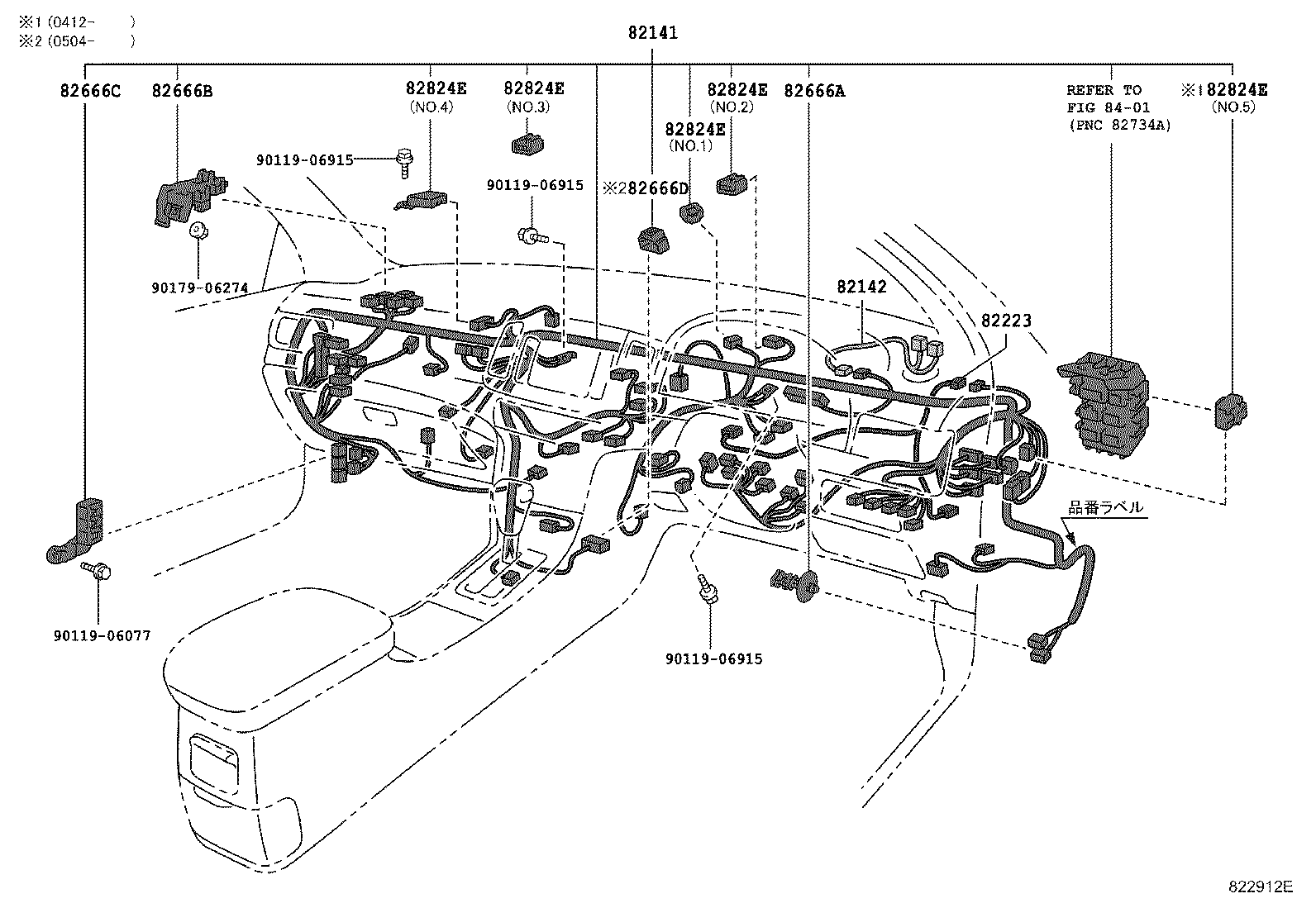

ILLUST NO. 3 OF 7(0112- )
ｲﾝｽﾄﾙﾒﾝﾄ ﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82145-20330 |
NZT240,ZZT24# ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82145-20330 |
1 | ||
| 82145-20320 |
NZT240,ZZT24# ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82145-20320 |
1 | ||
| 82145-20340 |
NZT240,ZZT24# ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82145-20340 |
1 | ||
| 82141-20A30 |
NZT240,ZZT245 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82141-20A30 |
1 | ||
| 82141-20A80 |
NZT240,ZZT245 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82141-20A80 |
1 | ||
| 82141-20A40 |
NZT240,ZZT245 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82141-20A40 |
1 | ||
| 82141-20A90 |
NZT240,ZZT245 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82141-20A90 |
1 | ||
| 82141-20A81 |
NZT240,ZZT245 ﾋﾝﾊﾞﾝ ﾗﾍﾞﾙ=82141-20A81 |
1 | ||
| 82141-20A41 |
NZT240,ZZT245 ﾋﾝﾊﾞﾝ ﾗﾍﾞﾙ=82141-20A41 |
1 | ||
| 82145-20390 |
NZT240,ZZT24# ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82145-20390 |
1 | ||
| 82141-20A31 |
NZT240,ZZT245 ﾋﾝﾊﾞﾝ ﾗﾍﾞﾙ=82141-20A31 |
1 | ||
| 82141-20A91 |
NZT240,ZZT245 ﾋﾝﾊﾞﾝ ﾗﾍﾞﾙ=82141-20A91 |
1 | ||
| 82142 - WIRE, INSTRUMENT PANEL, NO.2 | ||||
| 82142-20120 |
AZT240,NZT240,ZZT24# |
1 | ||
| 82142-20120 |
AZT240,NZT240,ZZT24# |
1 | ||
| 82223 - WIRE, SWITCH | ||||
| 82223-20230 |
NZT240,ZZT245 |
1 | ||
| 82223-20230 |
NZT240,ZZT24# |
1 | ||
| 82666A - HOLDER, CONNECTOR NO.2 | ||||
| 82666-20280 |
AZT240,NZT240,ZZT24# |
1 | ||
| 82666-20280 |
AZT240,NZT240,ZZT24# |
1 | ||
| 82666B - HOLDER, CONNECTOR NO.3 | ||||
| 82666-52010 |
AZT240,NZT240,ZZT24# |
1 | ||
| 82666-52010 |
AZT240,NZT240,ZZT24# |
1 | ||
| 82666C - HOLDER, CONNECTOR NO.4 | ||||
| 82666-20390 |
AZT240,NZT240,ZZT24# |
1 | ||
| 82666-20390 |
AZT240,NZT240,ZZT24# |
1 | ||
| 82666D - HOLDER, CONNECTOR NO.5 | ||||
| 82666-21050 |
AZT240,NZT240,ZZT24# |
1 | ||
| 82824E - CONNECTOR, WIRING HARNESS | ||||
| 82824-20110 |
AZT240,NZT240,ZZT24# NO.1 |
1 | ||
| 82824-30220 |
AZT240,NZT240,ZZT24# NO.2 |
1 | ||
| 82824-20110 |
AZT240,NZT240,ZZT24# NO.1 |
2 | ||
| 82824-44030 |
AZT240,NZT240,ZZT24# NO.3 |
1 | ||
| 82824-30220 |
AZT240,NZT240,ZZT24# NO.2 |
1 | ||
| 82824-28180 |
AZT240,NZT240,ZZT24# NO.5 |
1 | ||
| 82824-44030 |
AZT240,NZT240,ZZT24# NO.3 |
1 | ||
| 82824-48010 |
AZT240,NZT240,ZZT24# NO.4 |
1 | ||
| 82824-48010 |
AZT240,NZT240,ZZT24# NO.4 |
1 | ||
| 82824E - CONNECTOR, WIRING HARNESS | ||||
| 82824-20110 |
AZT240,NZT240,ZZT24# NO.1 |
1 | ||
| 82824-30220 |
AZT240,NZT240,ZZT24# NO.2 |
1 | ||
| 82824-20110 |
AZT240,NZT240,ZZT24# NO.1 |
2 | ||
| 82824-44030 |
AZT240,NZT240,ZZT24# NO.3 |
1 | ||
| 82824-30220 |
AZT240,NZT240,ZZT24# NO.2 |
1 | ||
| 82824-28180 |
AZT240,NZT240,ZZT24# NO.5 |
1 | ||
| 82824-44030 |
AZT240,NZT240,ZZT24# NO.3 |
1 | ||
| 82824-48010 |
AZT240,NZT240,ZZT24# NO.4 |
1 | ||
| 82824-48010 |
AZT240,NZT240,ZZT24# NO.4 |
1 | ||
| 82824E - CONNECTOR, WIRING HARNESS | ||||
| 82824-20110 |
AZT240,NZT240,ZZT24# NO.1 |
1 | ||
| 82824-30220 |
AZT240,NZT240,ZZT24# NO.2 |
1 | ||
| 82824-20110 |
AZT240,NZT240,ZZT24# NO.1 |
2 | ||
| 82824-44030 |
AZT240,NZT240,ZZT24# NO.3 |
1 | ||
| 82824-30220 |
AZT240,NZT240,ZZT24# NO.2 |
1 | ||
| 82824-28180 |
AZT240,NZT240,ZZT24# NO.5 |
1 | ||
| 82824-44030 |
AZT240,NZT240,ZZT24# NO.3 |
1 | ||
| 82824-48010 |
AZT240,NZT240,ZZT24# NO.4 |
1 | ||
| 82824-48010 |
AZT240,NZT240,ZZT24# NO.4 |
1 | ||
| 82824E - CONNECTOR, WIRING HARNESS | ||||
| 82824-20110 |
AZT240,NZT240,ZZT24# NO.1 |
1 | ||
| 82824-30220 |
AZT240,NZT240,ZZT24# NO.2 |
1 | ||
| 82824-20110 |
AZT240,NZT240,ZZT24# NO.1 |
2 | ||
| 82824-44030 |
AZT240,NZT240,ZZT24# NO.3 |
1 | ||
| 82824-30220 |
AZT240,NZT240,ZZT24# NO.2 |
1 | ||
| 82824-28180 |
AZT240,NZT240,ZZT24# NO.5 |
1 | ||
| 82824-44030 |
AZT240,NZT240,ZZT24# NO.3 |
1 | ||
| 82824-48010 |
AZT240,NZT240,ZZT24# NO.4 |
1 | ||
| 82824-48010 |
AZT240,NZT240,ZZT24# NO.4 |
1 | ||
| 82824E - CONNECTOR, WIRING HARNESS | ||||
| 82824-20110 |
AZT240,NZT240,ZZT24# NO.1 |
1 | ||
| 82824-30220 |
AZT240,NZT240,ZZT24# NO.2 |
1 | ||
| 82824-20110 |
AZT240,NZT240,ZZT24# NO.1 |
2 | ||
| 82824-44030 |
AZT240,NZT240,ZZT24# NO.3 |
1 | ||
| 82824-30220 |
AZT240,NZT240,ZZT24# NO.2 |
1 | ||
| 82824-28180 |
AZT240,NZT240,ZZT24# NO.5 |
1 | ||
| 82824-44030 |
AZT240,NZT240,ZZT24# NO.3 |
1 | ||
| 82824-48010 |
AZT240,NZT240,ZZT24# NO.4 |
1 | ||
| 82824-48010 |
AZT240,NZT240,ZZT24# NO.4 |
1 | ||
| Common parts | ||||
| 90119-06077 | ||||
| 90119-06915 | ||||
| 90179-06274 | ||||
| Linked diagrams | ||||
| 8401 | ||||

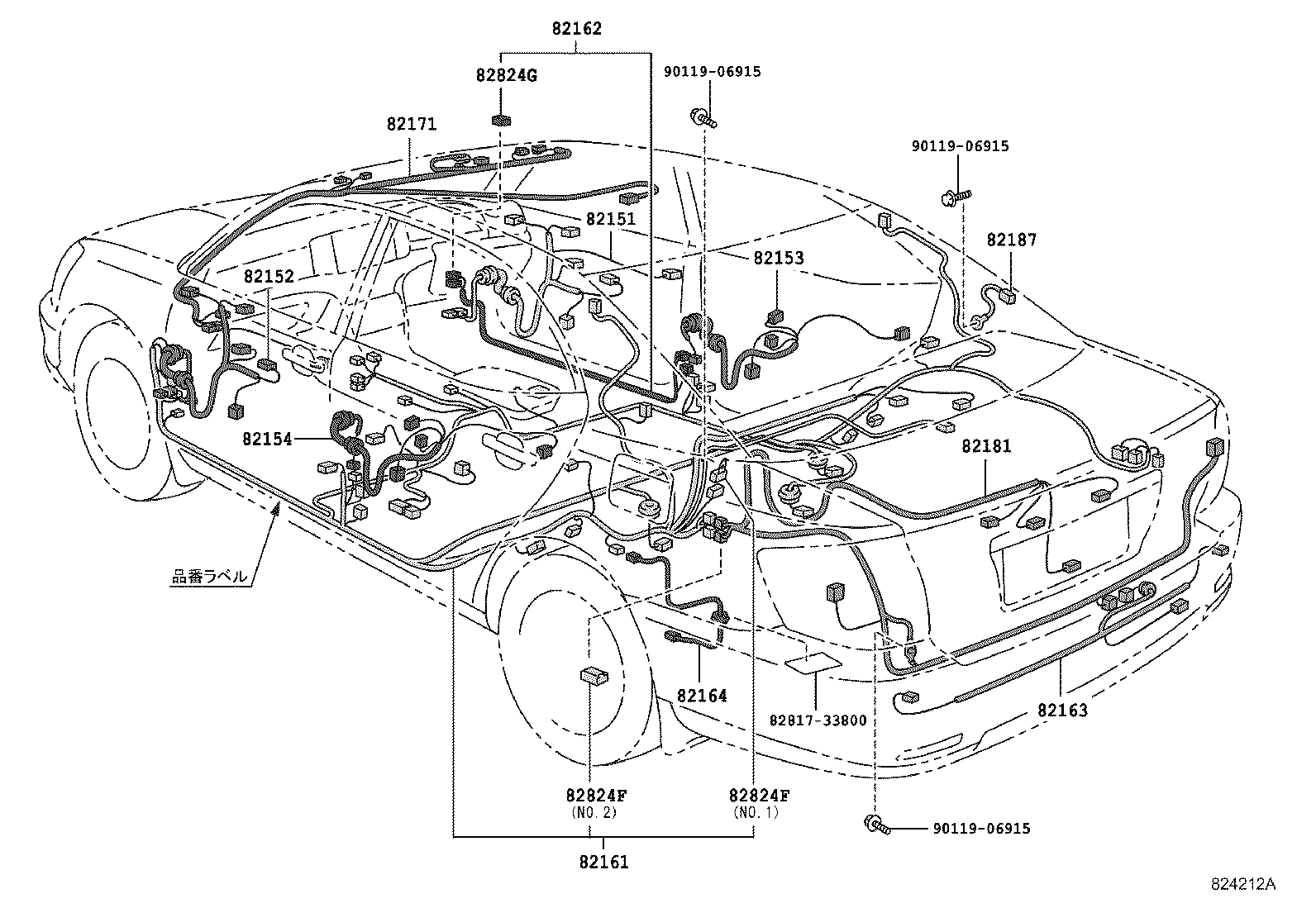

ILLUST NO. 4 OF 7(0112-0412)
ﾄﾞｱ,ﾌﾛｱ,ﾙ-ﾌ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82197-20030 |
AZT240,NZT240,ZZT24# ｱﾘ(ﾂｲ-ﾀ ｽﾋﾟ-ｶ & ﾋ-ﾀ ﾐﾗ-) |
1 | ||
| 82197-20030 |
AZT240,NZT240,ZZT24# ｱﾘ(ﾂｲ-ﾀ ｽﾋﾟ-ｶ & ﾋ-ﾀ ﾐﾗ-) |
1 | ||
| 82197-20010 |
NZT240,ZZT24# |
1 | ||
| 82197-20010 |
AZT240,NZT240,ZZT24# |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-2G310 |
AZT240,NZT240,ZZT24# |
1 | ||
| 82198-20010 |
AZT240,NZT240,ZZT24# |
1 | ||
| 82152-2G320 |
NZT240,ZZT24# ｽﾀﾝﾀﾞ-ﾄﾞ ﾊﾟﾂｹ-ｼﾞ *(U) & ﾗｼﾞｵﾚｽ 2ｽﾋﾟ-ｶ |
1 | ||
| 82198-20020 |
AZT240,NZT240,ZZT24# ｱﾘ(ﾋ-ﾀ ﾐﾗ-) |
1 | ||
| 82198-20030 |
AZT240,NZT240,ZZT24# ｱﾘ(ﾂｲ-ﾀ ｽﾋﾟ-ｶ & ﾋ-ﾀ ﾐﾗ-) |
1 | ||
| 82153 - WIRE, REAR DOOR, NO.1 | ||||
| 82153-20490 |
AZT240,NZT240,ZZT24# ｱﾘ(ｽﾋﾟ-ｶ) |
1 | ||
| 82153-20500 |
NZT240,ZZT24# |
1 | ||
| 82153-20510 |
AZT240,NZT240,ZZT24# ｱﾘ(ｽﾋﾟ-ｶ) |
1 | ||
| 82153-20520 |
NZT240,ZZT24# |
1 | ||
| 82154 - WIRE, REAR DOOR, NO.2 | ||||
| 82154-20490 |
AZT240,NZT240,ZZT24# ｱﾘ(ｽﾋﾟ-ｶ) |
1 | ||
| 82154-20500 |
NZT240,ZZT24# |
1 | ||
| 82154-20510 |
AZT240,NZT240,ZZT24# ｱﾘ(ｽﾋﾟ-ｶ) |
1 | ||
| 82154-20520 |
NZT240,ZZT24# |
1 | ||
| 82161 - WIRE, FLOOR | ||||
| 82199-20020 |
AZT240,NZT240,ZZT240..ALN ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82199-20020 |
1 | ||
| 82199-20031 |
AZT240,NZT240,ZZT240..ALN ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82199-20031 |
1 | ||
| 82199-20030 |
AZT240,NZT240,ZZT240..ALN ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82199-20030 |
1 | ||
| 82199-20021 |
AZT240,NZT240,ZZT240..ALN ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82199-20021 |
1 | ||
| 82199-20081 |
AZT240,NZT240,ZZT240..ALN ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82199-20081 |
1 | ||
| 82161-20A40 |
NZT240 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82161-20A40 |
1 | ||
| 82199-20080 |
AZT240,NZT240,ZZT240..ALN ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82199-20080 |
1 | ||
| 82161-20B40 |
NZT240 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82161-20B40 |
1 | ||
| 82162 - WIRE, FLOOR, NO.2 | ||||
| 82162-2B080 |
AZT240,NZT240,ZZT24# |
1 | ||
| 82162-20A00 |
AZT240,NZT240,ZZT24# |
1 | ||
| 82163 - WIRE, FLOOR, NO.3 | ||||
| 82163-20300 |
AZT240,NZT240,ZZT24#..ALN ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ) |
1 | ||
| 82163-20320 |
AZT240,NZT240,ZZT24#..ALN ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ- & ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ) |
1 | ||
| 82163-20320 |
AZT240,NZT240,ZZT24#..ALN ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ- & ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ) |
1 | ||
| 82163-20310 |
AZT240,NZT240,ZZT24# ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ-) |
1 | ||
| 82163-20310 |
AZT240,NZT240,ZZT24# ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ-) |
1 | ||
| 82163-20300 |
AZT240,NZT240,ZZT24#..ALN ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ) |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-2B200 |
AZT240,NZT240,ZZT24# ｱﾘ(ｴｱ ﾋﾟﾕﾘﾌｱｲﾔ) |
1 | ||
| 82171-20A10 |
AZT240,NZT240,ZZT24# ｱﾘ(ｵ-ﾄ ﾜｲﾊﾟ) |
1 | ||
| 82171-2B190 |
AZT240,NZT240,ZZT24# |
1 | ||
| 82171-20A00 |
AZT240,NZT240,ZZT24# |
1 | ||
| 82187 - WIRE, REAR WINDOW, NO.2 | ||||
| 82187-20250 |
AZT240,NZT240,ZZT24# |
1 | ||
| 82187-20250 |
AZT240,NZT240,ZZT24# |
1 | ||
| 82824F - CONNECTOR, WIRING HARNESS | ||||
| 82824-20130 |
AZT240,NZT240,ZZT24# NO.1 |
1 | ||
| 82824-20130 |
AZT240,NZT240,ZZT24# NO.1 |
1 | ||
| 82824-44020 |
AZT240,NZT240,ZZT24# NO.2 |
1 | ||
| 82824-44020 |
AZT240,NZT240,ZZT24# NO.2 |
1 | ||
| 82824F - CONNECTOR, WIRING HARNESS | ||||
| 82824-20130 |
AZT240,NZT240,ZZT24# NO.1 |
1 | ||
| 82824-20130 |
AZT240,NZT240,ZZT24# NO.1 |
1 | ||
| 82824-44020 |
AZT240,NZT240,ZZT24# NO.2 |
1 | ||
| 82824-44020 |
AZT240,NZT240,ZZT24# NO.2 |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| Linked diagrams | ||||
| 6401 | ||||

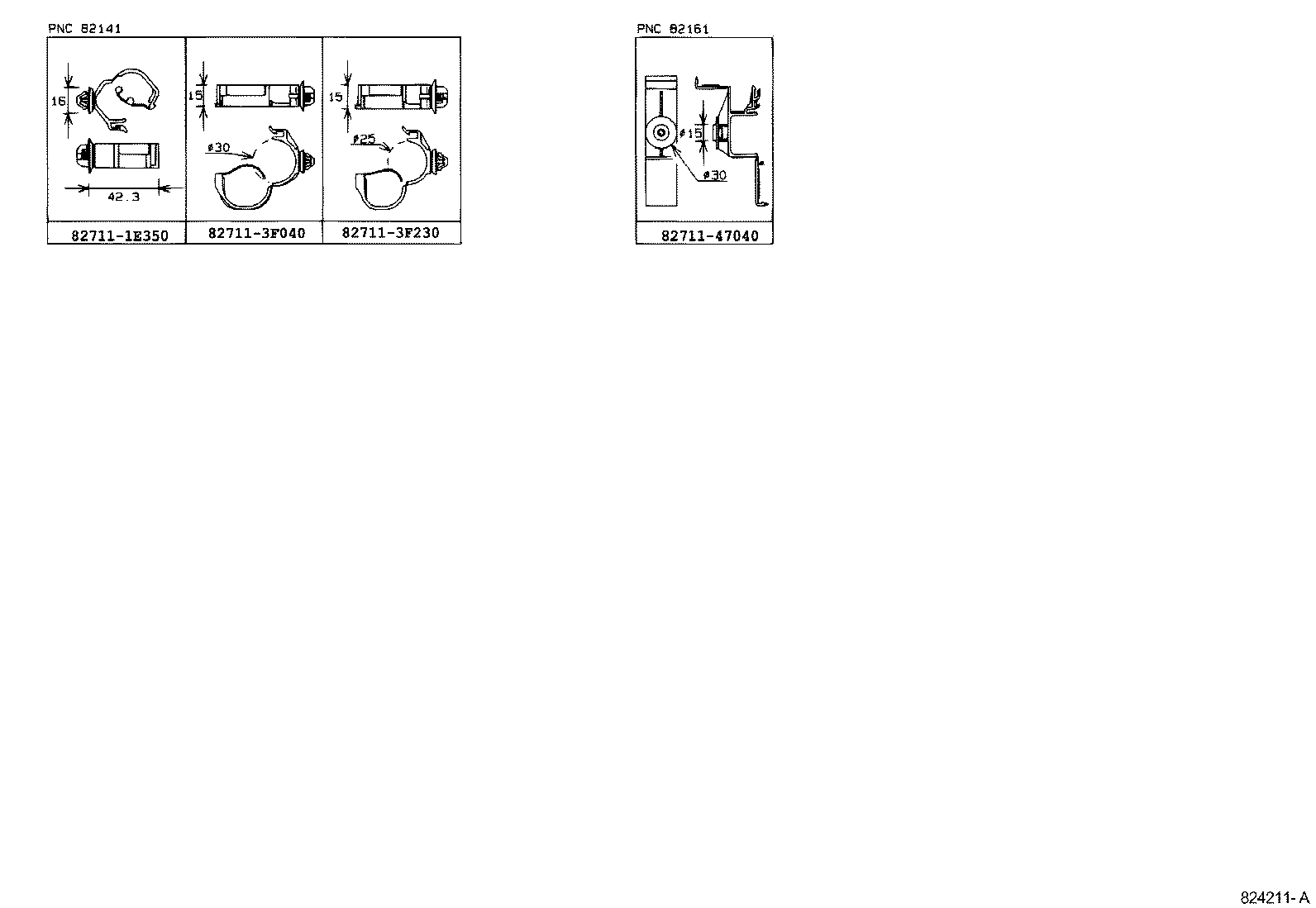

ILLUST NO. 5 OF 7(0112- )
ｸﾗﾝﾌﾟ & ﾌﾞﾗｹﾂﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 32923-63010 | ||||
| 82715-12420 | ||||
| 82715-12620 | ||||
| 82715-12700 | ||||
| 82715-13150 | ||||
| 82715-2B240 | ||||
| 82715-2B290 | ||||
| 82715-2J080 | ||||
| 82715-2J120 | ||||
| 82715-32390 | ||||
| 82715-32520 | ||||
| 82715-32530 | ||||
| 82715-33470 | ||||
| 82715-42550 | ||||
| 82715-42560 | ||||
| 82715-42620 | ||||
| 82715-42650 | ||||
| 82715-44480 | ||||
| 82715-47170 | ||||
| 82715-52110 | ||||
| 82715-52120 | ||||
| 82715-52140 | ||||
| 82715-52170 | ||||
| 82715-52330 | ||||
| 82715-63020 | ||||
| 82715-63060 | ||||
| 82715-63070 | ||||
| 82715-63090 | ||||
| 82729-20010 | ||||
| 82729-20020 | ||||
| 82729-20030 | ||||
| 82729-20060 | ||||
| 82729-20070 | ||||
| 91511-B0610 | ||||
| 91611-B0816 | ||||
| 91621-40814 | ||||
| 91621-J0612 | ||||
| 91651-B0614 | ||||
| 91671-80612 | ||||
ILLUST NO. 6 OF 7(0112- )
ｹ-ﾌﾞﾙ ﾎﾞﾝﾄﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07201 |
NZT240,ZZT24# |
1 | ||
| 90980-07201 |
NZT240,ZZT24# |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07201 |
NZT240,ZZT24# |
1 | ||
| 90980-07201 |
NZT240,ZZT24# |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 91511-B0610 | ||||

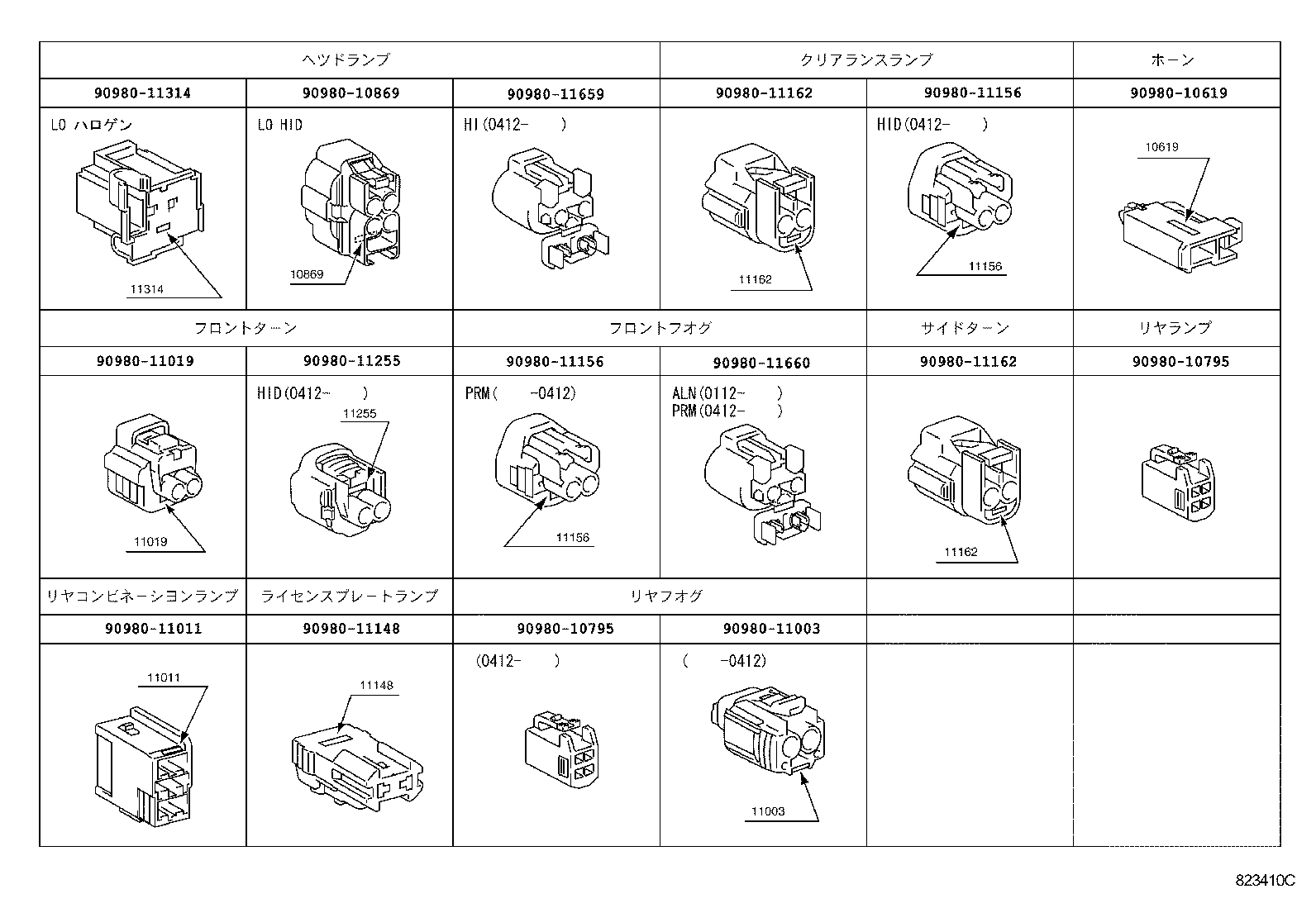

ILLUST NO. 7 OF 7(0112- )
ｺﾈｸﾀ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90980-10619 | ||||
| 90980-10795 | ||||
| 90980-10869 | ||||
| 90980-11003 | ||||
| 90980-11011 | ||||
| 90980-11019 | ||||
| 90980-11148 | ||||
| 90980-11156 | ||||
| 90980-11162 | ||||
| 90980-11255 | ||||
| 90980-11314 | ||||
| 90980-11659 | ||||
| 90980-11660 | ||||
ILLUST NO. 5 OF 7(0112- )
ｸﾗﾝﾌﾟ & ﾌﾞﾗｹｯﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-1E350 | ||||
| 82711-3F040 | ||||
| 82711-3F230 | ||||
| 82711-47040 | ||||
ILLUST NO. 4 OF 7(0412- )
ﾄﾞｱ,ﾌﾛｱ,ﾙｰﾌ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82197-20030 |
AZT240,NZT240,ZZT24# ｱﾘ(ﾂｲ-ﾀ ｽﾋﾟ-ｶ & ﾋ-ﾀ ﾐﾗ-) |
1 | ||
| 82197-20030 |
AZT240,NZT240,ZZT24# ｱﾘ(ﾂｲ-ﾀ ｽﾋﾟ-ｶ & ﾋ-ﾀ ﾐﾗ-) |
1 | ||
| 82197-20010 |
NZT240,ZZT24# |
1 | ||
| 82197-20010 |
AZT240,NZT240,ZZT24# |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-2G310 |
AZT240,NZT240,ZZT24# |
1 | ||
| 82198-20010 |
AZT240,NZT240,ZZT24# |
1 | ||
| 82152-2G320 |
NZT240,ZZT24# ｽﾀﾝﾀﾞ-ﾄﾞ ﾊﾟﾂｹ-ｼﾞ *(U) & ﾗｼﾞｵﾚｽ 2ｽﾋﾟ-ｶ |
1 | ||
| 82198-20020 |
AZT240,NZT240,ZZT24# ｱﾘ(ﾋ-ﾀ ﾐﾗ-) |
1 | ||
| 82198-20030 |
AZT240,NZT240,ZZT24# ｱﾘ(ﾂｲ-ﾀ ｽﾋﾟ-ｶ & ﾋ-ﾀ ﾐﾗ-) |
1 | ||
| 82153 - WIRE, REAR DOOR, NO.1 | ||||
| 82153-20490 |
AZT240,NZT240,ZZT24# ｱﾘ(ｽﾋﾟ-ｶ) |
1 | ||
| 82153-20500 |
NZT240,ZZT24# |
1 | ||
| 82153-20510 |
AZT240,NZT240,ZZT24# ｱﾘ(ｽﾋﾟ-ｶ) |
1 | ||
| 82153-20520 |
NZT240,ZZT24# |
1 | ||
| 82154 - WIRE, REAR DOOR, NO.2 | ||||
| 82154-20490 |
AZT240,NZT240,ZZT24# ｱﾘ(ｽﾋﾟ-ｶ) |
1 | ||
| 82154-20500 |
NZT240,ZZT24# |
1 | ||
| 82154-20510 |
AZT240,NZT240,ZZT24# ｱﾘ(ｽﾋﾟ-ｶ) |
1 | ||
| 82154-20520 |
NZT240,ZZT24# |
1 | ||
| 82161 - WIRE, FLOOR | ||||
| 82199-20020 |
AZT240,NZT240,ZZT240..ALN ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82199-20020 |
1 | ||
| 82199-20031 |
AZT240,NZT240,ZZT240..ALN ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82199-20031 |
1 | ||
| 82199-20030 |
AZT240,NZT240,ZZT240..ALN ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82199-20030 |
1 | ||
| 82199-20021 |
AZT240,NZT240,ZZT240..ALN ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82199-20021 |
1 | ||
| 82199-20081 |
AZT240,NZT240,ZZT240..ALN ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82199-20081 |
1 | ||
| 82161-20A40 |
NZT240 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82161-20A40 |
1 | ||
| 82199-20080 |
AZT240,NZT240,ZZT240..ALN ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82199-20080 |
1 | ||
| 82161-20B40 |
NZT240 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82161-20B40 |
1 | ||
| 82162 - WIRE, FLOOR, NO.2 | ||||
| 82162-2B080 |
AZT240,NZT240,ZZT24# |
1 | ||
| 82162-20A00 |
AZT240,NZT240,ZZT24# |
1 | ||
| 82163 - WIRE, FLOOR, NO.3 | ||||
| 82163-20300 |
AZT240,NZT240,ZZT24#..ALN ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ) |
1 | ||
| 82163-20320 |
AZT240,NZT240,ZZT24#..ALN ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ- & ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ) |
1 | ||
| 82163-20320 |
AZT240,NZT240,ZZT24#..ALN ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ- & ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ) |
1 | ||
| 82163-20310 |
AZT240,NZT240,ZZT24# ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ-) |
1 | ||
| 82163-20310 |
AZT240,NZT240,ZZT24# ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ-) |
1 | ||
| 82163-20300 |
AZT240,NZT240,ZZT24#..ALN ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ) |
1 | ||
| 82164 - WIRE, FRAME | ||||
| 82164-20190 |
AZT240,NZT240,ZZT240 |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-2B200 |
AZT240,NZT240,ZZT24# ｱﾘ(ｴｱ ﾋﾟﾕﾘﾌｱｲﾔ) |
1 | ||
| 82171-20A10 |
AZT240,NZT240,ZZT24# ｱﾘ(ｵ-ﾄ ﾜｲﾊﾟ) |
1 | ||
| 82171-2B190 |
AZT240,NZT240,ZZT24# |
1 | ||
| 82171-20A00 |
AZT240,NZT240,ZZT24# |
1 | ||
| 82181 - WIRE, LUGGAGE ROOM, NO.1 | ||||
| 82181-2B310 |
AZT240,NZT240,ZZT24#..ALN ｱﾘ(ﾊﾞﾂｸ ﾓﾆﾀ-) |
1 | ||
| 82181-2B140 |
AZT240,NZT240,ZZT24#..ALN |
1 | ||
| 82187 - WIRE, REAR WINDOW, NO.2 | ||||
| 82187-20250 |
AZT240,NZT240,ZZT24# |
1 | ||
| 82187-20250 |
AZT240,NZT240,ZZT24# |
1 | ||
| 82824F - CONNECTOR, WIRING HARNESS | ||||
| 82824-20130 |
AZT240,NZT240,ZZT24# NO.1 |
1 | ||
| 82824-20130 |
AZT240,NZT240,ZZT24# NO.1 |
1 | ||
| 82824-44020 |
AZT240,NZT240,ZZT24# NO.2 |
1 | ||
| 82824-44020 |
AZT240,NZT240,ZZT24# NO.2 |
1 | ||
| 82824F - CONNECTOR, WIRING HARNESS | ||||
| 82824-20130 |
AZT240,NZT240,ZZT24# NO.1 |
1 | ||
| 82824-20130 |
AZT240,NZT240,ZZT24# NO.1 |
1 | ||
| 82824-44020 |
AZT240,NZT240,ZZT24# NO.2 |
1 | ||
| 82824-44020 |
AZT240,NZT240,ZZT24# NO.2 |
1 | ||
| 82824G - CONNECTOR, WIRING HARNESS | ||||
| 82824-52060 |
AZT240,NZT240,ZZT24# |
1 | ||
| Common parts | ||||
| 82817-33800 | ||||
| 90119-06915 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
