NZT240-AEPEK (2001)
Toyota Premio/Allion
Production
Dec 2001
-
May 2007
Engine
1NZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0112- )NZT240

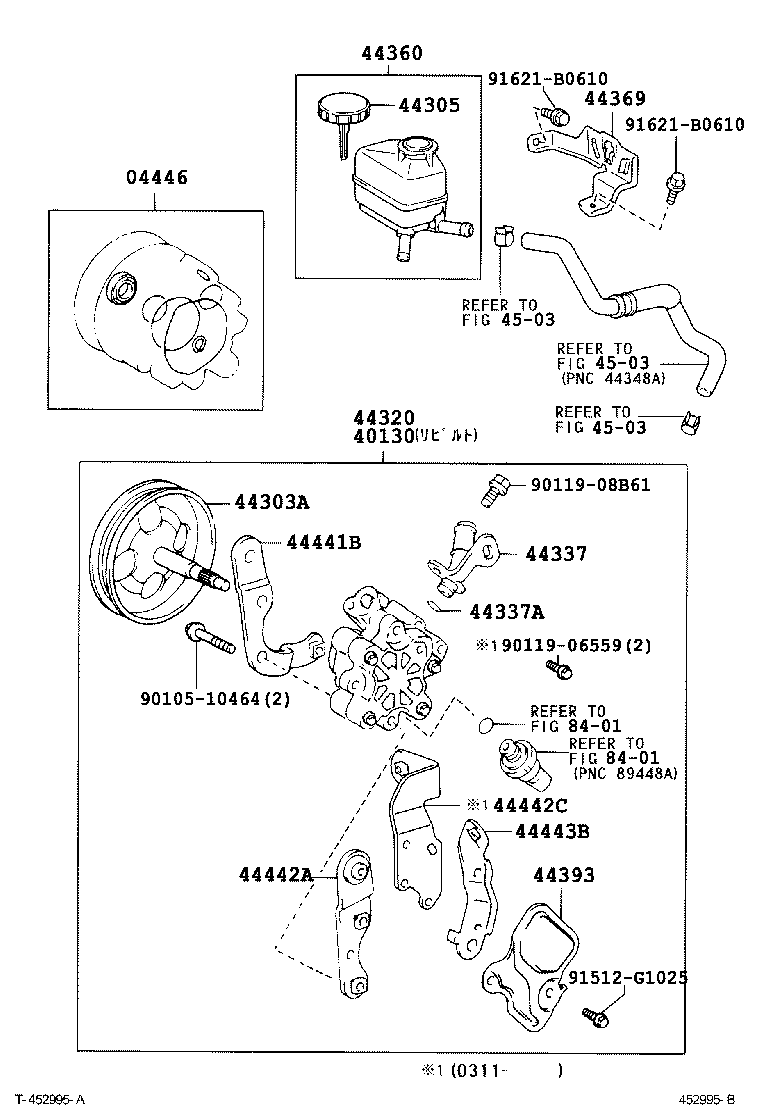

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04446 - GASKET KIT, POWER STEERING PUMP | ||||
| 04446-32050 |
AZT240,NZT240,ZZT24# |
1 | ||
| 04446-32050 |
AZT240,NZT240,ZZT24# |
1 | ||
| 40130 - PUMP ASSY,VANE REBUILT | ||||
| 40130-20850 |
NZT240 TOYODA KOKI |
1 | ||
| 40130-20851 |
NZT240 TOYODA KOKI |
1 | ||
| 44303A - SHAFT SUB-ASSY, W/PULLEY | ||||
| 44303-52020 |
NZT240 |
1 | ||
| 44303-52020 |
NZT240 |
1 | ||
| 44305 - CAP SUB-ASSY, VANE PUMP OIL RESERVOIR | ||||
| 44305-20041 |
AZT240,NZT240,ZZT24# |
1 | ||
| 44305-20041 |
AZT240,NZT240,ZZT24# |
1 | ||
| 44320 - PUMP ASSY, VANE | ||||
| 44310-20850 |
NZT240 |
1 | ||
| 44310-20851 |
NZT240 |
1 | ||
| 44310-20851 |
NZT240 |
1 | ||
| 44337 - UNION, POWER STEERING SUCTION PORT | ||||
| 44337-20080 |
NZT240 |
1 | ||
| 44337-12120 |
NZT240 |
1 | ||
| 44337-20080 |
NZT240 |
1 | ||
| 44337A - RING, O(FOR POWER STEERING SUCTION PORT) | ||||
| 90301-11020 |
AZT240,NZT240,ZZT24# |
1 | ||
| 90301-11020 |
AZT240,NZT240,ZZT24# |
1 | ||
| 44360 - RESERVOIR ASSY, VANE PUMP OIL | ||||
| 44360-20150 |
AZT240,NZT240,ZZT24# |
1 | ||
| 44360-20150 |
AZT240,NZT240,ZZT24# |
1 | ||
| 44369 - BRACKET, OIL RESERVOIR, NO.1 | ||||
| 44390-20060 |
AZT240,NZT240,ZZT24# |
1 | ||
| 44390-20060 |
AZT240,NZT240,ZZT24# |
1 | ||
| 44393 - INSULATOR, POWER STEERING PUMP HEAT | ||||
| 44393-52010 |
NZT240 |
1 | ||
| 44393-52010 |
NZT240 |
1 | ||
| 44441B - BRACKET, PUMP, FRONT | ||||
| 44441-52010 |
NZT240 |
1 | ||
| 44441-52010 |
NZT240 |
1 | ||
| 44442A - BRACKET, VANE PUMP, REAR | ||||
| 44442-52020 |
NZT240 |
1 | ||
| 44442-52020 |
NZT240 |
1 | ||
| 44442C - BRACKET, VANE PUMP, REAR, NO.2 | ||||
| 44442-20060 |
NZT240 |
1 | ||
| 44442-20060 |
NZT240 |
1 | ||
| 44443B - BRACKET, VANE PUMP | ||||
| 44442-12030 |
NZT240 |
1 | ||
| 44442-12030 |
NZT240 |
1 | ||
| Common parts | ||||
| 90105-10464 | ||||
| 90119-06559 | ||||
| 90119-08B61 | ||||
| 91512-G1025 | ||||
| 91621-B0610 | ||||
| Linked diagrams | ||||
| 4503 | ||||
| 8401 | ||||
