AZT240-CEXGH (2001)

Toyota Premio/Allion

Production Dec 2001 - May 2007
Engine 1AZFSE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0112- )

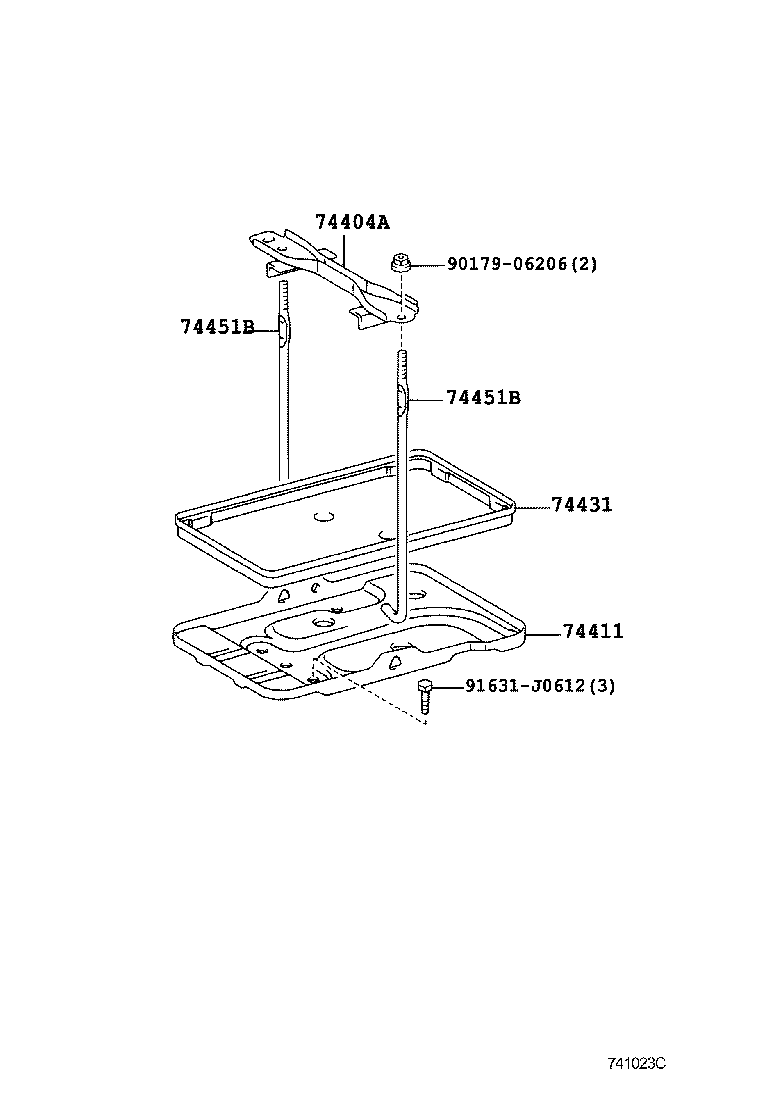

Click highlighted areas on diagram

diagram 74404A 74411 74431 74451B 74451B 9017906206 91631J0612
Part # Description Qty Price
74404A - CLAMP SUB-ASSY, BATTERY
74404-63010

AZT240,NZT240,ZZT24#

 1
74404-63010

AZT240,NZT240,ZZT24#

 1
74411 - CARRIER, BATTERY
74411-63010

AZT240,NZT240,ZZT24#

 1
74411-63020

AZT240,NZT240,ZZT24#

 1
74411-63020

AZT240,NZT240,ZZT24#

 1
74431 - TRAY, BATTERY
74431-20120

AZT240,NZT240,ZZT24#

 1
74431-20110

AZT240,NZT240,ZZT24#

 1
74431-20120

AZT240,NZT240,ZZT24#

 1
74451B - BOLT, BATTERY CLAMP
74451-20060

AZT240,NZT240,ZZT24#

 2
74451-20060

AZT240,NZT240,ZZT24#

 2
74451B - BOLT, BATTERY CLAMP
74451-20060

AZT240,NZT240,ZZT24#

 2
74451-20060

AZT240,NZT240,ZZT24#

 2
Common parts
90179-06206
91631-J0612
