AZT240-AEXGH (2001)

Toyota Premio/Allion

Production Dec 2001 - May 2007
Engine 1AZFSE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

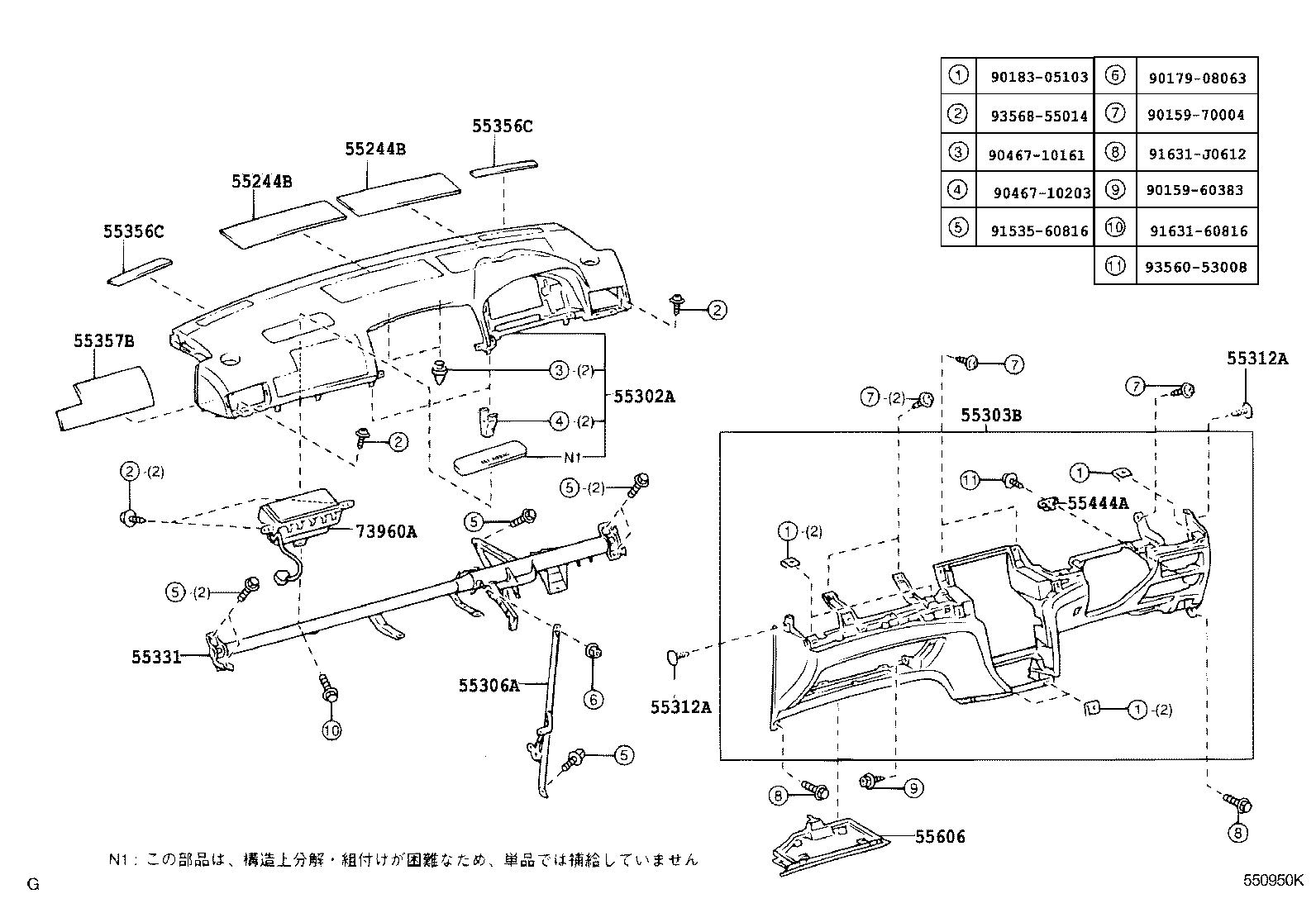

ILLUST NO. 1 OF 2(0112- )

Click highlighted areas on diagram

diagram 55244B 55244B 55302A 55303B 55306A 55312A 55312A 55331 55356C 55356C 55357B 55444A 55606 73960A 9015960383 9015970004 9017908063 9018305103 9046710161 9046710203 9153560816 9163160816 91631J0612 9356053008 9356855014
Part # Description Qty Price
55244B - SILENCER, FRONT PANEL SIDE, NO.2
55244-63010

AZT240,NZT240,ZZT24#

 2
55244-63010

AZT240,NZT240,ZZT24#

 2
55244B - SILENCER, FRONT PANEL SIDE, NO.2
55244-63010

AZT240,NZT240,ZZT24#

 2
55244-63010

AZT240,NZT240,ZZT24#

 2
55302A - PANEL SUB-ASSY, INSTRUMENT, UPPER
55302-20070B0

AZT240,NZT240,ZZT24#

DK.GRAY,TRIM1#

 1
55302-20070B0

AZT240,NZT240,ZZT24#

DK.GRAY,TRIM0#,1#

 1
55302-20070E0

AZT240,NZT240,ZZT24#

ORCHID BROWN,TRIM0#

 1
55303B - PANEL SUB-ASSY, INSTRUMENT, LOWER
55303-20120A0

AZT240,NZT240,ZZT24#

IVORY,TRIM0#

 1
55303-20120B0

AZT240,NZT240,ZZT24#

MD.GRAY,TRIM1#

 1
55303-20120E0

AZT240,NZT240,ZZT24#

MD.NEUTRAL BONE,TRIM0#

 1
55303-20120B0

AZT240,NZT240,ZZT24#

MD.GRAY,TRIM1#

 1
55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1
55306-20330

AZT240,NZT240,ZZT24#

 1
55306-20330

AZT240,NZT240,ZZT24#

 1
55312A - CLIP, INSTRUMENT PANEL
90467-0502022

AZT240,NZT240,ZZT24#

BLACK,TRIM0#,1#

 2
90467-0502022

AZT240,NZT240,ZZT24#

BLACK

 2
55312A - CLIP, INSTRUMENT PANEL
90467-0502022

AZT240,NZT240,ZZT24#

BLACK,TRIM0#,1#

 2
90467-0502022

AZT240,NZT240,ZZT24#

BLACK

 2
55331 - REINFORCEMENT, INSTRUMENT PANEL
55330-20380

AZT240,NZT240,ZZT24#

 1
55330-20350

AZT240,NZT240,ZZT24#

 1
55356C - CUSHION, INSTRUMENT PANEL, NO.2
55356-20060

AZT240,NZT240,ZZT24#

 2
55356-20060

AZT240,NZT240,ZZT24#

 2
55356C - CUSHION, INSTRUMENT PANEL, NO.2
55356-20060

AZT240,NZT240,ZZT24#

 2
55356-20060

AZT240,NZT240,ZZT24#

 2
55357B - CUSHION, INSTRUMENT PANEL, NO.3
55357-20060

AZT240,NZT240,ZZT24#

 1
55357-20060

AZT240,NZT240,ZZT24#

 1
55444A - SPRING, INSTRUMENT PANEL BOX
55444-20090

AZT240,NZT240,ZZT24#

 1
55444-20090

AZT240,NZT240,ZZT24#

 1
55606 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1
55606-20130

AZT240,ZZT24#

 1
55606-20130

AZT240,ZZT24#

 1
73960A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR
73960-20020

AZT240,NZT240,ZZT24#

 1
73960-20020

AZT240,NZT240,ZZT24#

 1
Common parts
90159-60383
90159-70004
90179-08063
90183-05103
90467-10161
90467-10203
91535-60816
91631-60816
91631-J0612
93560-53008
93568-55014

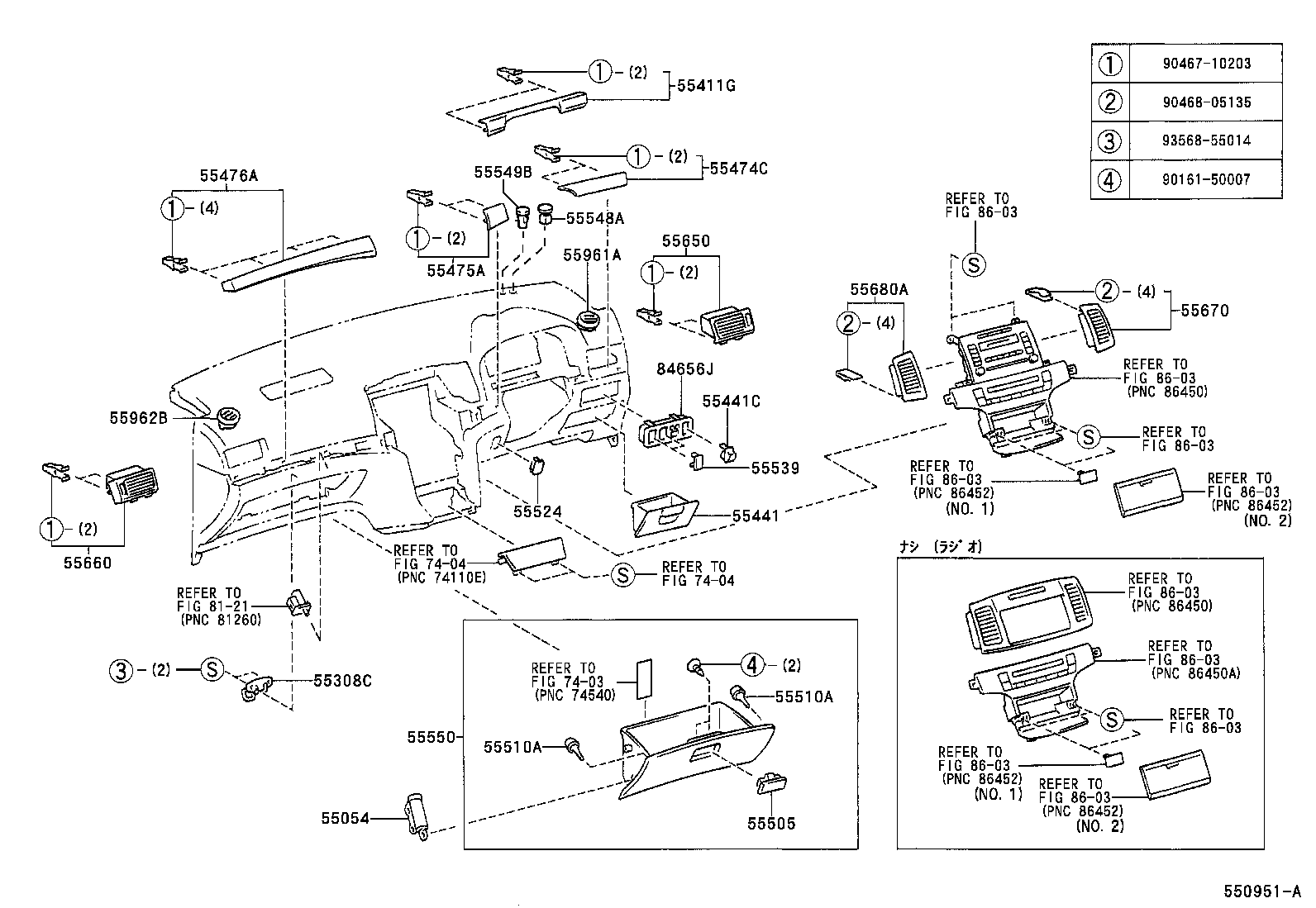

ILLUST NO. 2 OF 2(0112- )

Click highlighted areas on diagram

diagram 55054 55308C 55411G 55441 55441C 55474C 55475A 55476A 55505 55510A 55510A 55524 55539 55548A 55549B 55550 55650 55660 55670 55680A 55961A 55962B 7403 7404 7404 8121 84656J 8603 8603 8603 8603 8603 8603 8603 8603 8603 8603 9016150007 9046710203 9046805135 9356855014
Part # Description Qty Price
55054 - STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR
55054-22030

AZT240,NZT240,ZZT24#

 1
55054-35020

AZT240,NZT240,ZZT24#

 1
55054-35020

AZT240,NZT240,ZZT24#

 1
55308C - BRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER
55308-20240

AZT240,NZT240,ZZT24#

 1
55308-20240

AZT240,NZT240,ZZT24#

 1
55411G - PANEL, INSTRUMENT CLUSTER FINISH, NO.1
55411-20690

AZT240,NZT240,ZZT24#

 1
55411-20690

AZT240,NZT240,ZZT24#

 1
55441 - BOX, INSTRUMENT PANEL
55441-20200A0

AZT240,NZT240,ZZT24#

IVORY,TRIM0#

 1
55441-20200E0

AZT240,NZT240,ZZT24#

MD.NEUTRAL BONE,TRIM0#

 1
55441-20200B0

AZT240,NZT240,ZZT24#

MD.GRAY,TRIM1#

 1
55441-20200B0

AZT240,NZT240,ZZT24#

MD.GRAY,TRIM1#

 1
55441C - BOX, INSTRUMENT PANEL COIN
55441-20140P1

AZT240,NZT240,ZZT24#

MD.GRAY,TRIM1#

 1
55441-20140E2

AZT240,NZT240,ZZT24#

MD.NEUTRAL BONE,TRIM0#

 1
55474C - GARNISH, INSTRUMENT CLUSTER FINISH PANEL, NO.1
55474-20110A0

AZT240,NZT240,ZZT24#..PRM

ﾓｸﾒ,IVORY,TRIM0#,1#

 1
55474-20110E0

AZT240..PRM

YELLOWISH BROWN,TRIM0#

 1
55474-20110A0

AZT240,NZT240,ZZT24#..PRM

ﾓｸﾒ,IVORY,TRIM1#

 1
55475A - GARNISH, INSTRUMENT CLUSTER FINISH PANEL, NO.2
55475-20120A0

AZT240,NZT240,ZZT24#..PRM

ﾓｸﾒ,IVORY,TRIM0#,1#

 1
55475-20120E0

AZT240..PRM

YELLOWISH BROWN,TRIM0#

 1
55475-20120A0

AZT240,NZT240,ZZT24#..PRM

ﾓｸﾒ,IVORY,TRIM1#

 1
55476A - GARNISH, INSTRUMENT CLUSTER FINISH PANEL, NO.3
55476-20120

AZT240,NZT240,ZZT24#..PRM

ﾓｸﾒ

 1
55476-20120A0

AZT240,NZT240,ZZT24#..PRM

IVORY,TRIM1#

 1
55476-20120E0

AZT240..PRM

YELLOWISH BROWN,TRIM0#

 1
55505 - LOCK SUB-ASSY, GLOVE COMPARTMENT DOOR
55506-44010E0

AZT240,NZT240,ZZT24#

MD.NEUTRAL BONE,TRIM0#

 1
55506-44010B2

AZT240,NZT240,ZZT24#

MD.GRAY,TRIM1#

 1
55506-44010A0

AZT240,NZT240,ZZT24#

IVORY,TRIM0#

 1
55506-44010B2

AZT240,NZT240,ZZT24#

MD.GRAY,TRIM1#

 1
55510A - CUSHION(FOR GLOVE COMPARTMENT DOOR)
90541-05020

AZT240,NZT240,ZZT24#

 2
90541-05020

AZT240,NZT240,ZZT24#

 2
55510A - CUSHION(FOR GLOVE COMPARTMENT DOOR)
90541-05020

AZT240,NZT240,ZZT24#

 2
90541-05020

AZT240,NZT240,ZZT24#

 2
55524 - COVER, SWITCH BACE HOLE
55524-51010A0

AZT240,NZT240,ZZT24#

IVORY,TRIM0#

 1
55524-51010B1

AZT240,NZT240,ZZT24#

MD.GRAY,TRIM1#

 1
55524-51010E0

AZT240,NZT240,ZZT24#

MD.NEUTRAL BONE,TRIM0#

 1
55524-51010B1

AZT240,NZT240,ZZT24#

MD.GRAY,TRIM1#

 1
55539 - COVER, SPARE SWITCH HOLE
55539-32010E8

AZT240,NZT240,ZZT24#

MD.NEUTRAL BONE,TRIM0#

 1
55539-32010P5

AZT240,NZT240,ZZT24#

MD.GRAY,TRIM1#

 1
55539-32010P5

AZT240,NZT240,ZZT24#

MD.GRAY,TRIM1#

 1
55539-32010A0

AZT240,NZT240,ZZT24#

IVORY,TRIM0#

 1
55550 - DOOR ASSY, GLOVE COMPARTMENT
55550-20230E0

AZT240,NZT240,ZZT24#

MD.NEUTRAL BONE,TRIM0#

 1
55550-20230B0

AZT240,NZT240,ZZT24#

MD.GRAY,TRIM1#

 1
55550-20230A0

AZT240,NZT240,ZZT24#

IVORY,TRIM0#

 1
55550-20230B0

AZT240,NZT240,ZZT24#

MD.GRAY,TRIM1#

 1
55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1
55650-20370B0

AZT240,NZT240,ZZT24#

DK.GRAY,TRIM1#

 1
55650-20370E0

AZT240,NZT240,ZZT24#

ORCHID BROWN,TRIM0#

 1
55650-20370B0

AZT240,NZT240,ZZT24#

DK.GRAY,TRIM0#,1#

 1
55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2
55660-20280E0

AZT240,NZT240,ZZT24#

ORCHID BROWN,TRIM0#

 1
55660-20280B0

AZT240,NZT240,ZZT24#

DK.GRAY,TRIM1#

 1
55660-20280B0

AZT240,NZT240,ZZT24#

DK.GRAY,TRIM0#,1#

 1
55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3
55670-20300B0

AZT240,NZT240,ZZT24#

DK.GRAY,TRIM1#

 1
55670-20300E0

AZT240,NZT240,ZZT24#

ORCHID BROWN,TRIM0#

 1
55670-20300B0

AZT240,NZT240,ZZT24#

DK.GRAY,TRIM0#,1#

 1
55680A - REGISTER ASSY, INSTRUMENT PANEL, NO.4
55680-20030E0

AZT240,NZT240,ZZT24#

ORCHID BROWN,TRIM0#

 1
55680-20030B0

AZT240,NZT240,ZZT24#

DK.GRAY,TRIM1#

 1
55680-20030B0

AZT240,NZT240,ZZT24#

DK.GRAY,TRIM0#,1#

 1
55961A - NOZZLE, SIDE DEFROSTER, RH
55961-12220B0

AZT240,NZT240,ZZT24#

DK.GRAY,TRIM0#,1#

 1
55961-12220E1

AZT240,NZT240,ZZT24#

ORCHID BROWN,TRIM0#

 1
55961-12220B0

AZT240,NZT240,ZZT24#

DK.GRAY,TRIM1#

 1
55962B - NOZZLE, SIDE DEFROSTER, LH
55961-12220B0

AZT240,NZT240,ZZT24#

DK.GRAY,TRIM1#

 1
55961-12220B0

AZT240,NZT240,ZZT24#

DK.GRAY,TRIM0#,1#

 1
55961-12220E1

AZT240,NZT240,ZZT24#

ORCHID BROWN,TRIM0#

 1
84656J - COVER, BEZEL SWITCH HOLE
84656-12100B2

AZT240,NZT240,ZZT24#

MD.GRAY,TRIM1#

 1
84656-12100E1

AZT240,NZT240,ZZT24#

MD.NEUTRAL BONE,TRIM0#

 1
84656-12100B2

AZT240,NZT240,ZZT24#

MD.GRAY,TRIM1#

 1
84656-12100A0

AZT240,NZT240,ZZT24#

IVORY,TRIM0#

 1
Common parts
90161-50007
90467-10203
90468-05135
93568-55014
Linked diagrams
7403
7404
8121
8603
