NNP15-AGSGK (2006)
Toyota Porte
Production
Jan 2006
-
Jun 2007
Engine
1NZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

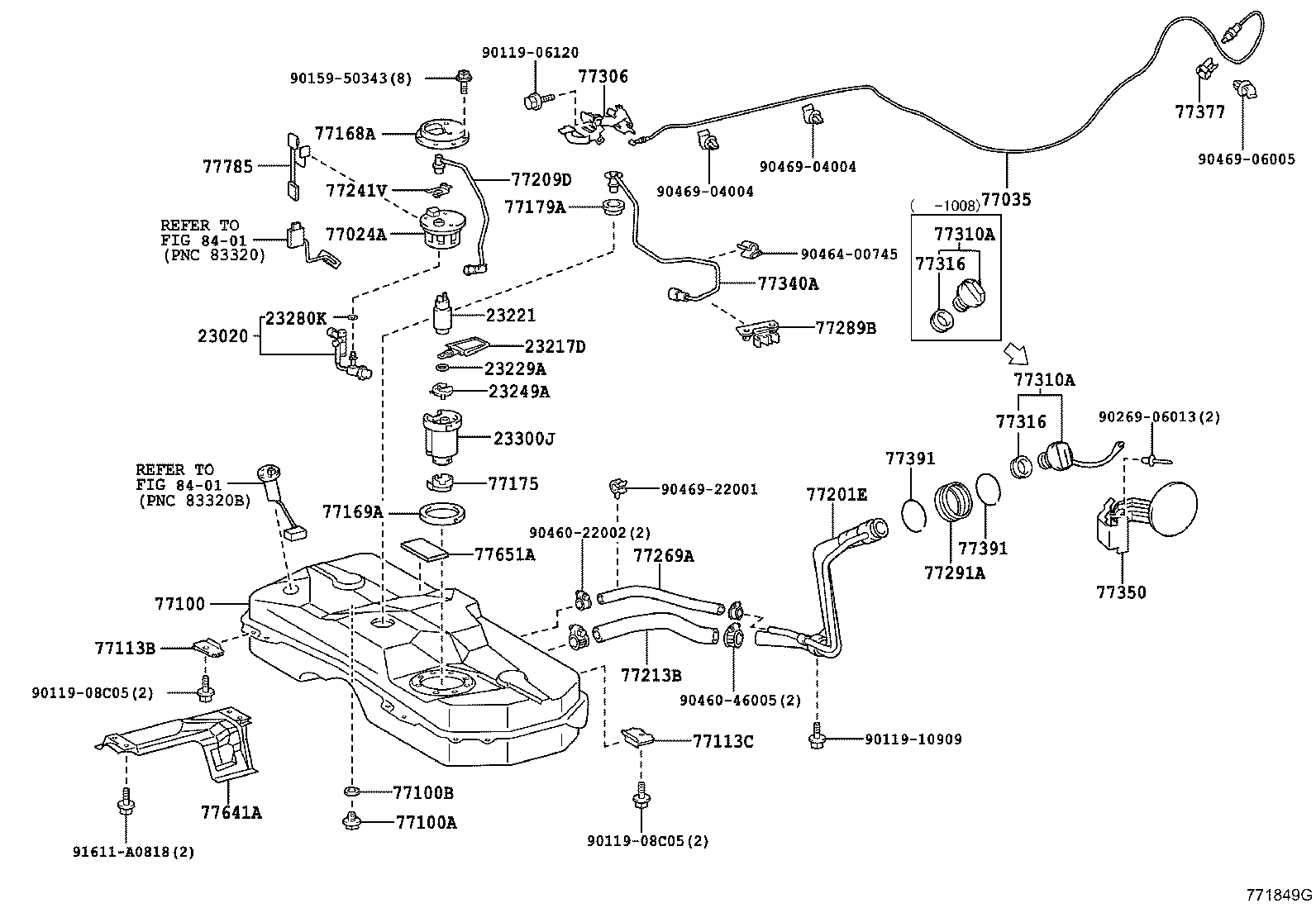

ILLUST NO. 1 OF 2(0601- )NNP15
Click highlighted areas on diagram
ﾌｭｰｴﾙ ﾀﾝｸ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23020 - REGULATOR ASSY, FUEL PRESSURE W/JET PUMP | ||||
| 23020-70010 |
1NZFE..NNP15 |
1 | ||
| 23217D - FILTER, FUEL PUMP | ||||
| 23217-23010 |
1NZFE,2NZFE..NNP1# |
1 | ||
| 23217-76040 |
1NZFE..NNP15 |
1 | ||
| 23221 - PUMP, FUEL | ||||
| 23221-21020 |
1NZFE..NNP15 |
1 | ||
| 23229A - CLIP(FOR FUEL PUMP FILTER) | ||||
| 23229-16010 |
1NZFE,2NZFE..NNP1# |
1 | ||
| 23249A - RUBBER, CUSHION(FOR FUEL PUMP) | ||||
| 23249-46180 |
1NZFE..NNP15 |
1 | ||
| 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-07020 |
1NZFE,2NZFE..NNP1# |
1 | ||
| 23300J - FILTER ASSY, FUEL | ||||
| 23300-21010 |
1NZFE..NNP15 |
1 | ||
| 77024A - PLATE SUB-ASSY, FUEL SUCTION | ||||
| 77024-52010 |
NNP15 |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-52190 |
NNP1# |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-52220 |
NNP15 |
1 | ||
| 77001-52030 |
NNP1# |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90105-12116 |
NNP15 |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-12245 |
NNP15 |
1 | ||
| 77113B - PLATE, FUEL TANK SIDE | ||||
| 77113-52020 |
NNP15 |
2 | ||
| 77113C - PLATE, FUEL TANK SIDE | ||||
| 77113-52030 |
NNP15 |
2 | ||
| 77168A - PLATE, FUEL TANK VENT TUBE SET | ||||
| 77168-33050 |
NNP15 |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-33020 |
NNP15 |
1 | ||
| 77175 - SUPPORT, FUEL SUCTION, NO.2 | ||||
| 77175-30050 |
NNP15 |
1 | ||
| 77179A - GASKET, FUEL TANK BREATHER TUBE | ||||
| 77179-33010 |
NNP15 |
1 | ||
| 77201E - PIPE SUB-ASSY, FUEL TANK FILLER | ||||
| 77201-52040 |
NNP15 |
1 | ||
| 77209D - TUBE SUB-ASSY, FUEL TANK MAIN | ||||
| 77209-52010 |
NNP15 |
1 | ||
| 77213B - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-52030 |
NNP15 |
1 | ||
| 77241V - CLIP, TUBE JOINT | ||||
| 77241-33011 |
NNP15 |
1 | ||
| 77269A - HOSE, FUEL TANK BREATHER | ||||
| 77269-52010 |
NNP15 |
1 | ||
| 77289B - CLAMP, FUEL TUBE, NO.3 | ||||
| 77289-52010 |
NNP1# |
1 | ||
| 77291A - SHIELD, FUEL TANK FILLER PIPE | ||||
| 77291-52010 |
NNP1# |
1 | ||
| 77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN | ||||
| 77306-13020 |
NNP1# |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77310-48010 |
NNP1# |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77310-48010 |
NNP1# |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-16010 |
NNP1# |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-16010 |
NNP1# |
1 | ||
| 77340A - VALVE ASSY, FUEL CUT OFF W/TUBE | ||||
| 77340-52010 |
NNP15 |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-52120 |
NNP1# |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-52010 |
NNP1# |
1 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-12020 |
NNP1# |
2 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-12020 |
NNP1# |
2 | ||
| 77641A - PROTECTOR, FUEL TANK, NO.1 | ||||
| 77641-52010 |
NNP15 |
1 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77652-12100 |
NNP15 |
1 | ||
| 77785 - HARNESS, FUEL PUMP | ||||
| 77785-52020 |
NNP15 |
1 | ||
| Common parts | ||||
| 90119-06120 | ||||
| 90119-08C05 | ||||
| 90119-10909 | ||||
| 90159-50343 | ||||
| 90269-06013 | ||||
| 90460-22002 | ||||
| 90460-46005 | ||||
| 90464-00745 | ||||
| 90469-04004 | ||||
| 90469-06005 | ||||
| 90469-22001 | ||||
| 91611-A0818 | ||||
| Linked diagrams | ||||
| 8401 | ||||
