NNP11-AGSGK (2004)
Toyota Porte

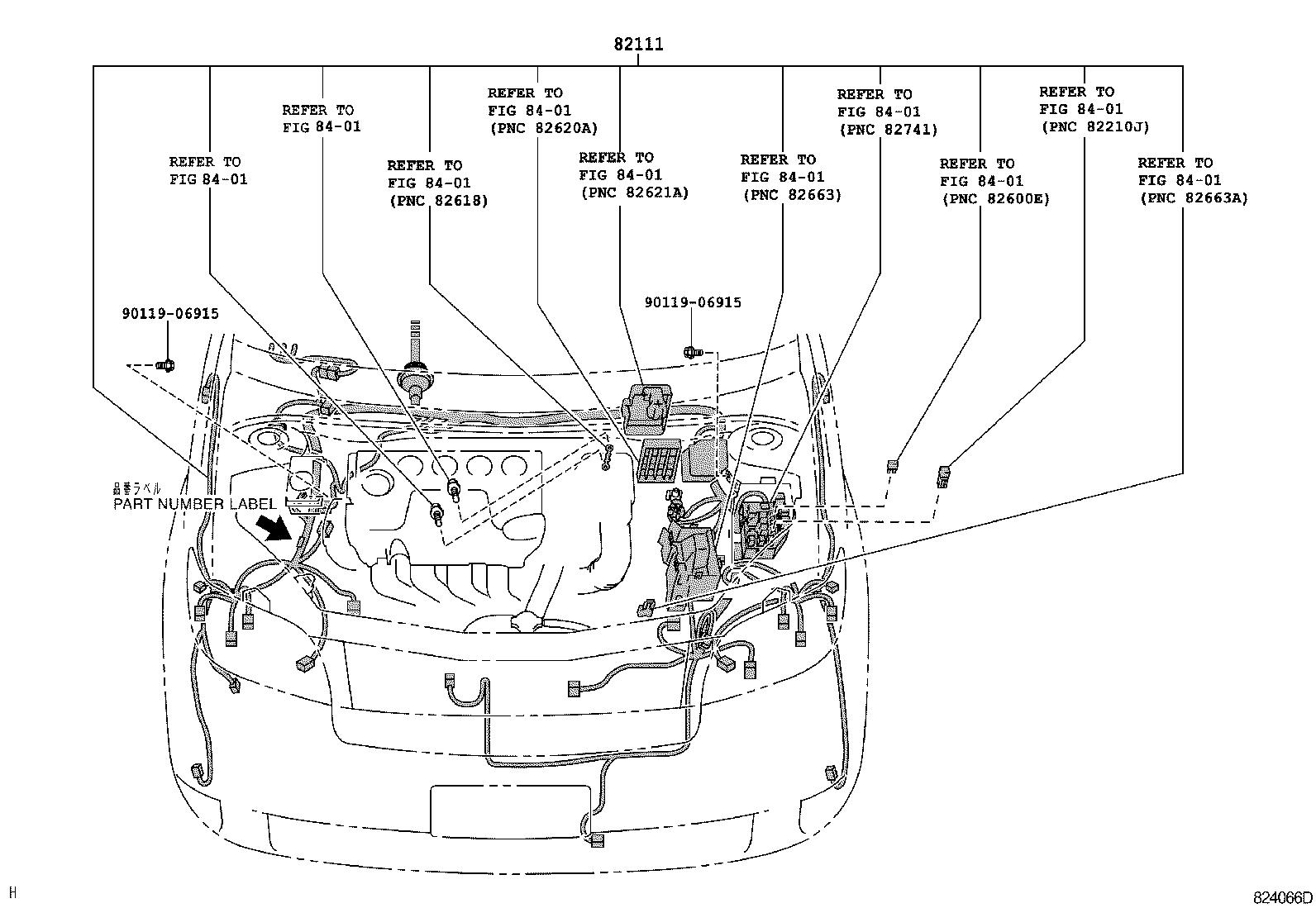

ILLUST NO. 1 OF 7(0407- )
ｴﾝｼﾞﾝ ﾙｰﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-5D580 |
NNP1# ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82111-52E10 |
NNP11 寒冷地仕様&VSC−有り |
1 | ||
| 82111-52E20 |
NNP11 寒冷地仕様&VSC−有り&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82111-52D90 |
NNP11 VSC−有り |
1 | ||
| 82111-52E00 |
NNP11 VSC−有り&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82111-52B80 |
NNP1# 寒冷地仕様&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82111-52B81 |
NNP10,11 寒冷地仕様&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82111-5D570 |
NNP11 |
1 | ||
| 82111-5D571 |
NNP11 |
1 | ||
| 82111-5D640 |
NNP1# 寒冷地仕様 |
1 | ||
| 82111-5D641 |
NNP10,11 寒冷地仕様 |
1 | ||
| 82111-52E01 |
NNP11 VSC−有り&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82111-52E21 |
NNP11 寒冷地仕様&VSC−有り&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82111-52B82 |
NNP10,11 寒冷地仕様&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82111-5D581 |
NNP10,11 ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82111-52E11 |
NNP11 寒冷地仕様&VSC−有り |
1 | ||
| 82111-5D642 |
NNP10,11 寒冷地仕様 |
1 | ||
| 82111-5D582 |
NNP10,11 ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82111-5D572 |
NNP11 |
1 | ||
| 82111-52D91 |
NNP11 VSC−有り |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| Linked diagrams | ||||
| 8401 | ||||

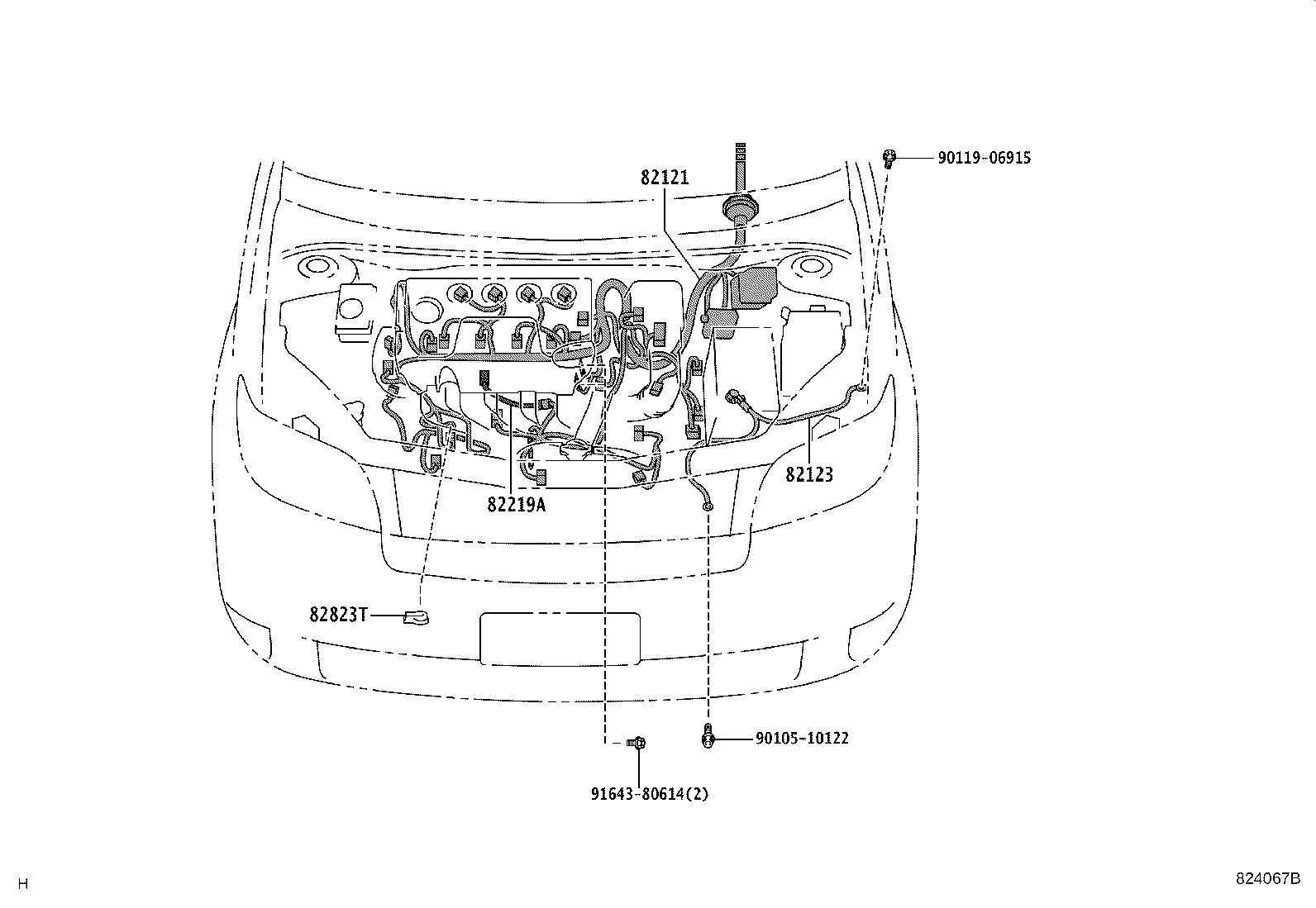

ILLUST NO. 2 OF 7(0407- )
ｴﾝｼﾞﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-52A31 |
NNP10,11 |
1 | ||
| 82121-52B30 |
NNP11 VSC−有り |
1 | ||
| 82121-52A30 |
NNP10,11 |
1 | ||
| 82123 - WIRE, ENGINE, NO.3 | ||||
| 82123-52220 |
NNP1# |
1 | ||
| 82123-52340 |
NNP1# |
1 | ||
| 82219A - WIRE, SENSOR | ||||
| 82219-52010 |
NNP1# |
1 | ||
| 82823T - CAP, ALTERNATOR TERMINAL | ||||
| 82823-22050 |
NNP1# |
1 | ||
| Common parts | ||||
| 90105-10122 | ||||
| 90119-06915 | ||||
| 91643-80614 | ||||

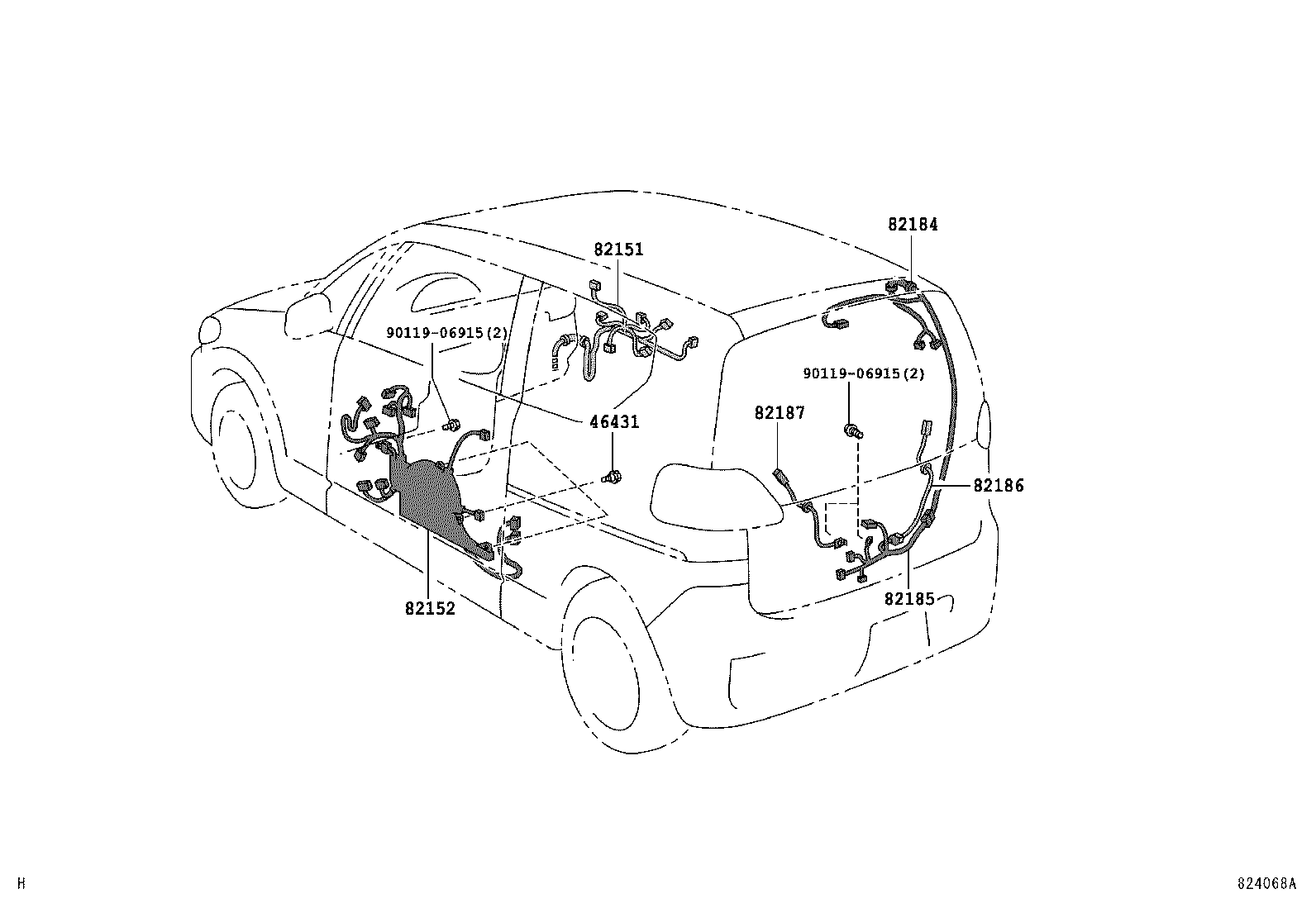

ILLUST NO. 4 OF 7(0407- )
ﾄﾞｱ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46431 - BOLT, WIRE | ||||
| 46431-58010 |
NNP1# |
5 | ||
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-52870 |
NNP10,15 |
1 | ||
| 82151-52890 |
NNP11 |
1 | ||
| 82151-52880 |
NNP11 ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(*POSD開閉機能付) & 無し(ｽﾏｰﾄﾄﾞｱﾛｯｸ) |
1 | ||
| 82151-52880 |
NNP10,15 ﾄﾞｱﾐﾗｰ−電動格納式ﾘﾓｺﾝｶﾗｰﾄﾞ |
1 | ||
| 82151-52890 |
NNP10,15 ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(電動ｽﾗｲﾄﾞﾄﾞｱ開閉機能 & ｽﾏｰﾄﾄﾞｱﾛｯｸ付) |
1 | ||
| 82151-52890 |
NNP10,15 ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(電動ｽﾗｲﾄﾞﾄﾞｱ開閉機能 & ｽﾏｰﾄﾄﾞｱﾛｯｸ付)&ﾄﾞｱﾐﾗｰ−電動格納式ﾘﾓｺﾝｶﾗｰﾄﾞ |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82052-52010 |
NNP1# |
1 | ||
| 82184 - WIRE, BACK DOOR, NO.1 | ||||
| 82184-52300 |
NNP1# ｵｰﾃﾞｨｵ−AVGN(05ﾓﾃﾞﾙ) & 4ｽﾋﾟｰｶ |
1 | ||
| 82184-52290 |
NNP1# |
1 | ||
| 82184-52300 |
NNP1# ｵｰﾃﾞｨｵ−AVX(有り/ECU & CD & MD) |
1 | ||
| 82185 - WIRE, BACK DOOR, NO.2 | ||||
| 82185-52340 |
NNP1# ｵｰﾃﾞｨｵ−AVX(有り/ECU & CD & MD) |
1 | ||
| 82185-52330 |
NNP1# |
1 | ||
| 82185-52340 |
NNP1# ｵｰﾃﾞｨｵ−AVGN(05ﾓﾃﾞﾙ) & 4ｽﾋﾟｰｶ |
1 | ||
| 82186 - WIRE, REAR WINDOW, NO.1 | ||||
| 82186-52080 |
NNP1# |
1 | ||
| 82187 - WIRE, REAR WINDOW, NO.2 | ||||
| 82187-52070 |
NNP1# |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||

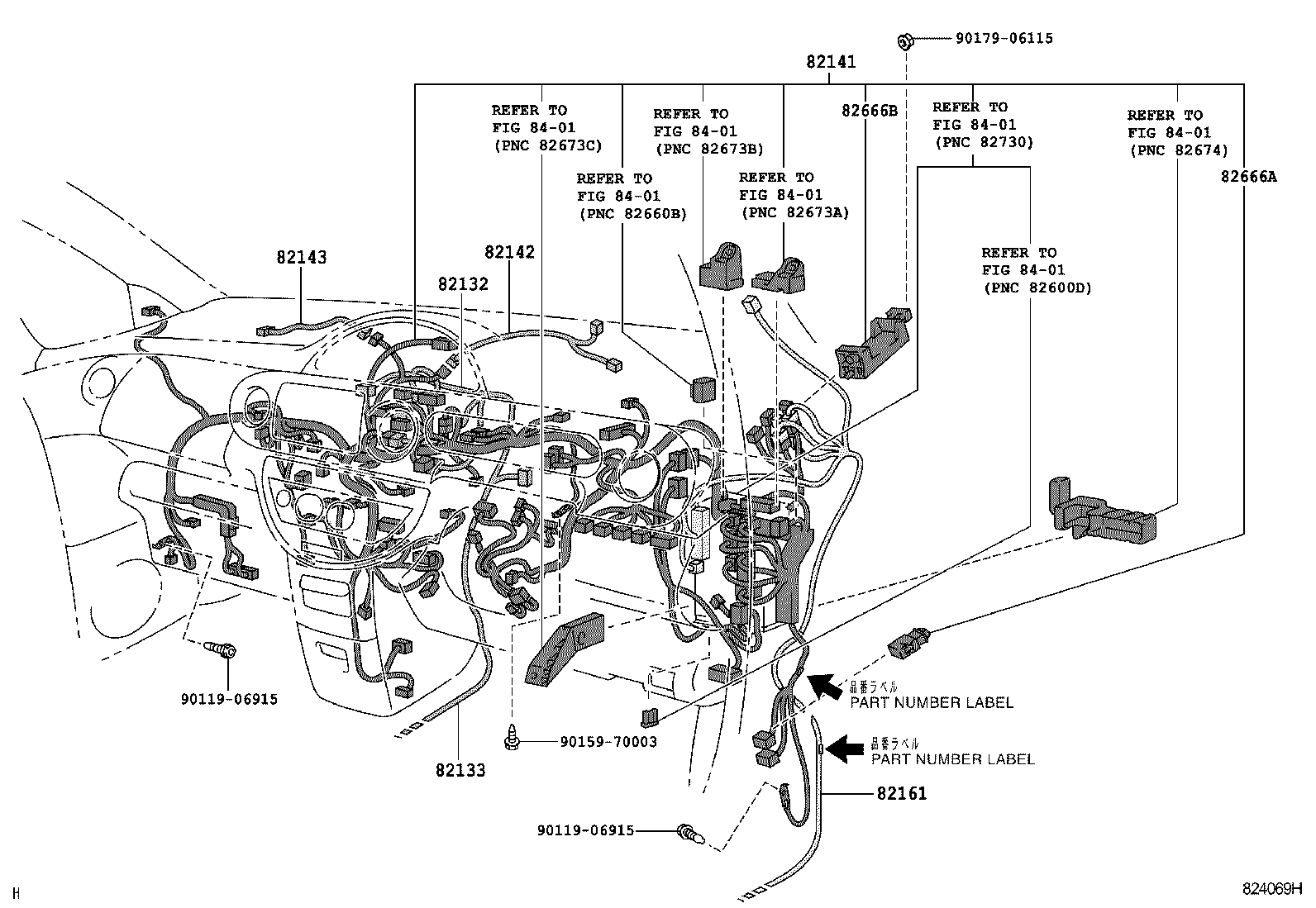

ILLUST NO. 3 OF 7(0407- )
ｲﾝｽﾄﾙﾒﾝﾄ ﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82132 - WIRE, COWL, NO.2 | ||||
| 82132-52010 |
NNP11 |
1 | ||
| 82133 - WIRE, COWL, NO.3 | ||||
| 82133-52010 |
NNP1# ｵｰﾃﾞｨｵ−AVX(有り/ECU & CD & MD) |
1 | ||
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82145-5C430 |
NNP11 |
1 | ||
| 82145-5C540 |
NNP11 寒冷地仕様 |
1 | ||
| 82141-52L30 |
NNP11 VSC−有り |
1 | ||
| 82141-5D621 |
NNP11 寒冷地仕様&VSC−有り |
1 | ||
| 82145-5C541 |
NNP11 寒冷地仕様 |
1 | ||
| 82141-52L31 |
NNP11 VSC−有り |
1 | ||
| 82141-5D620 |
NNP11 寒冷地仕様&VSC−有り |
1 | ||
| 82145-5C431 |
NNP11 |
1 | ||
| 82145-5C580 |
NNP11 ｴｱｺﾝ−有り(ﾏﾆｭｱﾙ) |
1 | ||
| 82146-52120 |
NNP11 寒冷地仕様&ｴｱｺﾝ−有り(ﾏﾆｭｱﾙ) |
1 | ||
| 82145-5C432 |
NNP11 |
1 | ||
| 82141-52L32 |
NNP11 VSC−有り |
1 | ||
| 82141-5D622 |
NNP11 寒冷地仕様&VSC−有り |
1 | ||
| 82145-5C581 |
NNP11 ｴｱｺﾝ−有り(ﾏﾆｭｱﾙ) |
1 | ||
| 82146-52121 |
NNP11 寒冷地仕様&ｴｱｺﾝ−有り(ﾏﾆｭｱﾙ) |
1 | ||
| 82145-5C542 |
NNP11 寒冷地仕様 |
1 | ||
| 82142 - WIRE, INSTRUMENT PANEL, NO.2 | ||||
| 82142-52020 |
NNP11 |
1 | ||
| 82143 - WIRE, INSTRUMENT PANEL, NO.3 | ||||
| 82143-52020 |
NNP1# |
1 | ||
| 82161 - WIRE, FLOOR | ||||
| 82161-52B60 |
NNP1# ｵｰﾃﾞｨｵ−AVX(有り/ECU & CD & MD) |
1 | ||
| 82161-5D030 |
NNP1# |
1 | ||
| 82161-52E40 |
NNP11 寒冷地仕様&VSC−有り&ｵｰﾃﾞｨｵ−AVX(有り/ECU & CD & MD) |
1 | ||
| 82161-52B60 |
NNP1# 寒冷地仕様 |
1 | ||
| 82161-52B61 |
NNP10,11 寒冷地仕様&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82161-52B61 |
NNP10,11 ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82161-52B61 |
NNP10,11 ｵｰﾃﾞｨｵ−AVGN(05ﾓﾃﾞﾙ) & 4ｽﾋﾟｰｶ |
1 | ||
| 82161-52B61 |
NNP10,11 寒冷地仕様 |
1 | ||
| 82161-52B60 |
NNP1# 寒冷地仕様&ｵｰﾃﾞｨｵ−AVX(有り/ECU & CD & MD) |
1 | ||
| 82161-52E41 |
NNP11 VSC−有り&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82161-52E40 |
NNP11 VSC−有り |
1 | ||
| 82161-52E41 |
NNP11 寒冷地仕様&VSC−有り&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ&ｵｰﾃﾞｨｵ−AVGN(05ﾓﾃﾞﾙ) & 4ｽﾋﾟｰｶ |
1 | ||
| 82161-52E41 |
NNP11 VSC−有り |
1 | ||
| 82161-52E41 |
NNP11 寒冷地仕様&VSC−有り&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82161-52E40 |
NNP11 VSC−有り&ｵｰﾃﾞｨｵ−AVX(有り/ECU & CD & MD) |
1 | ||
| 82161-52E41 |
NNP11 寒冷地仕様&VSC−有り&ｵｰﾃﾞｨｵ−AVGN(05ﾓﾃﾞﾙ) & 4ｽﾋﾟｰｶ |
1 | ||
| 82161-52E41 |
NNP11 VSC−有り&ｵｰﾃﾞｨｵ−AVGN(05ﾓﾃﾞﾙ) & 4ｽﾋﾟｰｶ |
1 | ||
| 82161-52B61 |
NNP10,11 ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ&ｵｰﾃﾞｨｵ−AVGN(05ﾓﾃﾞﾙ) & 4ｽﾋﾟｰｶ |
1 | ||
| 82161-52E41 |
NNP11 VSC−有り&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ&ｵｰﾃﾞｨｵ−AVGN(05ﾓﾃﾞﾙ) & 4ｽﾋﾟｰｶ |
1 | ||
| 82161-52E40 |
NNP11 寒冷地仕様&VSC−有り |
1 | ||
| 82161-52B61 |
NNP10,11 寒冷地仕様&ｵｰﾃﾞｨｵ−AVGN(05ﾓﾃﾞﾙ) & 4ｽﾋﾟｰｶ |
1 | ||
| 82161-5D031 |
NNP10,11 |
1 | ||
| 82161-52E41 |
NNP11 寒冷地仕様&VSC−有り |
1 | ||
| 82161-52B61 |
NNP10,11 寒冷地仕様&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ&ｵｰﾃﾞｨｵ−AVGN(05ﾓﾃﾞﾙ) &4ｽﾋﾟｰｶ |
1 | ||
| 82666A - HOLDER, CONNECTOR NO.2 | ||||
| 82666-20270 |
NNP1# |
2 | ||
| 82666B - HOLDER, CONNECTOR NO.3 | ||||
| 82666-46010 |
NNP1# |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90159-70003 | ||||
| 90179-06115 | ||||
| Linked diagrams | ||||
| 8401 | ||||

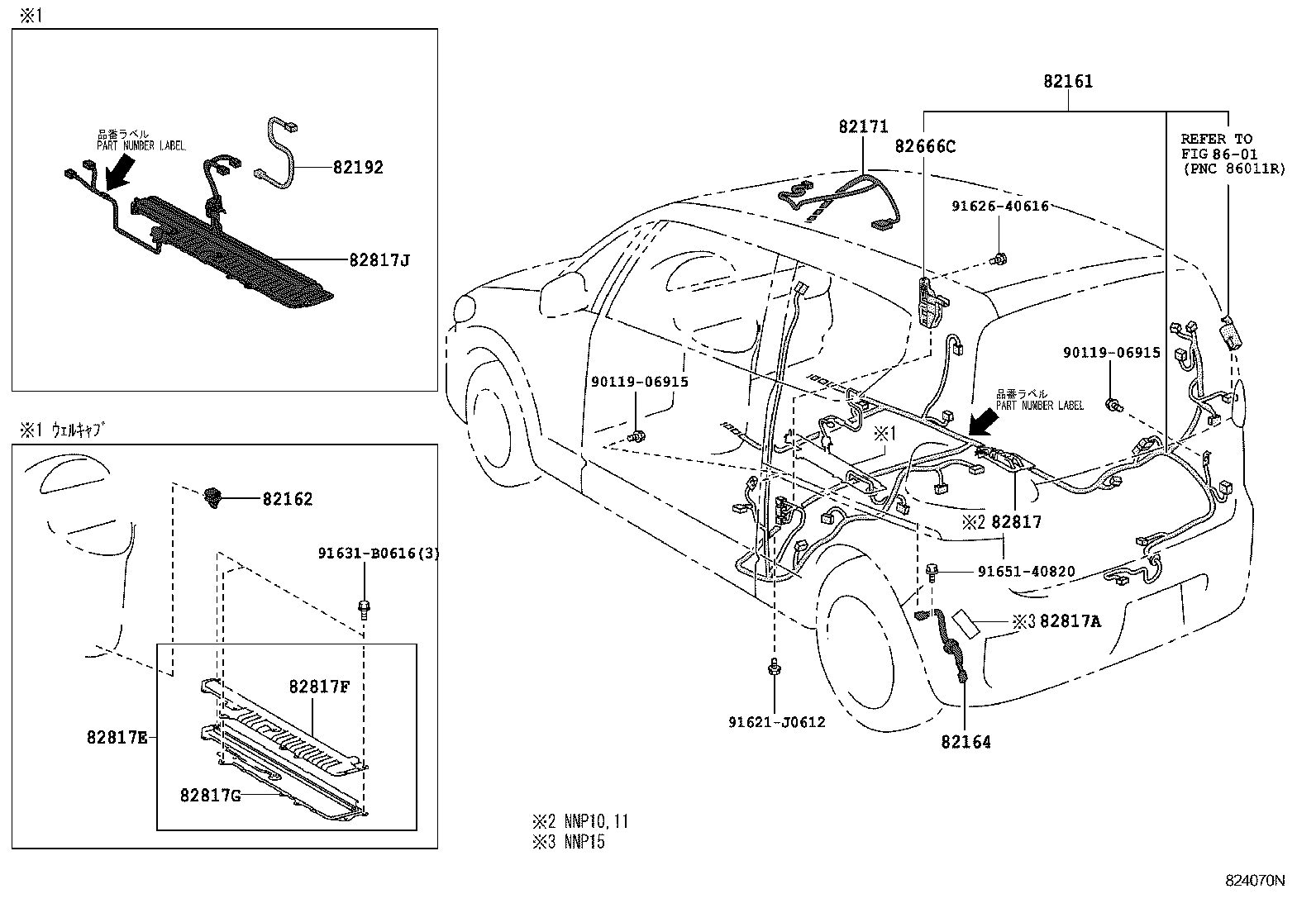

ILLUST NO. 5 OF 7(0407- )
ﾌﾛｱ,ﾙｰﾌ & ｼｰﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82161 - WIRE, FLOOR | ||||
| 82161-52B60 |
NNP1# ｵｰﾃﾞｨｵ−AVX(有り/ECU & CD & MD) |
1 | ||
| 82161-5D030 |
NNP1# |
1 | ||
| 82161-52E40 |
NNP11 寒冷地仕様&VSC−有り&ｵｰﾃﾞｨｵ−AVX(有り/ECU & CD & MD) |
1 | ||
| 82161-52B60 |
NNP1# 寒冷地仕様 |
1 | ||
| 82161-52B61 |
NNP10,11 寒冷地仕様&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82161-52B61 |
NNP10,11 ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82161-52B61 |
NNP10,11 ｵｰﾃﾞｨｵ−AVGN(05ﾓﾃﾞﾙ) & 4ｽﾋﾟｰｶ |
1 | ||
| 82161-52B61 |
NNP10,11 寒冷地仕様 |
1 | ||
| 82161-52B60 |
NNP1# 寒冷地仕様&ｵｰﾃﾞｨｵ−AVX(有り/ECU & CD & MD) |
1 | ||
| 82161-52E41 |
NNP11 VSC−有り&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82161-52E40 |
NNP11 VSC−有り |
1 | ||
| 82161-52E41 |
NNP11 寒冷地仕様&VSC−有り&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ&ｵｰﾃﾞｨｵ−AVGN(05ﾓﾃﾞﾙ) & 4ｽﾋﾟｰｶ |
1 | ||
| 82161-52E41 |
NNP11 VSC−有り |
1 | ||
| 82161-52E41 |
NNP11 寒冷地仕様&VSC−有り&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82161-52E40 |
NNP11 VSC−有り&ｵｰﾃﾞｨｵ−AVX(有り/ECU & CD & MD) |
1 | ||
| 82161-52E41 |
NNP11 寒冷地仕様&VSC−有り&ｵｰﾃﾞｨｵ−AVGN(05ﾓﾃﾞﾙ) & 4ｽﾋﾟｰｶ |
1 | ||
| 82161-52E41 |
NNP11 VSC−有り&ｵｰﾃﾞｨｵ−AVGN(05ﾓﾃﾞﾙ) & 4ｽﾋﾟｰｶ |
1 | ||
| 82161-52B61 |
NNP10,11 ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ&ｵｰﾃﾞｨｵ−AVGN(05ﾓﾃﾞﾙ) & 4ｽﾋﾟｰｶ |
1 | ||
| 82161-52E41 |
NNP11 VSC−有り&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ&ｵｰﾃﾞｨｵ−AVGN(05ﾓﾃﾞﾙ) & 4ｽﾋﾟｰｶ |
1 | ||
| 82161-52E40 |
NNP11 寒冷地仕様&VSC−有り |
1 | ||
| 82161-52B61 |
NNP10,11 寒冷地仕様&ｵｰﾃﾞｨｵ−AVGN(05ﾓﾃﾞﾙ) & 4ｽﾋﾟｰｶ |
1 | ||
| 82161-5D031 |
NNP10,11 |
1 | ||
| 82161-52E41 |
NNP11 寒冷地仕様&VSC−有り |
1 | ||
| 82161-52B61 |
NNP10,11 寒冷地仕様&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ&ｵｰﾃﾞｨｵ−AVGN(05ﾓﾃﾞﾙ) &4ｽﾋﾟｰｶ |
1 | ||
| 82162 - WIRE, FLOOR, NO.2 | ||||
| 82162-52040 |
NNP10,15 ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ & ﾌﾚﾝﾄﾞﾏﾁｯｸ) |
1 | ||
| 82162-52040 |
NNP1# ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ) |
1 | ||
| 82162-52040 |
NNP10,15 ｳｪﾙｷｬﾌﾞ(ｻｲﾄﾞｱｸｾｽ & ﾌﾚﾝﾄﾞﾏﾁｯｸ) |
1 | ||
| 82162-52040 |
NNP10,15 ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ & ﾌﾚﾝﾄﾞﾏﾁｯｸ);ｳｪﾙｷｬﾌﾞ(ｻｲhｱｸｾｽ & ﾌﾚﾝﾄﾞﾏﾁｯｸ) |
1 | ||
| 82162-52040 |
NNP1# ｳｪﾙｷｬﾌﾞ(ｻｲﾄﾞｱｸｾｽ) |
1 | ||
| 82162-52040 |
NNP1# ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ);ｳｪﾙｷｬﾌﾞ(ｻｲﾄﾞｱｸｾｽ) |
1 | ||
| 82164 - WIRE, FRAME | ||||
| 82164-52150 |
NNP10,11 ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-52270 |
NNP1# |
1 | ||
| 82171-52270 |
NNP1# ﾋﾝﾊﾞﾝ ﾗﾍﾞﾙ=82171−52270 |
1 | ||
| 82192 - WIRE, FRONT SEAT, LH | ||||
| 82192-52010 |
NNP1# |
1 | ||
| 82666C - HOLDER, CONNECTOR NO.4 | ||||
| 82666-52070 |
NNP1# |
1 | ||
| 82666-52071 |
NNP1# |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-52130 |
NNP11 |
1 | ||
| 82817E - PROTECTOR, WIRING HARNESS, NO.6 | ||||
| 82807-52030 |
NNP1# ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ) |
1 | ||
| 82807-52030 |
NNP10,15 ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ & ﾌﾚﾝﾄﾞﾏﾁｯｸ) |
1 | ||
| 82807-52030 |
NNP1# ｳｪﾙｷｬﾌﾞ(ｻｲﾄﾞｱｸｾｽ) |
1 | ||
| 82807-52030 |
NNP10,15 ｳｪﾙｷｬﾌﾞ(ｻｲﾄﾞｱｸｾｽ & ﾌﾚﾝﾄﾞﾏﾁｯｸ) |
1 | ||
| 82817F - PROTECTOR, WIRING HARNESS, NO.7 | ||||
| 82817-52210 |
NNP1# ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ) |
1 | ||
| 82817-52210 |
NNP10,15 ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ & ﾌﾚﾝﾄﾞﾏﾁｯｸ) |
1 | ||
| 82817-52210 |
NNP1# ｳｪﾙｷｬﾌﾞ(ｻｲﾄﾞｱｸｾｽ) |
1 | ||
| 82817-52210 |
NNP10,15 ｳｪﾙｷｬﾌﾞ(ｻｲﾄﾞｱｸｾｽ & ﾌﾚﾝﾄﾞﾏﾁｯｸ) |
1 | ||
| 82817G - PROTECTOR, WIRING HARNESS, NO.8 | ||||
| 82817-52220 |
NNP10,15 ｳｪﾙｷｬﾌﾞ(ｻｲﾄﾞｱｸｾｽ & ﾌﾚﾝﾄﾞﾏﾁｯｸ) |
1 | ||
| 82817-52220 |
NNP10,15 ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ & ﾌﾚﾝﾄﾞﾏﾁｯｸ) |
1 | ||
| 82817-52220 |
NNP1# ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ) |
1 | ||
| 82817-52220 |
NNP1# ｳｪﾙｷｬﾌﾞ(ｻｲﾄﾞｱｸｾｽ) |
1 | ||
| 82817J - PROTECTOR, WIRING HARNESS, NO.9 | ||||
| 82807-52010 |
NNP1# |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 91621-J0612 | ||||
| 91626-40616 | ||||
| 91631-B0616 | ||||
| 91651-40820 | ||||
| Linked diagrams | ||||
| 8601 | ||||

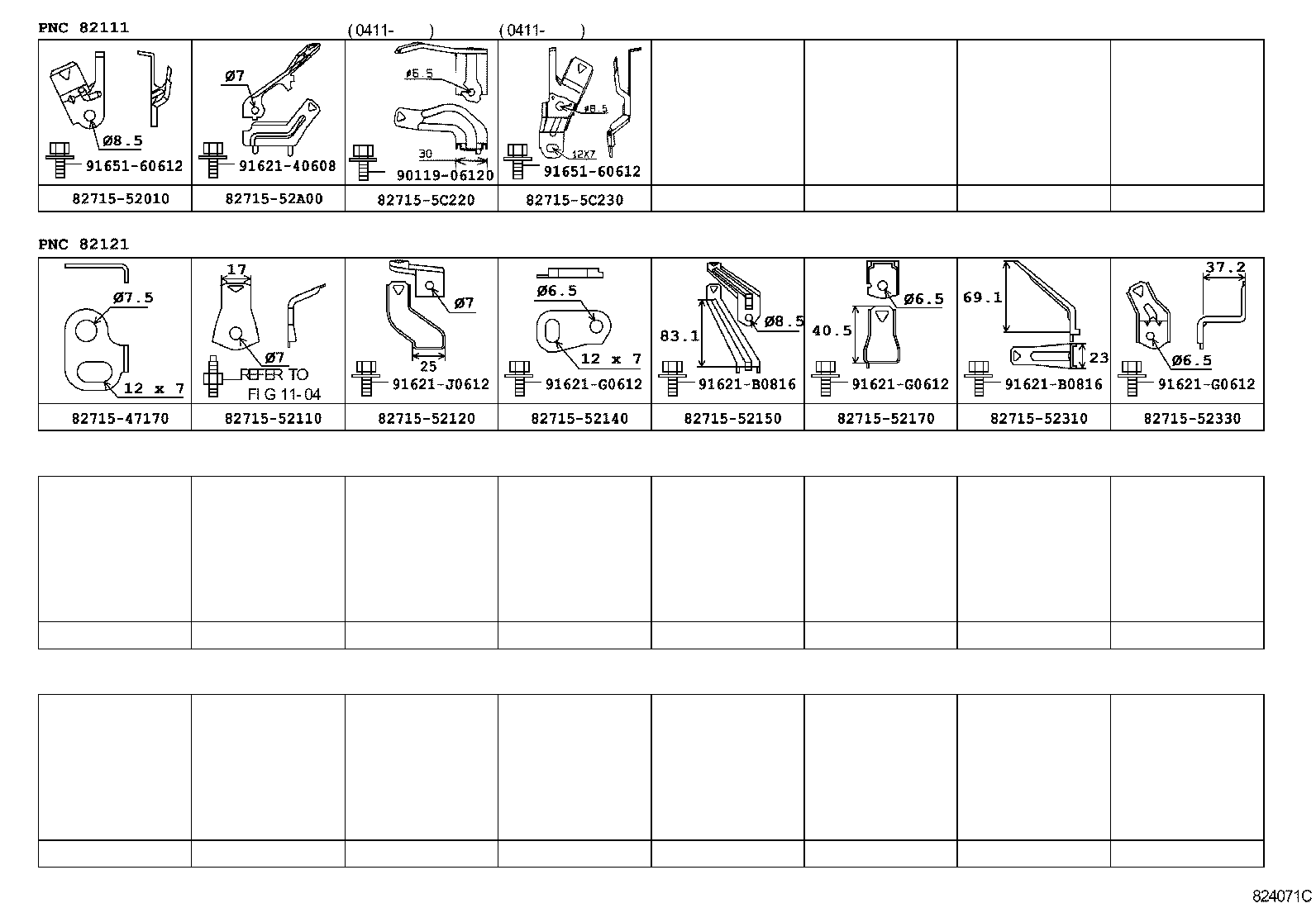

ILLUST NO. 6 OF 7(0407- )
ｸﾗﾝﾌﾟ & ﾌﾞﾗｹﾂﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82715-47170 | ||||
| 82715-52010 | ||||
| 82715-52110 | ||||
| 82715-52120 | ||||
| 82715-52140 | ||||
| 82715-52150 | ||||
| 82715-52170 | ||||
| 82715-52310 | ||||
| 82715-52330 | ||||
| 82715-52A00 | ||||
| 82715-5C220 | ||||
| 82715-5C230 | ||||
| 90119-06120 | ||||
| 91621-40608 | ||||
| 91621-B0816 | ||||
| 91621-G0612 | ||||
| 91621-J0612 | ||||
| 91651-60612 | ||||

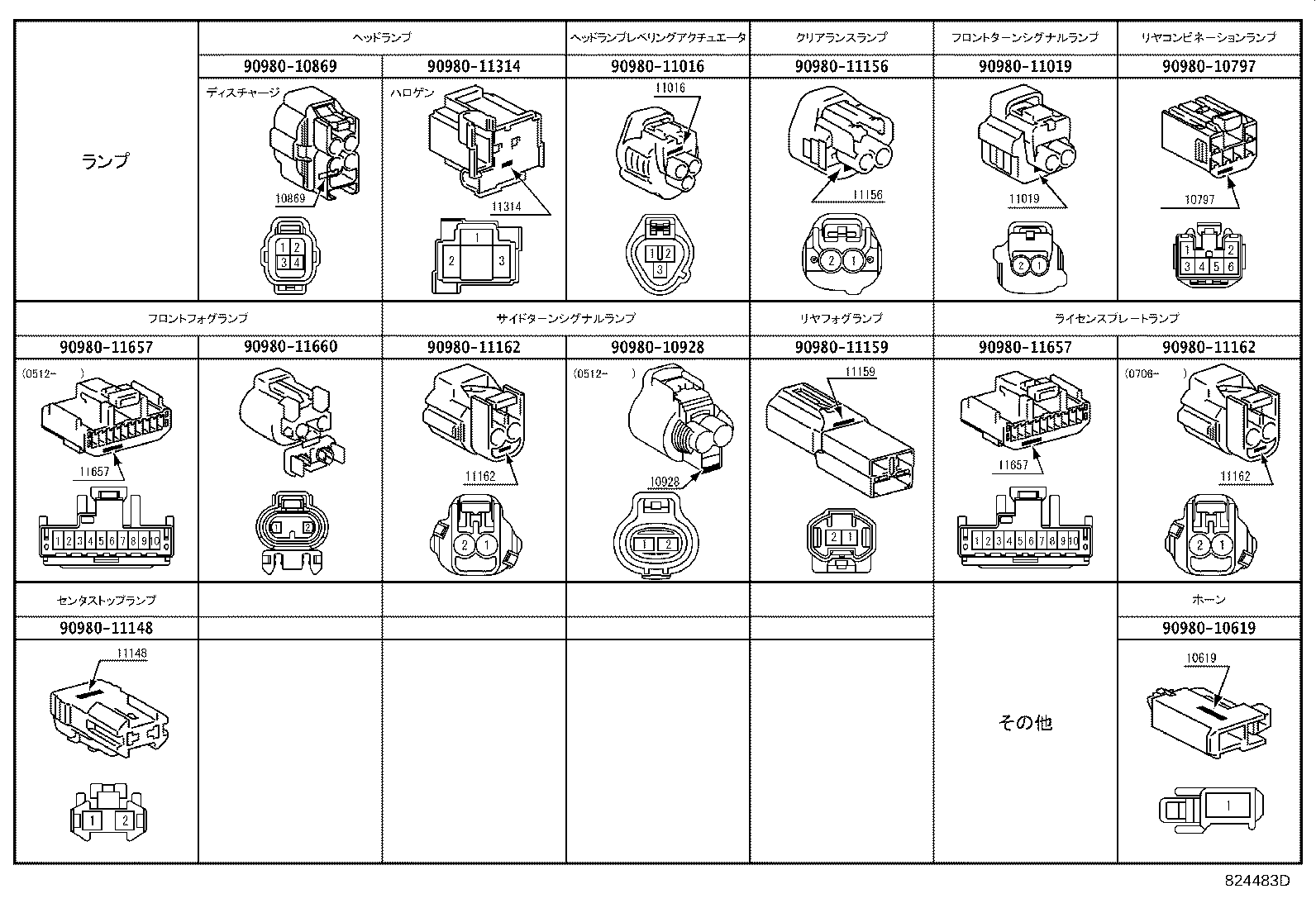

ILLUST NO. 7 OF 7(0407- )
ｺﾈｸﾀ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90980-10619 | ||||
| 90980-10797 | ||||
| 90980-10869 | ||||
| 90980-10928 | ||||
| 90980-11016 | ||||
| 90980-11019 | ||||
| 90980-11148 | ||||
| 90980-11156 | ||||
| 90980-11159 | ||||
| 90980-11162 | ||||
| 90980-11314 | ||||
| 90980-11657 | ||||
| 90980-11660 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
