NNP11-AGSGK (2004)

Toyota Porte

Production Jul 2004 - Jun 2007
Engine 1NZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0407- )

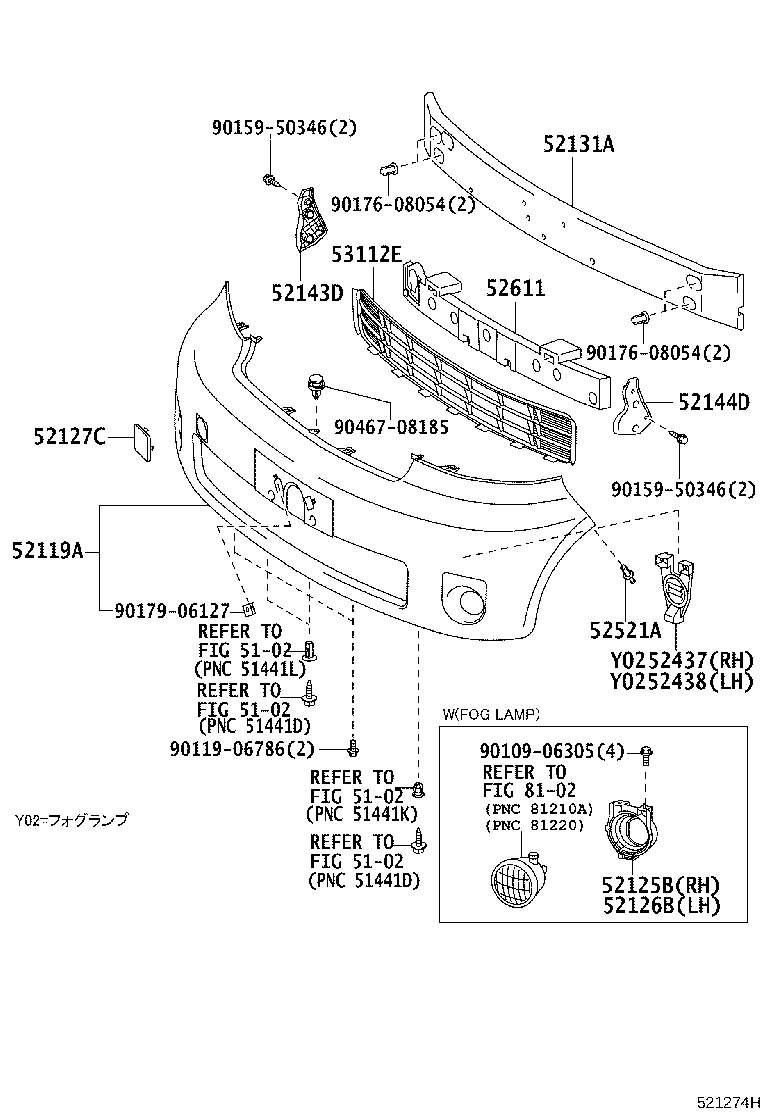

Click highlighted areas on diagram

diagram 5102 5102 5102 5102 52119A 52125B 52126B 52127C 52131A 52143D 52144D 52437 52438 52521A 52611 53112E 8102 9010906305 9011906786 9015950346 9015950346 9017608054 9017608054 9017906127 9046708185
Part # Description Qty Price
52119A - COVER, FRONT BUMPER
52119-52390B1

NNP1#

GRAY ME.,1G2

 1
52119-52390C0

NNP1#

BLACK MC.,209

 1
52119-52390G0

NNP11

150r“ﾓｶSelection”*(A),LT.GREEN ME.,6U6

 1
52119-52390A0

NNP1#

WHITE PEARL CS.,064

 1
52119-52390B0

NNP1#

SILVER M.M.,1E7

 1
52119-52390H0

NNP1#

AQUA M.M.,774

 1
52119-52390F0

NNP1#

LT.YELLOW,597

 1
52119-52390G0

NNP10,15

LT.GREEN ME.,6U6

 1
52119-52390K0

NNP10,11

LAVENDER M.M.,949

 1
52119-52390D0

NNP1#

SUPER RED 5,3P0

 1
52119-52390J0

NNP1#

BLUE MC.,8M6

 1
52125B - EXTENSION, FRONT BUMPER REINFORCEMENT, RH
52125-52020

NNP11

 1
52125-52020

NNP11

150r“ﾓｶSelection”*(A)&ﾌﾛﾝﾄﾌｫｸﾞ&ﾄﾞﾗｲﾋﾞﾝｸﾞﾗﾝﾌﾟ−有り(DOP)

 1
52125-52020

NNP10,15

ﾌﾛﾝﾄﾌｫｸﾞ&ﾄﾞﾗｲﾋﾞﾝｸﾞﾗﾝﾌﾟ−有り(DOP)

 1
52126B - EXTENSION, FRONT BUMPER REINFORCEMENT, LH
52126-52020

NNP10,15

ﾌﾛﾝﾄﾌｫｸﾞ&ﾄﾞﾗｲﾋﾞﾝｸﾞﾗﾝﾌﾟ−有り(DOP)

 1
52126-52020

NNP11

150r“ﾓｶSelection”*(A)&ﾌﾛﾝﾄﾌｫｸﾞ&ﾄﾞﾗｲﾋﾞﾝｸﾞﾗﾝﾌﾟ−有り(DOP)

 1
52126-52020

NNP11

 1
52127C - COVER, FRONT BUMPER HOLE
52127-52210A0

NNP1#

WHITE PEARL CS.,064

 1
52127-52210F0

NNP1#

LT.YELLOW,597

 1
52127-52210J0

NNP1#

BLUE MC.,8M6

 1
52127-52210C0

NNP1#

BLACK MC.,209

 1
52127-52210D0

NNP1#

SUPER RED 5,3P0

 1
52127-52210H0

NNP1#

AQUA M.M.,774

 1
52127-52210G0

NNP11

150r“ﾓｶSelection”*(A),LT.GREEN ME.,6U6

 1
52127-52210G0

NNP10,15

LT.GREEN ME.,6U6

 1
52127-52210B1

NNP1#

GRAY ME.,1G2

 1
52127-52210B0

NNP1#

SILVER M.M.,1E7

 1
52127-52210K0

NNP10,11

LAVENDER M.M.,949

 1
52131A - REINFORCEMENT, FRONT BUMPER
52131-52241

NNP1#

 1
52143D - BRACKET, FRONT BUMPER SIDE, RH
52143-52150

NNP1#

 1
52143-52150

NNP11

150r“ﾓｶSelection”*(A)

 1
52144D - BRACKET, FRONT BUMPER SIDE, LH
52144-52140

NNP1#

 1
52144-52140

NNP11

150r“ﾓｶSelection”*(A)

 1
52437 - COVER, FRONT BUMPER GUARD, RH
52437-52060

NNP10,15

 1
52437-52060

NNP11

150r“ﾓｶSelection”*(A)

 1
52438 - COVER, FRONT BUMPER GUARD, LH
52438-52060

NNP11

150r“ﾓｶSelection”*(A)

 1
52438-52060

NNP10,15

 1
52521A - CLIP(FOR FRONT BUMPER RETAINER)
90467-05090B1

NNP1#

DK.GRAY

 2
52611 - ABSORBER, FRONT BUMPER ENERGY
52611-52040

NNP1#

 1
52611-52040

NNP11

150r“ﾓｶSelection”*(A)

 1
53112E - GRILLE, RADIATOR, LOWER NO.1
53112-52150

NNP11

塗装不要,150r“ﾓｶSelection”*(A)

 1
53112-52150

NNP1#

塗装不要

 1
Common parts
90109-06305
90119-06786
90159-50346
90176-08054
90179-06127
90467-08185
Linked diagrams
5102
8102
