NNP11-AGSGK (2004)

Toyota Porte

Production Jul 2004 - Jun 2007
Engine 1NZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0407- )

Click highlighted areas on diagram

U340E,U340F,U441E

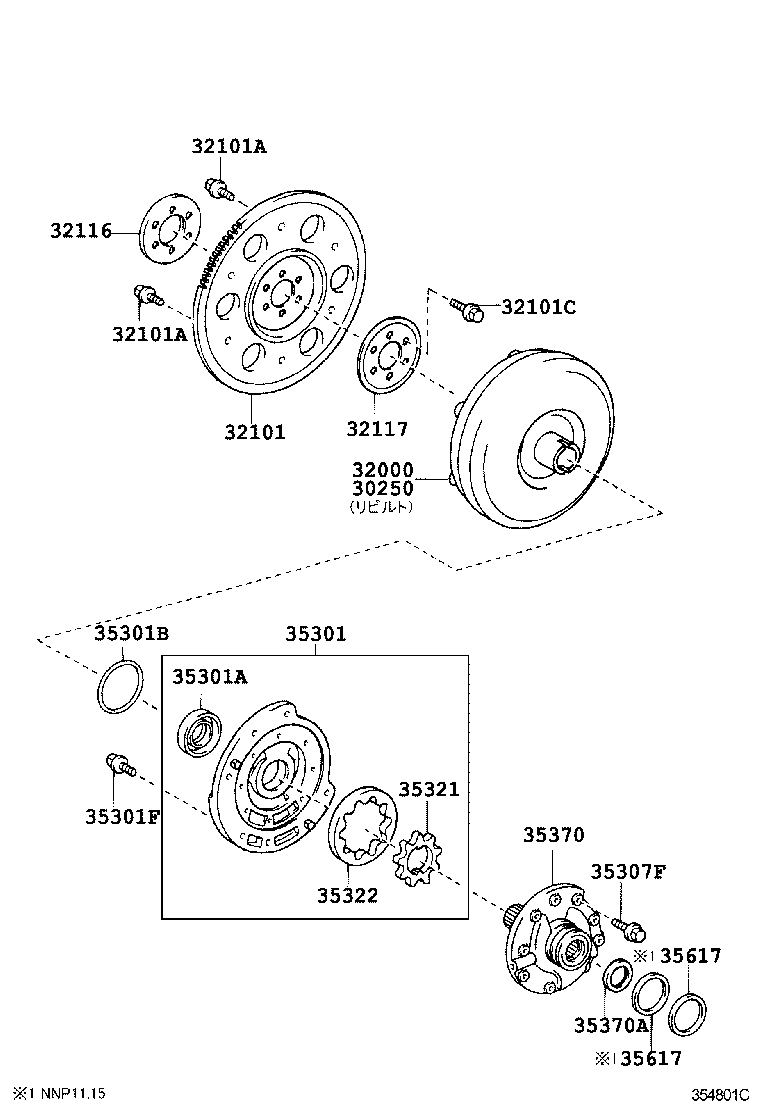

diagram 30250 32000 32101 32101A 32101A 32101C 32116 32117 35301 35301A 35301B 35301F 35307F 35321 35322 35370 35370A 35617 35617
Part # Description Qty Price
32000 - CONVERTER ASSY, TORQUE
32000-52040

NNP11,15

 1
32000-52041

NNP11,15

 1
32101 - GEAR SUB-ASSY, DRIVE PLATE & RING
32101-52021

NNP1#

 1
32101A - BOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
90109-08107

NNP1#

*8−1.25PX12−8.4

 1
90119-08269

NNP1#

*8−1.25PX12−8

 5
32101A - BOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
90109-08107

NNP1#

*8−1.25PX12−8.4

 1
90119-08269

NNP1#

*8−1.25PX12−8

 5
32101C - BOLT, HEXAGON(FOR DRIVE PLATE SETTING)
90105-10048

NNP1#

*10−1.25PX18−13

 6
32116 - SPACER, DRIVE PLATE, FRONT
32116-52030

NNP1#

 1
32117 - SPACER, DRIVE PLATE, REAR
32117-52030

NNP1#

 1
35301 - BODY SUB-ASSY, FRONT OIL PUMP
35035-52040

NNP11,15

 1
35301A - SEAL, OIL (FOR FRONT OIL PUMP)
90311-38064

NNP11,15

 1
35301B - RING, O (FOR FRONT OIL PUMP BODY)
90301-99124

NNP11,15

 1
35301F - BOLT (FOR FRONT OIL PUMP SETTING)
90105-08301

NNP11,15

*8−1.25PX22−20

 7
35307F - BOLT (FOR STATOR SHAFT)
90148-60027

NNP11,15

 10
35321 - GEAR, FRONT OIL PUMP DRIVE
35321-52070

NNP11,15

厚さ=9.45−9.459,ﾏｰｸ 2

 1
35321-52080

NNP11,15

厚さ=9.46−9.47,ﾏｰｸ 3

 1
35321-52060

NNP11,15

厚さ=9.44−9.449,ﾏｰｸ 1

 1
35321-52100

NNP11,15

厚さ=9.481−9.49,ﾏｰｸ 5

 1
35321-52090

NNP11,15

厚さ=9.471−9.48,ﾏｰｸ 4

 1
35322 - GEAR, FRONT OIL PUMP DRIVEN
35322-52080

NNP11,15

厚さ=9.46−9.47,ﾏｰｸ 3

 1
35322-52070

NNP11,15

厚さ=9.45−9.459,ﾏｰｸ 2

 1
35322-52100

NNP11,15

厚さ=9.481−9.49 ﾏｰｸ 5

 1
35322-52090

NNP11,15

厚さ=9.471−9.48,ﾏｰｸ 4

 1
35322-52060

NNP11,15

厚さ=9.44−9.449,ﾏｰｸ 1

 1
35370 - SHAFT ASSY, STATOR
35370-52030

NNP11

 1
35370-52070

NNP11,15

 1
35370A - BEARING, THRUST NEEDLE ROLLER(FOR STATOR SHAFT)
90374-26003

NNP11,15

 1
35617 - RING, CLUTCH DRUM OIL SEAL
35613-52010

NNP11,15

 2
35613-52020

NNP11,15

 2
35617 - RING, CLUTCH DRUM OIL SEAL
35613-52010

NNP11,15

 2
35613-52020

NNP11,15

 2
