NNP10-AGSGK (2004)

Toyota Porte

Production Jul 2004 - Jun 2007
Engine 2NZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0407-0706)

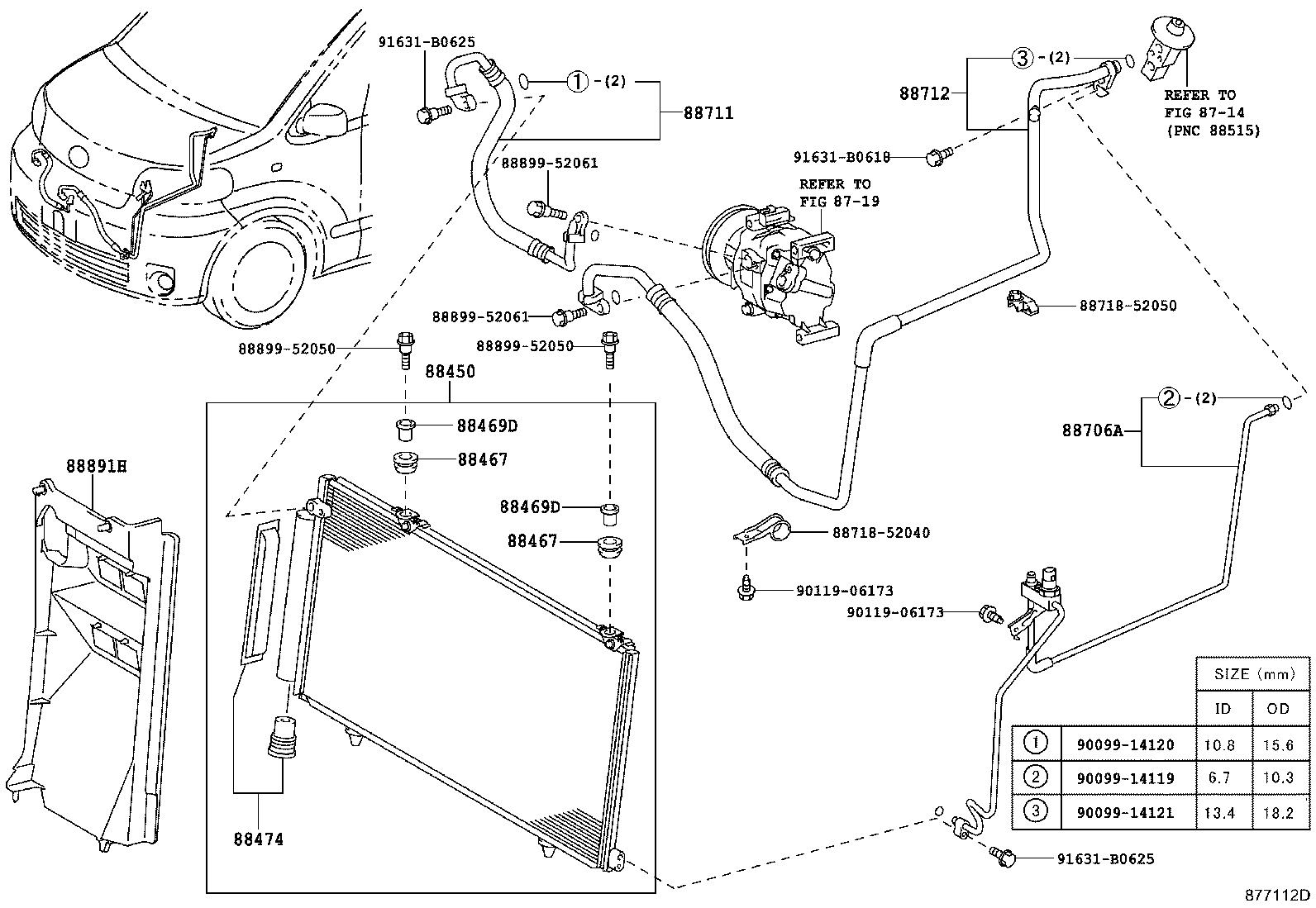

Click highlighted areas on diagram

diagram 8714 8719 88450 88467 88467 88469D 88469D 88474 88706A 88711 88712 8871852040 8871852050 88891H 8889952050 8889952050 8889952061 8889952061 9009914119 9009914120 9009914121 9011906173 9011906173 91631B0618 91631B0625 91631B0625
Part # Description Qty Price
88450 - CONDENSER ASSY, W/RECEIVER
88450-52220

NNP1#

 1
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-12180

NNP1#

 2
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-12180

NNP1#

 2
88469D - COLLAR, CONDENSER BRACKET, NO.1
88469-52010

NNP1#

 2
88469D - COLLAR, CONDENSER BRACKET, NO.1
88469-52010

NNP1#

 2
88474 - DRYER, COOLER
88474-12030

NNP1#

 1
88706A - TUBE SUB-ASSY, LIQUID, A
88706-52360

NNP1#

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-52180

NNP1#

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-52030

NNP1#

 1
88891H - COVER, COOLER, NO.1
88891-52010

NNP1#

 1
Common parts
88718-52040
88718-52050
88899-52050
88899-52061
90099-14119
90099-14120
90099-14121
90119-06173
91631-B0618
91631-B0625
Linked diagrams
8714
8719
