NNP10-AGSGK (2004)

Toyota Porte

Production Jul 2004 - Jun 2007
Engine 2NZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0407- )

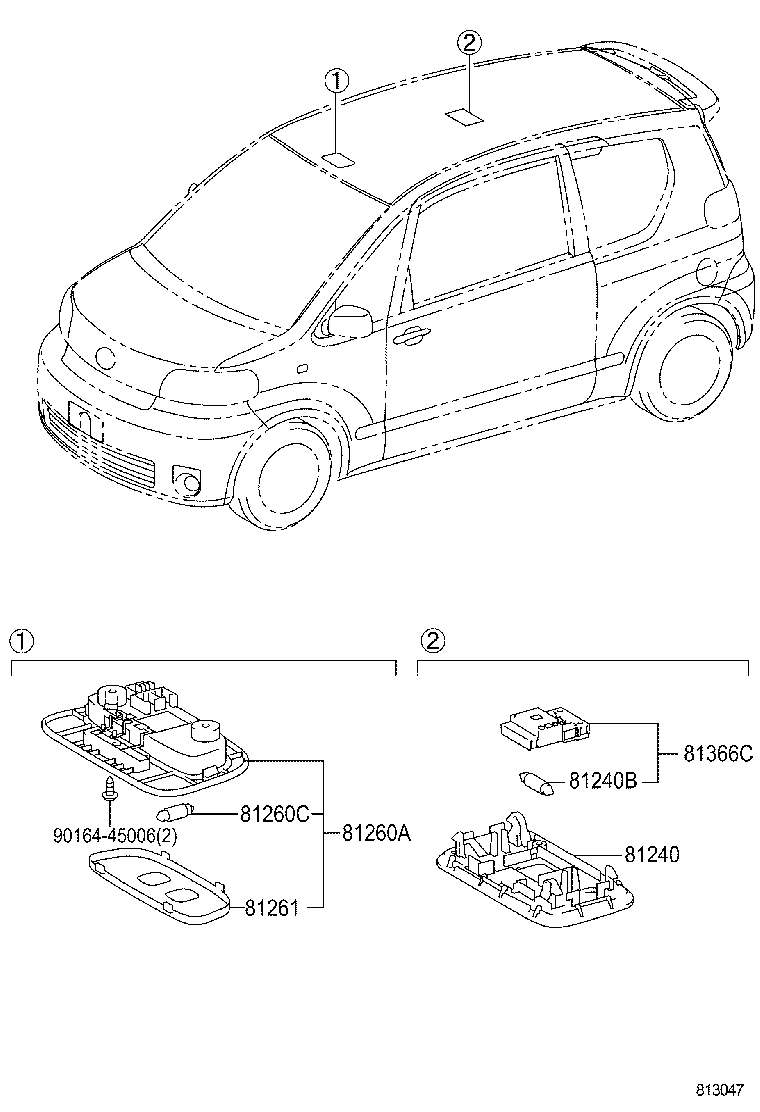

Click highlighted areas on diagram

diagram 81240 81240B 81260A 81260C 81261 81366C 9016445006
Part # Description Qty Price
81240 - LAMP ASSY, ROOM, NO.1
81240-68010A0

NNP1#

IVORY,TRIM0#

 1
81240B - BULB, ROOM LAMP, NO.1
90981-14011

NNP1#

12V 8W

 1
81260A - LAMP ASSY, MAP
81260-46010A0

NNP1#

IVORY,TRIM0#

 1
81260C - BULB(FOR MAP LAMP)
90981-14004

NNP1#

12V 8W

 1
81261 - LENS AND COVER, MAP LAMP
81261-46010

NNP1#

 1
81366C - BASE, ROOM LAMP SWITCH
81366-68010

NNP1#

 1
Common parts
90164-45006
