NSP141-BEXXB (2015)

Toyota Porte/Spade

Production Jul 2015 - Sep 9999
Engine 2NRFKE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

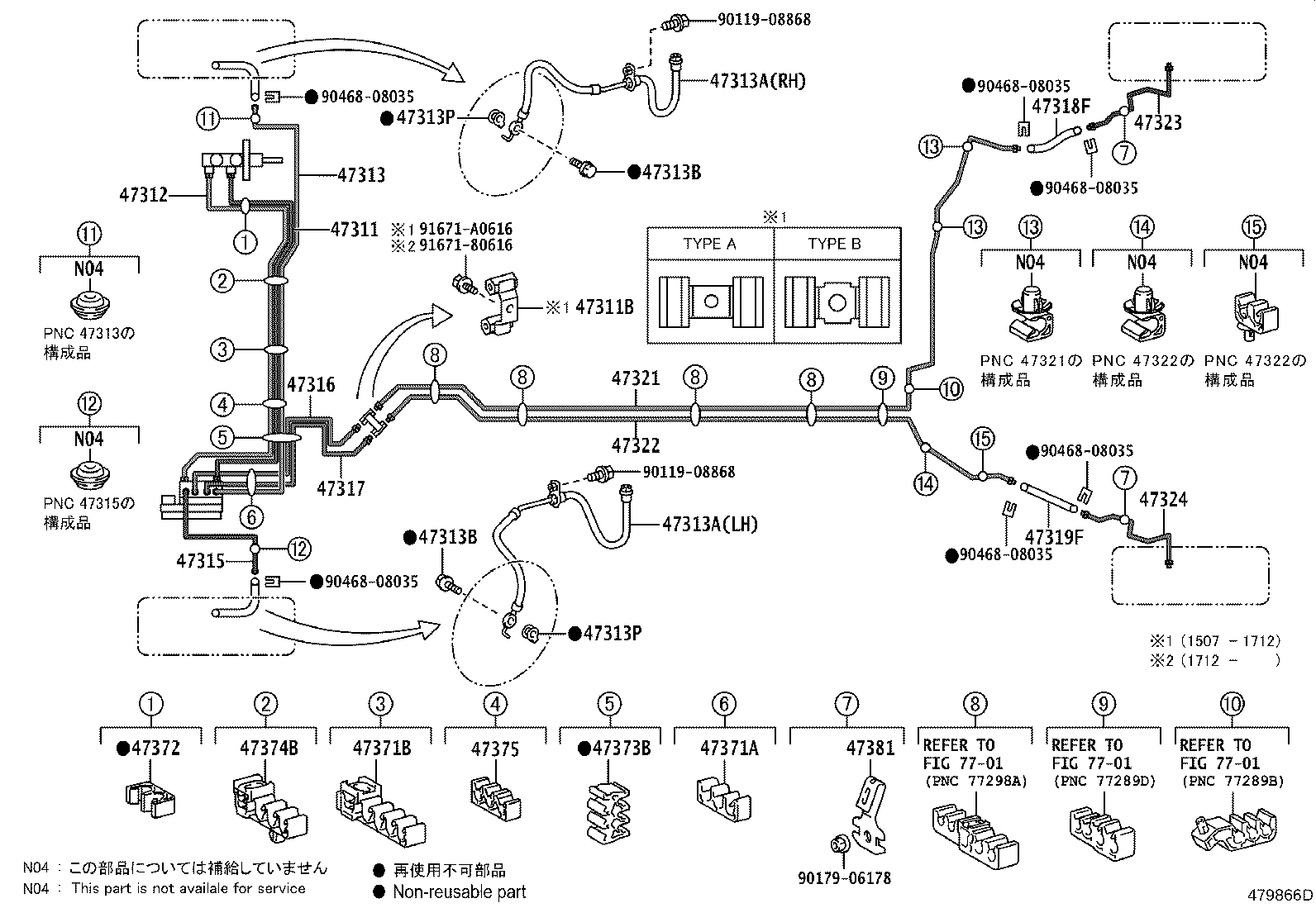

ILLUST NO. 1 OF 2(1507- )NSP141

Click highlighted areas on diagram

diagram 47311 47311B 47312 47313 47313A 47313A 47313B 47313B 47313P 47313P 47315 47316 47317 47318F 47319F 47321 47322 47323 47324 47371A 47371B 47372 47373B 47374B 47375 47381 7701 7701 7701 9011908868 9011908868 9017906178 9046808035 9046808035 9046808035 9046808035 9046808035 9046808035 9167180616 91671A0616
Part # Description Qty Price
47311 - TUBE, FRONT BRAKE, NO.1
47311-52610

NCP145,NSP141..CBU

 1
47311-52630

NCP145,NSP141..CBU

 1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90412-10260

NCP145,NSP141..CBU

TYPE A:ｲﾗｽﾄ参照

 1
90412-10285

NCP145,NSP141..CBU

TYPE B:ｲﾗｽﾄ参照

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-52420

NCP145,NSP141..CBU

 1
47312-52720

NCP145,NSP141..CBU

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-52350

NCP145,NSP141..CBU

 1
47313-52231

NCP145,NSP141..CBU

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02H35

NCP145,NSP141..CBU

右側

 1
90947-02H71

NCP145,NSP141..CBU

右側

 1
90947-02H36

NCP145,NSP141..CBU

左側

 1
90947-02H72

NCP145,NSP141..CBU

左側

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02H35

NCP145,NSP141..CBU

右側

 1
90947-02H71

NCP145,NSP141..CBU

右側

 1
90947-02H36

NCP145,NSP141..CBU

左側

 1
90947-02H72

NCP145,NSP141..CBU

左側

 1
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058

NCP145,NSP141..CBU

 2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058

NCP145,NSP141..CBU

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020

NCP145,NSP141..CBU

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020

NCP145,NSP141..CBU

 2
47315 - TUBE, FRONT BRAKE, NO.5
47315-52300

NCP145,NSP141..CBU

 1
47315-52231

NCP145,NSP141..CBU

 1
47316 - TUBE, FRONT BRAKE, NO.6
47316-52280

NCP145,NSP141..CBU

 1
47316-52191

NCP145,NSP141..CBU

 1
47317 - TUBE, FRONT BRAKE, NO.7
47317-52290

NCP145,NSP141..CBU

 1
47317-52191

NCP145,NSP141..CBU

 1
47318F - HOSE, FLEXIBLE(FOR REAR RH)
90947-02H31

NSP141..CBU

 1
47319F - HOSE, FLEXIBLE(FOR REAR LH)
90947-02H32

NSP141..CBU

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-12381

NSP141..CBU

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-12541

NSP141..CBU

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-52131

NSP141..CBU

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-52121

NSP141..CBU

 1
47371A - CLAMP, BRAKE TUBE, NO.1
90949-01D92

NCP145,NSP141..CBU

 1
47371B - CLAMP, BRAKE TUBE, NO.6
90949-01D97

NCP145,NSP141..CBU

 1
47372 - CLAMP, BRAKE TUBE, NO.2
90464-00899

NCP145,NSP141..CBU

 1
90464-00899

NCP145,NSP141..CBU

 2
47373B - CLAMP, BRAKE TUBE, NO.3
90949-01D98

NCP145,NSP141..CBU

 1
47374B - CLAMP, BRAKE TUBE, NO.4
90949-01D94

NCP145,NSP141..CBU

 1
47375 - CLAMP, BRAKE TUBE, NO.5
90949-01D93

NCP145,NSP141..CBU

 1
47381 - BRACKET, BRAKE TUBE CLAMP NO.1
47381-52020

NSP141..CBU

 2
Common parts
90119-08868
90179-06178
90468-08035
91671-80616
91671-A0616
Linked diagrams
7701
