NSP141-BEXGB (2015)
Toyota Porte/Spade

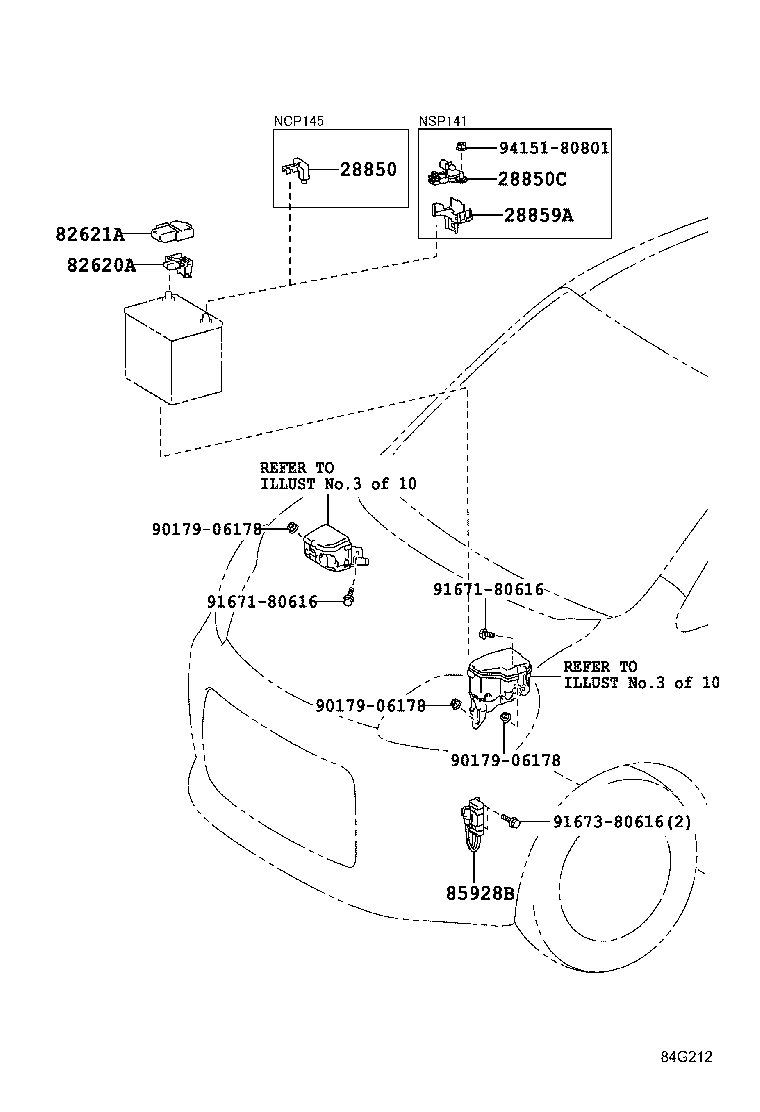

ILLUST NO. 2 OF10(1507- )
ｴﾝｼﾞﾝﾙ-ﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28850C - SENSOR ASSY, BATTERY STATE | ||||
| 28850-36030 |
2NRFKE..NSP141..CBU |
1 | ||
| 28859A - HOLDER, BATTERY CURRENT SENSOR | ||||
| 28859-47020 |
2NRFKE..NSP141..CBU |
1 | ||
| 82620A - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-52070 |
NCP145,NSP141..CBU |
1 | ||
| 82621A - COVER, FUSIBLE LINK | ||||
| 82621-52140 |
NCP145,NSP141..CBU |
1 | ||
| 85928B - RESISTOR, COOLING FAN | ||||
| 85928-52032 |
NCP145,NSP141..CBU |
1 | ||
| Common parts | ||||
| 90179-06178 | ||||
| 91671-80616 | ||||
| 91673-80616 | ||||
| 94151-80801 | ||||

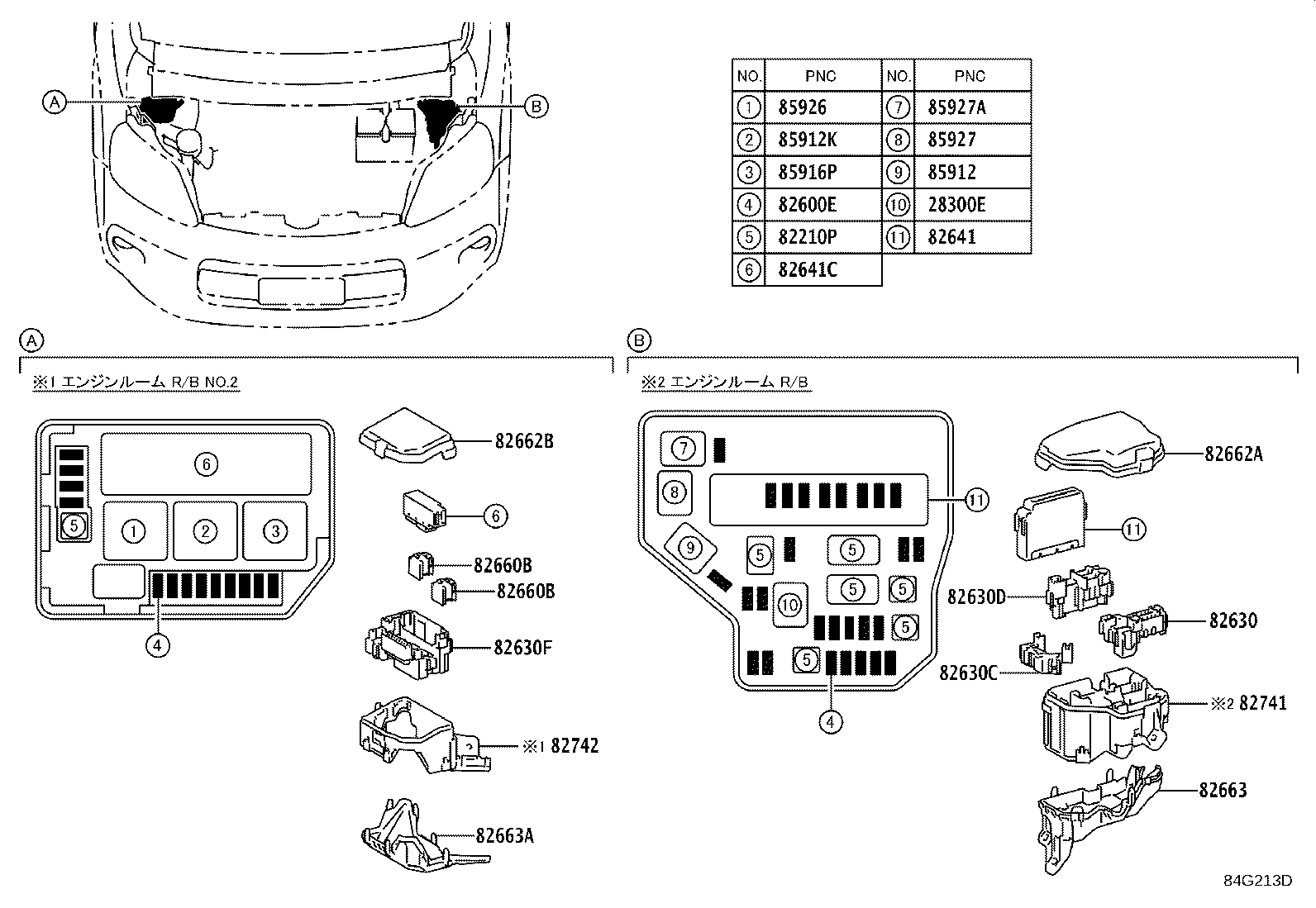

ILLUST NO. 3 OF10(1507- )
ｴﾝｼﾞﾝﾙｰﾑ ﾘﾚｰﾌﾞﾛｯｸ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300E - RELAY ASSY, STARTER, NO.1 | ||||
| 28300-21020 |
1NZFE,2NRFKE..NCP145,NSP141..CBU |
1 | ||
| 82210P - ENGINE ROOM FUSIBLE LINK | ||||
| 90982-08294 |
NCP145,NSP141..(F,G,X,Y)..CBU 40A,ﾒｽ端子,緑,ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘｰ) |
1 | ||
| 90982-08294 |
NCP145,NSP141..(F,G,X,Y)..CBU 40A,ﾒｽ端子,緑,寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘｰ) |
1 | ||
| 90982-08294 |
NCP145,NSP141..CBU 40A,ﾒｽ端子,緑,寒冷地仕様 |
1 | ||
| 90982-08294 |
NCP145,NSP141..SPADE..(F,G,X,Y)..CBU 40A,ﾒｽ端子,緑,寒冷地仕様&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ4灯 ﾀｲﾌﾟB |
1 | ||
| 90982-08294 |
NCP145,NSP141..SPADE..(F,G,X,Y)..CBU 40A,ﾒｽ端子,緑,ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘｰ)&ﾍｯﾄﾞﾗﾝv−ﾃﾞｨｽﾁｬｰｼﾞ4灯 ﾀｲﾌﾟB |
1 | ||
| 90982-08294 |
NCP145,NSP141..SPADE..(F,G,X,Y)..CBU 40A,ﾒｽ端子,緑,寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘｰ)父wｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ4灯 ﾀｲﾌﾟB |
1 | ||
| 90982-08296 |
NCP145,NSP141..(F,G,X,Y)..CBU 50A,ﾒｽ端子,赤,寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘｰ) |
1 | ||
| 90982-08296 |
NCP145,NSP141..SPADE..(F,G,X,Y)..CBU 50A,ﾒｽ端子,赤,寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘｰ)父wｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ4灯 ﾀｲﾌﾟB |
1 | ||
| 90982-08305 |
NCP145,NSP141..CBU 80A,ﾒｽ端子,黒,寒冷地仕様 |
1 | ||
| 90982-08296 |
NCP145,NSP141..CBU 50A,ﾒｽ端子,赤,寒冷地仕様 |
1 | ||
| 90982-08305 |
NCP145,NSP141..SPADE..(F,G,X,Y)..CBU 80A,ﾒｽ端子,黒,寒冷地仕様&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ4灯 ﾀｲﾌﾟB |
1 | ||
| 90982-08296 |
NCP145,NSP141..(F,G,X,Y)..CBU 50A,ﾒｽ端子,赤,ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘｰ) |
1 | ||
| 90982-08296 |
NCP145,NSP141..SPADE..(F,G,X,Y)..CBU 50A,ﾒｽ端子,赤,ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘｰ)&ﾍｯﾄﾞﾗﾝv−ﾃﾞｨｽﾁｬｰｼﾞ4灯 ﾀｲﾌﾟB |
1 | ||
| 90982-08305 |
NCP145,NSP141..(F,G,X,Y)..CBU 80A,ﾒｽ端子,黒,寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘｰ) |
1 | ||
| 90982-08296 |
NCP145,NSP141..SPADE..(F,G,X,Y)..CBU 50A,ﾒｽ端子,赤,寒冷地仕様&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ4灯 ﾀｲﾌﾟB |
1 | ||
| 90982-08305 |
NCP145,NSP141..SPADE..(F,G,X,Y)..CBU 80A,ﾒｽ端子,黒,寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘｰ)父wｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ4灯 ﾀｲﾌﾟB |
1 | ||
| 90982-08305 |
NCP145,NSP141..SPADE..(F,G,X,Y)..CBU 80A,ﾒｽ端子,黒,ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘｰ)&ﾍｯﾄﾞﾗﾝv−ﾃﾞｨｽﾁｬｰｼﾞ4灯 ﾀｲﾌﾟB |
1 | ||
| 90982-08294 |
NCP145,NSP141..CBU 40A,ﾒｽ端子,緑 |
1 | ||
| 90982-08296 |
NCP145,NSP141..CBU 50A,ﾒｽ端子,赤 |
1 | ||
| 90982-08305 |
NCP145,NSP141..(F,G,X,Y)..CBU 80A,ﾒｽ端子,黒,ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘｰ) |
1 | ||
| 90982-08305 |
NCP145,NSP141..CBU 80A,ﾒｽ端子,黒 |
1 | ||
| 90982-08300 |
NCP145,NSP141..CBU 50A−30A−30A,ﾒｽ端子,赤 |
1 | ||
| 82600E - ENGINE ROOM FUSE | ||||
| 90982-09025 |
NSP141..SPADE..CBU 30A,ﾐﾆ ﾋｭｰｽﾞ,緑,ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ4灯 ﾀｲﾌﾟB |
1 | ||
| 90982-09022 |
NSP141..CBU 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09023 |
NCP145,NSP141..CBU 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09021 |
NCP145,NSP141..CBU 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09025 |
NSP141..CBU 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 90982-09020 |
NCP145,NSP141..CBU 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 82630 - HOLDER ASSY, FUSE | ||||
| 82631-52010 |
NCP145,NSP141..CBU |
1 | ||
| 82630C - HOLDER ASSY, FUSE | ||||
| 82631-52020 |
NCP145,NSP141..CBU |
1 | ||
| 82630D - HOLDER, FUSE | ||||
| 82631-52030 |
NCP145,NSP141..CBU |
1 | ||
| 82630F - HOLDER, FUSE | ||||
| 82631-52040 |
NCP145,NSP141..CBU |
1 | ||
| 82641 - RELAY, INTEGRATION NO.1 | ||||
| 82641-52030 |
NSP141..CBU |
1 | ||
| 82641C - RELAY, INTEGRATION NO.2 | ||||
| 82641-52060 |
NCP145,NSP141..CBU 寒冷地仕様 |
1 | ||
| 82660B - BLOCK ASSY, RELAY | ||||
| 82660-0H070 |
NSP141..CBU |
2 | ||
| 82660B - BLOCK ASSY, RELAY | ||||
| 82660-0H070 |
NSP141..CBU |
2 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-52852 |
NCP145,NSP141..CBU |
1 | ||
| 82662B - COVER, RELAY BLOCK, UPPER, NO.2 | ||||
| 82662-52662 |
NCP145,NSP141..CBU |
1 | ||
| 82662-52702 |
NCP145,NSP141..SPADE..(F,G,X,Y)..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ4灯 ﾀｲﾌﾟB |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-52080 |
NCP145,NSP141..CBU |
1 | ||
| 82663A - COVER, RELAY BLOCK, LOWER, NO.2 | ||||
| 82663-52090 |
NCP145,NSP141..CBU |
1 | ||
| 82741 - BLOCK, ENGINE ROOM RELAY | ||||
| 82741-12130 |
NCP145,NSP141..CBU |
1 | ||
| 82742 - BLOCK, ENGINE ROOM RELAY, NO.2 | ||||
| 82741-52080 |
NCP145,NSP141..CBU |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-02027 |
NCP145,NSP141..CBU |
1 | ||
| 85912K - RELAY, VVT | ||||
| 90987-02025 |
NSP141..CBU |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-02025 |
NCP145,NSP141..CBU |
1 | ||
| 85926 - RELAY, HEADLAMP DIMMER | ||||
| 90987-02025 |
NCP145,NSP141..SPADE..CBU |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-02027 |
NCP145,NSP141..CBU |
1 | ||
| 85927A - RELAY, COOLING FAN, NO.2 | ||||
| 90987-04004 |
NCP145,NSP141..CBU |
1 | ||

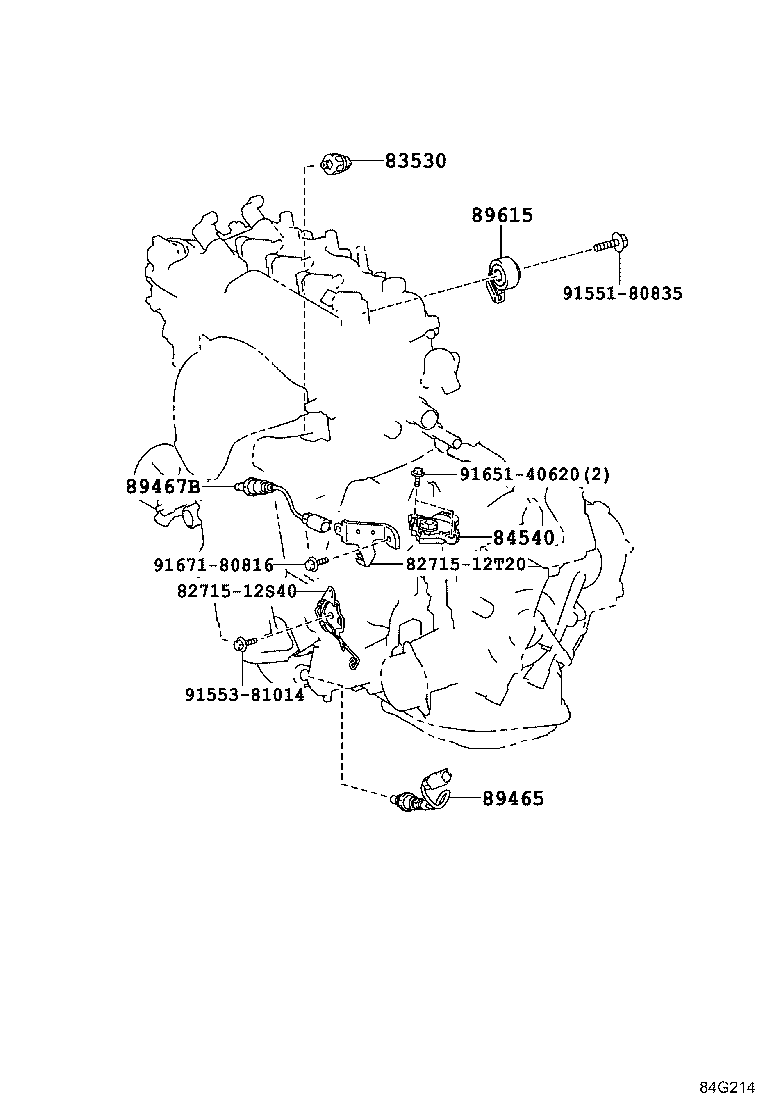

ILLUST NO. 1 OF10(1507- )NSP141
ｴﾝｼﾞﾝ & ﾄﾗﾝｽﾐﾂｼﾖﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-60020 |
NCP145,NSP141..CBU |
1 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-52070 |
NCP145,NSP141..CBU |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-52740 |
NSP141..CBU |
1 | ||
| 89467B - SENSOR, AIR FUEL RATIO | ||||
| 89467-52240 |
NSP141..CBU |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-20090 |
NCP145,NSP141..CBU |
1 | ||
| Common parts | ||||
| 82715-12S40 | ||||
| 82715-12T20 | ||||
| 91551-80835 | ||||
| 91553-81014 | ||||
| 91651-40620 | ||||
| 91671-80816 | ||||

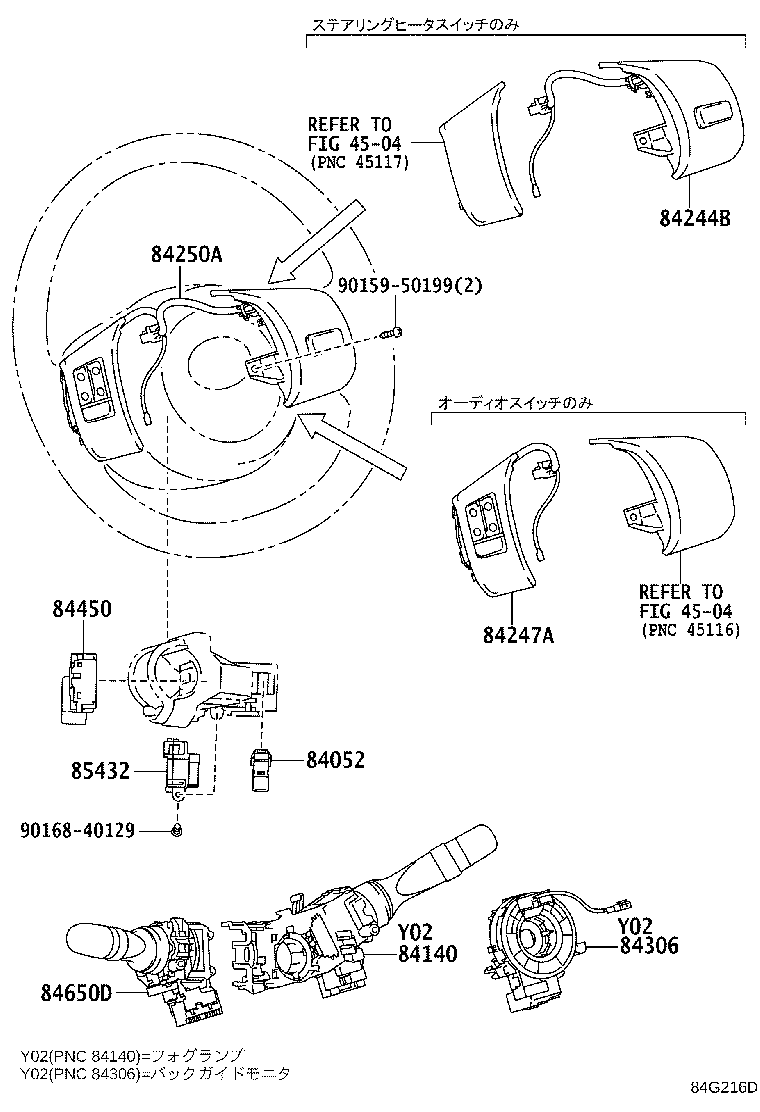

ILLUST NO. 6 OF10(1507- )
ｽﾃｱﾘﾝｸﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84052 - SWITCH ASSY, UN-LOCK WARNING | ||||
| 84052-71010 |
NCP145,NSP141..CBU |
1 | ||
| 84052-71010 |
NCP145,NSP141..(F,G,X,Y)..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘｰ) |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-42060 |
NCP145,NSP141..SPADE..CBU 寒冷地仕様&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ(DOP)&ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り |
1 | ||
| 84140-12570 |
NCP145,NSP141..SPADE..(F,G,X,Y)..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ4灯 ﾀｲﾌﾟB |
1 | ||
| 84140-42070 |
NCP145,NSP141..SPADE..(F,G,X,Y)..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ4灯 ﾀｲﾌﾟB&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ(DOP) |
1 | ||
| 84140-12580 |
NCP145,NSP141..SPADE..(F,G,X,Y)..CBU 寒冷地仕様&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ4灯 ﾀｲﾌﾟB&ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り |
1 | ||
| 84140-42040 |
NCP145,NSP141..SPADE..CBU ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ(DOP) |
1 | ||
| 84140-42080 |
NCP145,NSP141..SPADE..(F,G,X,Y)..CBU 寒冷地仕様&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ4灯 ﾀｲﾌﾟB&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ(DOP)&ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り |
1 | ||
| 84140-42030 |
NCP145,NSP141..SPADE..CBU |
1 | ||
| 84140-42050 |
NCP145,NSP141..SPADE..CBU 寒冷地仕様&ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り |
1 | ||
| 84244B - SWITCH, STEERING PAD, RH | ||||
| 84244-52010E0 |
NCP145,NSP141..G 寒冷地仕様,PLUM,TRIM0#,41 |
1 | ||
| 84244-52010C0 |
NCP145,NSP141..G 寒冷地仕様,BLACK,TRIM40 |
1 | ||
| 84247A - SWITCH, STEERING PAD, LH | ||||
| 84247-52190E0 |
NCP145,NSP141..X..CBU ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ & 4SP(ﾌﾛﾝﾄ & ﾘｱ)ﾅﾋﾞﾚﾃﾞｨ,PLUM,TRIM0#,41 |
1 | ||
| 84247-52190C0 |
NCP145,NSP141..G ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ & 6ｽﾋﾟｰｶ(ﾅﾋﾞﾚﾃﾞｨ),BLACK,TRIM40 |
1 | ||
| 84247-52190C0 |
NCP145,NSP141..X..CBU ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ & 4SP(ﾌﾛﾝﾄ & ﾘｱ)ﾅﾋﾞﾚﾃﾞｨ,BLACK,TRIM40 |
1 | ||
| 84247-52190E0 |
NCP145,NSP141..SPADE..F..CBU ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ & 6ｽﾋﾟｰｶ(ﾅﾋﾞﾚﾃﾞｨ),PLUM,TRIM0# |
1 | ||
| 84247-52190C0 |
NCP145,NSP141..F..CBU ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ & 6ｽﾋﾟｰｶ(ﾅﾋﾞﾚﾃﾞｨ),BLACK,TRIM2#,4# |
1 | ||
| 84247-52190E0 |
NCP145,NSP141..G ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ & 6ｽﾋﾟｰｶ(ﾅﾋﾞﾚﾃﾞｨ),PLUM,TRIM0#,41 |
1 | ||
| 84250A - SWITCH ASSY, STEERING PAD | ||||
| 84250-52320E0 |
NCP145,NSP141..G 寒冷地仕様&ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ & 6ｽﾋﾟｰｶ(ﾅﾋﾞﾚﾃﾞｨ),PLUM,TRIM0#,41 |
1 | ||
| 84250-52320C0 |
NCP145,NSP141..G 寒冷地仕様&ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ & 6ｽﾋﾟｰｶ(ﾅﾋﾞﾚﾃﾞｨ),BLACK,TRIM40 |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84307-12120 |
NCP145,NSP141..(F,G,Y)..CBU ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ & 6ｽﾋﾟｰｶ(ﾅﾋﾞﾚﾃﾞｨ) |
1 | ||
| 84307-12120 |
NCP145,NSP141..X..CBU ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ & 4SP(ﾌﾛﾝﾄ & ﾘｱ)ﾅﾋﾞﾚﾃﾞｨ |
1 | ||
| 84307-47090 |
NCP145,NSP141..G 寒冷地仕様 |
1 | ||
| 84307-12130 |
NCP145,NSP141..CBU |
1 | ||
| 84307-47090 |
NCP145,NSP141..G 寒冷地仕様&ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ & 6ｽﾋﾟｰｶ(ﾅﾋﾞﾚﾃﾞｨ) |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-52020 |
NCP145,NSP141..(F,G,X,Y)..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘｰ) |
1 | ||
| 84450-52020 |
NCP145,NSP141..CBU |
1 | ||
| 84650D - SWITCH ASSY, WINDSHIELD WIPER (W/RELAY, WIPER CONTROL) | ||||
| 84652-52251 |
NCP145,NSP141..CBU |
1 | ||
| 85432 - SOLENOID, KEY INTER LOCK | ||||
| 85432-52010 |
NCP145,NSP141..(F,G,X,Y)..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘｰ) |
1 | ||
| 85432-52010 |
NCP145,NSP141..CBU |
1 | ||
| Common parts | ||||
| 90159-50199 | ||||
| 90168-40129 | ||||
| Linked diagrams | ||||
| 4504 | ||||
