Toyota Porte/spade NSP141 METER - JDM Part Detective

NSP141-BEXFB (2015)

Toyota Porte/Spade

Production Jul 2015 - Sep 9999

Engine 2NRFKE

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

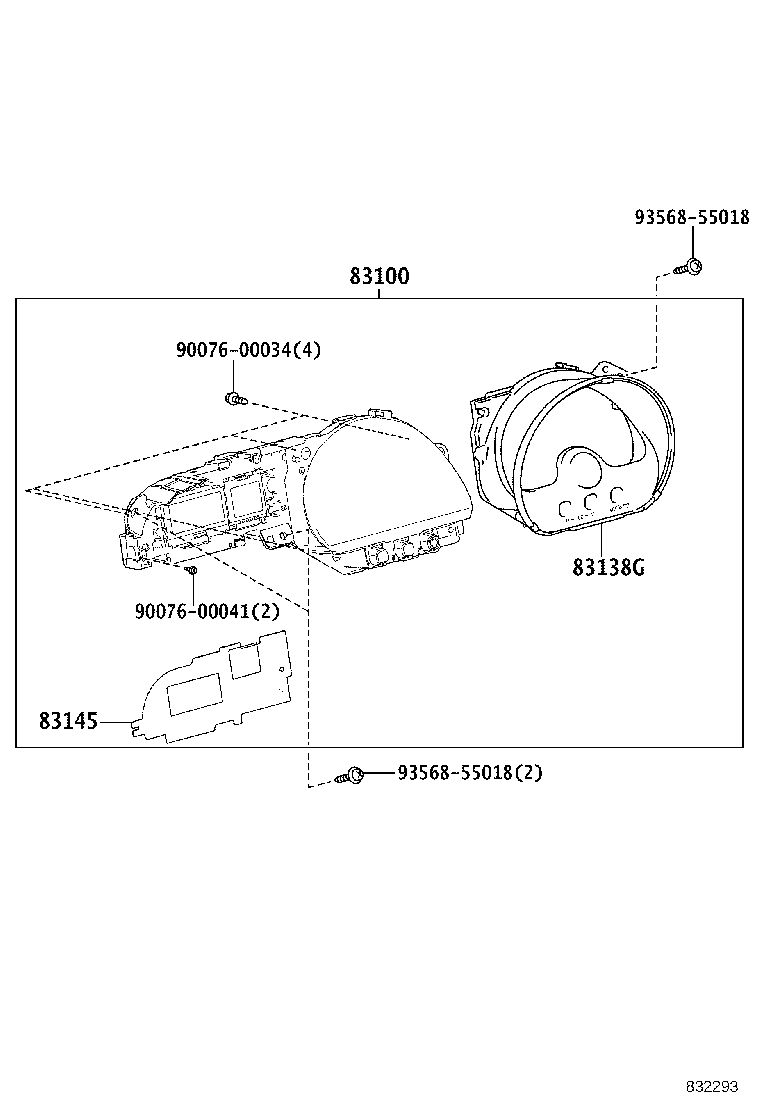

Click highlighted areas on diagram

Part #	Description	Period	Qty
83100 - METER ASSY, COMBINATION
83800-5CV80	NCP145,NSP141..CBU YAZAKI	07/2016 - 12/2017	1
83800-5CS20	NSP141..(F,G,X,Y)..CBU YAZAKI,ｽﾋﾟｰﾄﾞﾒｰﾀ−ｱﾅﾛｸﾞKM/H ﾄﾞﾚｽｱｯﾌﾟ照明	07/2015 - 07/2016	1
83800-5CQ00	NCP145,NSP141..CBU YAZAKI	12/2017 - 07/2019	1
83800-5CQ10	NCP145,NSP141..CBU YAZAKI,ｽﾋﾟｰﾄﾞﾒｰﾀ−ﾃﾞｼﾞﾀﾙKM/H ﾄﾞﾚｽｱｯﾌﾟ	12/2017 - 07/2019	1
83800-5CY20	NCP145,NSP141..CBU YAZAKI	07/2019 - 12/2999	1
83800-5CV90	NCP145,NSP141..CBU YAZAKI,ｽﾋﾟｰﾄﾞﾒｰﾀ−ﾃﾞｼﾞﾀﾙKM/H ﾄﾞﾚｽｱｯﾌﾟ	07/2016 - 12/2017	1
83800-5CS00	NSP141..CBU YAZAKI	07/2015 - 07/2016	1
83138G - GLASS, COMBINATION METER
83852-5CG80	NCP145,NSP141..CBU	07/2015 - 07/2016	1
83852-5CY20	NCP145,NSP141..CBU	07/2019 - 12/2999	1
83852-5CV80	NCP145,NSP141..CBU	07/2016 - 07/2019	1
83145 - LENS, METER, NO.1
83831-5CS20	NCP145,NSP141..(F,G,X,Y)..CBU ｽﾋﾟｰﾄﾞﾒｰﾀ−ｱﾅﾛｸﾞKM/H ﾄﾞﾚｽｱｯﾌﾟ照明	07/2015 - 07/2016	1
83831-5CV90	NCP145,NSP141..CBU ｽﾋﾟｰﾄﾞﾒｰﾀ−ﾃﾞｼﾞﾀﾙKM/H ﾄﾞﾚｽｱｯﾌﾟ	07/2016 - 07/2019	1
83831-5CS00	NCP145,NSP141..CBU	07/2015 - 07/2016	1
83831-5CV80	NCP145,NSP141..CBU	07/2016 - 07/2019	1
83831-5CY20	NCP145,NSP141..CBU	07/2019 - 12/2999	1
Common parts
90076-00034
93568-55018

Click highlighted areas on diagram

Part #	Description	Period	Qty
83100 - METER ASSY, COMBINATION
83800-5CV80	NCP145,NSP141..CBU YAZAKI	07/2016 - 12/2017	1
83800-5CS20	NSP141..(F,G,X,Y)..CBU YAZAKI,ｽﾋﾟｰﾄﾞﾒｰﾀ−ｱﾅﾛｸﾞKM/H ﾄﾞﾚｽｱｯﾌﾟ照明	07/2015 - 07/2016	1
83800-5CQ00	NCP145,NSP141..CBU YAZAKI	12/2017 - 07/2019	1
83800-5CQ10	NCP145,NSP141..CBU YAZAKI,ｽﾋﾟｰﾄﾞﾒｰﾀ−ﾃﾞｼﾞﾀﾙKM/H ﾄﾞﾚｽｱｯﾌﾟ	12/2017 - 07/2019	1
83800-5CY20	NCP145,NSP141..CBU YAZAKI	07/2019 - 12/2999	1
83800-5CV90	NCP145,NSP141..CBU YAZAKI,ｽﾋﾟｰﾄﾞﾒｰﾀ−ﾃﾞｼﾞﾀﾙKM/H ﾄﾞﾚｽｱｯﾌﾟ	07/2016 - 12/2017	1
83800-5CS00	NSP141..CBU YAZAKI	07/2015 - 07/2016	1
83138G - GLASS, COMBINATION METER
83852-5CG80	NCP145,NSP141..CBU	07/2015 - 07/2016	1
83852-5CY20	NCP145,NSP141..CBU	07/2019 - 12/2999	1
83852-5CV80	NCP145,NSP141..CBU	07/2016 - 07/2019	1
83145 - LENS, METER, NO.1
83831-5CS20	NCP145,NSP141..(F,G,X,Y)..CBU ｽﾋﾟｰﾄﾞﾒｰﾀ−ｱﾅﾛｸﾞKM/H ﾄﾞﾚｽｱｯﾌﾟ照明	07/2015 - 07/2016	1
83831-5CV90	NCP145,NSP141..CBU ｽﾋﾟｰﾄﾞﾒｰﾀ−ﾃﾞｼﾞﾀﾙKM/H ﾄﾞﾚｽｱｯﾌﾟ	07/2016 - 07/2019	1
83831-5CS00	NCP145,NSP141..CBU	07/2015 - 07/2016	1
83831-5CV80	NCP145,NSP141..CBU	07/2016 - 07/2019	1
83831-5CY20	NCP145,NSP141..CBU	07/2019 - 12/2999	1
Common parts
90076-00034
90076-00041
93568-55018
