NSP141-AEXXB (2015)

Toyota Porte/Spade

Production Jul 2015 - Sep 9999
Engine 2NRFKE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1507- )2NRFKE

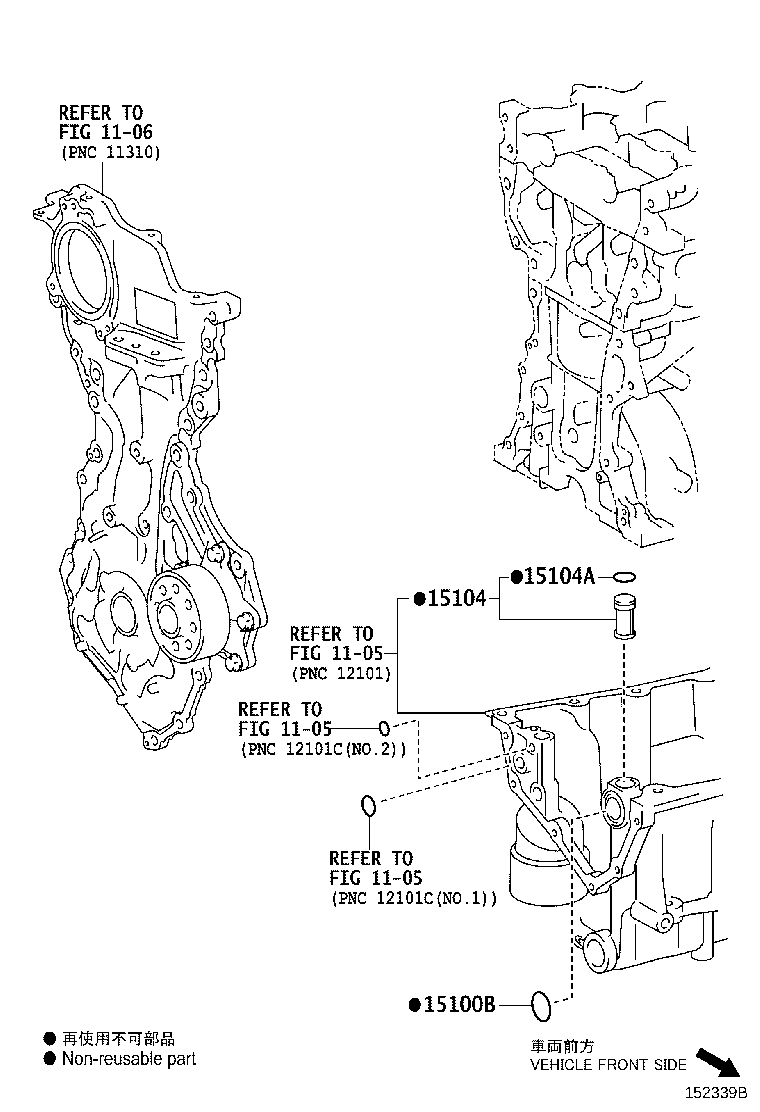

Click highlighted areas on diagram

diagram 1105 1105 1105 1106 15100B 15104 15104A
Part # Description Qty Price
15100B - RING, O(FOR OIL PUMP)
90301-27014

2NRFKE..NSP141..CBU

 1
15104 - STRAINER SUB-ASSY, OIL
15104-47060

2NRFKE..NSP141..V

 1
15104-47060

2NRFKE..NSP141..(F,G,X,Y)..CBU

 1
15104A - RING, O(FOR OIL STRAINER)
96723-19018

2NRFKE..NSP141..CBU

 1
Linked diagrams
1105
1106
