NSP141-AEXVB (2015)

Toyota Porte/Spade

Production Jul 2015 - Jun 2016
Engine 2NRFKE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1507- )2NRFKE

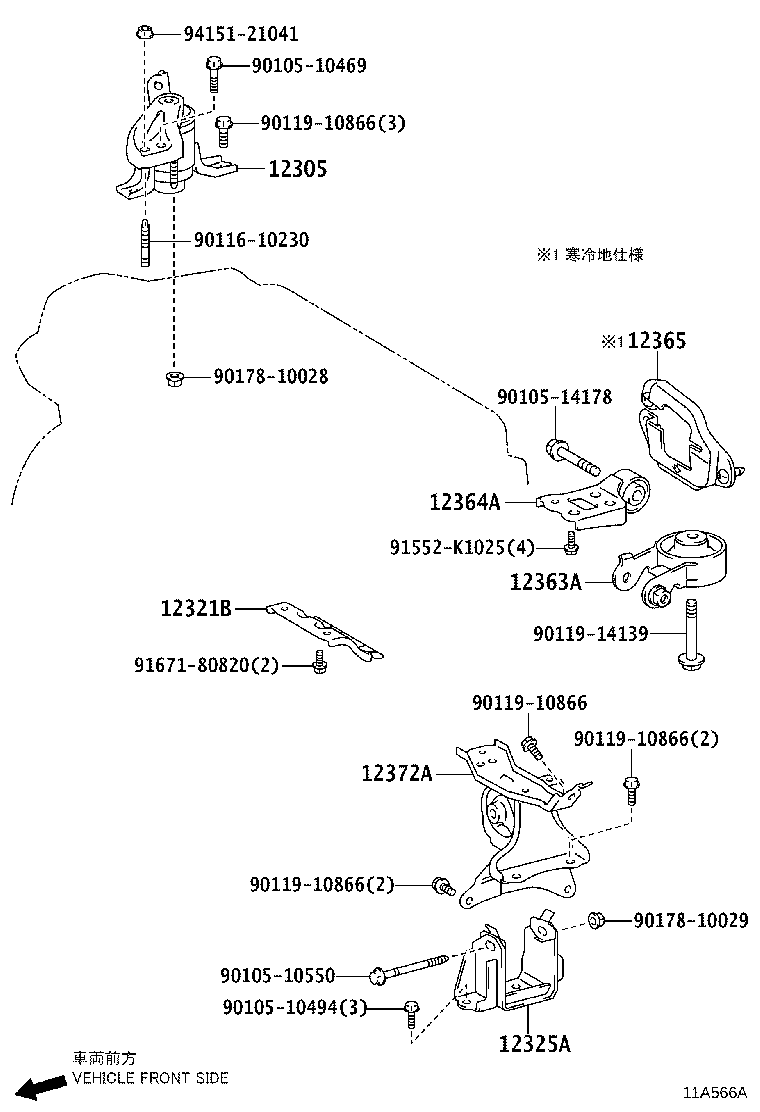

Click highlighted areas on diagram

diagram 12305 12321B 12325A 12363A 12364A 12365 12372A 9010510469 9010510494 9010510550 9010514178 9011610230 9011910866 9011910866 9011910866 9011910866 9011914139 9017810028 9017810029 91552K1025 9167180820 9415121041
Part # Description Qty Price
12305 - INSULATOR SUB-ASSY, ENGINE MOUNTING, RH
12305-47041

2NRFKE..NSP141..CBU

 1
12321B - INSULATOR SUB-ASSY, DRIVE SHAFT HEAT
43498-12070

2NRFKE..NSP141..CBU

 1
12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12325-47130

2NRFKE..NSP141..CBU

 1
12363A - ROD, ENGINE MOVING CONTROL
12363-21151

2NRFKE..NSP141..CBU

 1
12364A - ROD, ENGINE LATERAL CONTROL
12364-21110

2NRFKE..NSP141..CBU

 1
12365 - COVER, ENGINE MOVING CONTROL ROD
12365-40010

1NZFE,2NRFKE..NCP145,NSP141..CBU

寒冷地仕様

 1
12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12372-47160

2NRFKE..NSP141..CBU

 1
Common parts
90105-10469
90105-10494
90105-10550
90105-14178
90116-10230
90119-10866
90119-14139
90178-10028
90178-10029
91552-K1025
91671-80820
94151-21041
