NSP141-AEXGB (2015)

Toyota Porte/Spade

Production Jul 2015 - Sep 9999
Engine 2NRFKE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1607- )

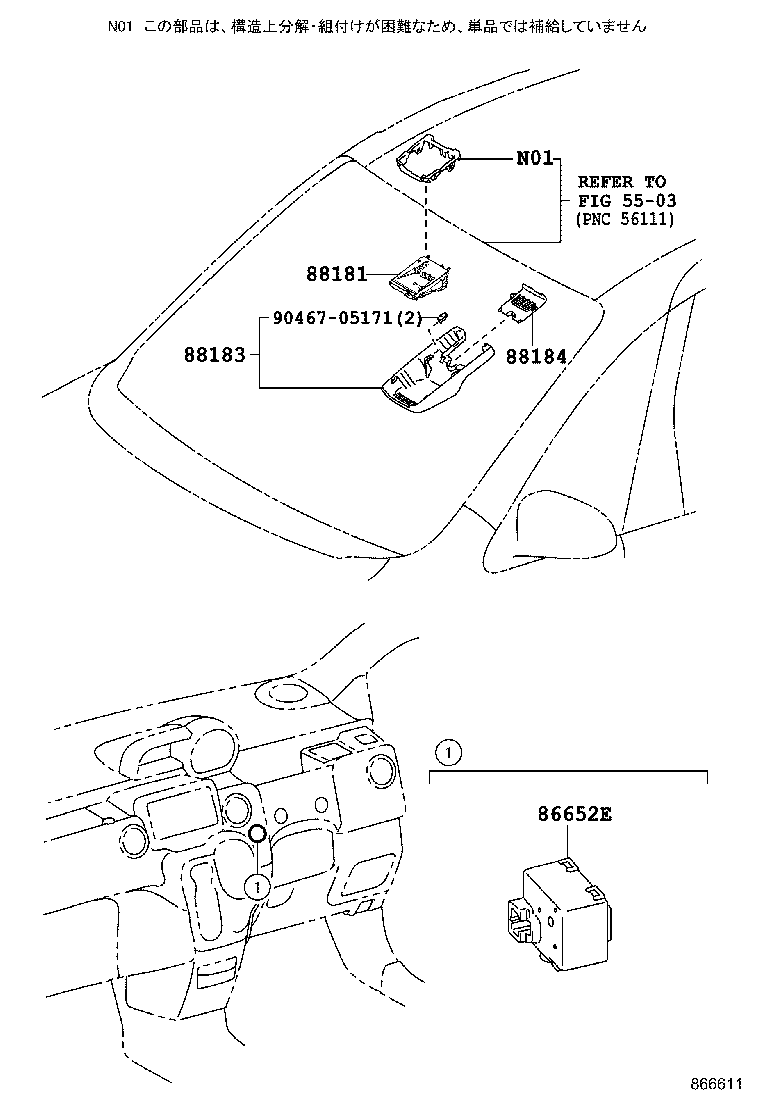

Click highlighted areas on diagram

diagram 5503 86652E 88181 88183 88184 9046705171
Part # Description Qty Price
86652E - BUZZER, PRE-COLLISION CITY
86652-50010

NCP145,NSP141..CBU

 1
88181 - SENSOR, PRE-COLLISION CITY
88181-0W080

NCP145,NSP141..CBU

 1
88181-52090

NCP145,NSP141..CBU

(J),(L)

 1
88181-52060

NCP145,NSP141..CBU

(J)

 1
88181-52140

NCP145,NSP141..CBU

(J)

 1
88183 - COVER, PRE-COLLISION CITY
88183-52050

NCP145,NSP141..CBU

 1
88183-52080

NCP145,NSP141..CBU

 1
88184 - COVER, PRE-COLLISION CITY, 2ND
88184-52050

NCP145,NSP141..CBU

 1
88184-52080

NCP145,NSP141..CBU

 1
Common parts
90467-05171
Linked diagrams
5503
