NSP141-AEXGB (2015)

Toyota Porte/Spade

Production Jul 2015 - Sep 9999
Engine 2NRFKE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

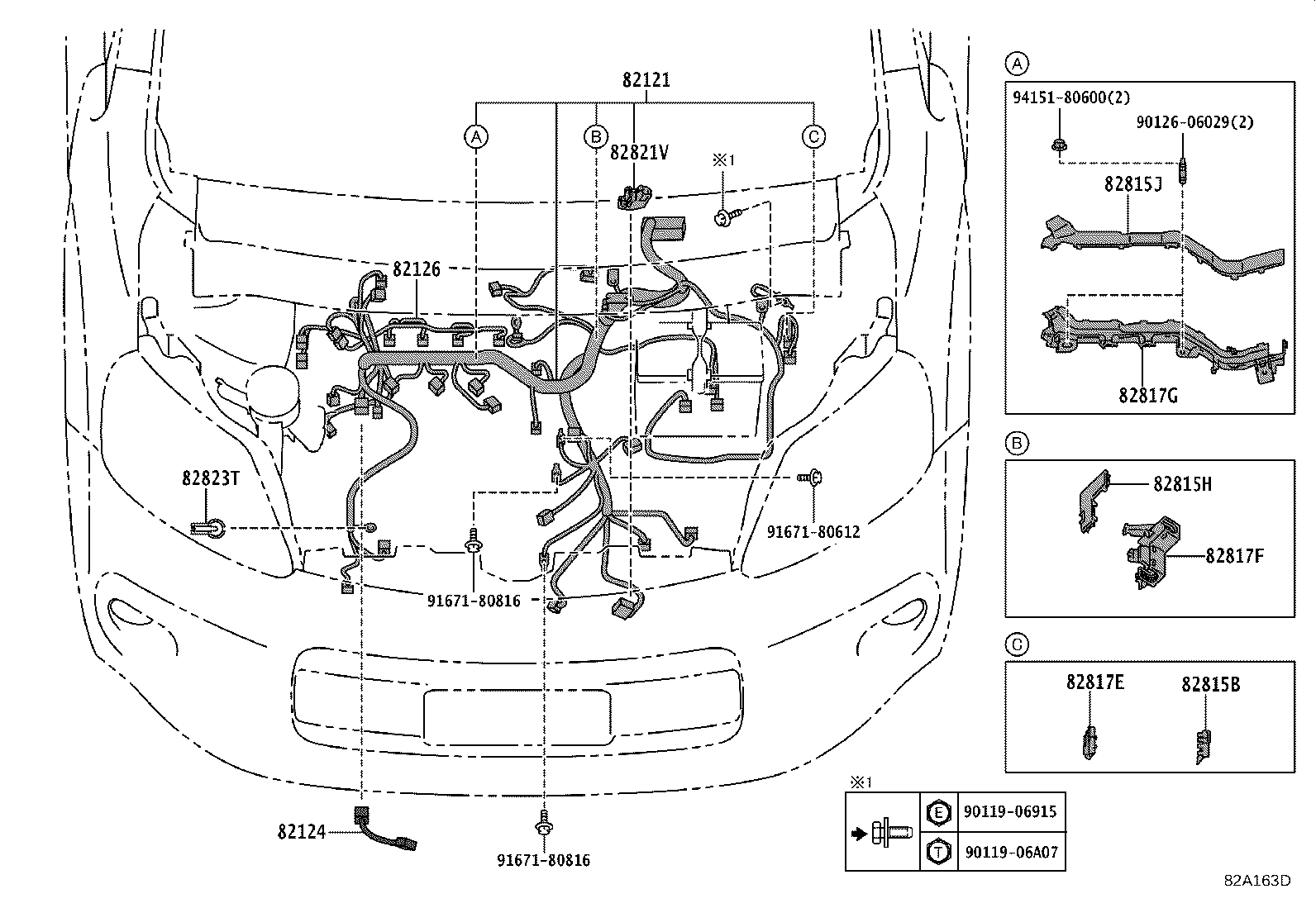

ILLUST NO. 2 OF 8(1507- )NSP141

Click highlighted areas on diagram

ｴﾝｼﾞﾝ

diagram 82121 82124 82126 82815B 82815H 82815J 82817E 82817F 82817G 82821V 82823T 9011906915 9011906A07 9012606029 9167180612 9167180816 9167180816 9415180600
Part # Description Qty Price
82121 - WIRE, ENGINE
82121-52T80

NSP141..CBU

 1
82121-52P20

NSP141..CBU

 1
82124 - WIRE, ENGINE, NO.4
82124-12150

NSP141..CBU

 1
82126 - WIRE, ENGINE
82126-52010

NSP141..CBU

 1
82815B - COVER, WIRING HARNESS PROTECTOR
82815-52120

NCP145,NSP141..CBU

 1
82815H - COVER, WIRING HARNESS PROTECTOR NO.6
82815-52400

NSP141..CBU

 1
82815J - COVER, WIRING HARNESS PROTECTOR, NO.7
82815-52380

NSP141..CBU

 1
82817E - PROTECTOR, WIRING HARNESS, NO.6
82817-52850

NCP145,NSP141..CBU

 1
82817F - PROTECTOR, WIRING HARNESS, NO.7
82817-52G30

NSP141..CBU

 1
82817G - PROTECTOR, WIRING HARNESS, NO.8
82817-52A90

NSP141..CBU

 1
82821V - COVER, CONNECTOR
82821-12600

NSP141..CBU

 1
82823T - CAP, ALTERNATOR TERMINAL
82823-22050

NCP145,NSP141..CBU

 1
Common parts
90119-06915
90119-06A07
90126-06029
91671-80612
91671-80816
94151-80600

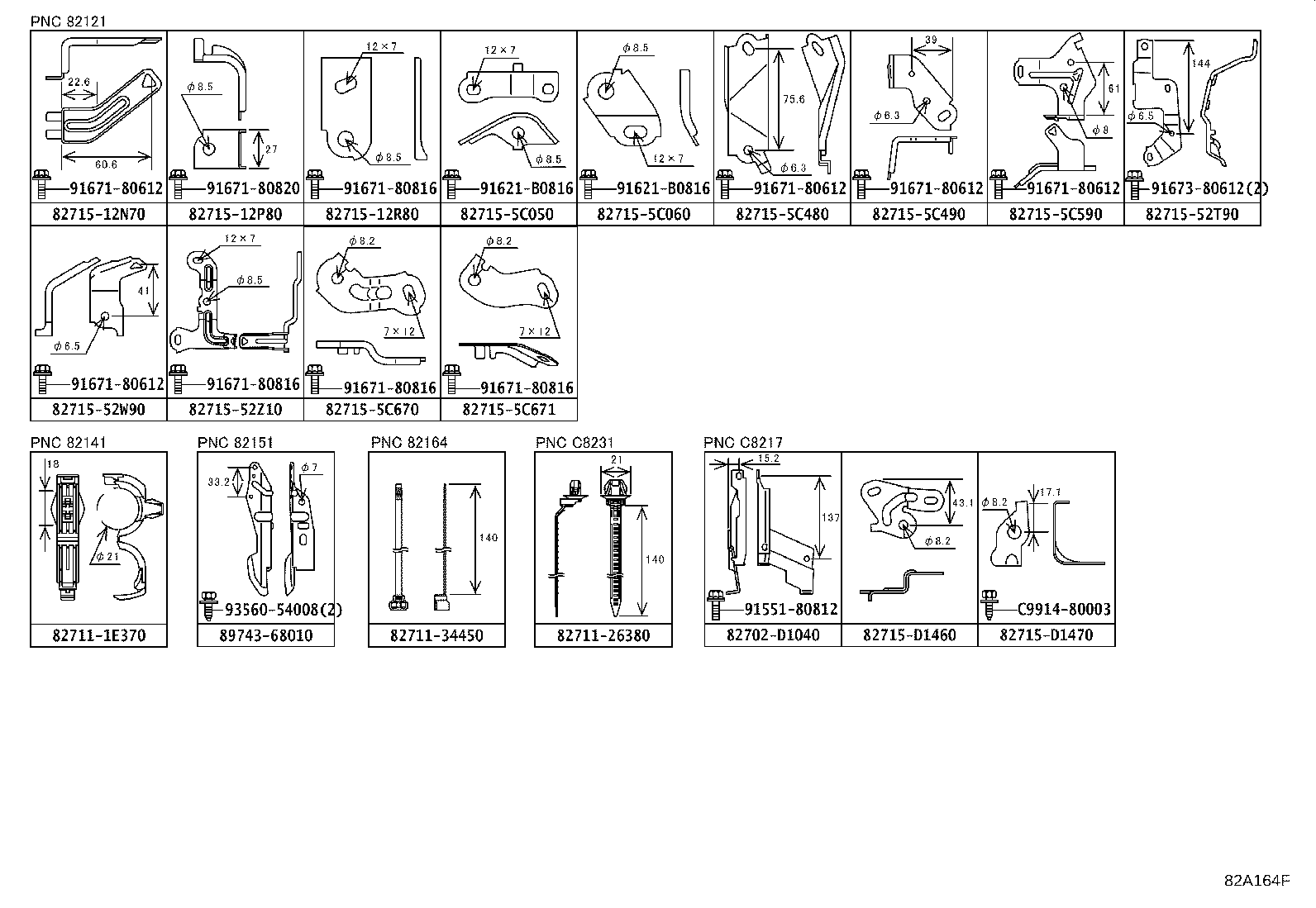

ILLUST NO. 6 OF 8(1507- )NSP141

Click highlighted areas on diagram

ｸﾗﾝﾌﾟ & ﾌﾞﾗｹｯﾄ

diagram 82702D1040 827111E370 8271126380 8271134450 8271512N70 8271512P80 8271512R80 8271552T90 8271552W90 8271552Z10 827155C050 827155C060 827155C480 827155C490 827155C590 827155C670 827155C671 82715D1460 82715D1470 8974368010 9155180812 91621B0816 91621B0816 9167180612 9167180612 9167180612 9167180612 9167180612 9167180816 9167180816 9167180816 9167180816 9167180820 9167380612 9356054008 C991480003
Part # Description Qty Price
Common parts
82702-D1040
82711-1E370
82711-26380
82711-34450
82715-12N70
82715-12P80
82715-12R80
82715-52T90
82715-52W90
82715-52Z10
82715-5C050
82715-5C060
82715-5C480
82715-5C490
82715-5C590
82715-5C670
82715-5C671
82715-D1460
82715-D1470
89743-68010
91551-80812
91621-B0816
91671-80612
91671-80816
91671-80820
91673-80612
93560-54008
C9914-80003
