NSP141-AEXGB (2015)
Toyota Porte/Spade
(1507- )NSP141

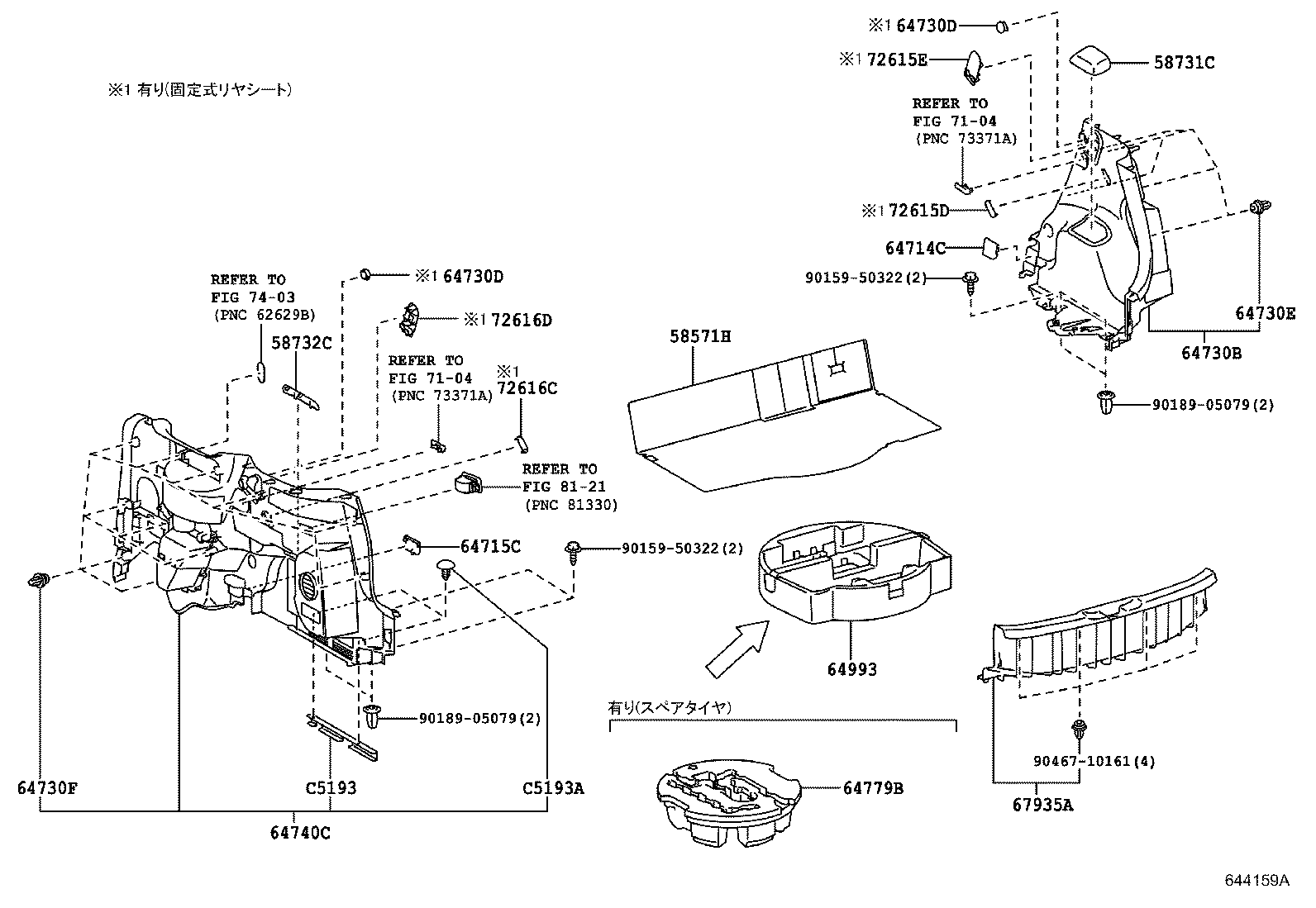

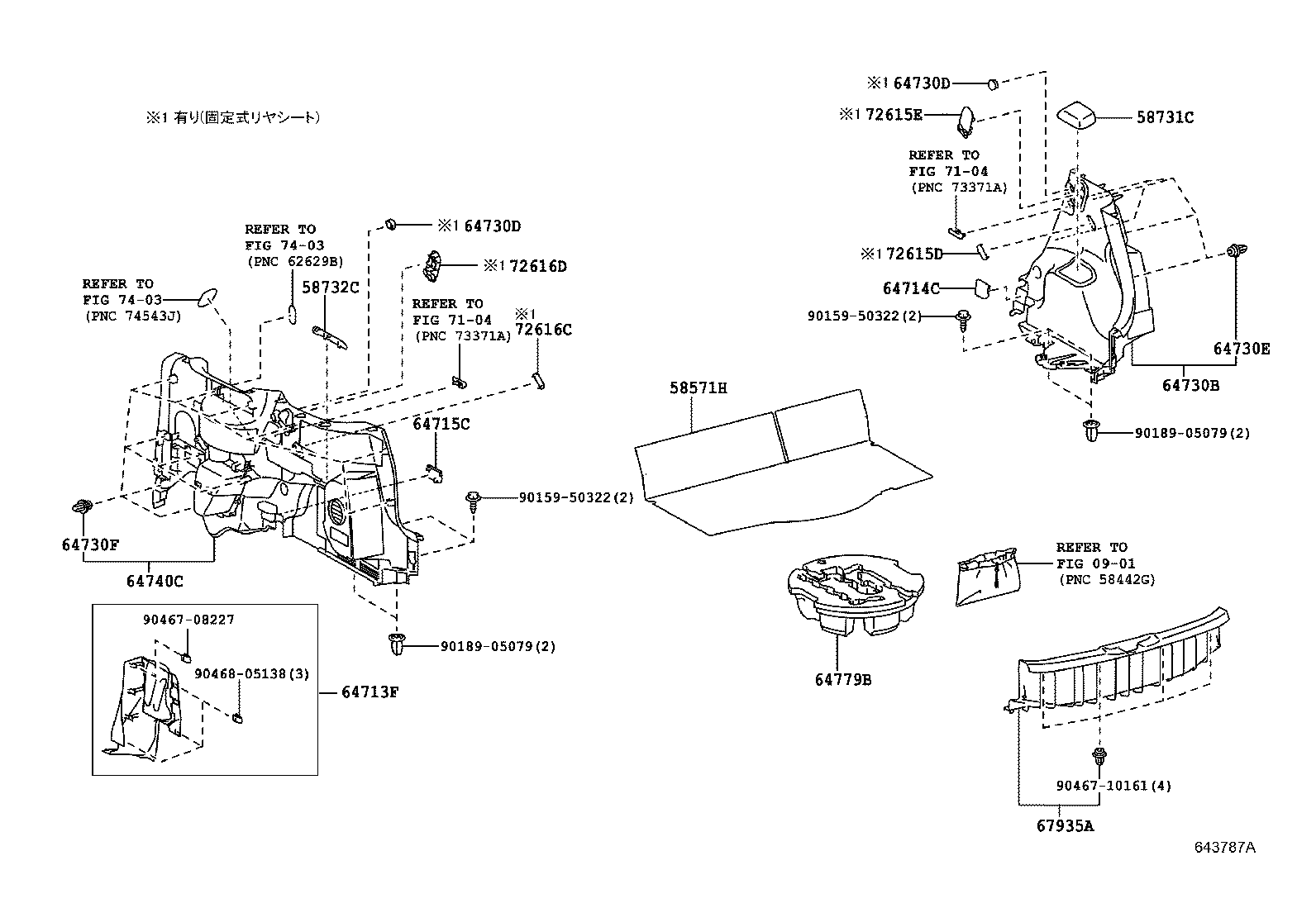

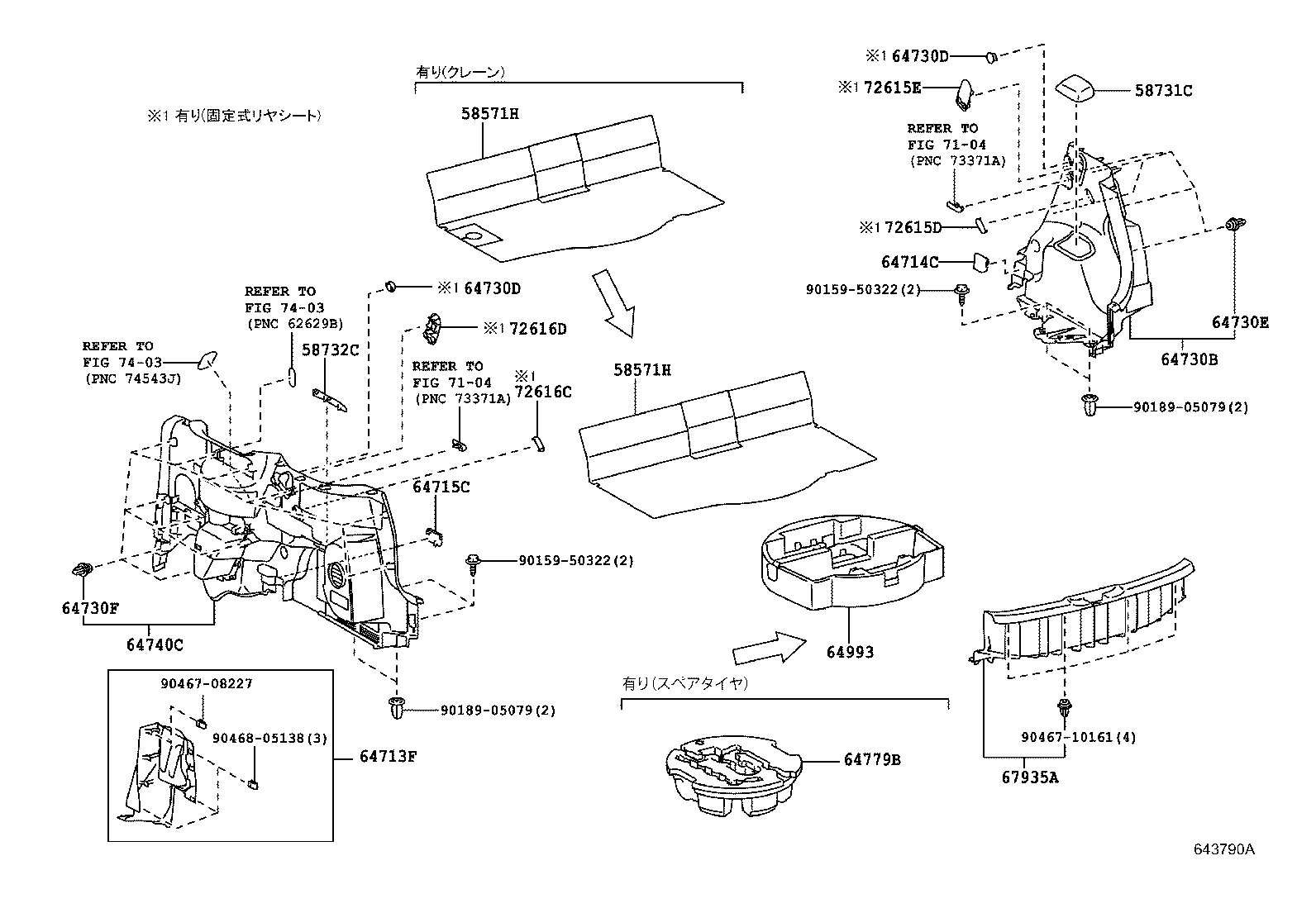

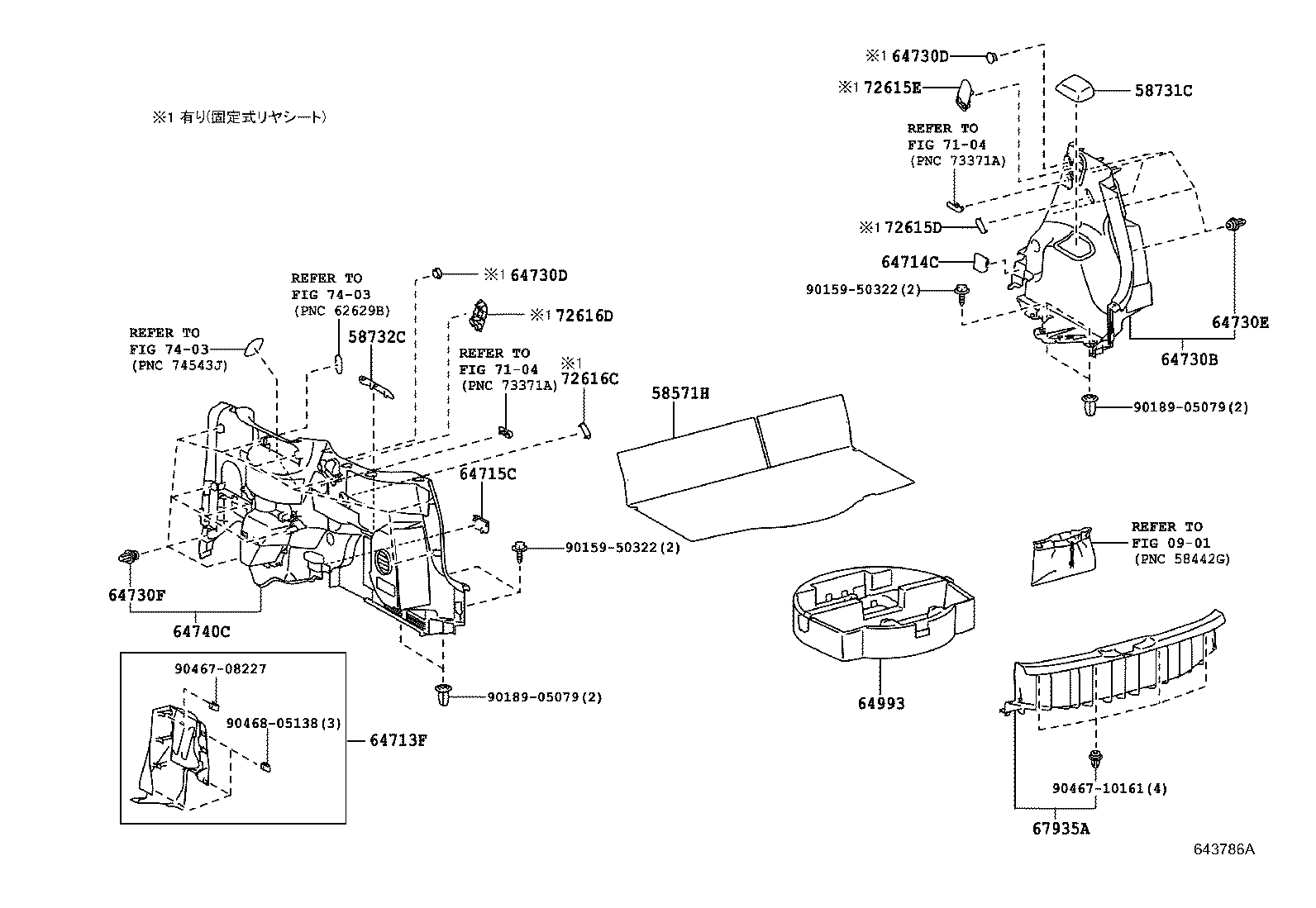

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58571H - CARPET, REAR FLOOR | ||||
| 58571-52060E0 |
NSP141..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ,PLUM,TRIM0#,4# |
1 | ||
| 58571-52040E1 |
NSP141..(G,X)..CBU PLUM,TRIM0#,4# |
1 | ||
| 58571-52060E0 |
NSP141..(F,X)..CBU ｻｲﾄﾞｱｸｾｽ車(脱着式)&ｸﾚｰﾝ,PLUM,TRIM0#,4# |
1 | ||
| 58571-52080E0 |
NSP141..(F,X)..CBU 助手席回転ﾁﾙﾄｼｰﾄ,PLUM,TRIM0#,4# |
1 | ||
| 58571-52060E0 |
NSP141..(F,X)..CBU 助手席回転ﾁﾙﾄｼｰﾄ&ｸﾚｰﾝ,PLUM,TRIM0#,4# |
1 | ||
| 58571-52080E0 |
NSP141..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ,PLUM,TRIM0#,4# |
1 | ||
| 58571-52040E1 |
NSP141..F..CBU PLUM,TRIM0#,2#,4# |
1 | ||
| 58571-52080E0 |
NSP141..(F,X)..CBU ｻｲﾄﾞｱｸｾｽ車(脱着式&車いす),PLUM,TRIM0#,4# |
1 | ||
| 58571-52080E0 |
NSP141..(F,X)..CBU ｻｲﾄﾞｱｸｾｽ車(脱着式),PLUM,TRIM0#,4# |
1 | ||
| 58571-52100E0 |
NSP141..X..CBU 助手席回転ﾁﾙﾄｼｰﾄ&車いす収納装置,PLUM,TRIM4# |
1 | ||
| 58571-52100E0 |
NSP141..X..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす収納装置,PLUM,TRIM4# |
1 | ||
| 58571-52100E0 |
NSP141..F..CBU 助手席回転ﾁﾙﾄｼｰﾄ&車いす収納装置,PLUM,TRIM0#,4# |
1 | ||
| 58571-52100E0 |
NSP141..F..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす収納装置,PLUM,TRIM0#,4# |
1 | ||
| 58571-52040E1 |
NSP141..V,Y PLUM,TRIM4# |
1 | ||
| 58571-52100E0 |
NSP141..F..CBU ｻｲﾄﾞｱｸｾｽ車(脱着式)&車いす収納装置,PLUM,TRIM0#,4# |
1 | ||
| 58571-52100E0 |
NSP141..X..CBU ｻｲﾄﾞｱｸｾｽ車(脱着式)&車いす収納装置,PLUM,TRIM4# |
1 | ||
| 58731C - CAP, REAR ABSORBER | ||||
| 58731-52050E1 |
NCP145,NSP141..V,Y PLUM,TRIM4# |
1 | ||
| 58731-52050C0 |
NCP145,NSP141..F..CBU BLACK,TRIM2#,42 |
1 | ||
| 58731-52050E1 |
NCP145,NSP141..F..CBU PLUM,TRIM0#,4# |
1 | ||
| 58731-52050E1 |
NCP145,NSP141..F..CBU PLUM,TRIM0#,40 |
1 | ||
| 58731-52050E1 |
NCP145,NSP141..(G,X)..CBU PLUM,TRIM0#,4# |
1 | ||
| 58732C - CAP, REAR ABSORBER | ||||
| 58732-52030E1 |
NCP145,NSP141..F..CBU PLUM,TRIM0#,4# |
1 | ||
| 58732-52030C0 |
NCP145,NSP141..F..CBU BLACK,TRIM2#,42 |
1 | ||
| 58732-52030E1 |
NCP145,NSP141..F..CBU PLUM,TRIM0#,40 |
1 | ||
| 58732-52030E1 |
NCP145,NSP141..V,Y PLUM,TRIM4# |
1 | ||
| 58732-52030E1 |
NCP145,NSP141..(G,X)..CBU PLUM,TRIM0#,4# |
1 | ||
| 64713F - COVER, DECK SIDE TRIM, FRONT LH | ||||
| 64713-52091E0 |
NCP145..X..CBU;NSP141..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ,PLUM,TRIM0#,4# |
1 | ||
| 64713-52101E0 |
NCP145..X..CBU;NSP141..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ&SRSｴｱﾊﾞｯｸﾞ−*DRS&*PAS&運転席ｻｲﾄﾞ&*CUSA(ｳｪﾙｷｬﾌﾞ)),PLUM,TRIM0#,4# |
1 | ||
| 64713-52091E0 |
NCP145..X..CBU;NSP141..(F,X)..CBU 助手席回転ﾁﾙﾄｼｰﾄ,PLUM,TRIM0#,4# |
1 | ||
| 64713-52101E0 |
NCP145..X..CBU;NSP141..(F,X)..CBU 助手席回転ﾁﾙﾄｼｰﾄ&ｸﾚｰﾝ&SRSｴｱﾊﾞｯｸﾞ−*DRS&*PAS&運転席ｻｲﾄﾞ&*CUSA(ｳｪﾙｷｬﾌﾞ)),PLUM,TRIM0#,4# |
1 | ||
| 64713-52120E0 |
NCP145,NSP141..V,Y PLUM,TRIM4# |
1 | ||
| 64713-52130E0 |
NCP145,NSP141..V,Y SRSｴｱﾊﾞｯｸﾞ−*DRS&*PAS&ｻｲﾄﾞ&*CUSA),PLUM,TRIM4# |
1 | ||
| 64713-52120E0 |
NCP145,NSP141..F..CBU PLUM,TRIM0#,4# |
1 | ||
| 64713-52091E0 |
NCP145..X..CBU;NSP141..(F,X)..CBU 助手席回転ﾁﾙﾄｼｰﾄ&車いす収納装置,PLUM,TRIM0#,4# |
1 | ||
| 64713-52091E0 |
NCP145..X..CBU;NSP141..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ,PLUM,TRIM0#,4# |
1 | ||
| 64713-52101E0 |
NCP145..X..CBU;NSP141..(F,X)..CBU 助手席回転ﾁﾙﾄｼｰﾄ&SRSｴｱﾊﾞｯｸﾞ−*DRS&*PAS&運転席ｻｲﾄﾞ&*CUSA(ｳｪﾙｷｬﾌﾞ)),PLUM,TRIM0#,4# |
1 | ||
| 64713-52101E0 |
NCP145..X..CBU;NSP141..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&SRSｴｱﾊﾞｯｸﾞ−*DRS&*PAS&運転席ｻｲﾄﾞ&*CUSA(ｳｪﾙｷｬﾌﾞ)),PLUM,TRIM0#,4# |
1 | ||
| 64713-52130E0 |
NCP145,NSP141..(G,X)..CBU SRSｴｱﾊﾞｯｸﾞ−*DRS&*PAS&ｻｲﾄﾞ&*CUSA),PLUM,TRIM0#,4# |
1 | ||
| 64713-52120E0 |
NCP145,NSP141..(G,X)..CBU PLUM,TRIM0#,4# |
1 | ||
| 64713-52091E0 |
NCP145..X..CBU;NSP141..(F,X)..CBU 助手席回転ﾁﾙﾄｼｰﾄ&ｸﾚｰﾝ,PLUM,TRIM0#,4# |
1 | ||
| 64713-52101E0 |
NCP145..X..CBU;NSP141..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす収納装置&SRSｴｱﾊﾞｯｸﾞ−*DRS&*PAS&運転席ｻｲﾄﾞ&*CUSA(ｳｪﾙｷｬﾌﾞ)),PLUM,TRIM0#,4# |
1 | ||
| 64713-52130E0 |
NCP145,NSP141..F..CBU SRSｴｱﾊﾞｯｸﾞ−*DRS&*PAS&ｻｲﾄﾞ&*CUSA),PLUM,TRIM0#,4# |
1 | ||
| 64713-52120C0 |
NCP145,NSP141..F..CBU BLACK,TRIM2#,42 |
1 | ||
| 64713-52130C0 |
NCP145,NSP141..F..CBU SRSｴｱﾊﾞｯｸﾞ−*DRS&*PAS&ｻｲﾄﾞ&*CUSA),BLACK,TRIM2#,42 |
1 | ||
| 64713-52091E0 |
NCP145..X..CBU;NSP141..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす収納装置,PLUM,TRIM0#,4# |
1 | ||
| 64713-52130E0 |
NCP145,NSP141..F..CBU SRSｴｱﾊﾞｯｸﾞ−*DRS&*PAS&ｻｲﾄﾞ&*CUSA),PLUM,TRIM0#,40 |
1 | ||
| 64713-52101E0 |
NCP145..X..CBU;NSP141..(F,X)..CBU 助手席回転ﾁﾙﾄｼｰﾄ&車いす収納装置&SRSｴｱﾊﾞｯｸﾞ−*DRS&*PAS&運転席ｻｲﾄﾞ&*CUSA(ｳｪﾙｷｬﾌﾞ)),PLUM,TRIM0#,4# |
1 | ||
| 64713-52120E0 |
NCP145,NSP141..F..CBU PLUM,TRIM0#,40 |
1 | ||
| 64714C - COVER, DECK SIDE TRIM, RH | ||||
| 64714-52240C0 |
NCP145,NSP141..F..CBU BLACK,TRIM2#,42 |
1 | ||
| 64714-52240E0 |
NCP145,NSP141..F..CBU PLUM,TRIM0#,4# |
1 | ||
| 64714-52240E0 |
NCP145,NSP141..(G,X)..CBU PLUM,TRIM0#,4# |
1 | ||
| 64714-52240E0 |
NCP145,NSP141..F..CBU PLUM,TRIM0#,40 |
1 | ||
| 64714-52240E0 |
NCP145,NSP141..V,Y PLUM,TRIM4# |
1 | ||
| 64715C - COVER, DECK SIDE TRIM, LH | ||||
| 64715-52300E0 |
NCP145,NSP141..V,Y PLUM,TRIM4# |
1 | ||
| 64715-52300E0 |
NCP145,NSP141..F..CBU PLUM,TRIM0#,4# |
1 | ||
| 64715-52300E0 |
NCP145,NSP141..(G,X)..CBU PLUM,TRIM0#,4# |
1 | ||
| 64715-52300C0 |
NCP145,NSP141..F..CBU BLACK,TRIM2#,42 |
1 | ||
| 64715-52300E0 |
NCP145,NSP141..F..CBU PLUM,TRIM0#,40 |
1 | ||
| 64730B - PANEL ASSY, DECK TRIM SIDE, RH | ||||
| 64730-52500E0 |
NCP145,NSP141..F..CBU PLUM,TRIM0#,4# |
1 | ||
| 64730-52500C0 |
NCP145,NSP141..F..CBU BLACK,TRIM2#,42 |
1 | ||
| 64730-52500E0 |
NCP145,NSP141..(G,X)..CBU PLUM,TRIM0#,4# |
1 | ||
| 64730-52500E0 |
NCP145,NSP141..F..CBU PLUM,TRIM0#,40 |
1 | ||
| 64730-52490E0 |
NSP141..V PLUM,TRIM4# |
1 | ||
| 64730D - PLUG, HOLE(FOR DECK TRIM SIDE BOARD) | ||||
| 90950-01851E7 |
NCP145,NSP141..X..CBU PLUM,TRIM0#,4# |
2 | ||
| 90950-01851E7 |
NSP141..V PLUM,TRIM4# |
2 | ||
| 64730D - PLUG, HOLE(FOR DECK TRIM SIDE BOARD) | ||||
| 90950-01851E7 |
NCP145,NSP141..X..CBU PLUM,TRIM0#,4# |
2 | ||
| 90950-01851E7 |
NSP141..V PLUM,TRIM4# |
2 | ||
| 64730E - CLIP(FOR DECK TRIM SIDE BOARD) | ||||
| 90467-10161 |
NCP145,NSP141..CBU |
5 | ||
| 64730F - CLAMP(FOR DECK TRIM SIDE BOARD) | ||||
| 90467-10161 |
NCP145,NSP141..CBU |
11 | ||
| 64740C - PANEL ASSY, DECK TRIM SIDE, LH | ||||
| 64740-52671E0 |
NSP141..PORTE..F..CBU;NCP145,NSP141..SPADE..X..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ,PLUM/BLACK,TRIM4# |
1 | ||
| 64740-52671E2 |
NSP141..PORTE..F..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ,PLUM/PINK,TRIM0# |
1 | ||
| 64740-52700E0 |
NSP141..V PLUM,TRIM4# |
1 | ||
| 64740-52671E0 |
NCP145,NSP141..PORTE..X..CBU ｻｲﾄﾞｱｸｾｽ車(脱着式)&ｸﾚｰﾝ,PLUM/BLACK,TRIM40 |
1 | ||
| 64740-52710E0 |
NSP141..PORTE..F..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&SRSｴｱﾊﾞｯｸﾞ−*DRS&*PAS&運転席ｻｲﾄﾞ&*CUSA(ｳｪﾙｷｬﾌﾞ)),PLUM/BLACK,TRIM4# |
1 | ||
| 64740-52710E0 |
NSP141..PORTE..F..CBU ｻｲﾄﾞｱｸｾｽ車(車いす)&SRSｴｱﾊﾞｯｸﾞ−*DRS&*PAS&運転席ｻｲﾄﾞ&*CUSA(ｳｪﾙｷｬﾌﾞ)),PLUM/BLACK,TRIM4# |
1 | ||
| 64740-52671E2 |
NSP141..PORTE..F..CBU ｻｲﾄﾞｱｸｾｽ車(脱着式)&ｸﾚｰﾝ,PLUM/PINK,TRIM0# |
1 | ||
| 64740-52710E0 |
NSP141..PORTE..F..CBU ｻｲﾄﾞｱｸｾｽ車(脱着式)&SRSｴｱﾊﾞｯｸﾞ−*DRS&*PAS&運転席ｻｲﾄﾞ&*CUSA(ｳｪﾙｷｬﾌﾞ)),PLUM/BLACK,TRIM4# |
1 | ||
| 64740-52710E0 |
NSP141..PORTE..F..CBU ｻｲﾄﾞｱｸｾｽ車(脱着式&車いす)&SRSｴｱﾊﾞｯｸﾞ−*DRS&*PAS&運転席ｻｲﾄﾞ&*CUSA(ｳｪﾙｷｬﾌﾞ)),PLUM/BLACK,TRIM4# |
1 | ||
| 64740-52671E0 |
NCP145,NSP141..PORTE..X..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ,PLUM/BLACK,TRIM40 |
1 | ||
| 64740-52710E0 |
NCP145,NSP141..PORTE..F..CBU “a la mode Deux”*(J)or*(K),PLUM/BLACK,TRIM00 |
1 | ||
| 64740-52671E2 |
NCP145,NSP141..PORTE..X..CBU ｻｲﾄﾞｱｸｾｽ車(脱着式)&ｸﾚｰﾝ,PLUM/PINK,TRIM41 |
1 | ||
| 64740-52710E1 |
NSP141..PORTE..F..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&SRSｴｱﾊﾞｯｸﾞ−*DRS&*PAS&運転席ｻｲﾄﾞ&*CUSA(ｳｪﾙｷｬﾌﾞ)),PLUM/PINK,TRIM0# |
1 | ||
| 64740-52710E1 |
NSP141..PORTE..F..CBU ｻｲﾄﾞｱｸｾｽ車(脱着式)&SRSｴｱﾊﾞｯｸﾞ−*DRS&*PAS&運転席ｻｲﾄﾞ&*CUSA(ｳｪﾙｷｬﾌﾞ)),PLUM/PINK,TRIM0# |
1 | ||
| 64740-52671E0 |
NCP145,NSP141..PORTE..X..CBU 助手席回転ﾁﾙﾄｼｰﾄ&ｸﾚｰﾝ,PLUM/BLACK,TRIM40 |
1 | ||
| 64740-52671E2 |
NSP141..PORTE..F..CBU 助手席回転ﾁﾙﾄｼｰﾄ&ｸﾚｰﾝ,PLUM/PINK,TRIM0# |
1 | ||
| 64740-52671E0 |
NSP141..PORTE..F..CBU;NCP145,NSP141..SPADE..X..CBU ｻｲﾄﾞｱｸｾｽ車(脱着式)&ｸﾚｰﾝ,PLUM/BLACK,TRIM4# |
1 | ||
| 64740-52710E1 |
NSP141..PORTE..F..CBU SRSｴｱﾊﾞｯｸﾞ−*DRS&*PAS&ｻｲﾄﾞ&*CUSA),PLUM/PINK,TRIM0# |
1 | ||
| 64740-52710E1 |
NSP141..PORTE..F..CBU ｻｲﾄﾞｱｸｾｽ車(車いす)&SRSｴｱﾊﾞｯｸﾞ−*DRS&*PAS&運転席ｻｲﾄﾞ&*CUSA(ｳｪﾙｷｬﾌﾞ)),PLUM/PINK,TRIM0# |
1 | ||
| 64740-52710E1 |
NSP141..PORTE..F..CBU 助手席回転ﾁﾙﾄｼｰﾄ&SRSｴｱﾊﾞｯｸﾞ−*DRS&*PAS&運転席ｻｲﾄﾞ&*CUSA(ｳｪﾙｷｬﾌﾞ)),PLUM/PINK,TRIM0# |
1 | ||
| 64740-52710E1 |
NSP141..PORTE..F..CBU ｻｲﾄﾞｱｸｾｽ車(脱着式&車いす)&SRSｴｱﾊﾞｯｸﾞ−*DRS&*PAS&運転席ｻｲﾄﾞ&*CUSA(ｳｪﾙｷｬﾌﾞ)),PLUM/PINK,TRIM0# |
1 | ||
| 64740-52710E0 |
NSP141..PORTE..F..CBU SRSｴｱﾊﾞｯｸﾞ−*DRS&*PAS&ｻｲﾄﾞ&*CUSA),PLUM/BLACK,TRIM4# |
1 | ||
| 64740-52600E1 |
NSP141..F..CBU ｻｲﾄﾞｱｸｾｽ車(脱着式)&車いす収納装置,PLUM/PINK,TRIM00 |
1 | ||
| 64740-52710E1 |
NCP145,NSP141..PORTE..X..CBU PLUM/PINK,TRIM41 |
1 | ||
| 64740-52600E1 |
NSP141..F..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす収納装置,PLUM/PINK,TRIM00 |
1 | ||
| 64740-52600E1 |
NCP145,NSP141..X..CBU 助手席回転ﾁﾙﾄｼｰﾄ&車いす収納装置,PLUM/PINK,TRIM41 |
1 | ||
| 64740-52600E1 |
NSP141..F..CBU 助手席回転ﾁﾙﾄｼｰﾄ&車いす収納装置,PLUM/PINK,TRIM00 |
1 | ||
| 64740-52671E2 |
NCP145,NSP141..PORTE..X..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ,PLUM/PINK,TRIM41 |
1 | ||
| 64740-52710E0 |
NSP141..PORTE..F..CBU 助手席回転ﾁﾙﾄｼｰﾄ&SRSｴｱﾊﾞｯｸﾞ−*DRS&*PAS&運転席ｻｲﾄﾞ&*CUSA(ｳｪﾙｷｬﾌﾞ)),PLUM/BLACK,TRIM4# |
1 | ||
| 64740-52710E0 |
NCP145,NSP141..PORTE..X..CBU PLUM/BLACK,TRIM40 |
1 | ||
| 64740-52600E0 |
NSP141..F..CBU 助手席回転ﾁﾙﾄｼｰﾄ&車いす収納装置,PLUM/BLACK,TRIM00,4# |
1 | ||
| 64740-52710E0 |
NCP145,NSP141..PORTE..F..CBU “a la mode Trois”*(M)or*(H),PLUM/BLACK,TRIM00 |
1 | ||
| 64740-52710E0 |
NCP145,NSP141..PORTE..F..CBU PLUM/BLACK,TRIM40 |
1 | ||
| 64740-52600E0 |
NCP145,NSP141..X..CBU 助手席回転ﾁﾙﾄｼｰﾄ&車いす収納装置,PLUM/BLACK,TRIM40,41 |
1 | ||
| 64740-52671E2 |
NCP145,NSP141..PORTE..X..CBU 助手席回転ﾁﾙﾄｼｰﾄ&ｸﾚｰﾝ,PLUM/PINK,TRIM41 |
1 | ||
| 64740-52600E0 |
NCP145,NSP141..X..CBU ｻｲﾄﾞｱｸｾｽ車(脱着式)&車いす収納装置,PLUM/BLACK,TRIM40,41 |
1 | ||
| 64740-52600E1 |
NCP145,NSP141..X..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす収納装置,PLUM/PINK,TRIM41 |
1 | ||
| 64740-52671E0 |
NSP141..PORTE..F..CBU;NCP145,NSP141..SPADE..X..CBU 助手席回転ﾁﾙﾄｼｰﾄ&ｸﾚｰﾝ,PLUM/BLACK,TRIM4# |
1 | ||
| 64740-52600E0 |
NSP141..F..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす収納装置,PLUM/BLACK,TRIM00,4# |
1 | ||
| 64740-52600E0 |
NCP145,NSP141..X..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす収納装置,PLUM/BLACK,TRIM40,41 |
1 | ||
| 64740-52710E1 |
NCP145,NSP141..PORTE..F..CBU PLUM/PINK,TRIM00 |
1 | ||
| 64740-52600E2 |
NCP145,NSP141..X..CBU 助手席回転ﾁﾙﾄｼｰﾄ&車いす収納装置,PLUM,TRIM41 |
1 | ||
| 64740-52710E0 |
NCP145,NSP141..PORTE..F..CBU “a la mode Brun”*(B),PLUM/BLACK,TRIM00 |
1 | ||
| 64740-52600E2 |
NCP145,NSP141..X..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす収納装置,PLUM,TRIM41 |
1 | ||
| 64740-52710E0 |
NCP145,NSP141..PORTE..F..CBU PLUM/BLACK,TRIM40 |
1 | ||
| 64740-52600E0 |
NSP141..F..CBU ｻｲﾄﾞｱｸｾｽ車(脱着式)&車いす収納装置,PLUM/BLACK,TRIM00,4# |
1 | ||
| 64740-52710E0 |
NSP141..PORTE..F..CBU ｻｲﾄﾞｱｸｾｽ車(脱着式)&SRSｴｱﾊﾞｯｸﾞ−*DRS&*PAS&運転席ｻｲﾄﾞ&*CUSA(ｳｪﾙｷｬﾌﾞ)),PLUM/BLACK,TRIM40 |
1 | ||
| 64740-52600E2 |
NSP141..F..CBU 助手席回転ﾁﾙﾄｼｰﾄ&車いす収納装置,PLUM,TRIM00 |
1 | ||
| 64740-52600E2 |
NCP145,NSP141..X..CBU ｻｲﾄﾞｱｸｾｽ車(脱着式)&車いす収納装置,PLUM,TRIM41 |
1 | ||
| 64740-52600E2 |
NSP141..F..CBU ｻｲﾄﾞｱｸｾｽ車(脱着式)&車いす収納装置,PLUM,TRIM00 |
1 | ||
| 64740-52710C0 |
NCP145,NSP141..F..CBU BLACK,TRIM2#,42 |
1 | ||
| 64740-52710E0 |
NSP141..PORTE..F..CBU SRSｴｱﾊﾞｯｸﾞ−*DRS&*PAS&ｻｲﾄﾞ&*CUSA),PLUM/BLACK,TRIM40 |
1 | ||
| 64740-52710E2 |
NCP145,NSP141..PORTE..X..CBU PLUM/BROOD ORANGE,TRIM41 |
1 | ||
| 64740-52710E0 |
NCP145,NSP141..PORTE..G;NCP145,NSP141..SPADE..(F,G,X)..CBU PLUM/BLACK,TRIM0#,40,41 |
1 | ||
| 64740-52710E0 |
NSP141..PORTE..F..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&SRSｴｱﾊﾞｯｸﾞ−*DRS&*PAS&運転席ｻｲﾄﾞ&*CUSA(ｳｪﾙｷｬﾌﾞ)),PLUM/BLACK,TRIM40 |
1 | ||
| 64740-52600E0 |
NCP145,NSP141..X..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす収納装置,PLUM/BLACK,TRIM4# |
1 | ||
| 64740-52710E0 |
NSP141..PORTE..F..CBU 助手席回転ﾁﾙﾄｼｰﾄ&SRSｴｱﾊﾞｯｸﾞ−*DRS&*PAS&運転席ｻｲﾄﾞ&*CUSA(ｳｪﾙｷｬﾌﾞ)),PLUM/BLACK,TRIM40 |
1 | ||
| 64740-52710E2 |
NCP145,NSP141..PORTE..F..CBU PLUM/BROOD ORANGE,TRIM00 |
1 | ||
| 64740-52600E1 |
NCP145,NSP141..X..CBU ｻｲﾄﾞｱｸｾｽ車(脱着式)&車いす収納装置,PLUM/PINK,TRIM41 |
1 | ||
| 64740-52600E0 |
NCP145,NSP141..X..CBU ｻｲﾄﾞｱｸｾｽ車(脱着式)&車いす収納装置,PLUM/BLACK,TRIM4# |
1 | ||
| 64740-52600E0 |
NSP141..F..CBU ｻｲﾄﾞｱｸｾｽ車(脱着式)&車いす収納装置,PLUM/BLACK,TRIM0#,4# |
1 | ||
| 64740-52600E2 |
NSP141..F..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす収納装置,PLUM,TRIM00 |
1 | ||
| 64740-52600E0 |
NCP145,NSP141..X..CBU 助手席回転ﾁﾙﾄｼｰﾄ&車いす収納装置,PLUM/BLACK,TRIM4# |
1 | ||
| 64740-52600E0 |
NSP141..F..CBU 助手席回転ﾁﾙﾄｼｰﾄ&車いす収納装置,PLUM/BLACK,TRIM0#,4# |
1 | ||
| 64740-52600E0 |
NSP141..F..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす収納装置,PLUM/BLACK,TRIM0#,4# |
1 | ||
| 64740-52710E0 |
NSP141..PORTE..F..CBU ｻｲﾄﾞｱｸｾｽ車(車いす)&SRSｴｱﾊﾞｯｸﾞ−*DRS&*PAS&運転席ｻｲﾄﾞ&*CUSA(ｳｪﾙｷｬﾌﾞ)),PLUM/BLACK,TRIM40 |
1 | ||
| 64740-52710E0 |
NCP145,NSP141..PORTE..X..CBU PLUM/BLACK,TRIM40,41 |
1 | ||
| 64740-52710E0 |
NCP145,NSP141..PORTE..F..CBU PLUM/BLACK,TRIM00,40 |
1 | ||
| 64740-52710E0 |
NSP141..PORTE..F..CBU ｻｲﾄﾞｱｸｾｽ車(脱着式&車いす)&SRSｴｱﾊﾞｯｸﾞ−*DRS&*PAS&運転席ｻｲﾄﾞ&*CUSA(ｳｪﾙｷｬﾌﾞ)),PLUM/BLACK,TRIM40 |
1 | ||
| 64993 - BOX, DECK FLOOR, REAR | ||||
| 64993-52120 |
NSP141..CBU |
1 | ||
| 67935A - PLATE, BACK DOOR SCUFF | ||||
| 67935-52030E0 |
NCP145,NSP141..F..CBU PLUM,TRIM0#,2#,4# |
1 | ||
| 67935-52030E0 |
NCP145,NSP141..(G,X)..CBU PLUM,TRIM0#,4# |
1 | ||
| 67935-52030E0 |
NCP145,NSP141..V,Y PLUM,TRIM4# |
1 | ||
| 67935-52030E0 |
NCP145,NSP141..F..CBU PLUM,TRIM0#,22,40,42 |
1 | ||
| 67935-52030C0 |
NCP145,NSP141..F..CBU BLACK,TRIM22,42 |
1 | ||
| 72615D - COVER, REAR SEAT BACK LOCK STRIKER, RH | ||||
| 72615-52010E0 |
NSP141..V PLUM,TRIM4# |
1 | ||
| 72615-52010E0 |
NCP145,NSP141..X..CBU PLUM,TRIM0#,4# |
1 | ||
| 72615E - COVER, REAR SEAT BACK LOCK STRIKER, RH | ||||
| 72615-52030E1 |
NCP145,NSP141..X..CBU PLUM,TRIM0#,4# |
1 | ||
| 72615-52030E1 |
NSP141..V PLUM,TRIM4# |
1 | ||
| 72616C - COVER, REAR SEAT BACK LOCK STRIKER, LH | ||||
| 72615-52010E0 |
NCP145,NSP141..X..CBU PLUM,TRIM0#,4# |
1 | ||
| 72615-52010E0 |
NSP141..V PLUM,TRIM4# |
1 | ||
| 72616D - COVER, REAR SEAT BACK LOCK STRIKER, LH | ||||
| 72615-52030E1 |
NSP141..V PLUM,TRIM4# |
1 | ||
| 72615-52030E1 |
NCP145,NSP141..X..CBU PLUM,TRIM0#,4# |
1 | ||
| Common parts | ||||
| 90159-50322 | ||||
| 90189-05079 | ||||
| 90467-08227 | ||||
| 90467-10161 | ||||
| 90468-05138 | ||||
| Linked diagrams | ||||
| 0901 | ||||
| 7104 | ||||
| 7403 | ||||
(1507- )NSP141
ｱﾘ(ｽﾍﾟｱ ﾀｲﾔ:125/70 D16)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58571H - CARPET, REAR FLOOR | ||||
| 58571-52060E0 |
NSP141..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ,PLUM,TRIM0#,4# |
1 | ||
| 58571-52040E1 |
NSP141..(G,X)..CBU PLUM,TRIM0#,4# |
1 | ||
| 58571-52060E0 |
NSP141..(F,X)..CBU ｻｲﾄﾞｱｸｾｽ車(脱着式)&ｸﾚｰﾝ,PLUM,TRIM0#,4# |
1 | ||
| 58571-52080E0 |
NSP141..(F,X)..CBU 助手席回転ﾁﾙﾄｼｰﾄ,PLUM,TRIM0#,4# |
1 | ||
| 58571-52060E0 |
NSP141..(F,X)..CBU 助手席回転ﾁﾙﾄｼｰﾄ&ｸﾚｰﾝ,PLUM,TRIM0#,4# |
1 | ||
| 58571-52080E0 |
NSP141..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ,PLUM,TRIM0#,4# |
1 | ||
| 58571-52040E1 |
NSP141..F..CBU PLUM,TRIM0#,2#,4# |
1 | ||
| 58571-52080E0 |
NSP141..(F,X)..CBU ｻｲﾄﾞｱｸｾｽ車(脱着式&車いす),PLUM,TRIM0#,4# |
1 | ||
| 58571-52080E0 |
NSP141..(F,X)..CBU ｻｲﾄﾞｱｸｾｽ車(脱着式),PLUM,TRIM0#,4# |
1 | ||
| 58571-52100E0 |
NSP141..X..CBU 助手席回転ﾁﾙﾄｼｰﾄ&車いす収納装置,PLUM,TRIM4# |
1 | ||
| 58571-52100E0 |
NSP141..X..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす収納装置,PLUM,TRIM4# |
1 | ||
| 58571-52100E0 |
NSP141..F..CBU 助手席回転ﾁﾙﾄｼｰﾄ&車いす収納装置,PLUM,TRIM0#,4# |
1 | ||
| 58571-52100E0 |
NSP141..F..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす収納装置,PLUM,TRIM0#,4# |
1 | ||
| 58571-52040E1 |
NSP141..V,Y PLUM,TRIM4# |
1 | ||
| 58571-52100E0 |
NSP141..F..CBU ｻｲﾄﾞｱｸｾｽ車(脱着式)&車いす収納装置,PLUM,TRIM0#,4# |
1 | ||
| 58571-52100E0 |
NSP141..X..CBU ｻｲﾄﾞｱｸｾｽ車(脱着式)&車いす収納装置,PLUM,TRIM4# |
1 | ||
| 58731C - CAP, REAR ABSORBER | ||||
| 58731-52050E1 |
NCP145,NSP141..V,Y PLUM,TRIM4# |
1 | ||
| 58731-52050C0 |
NCP145,NSP141..F..CBU BLACK,TRIM2#,42 |
1 | ||
| 58731-52050E1 |
NCP145,NSP141..F..CBU PLUM,TRIM0#,4# |
1 | ||
| 58731-52050E1 |
NCP145,NSP141..F..CBU PLUM,TRIM0#,40 |
1 | ||
| 58731-52050E1 |
NCP145,NSP141..(G,X)..CBU PLUM,TRIM0#,4# |
1 | ||
| 58732C - CAP, REAR ABSORBER | ||||
| 58732-52030E1 |
NCP145,NSP141..V,Y PLUM,TRIM4# |
1 | ||
| 58732-52030E1 |
NCP145,NSP141..F..CBU PLUM,TRIM0#,4# |
1 | ||
| 58732-52030C0 |
NCP145,NSP141..F..CBU BLACK,TRIM2#,42 |
1 | ||
| 58732-52030E1 |
NCP145,NSP141..F..CBU PLUM,TRIM0#,40 |
1 | ||
| 58732-52030E1 |
NCP145,NSP141..(G,X)..CBU PLUM,TRIM0#,4# |
1 | ||
| 64713F - COVER, DECK SIDE TRIM, FRONT LH | ||||
| 64713-52091E0 |
NCP145..X..CBU;NSP141..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ,PLUM,TRIM0#,4# |
1 | ||
| 64713-52101E0 |
NCP145..X..CBU;NSP141..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ&SRSｴｱﾊﾞｯｸﾞ−*DRS&*PAS&運転席ｻｲﾄﾞ&*CUSA(ｳｪﾙｷｬﾌﾞ)),PLUM,TRIM0#,4# |
1 | ||
| 64713-52091E0 |
NCP145..X..CBU;NSP141..(F,X)..CBU 助手席回転ﾁﾙﾄｼｰﾄ,PLUM,TRIM0#,4# |
1 | ||
| 64713-52101E0 |
NCP145..X..CBU;NSP141..(F,X)..CBU 助手席回転ﾁﾙﾄｼｰﾄ&ｸﾚｰﾝ&SRSｴｱﾊﾞｯｸﾞ−*DRS&*PAS&運転席ｻｲﾄﾞ&*CUSA(ｳｪﾙｷｬﾌﾞ)),PLUM,TRIM0#,4# |
1 | ||
| 64713-52120E0 |
NCP145,NSP141..V,Y PLUM,TRIM4# |
1 | ||
| 64713-52130E0 |
NCP145,NSP141..V,Y SRSｴｱﾊﾞｯｸﾞ−*DRS&*PAS&ｻｲﾄﾞ&*CUSA),PLUM,TRIM4# |
1 | ||
| 64713-52120E0 |
NCP145,NSP141..F..CBU PLUM,TRIM0#,4# |
1 | ||
| 64713-52091E0 |
NCP145..X..CBU;NSP141..(F,X)..CBU 助手席回転ﾁﾙﾄｼｰﾄ&車いす収納装置,PLUM,TRIM0#,4# |
1 | ||
| 64713-52091E0 |
NCP145..X..CBU;NSP141..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ,PLUM,TRIM0#,4# |
1 | ||
| 64713-52101E0 |
NCP145..X..CBU;NSP141..(F,X)..CBU 助手席回転ﾁﾙﾄｼｰﾄ&SRSｴｱﾊﾞｯｸﾞ−*DRS&*PAS&運転席ｻｲﾄﾞ&*CUSA(ｳｪﾙｷｬﾌﾞ)),PLUM,TRIM0#,4# |
1 | ||
| 64713-52101E0 |
NCP145..X..CBU;NSP141..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&SRSｴｱﾊﾞｯｸﾞ−*DRS&*PAS&運転席ｻｲﾄﾞ&*CUSA(ｳｪﾙｷｬﾌﾞ)),PLUM,TRIM0#,4# |
1 | ||
| 64713-52130E0 |
NCP145,NSP141..(G,X)..CBU SRSｴｱﾊﾞｯｸﾞ−*DRS&*PAS&ｻｲﾄﾞ&*CUSA),PLUM,TRIM0#,4# |
1 | ||
| 64713-52120E0 |
NCP145,NSP141..(G,X)..CBU PLUM,TRIM0#,4# |
1 | ||
| 64713-52091E0 |
NCP145..X..CBU;NSP141..(F,X)..CBU 助手席回転ﾁﾙﾄｼｰﾄ&ｸﾚｰﾝ,PLUM,TRIM0#,4# |
1 | ||
| 64713-52101E0 |
NCP145..X..CBU;NSP141..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす収納装置&SRSｴｱﾊﾞｯｸﾞ−*DRS&*PAS&運転席ｻｲﾄﾞ&*CUSA(ｳｪﾙｷｬﾌﾞ)),PLUM,TRIM0#,4# |
1 | ||
| 64713-52130E0 |
NCP145,NSP141..F..CBU SRSｴｱﾊﾞｯｸﾞ−*DRS&*PAS&ｻｲﾄﾞ&*CUSA),PLUM,TRIM0#,4# |
1 | ||
| 64713-52120C0 |
NCP145,NSP141..F..CBU BLACK,TRIM2#,42 |
1 | ||
| 64713-52130C0 |
NCP145,NSP141..F..CBU SRSｴｱﾊﾞｯｸﾞ−*DRS&*PAS&ｻｲﾄﾞ&*CUSA),BLACK,TRIM2#,42 |
1 | ||
| 64713-52091E0 |
NCP145..X..CBU;NSP141..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす収納装置,PLUM,TRIM0#,4# |
1 | ||
| 64713-52130E0 |
NCP145,NSP141..F..CBU SRSｴｱﾊﾞｯｸﾞ−*DRS&*PAS&ｻｲﾄﾞ&*CUSA),PLUM,TRIM0#,40 |
1 | ||
| 64713-52101E0 |
NCP145..X..CBU;NSP141..(F,X)..CBU 助手席回転ﾁﾙﾄｼｰﾄ&車いす収納装置&SRSｴｱﾊﾞｯｸﾞ−*DRS&*PAS&運転席ｻｲﾄﾞ&*CUSA(ｳｪﾙｷｬﾌﾞ)),PLUM,TRIM0#,4# |
1 | ||
| 64713-52120E0 |
NCP145,NSP141..F..CBU PLUM,TRIM0#,40 |
1 | ||
| 64714C - COVER, DECK SIDE TRIM, RH | ||||
| 64714-52240C0 |
NCP145,NSP141..F..CBU BLACK,TRIM2#,42 |
1 | ||
| 64714-52240E0 |
NCP145,NSP141..F..CBU PLUM,TRIM0#,4# |
1 | ||
| 64714-52240E0 |
NCP145,NSP141..(G,X)..CBU PLUM,TRIM0#,4# |
1 | ||
| 64714-52240E0 |
NCP145,NSP141..F..CBU PLUM,TRIM0#,40 |
1 | ||
| 64714-52240E0 |
NCP145,NSP141..V,Y PLUM,TRIM4# |
1 | ||
| 64715C - COVER, DECK SIDE TRIM, LH | ||||
| 64715-52300E0 |
NCP145,NSP141..V,Y PLUM,TRIM4# |
1 | ||
| 64715-52300E0 |
NCP145,NSP141..F..CBU PLUM,TRIM0#,4# |
1 | ||
| 64715-52300E0 |
NCP145,NSP141..(G,X)..CBU PLUM,TRIM0#,4# |
1 | ||
| 64715-52300C0 |
NCP145,NSP141..F..CBU BLACK,TRIM2#,42 |
1 | ||
| 64715-52300E0 |
NCP145,NSP141..F..CBU PLUM,TRIM0#,40 |
1 | ||
| 64730B - PANEL ASSY, DECK TRIM SIDE, RH | ||||
| 64730-52500E0 |
NCP145,NSP141..F..CBU PLUM,TRIM0#,4# |
1 | ||
| 64730-52500C0 |
NCP145,NSP141..F..CBU BLACK,TRIM2#,42 |
1 | ||
| 64730-52500E0 |
NCP145,NSP141..(G,X)..CBU PLUM,TRIM0#,4# |
1 | ||
| 64730-52500E0 |
NCP145,NSP141..F..CBU PLUM,TRIM0#,40 |
1 | ||
| 64730-52490E0 |
NSP141..V PLUM,TRIM4# |
1 | ||
| 64730D - PLUG, HOLE(FOR DECK TRIM SIDE BOARD) | ||||
| 90950-01851E7 |
NCP145,NSP141..X..CBU PLUM,TRIM0#,4# |
2 | ||
| 90950-01851E7 |
NSP141..V PLUM,TRIM4# |
2 | ||
| 64730D - PLUG, HOLE(FOR DECK TRIM SIDE BOARD) | ||||
| 90950-01851E7 |
NCP145,NSP141..X..CBU PLUM,TRIM0#,4# |
2 | ||
| 90950-01851E7 |
NSP141..V PLUM,TRIM4# |
2 | ||
| 64730E - CLIP(FOR DECK TRIM SIDE BOARD) | ||||
| 90467-10161 |
NCP145,NSP141..CBU |
5 | ||
| 64730F - CLAMP(FOR DECK TRIM SIDE BOARD) | ||||
| 90467-10161 |
NCP145,NSP141..CBU |
11 | ||
| 64740C - PANEL ASSY, DECK TRIM SIDE, LH | ||||
| 64740-52671E0 |
NSP141..PORTE..F..CBU;NCP145,NSP141..SPADE..X..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ,PLUM/BLACK,TRIM4# |
1 | ||
| 64740-52671E2 |
NSP141..PORTE..F..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ,PLUM/PINK,TRIM0# |
1 | ||
| 64740-52700E0 |
NSP141..V PLUM,TRIM4# |
1 | ||
| 64740-52671E0 |
NCP145,NSP141..PORTE..X..CBU ｻｲﾄﾞｱｸｾｽ車(脱着式)&ｸﾚｰﾝ,PLUM/BLACK,TRIM40 |
1 | ||
| 64740-52710E0 |
NSP141..PORTE..F..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&SRSｴｱﾊﾞｯｸﾞ−*DRS&*PAS&運転席ｻｲﾄﾞ&*CUSA(ｳｪﾙｷｬﾌﾞ)),PLUM/BLACK,TRIM4# |
1 | ||
| 64740-52710E0 |
NSP141..PORTE..F..CBU ｻｲﾄﾞｱｸｾｽ車(車いす)&SRSｴｱﾊﾞｯｸﾞ−*DRS&*PAS&運転席ｻｲﾄﾞ&*CUSA(ｳｪﾙｷｬﾌﾞ)),PLUM/BLACK,TRIM4# |
1 | ||
| 64740-52671E2 |
NSP141..PORTE..F..CBU ｻｲﾄﾞｱｸｾｽ車(脱着式)&ｸﾚｰﾝ,PLUM/PINK,TRIM0# |
1 | ||
| 64740-52710E0 |
NSP141..PORTE..F..CBU ｻｲﾄﾞｱｸｾｽ車(脱着式)&SRSｴｱﾊﾞｯｸﾞ−*DRS&*PAS&運転席ｻｲﾄﾞ&*CUSA(ｳｪﾙｷｬﾌﾞ)),PLUM/BLACK,TRIM4# |
1 | ||
| 64740-52710E0 |
NSP141..PORTE..F..CBU ｻｲﾄﾞｱｸｾｽ車(脱着式&車いす)&SRSｴｱﾊﾞｯｸﾞ−*DRS&*PAS&運転席ｻｲﾄﾞ&*CUSA(ｳｪﾙｷｬﾌﾞ)),PLUM/BLACK,TRIM4# |
1 | ||
| 64740-52671E0 |
NCP145,NSP141..PORTE..X..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ,PLUM/BLACK,TRIM40 |
1 | ||
| 64740-52710E0 |
NCP145,NSP141..PORTE..F..CBU “a la mode Deux”*(J)or*(K),PLUM/BLACK,TRIM00 |
1 | ||
| 64740-52671E2 |
NCP145,NSP141..PORTE..X..CBU ｻｲﾄﾞｱｸｾｽ車(脱着式)&ｸﾚｰﾝ,PLUM/PINK,TRIM41 |
1 | ||
| 64740-52710E1 |
NSP141..PORTE..F..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&SRSｴｱﾊﾞｯｸﾞ−*DRS&*PAS&運転席ｻｲﾄﾞ&*CUSA(ｳｪﾙｷｬﾌﾞ)),PLUM/PINK,TRIM0# |
1 | ||
| 64740-52710E1 |
NSP141..PORTE..F..CBU ｻｲﾄﾞｱｸｾｽ車(脱着式)&SRSｴｱﾊﾞｯｸﾞ−*DRS&*PAS&運転席ｻｲﾄﾞ&*CUSA(ｳｪﾙｷｬﾌﾞ)),PLUM/PINK,TRIM0# |
1 | ||
| 64740-52671E0 |
NCP145,NSP141..PORTE..X..CBU 助手席回転ﾁﾙﾄｼｰﾄ&ｸﾚｰﾝ,PLUM/BLACK,TRIM40 |
1 | ||
| 64740-52671E2 |
NSP141..PORTE..F..CBU 助手席回転ﾁﾙﾄｼｰﾄ&ｸﾚｰﾝ,PLUM/PINK,TRIM0# |
1 | ||
| 64740-52671E0 |
NSP141..PORTE..F..CBU;NCP145,NSP141..SPADE..X..CBU ｻｲﾄﾞｱｸｾｽ車(脱着式)&ｸﾚｰﾝ,PLUM/BLACK,TRIM4# |
1 | ||
| 64740-52710E1 |
NSP141..PORTE..F..CBU SRSｴｱﾊﾞｯｸﾞ−*DRS&*PAS&ｻｲﾄﾞ&*CUSA),PLUM/PINK,TRIM0# |
1 | ||
| 64740-52710E1 |
NSP141..PORTE..F..CBU ｻｲﾄﾞｱｸｾｽ車(車いす)&SRSｴｱﾊﾞｯｸﾞ−*DRS&*PAS&運転席ｻｲﾄﾞ&*CUSA(ｳｪﾙｷｬﾌﾞ)),PLUM/PINK,TRIM0# |
1 | ||
| 64740-52710E1 |
NSP141..PORTE..F..CBU 助手席回転ﾁﾙﾄｼｰﾄ&SRSｴｱﾊﾞｯｸﾞ−*DRS&*PAS&運転席ｻｲﾄﾞ&*CUSA(ｳｪﾙｷｬﾌﾞ)),PLUM/PINK,TRIM0# |
1 | ||
| 64740-52710E1 |
NSP141..PORTE..F..CBU ｻｲﾄﾞｱｸｾｽ車(脱着式&車いす)&SRSｴｱﾊﾞｯｸﾞ−*DRS&*PAS&運転席ｻｲﾄﾞ&*CUSA(ｳｪﾙｷｬﾌﾞ)),PLUM/PINK,TRIM0# |
1 | ||
| 64740-52710E0 |
NSP141..PORTE..F..CBU SRSｴｱﾊﾞｯｸﾞ−*DRS&*PAS&ｻｲﾄﾞ&*CUSA),PLUM/BLACK,TRIM4# |
1 | ||
| 64740-52600E1 |
NSP141..F..CBU ｻｲﾄﾞｱｸｾｽ車(脱着式)&車いす収納装置,PLUM/PINK,TRIM00 |
1 | ||
| 64740-52710E1 |
NCP145,NSP141..PORTE..X..CBU PLUM/PINK,TRIM41 |
1 | ||
| 64740-52600E1 |
NSP141..F..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす収納装置,PLUM/PINK,TRIM00 |
1 | ||
| 64740-52600E1 |
NCP145,NSP141..X..CBU 助手席回転ﾁﾙﾄｼｰﾄ&車いす収納装置,PLUM/PINK,TRIM41 |
1 | ||
| 64740-52600E1 |
NSP141..F..CBU 助手席回転ﾁﾙﾄｼｰﾄ&車いす収納装置,PLUM/PINK,TRIM00 |
1 | ||
| 64740-52671E2 |
NCP145,NSP141..PORTE..X..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ,PLUM/PINK,TRIM41 |
1 | ||
| 64740-52710E0 |
NSP141..PORTE..F..CBU 助手席回転ﾁﾙﾄｼｰﾄ&SRSｴｱﾊﾞｯｸﾞ−*DRS&*PAS&運転席ｻｲﾄﾞ&*CUSA(ｳｪﾙｷｬﾌﾞ)),PLUM/BLACK,TRIM4# |
1 | ||
| 64740-52710E0 |
NCP145,NSP141..PORTE..X..CBU PLUM/BLACK,TRIM40 |
1 | ||
| 64740-52600E0 |
NSP141..F..CBU 助手席回転ﾁﾙﾄｼｰﾄ&車いす収納装置,PLUM/BLACK,TRIM00,4# |
1 | ||
| 64740-52710E0 |
NCP145,NSP141..PORTE..F..CBU “a la mode Trois”*(M)or*(H),PLUM/BLACK,TRIM00 |
1 | ||
| 64740-52710E0 |
NCP145,NSP141..PORTE..F..CBU PLUM/BLACK,TRIM40 |
1 | ||
| 64740-52600E0 |
NCP145,NSP141..X..CBU 助手席回転ﾁﾙﾄｼｰﾄ&車いす収納装置,PLUM/BLACK,TRIM40,41 |
1 | ||
| 64740-52671E2 |
NCP145,NSP141..PORTE..X..CBU 助手席回転ﾁﾙﾄｼｰﾄ&ｸﾚｰﾝ,PLUM/PINK,TRIM41 |
1 | ||
| 64740-52600E0 |
NCP145,NSP141..X..CBU ｻｲﾄﾞｱｸｾｽ車(脱着式)&車いす収納装置,PLUM/BLACK,TRIM40,41 |
1 | ||
| 64740-52600E1 |
NCP145,NSP141..X..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす収納装置,PLUM/PINK,TRIM41 |
1 | ||
| 64740-52671E0 |
NSP141..PORTE..F..CBU;NCP145,NSP141..SPADE..X..CBU 助手席回転ﾁﾙﾄｼｰﾄ&ｸﾚｰﾝ,PLUM/BLACK,TRIM4# |
1 | ||
| 64740-52600E0 |
NSP141..F..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす収納装置,PLUM/BLACK,TRIM00,4# |
1 | ||
| 64740-52600E0 |
NCP145,NSP141..X..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす収納装置,PLUM/BLACK,TRIM40,41 |
1 | ||
| 64740-52710E1 |
NCP145,NSP141..PORTE..F..CBU PLUM/PINK,TRIM00 |
1 | ||
| 64740-52600E2 |
NCP145,NSP141..X..CBU 助手席回転ﾁﾙﾄｼｰﾄ&車いす収納装置,PLUM,TRIM41 |
1 | ||
| 64740-52710E0 |
NCP145,NSP141..PORTE..F..CBU “a la mode Brun”*(B),PLUM/BLACK,TRIM00 |
1 | ||
| 64740-52600E2 |
NCP145,NSP141..X..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす収納装置,PLUM,TRIM41 |
1 | ||
| 64740-52710E0 |
NCP145,NSP141..PORTE..F..CBU PLUM/BLACK,TRIM40 |
1 | ||
| 64740-52600E0 |
NSP141..F..CBU ｻｲﾄﾞｱｸｾｽ車(脱着式)&車いす収納装置,PLUM/BLACK,TRIM00,4# |
1 | ||
| 64740-52710E0 |
NSP141..PORTE..F..CBU ｻｲﾄﾞｱｸｾｽ車(脱着式)&SRSｴｱﾊﾞｯｸﾞ−*DRS&*PAS&運転席ｻｲﾄﾞ&*CUSA(ｳｪﾙｷｬﾌﾞ)),PLUM/BLACK,TRIM40 |
1 | ||
| 64740-52600E2 |
NSP141..F..CBU 助手席回転ﾁﾙﾄｼｰﾄ&車いす収納装置,PLUM,TRIM00 |
1 | ||
| 64740-52600E2 |
NCP145,NSP141..X..CBU ｻｲﾄﾞｱｸｾｽ車(脱着式)&車いす収納装置,PLUM,TRIM41 |
1 | ||
| 64740-52600E2 |
NSP141..F..CBU ｻｲﾄﾞｱｸｾｽ車(脱着式)&車いす収納装置,PLUM,TRIM00 |
1 | ||
| 64740-52710C0 |
NCP145,NSP141..F..CBU BLACK,TRIM2#,42 |
1 | ||
| 64740-52710E0 |
NSP141..PORTE..F..CBU SRSｴｱﾊﾞｯｸﾞ−*DRS&*PAS&ｻｲﾄﾞ&*CUSA),PLUM/BLACK,TRIM40 |
1 | ||
| 64740-52710E2 |
NCP145,NSP141..PORTE..X..CBU PLUM/BROOD ORANGE,TRIM41 |
1 | ||
| 64740-52710E0 |
NCP145,NSP141..PORTE..G;NCP145,NSP141..SPADE..(F,G,X)..CBU PLUM/BLACK,TRIM0#,40,41 |
1 | ||
| 64740-52710E0 |
NSP141..PORTE..F..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&SRSｴｱﾊﾞｯｸﾞ−*DRS&*PAS&運転席ｻｲﾄﾞ&*CUSA(ｳｪﾙｷｬﾌﾞ)),PLUM/BLACK,TRIM40 |
1 | ||
| 64740-52600E0 |
NCP145,NSP141..X..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす収納装置,PLUM/BLACK,TRIM4# |
1 | ||
| 64740-52710E0 |
NSP141..PORTE..F..CBU 助手席回転ﾁﾙﾄｼｰﾄ&SRSｴｱﾊﾞｯｸﾞ−*DRS&*PAS&運転席ｻｲﾄﾞ&*CUSA(ｳｪﾙｷｬﾌﾞ)),PLUM/BLACK,TRIM40 |
1 | ||
| 64740-52710E2 |
NCP145,NSP141..PORTE..F..CBU PLUM/BROOD ORANGE,TRIM00 |
1 | ||
| 64740-52600E1 |
NCP145,NSP141..X..CBU ｻｲﾄﾞｱｸｾｽ車(脱着式)&車いす収納装置,PLUM/PINK,TRIM41 |
1 | ||
| 64740-52600E0 |
NCP145,NSP141..X..CBU ｻｲﾄﾞｱｸｾｽ車(脱着式)&車いす収納装置,PLUM/BLACK,TRIM4# |
1 | ||
| 64740-52600E0 |
NSP141..F..CBU ｻｲﾄﾞｱｸｾｽ車(脱着式)&車いす収納装置,PLUM/BLACK,TRIM0#,4# |
1 | ||
| 64740-52600E2 |
NSP141..F..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす収納装置,PLUM,TRIM00 |
1 | ||
| 64740-52600E0 |
NCP145,NSP141..X..CBU 助手席回転ﾁﾙﾄｼｰﾄ&車いす収納装置,PLUM/BLACK,TRIM4# |
1 | ||
| 64740-52600E0 |
NSP141..F..CBU 助手席回転ﾁﾙﾄｼｰﾄ&車いす収納装置,PLUM/BLACK,TRIM0#,4# |
1 | ||
| 64740-52600E0 |
NSP141..F..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす収納装置,PLUM/BLACK,TRIM0#,4# |
1 | ||
| 64740-52710E0 |
NSP141..PORTE..F..CBU ｻｲﾄﾞｱｸｾｽ車(車いす)&SRSｴｱﾊﾞｯｸﾞ−*DRS&*PAS&運転席ｻｲﾄﾞ&*CUSA(ｳｪﾙｷｬﾌﾞ)),PLUM/BLACK,TRIM40 |
1 | ||
| 64740-52710E0 |
NCP145,NSP141..PORTE..X..CBU PLUM/BLACK,TRIM40,41 |
1 | ||
| 64740-52710E0 |
NCP145,NSP141..PORTE..F..CBU PLUM/BLACK,TRIM00,40 |
1 | ||
| 64740-52710E0 |
NSP141..PORTE..F..CBU ｻｲﾄﾞｱｸｾｽ車(脱着式&車いす)&SRSｴｱﾊﾞｯｸﾞ−*DRS&*PAS&運転席ｻｲﾄﾞ&*CUSA(ｳｪﾙｷｬﾌﾞ)),PLUM/BLACK,TRIM40 |
1 | ||
| 64779B - STOPPER, SPARE WHEEL COVER | ||||
| 64779-46010 |
NSP141..(F,X)..CBU ｻｲﾄﾞｱｸｾｽ車(脱着式)&ｸﾚｰﾝ&ｽﾍﾟｱﾀｲﾔ−T125/70 D16 |
1 | ||
| 64779-46010 |
NSP141..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ&ｽﾍﾟｱﾀｲﾔ−T125/70 D16 |
1 | ||
| 64779-46010 |
NCP145..X..CBU;NSP141..(F,X)..CBU ｻｲﾄﾞｱｸｾｽ車(脱着式)&ｽﾍﾟｱﾀｲﾔ−T125/70 D16 |
1 | ||
| 64779-46010 |
NSP141..(F,X)..CBU ｻｲﾄﾞｱｸｾｽ車(脱着式)&車いす収納装置&ｽﾍﾟｱﾀｲﾔ−T125/70 D16 |
1 | ||
| 64779-46010 |
NSP141..(F,X)..CBU ｻｲﾄﾞｱｸｾｽ車(脱着式&車いす)&ｽﾍﾟｱﾀｲﾔ−T125/70 D16 |
1 | ||
| 64779-46010 |
NCP145,NSP141..CBU ｽﾍﾟｱﾀｲﾔ−T125/70 D16 |
1 | ||
| 64779-46010 |
NSP141..(F,X)..CBU 助手席回転ﾁﾙﾄｼｰﾄ&ｸﾚｰﾝ&ｽﾍﾟｱﾀｲﾔ−T125/70 D16 |
1 | ||
| 64779-46010 |
NCP145..X..CBU;NSP141..(F,X)..CBU 助手席回転ﾁﾙﾄｼｰﾄ&ｽﾍﾟｱﾀｲﾔ−T125/70 D16 |
1 | ||
| 64779-46010 |
NSP141..(F,X)..CBU 助手席回転ﾁﾙﾄｼｰﾄ&車いす収納装置&ｽﾍﾟｱﾀｲﾔ−T125/70 D16 |
1 | ||
| 64779-46010 |
NCP145..X..CBU;NSP141..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｽﾍﾟｱﾀｲﾔ−T125/70 D16 |
1 | ||
| 64779-46010 |
NSP141..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす収納装置&ｽﾍﾟｱﾀｲﾔ−T125/70 D16 |
1 | ||
| 67935A - PLATE, BACK DOOR SCUFF | ||||
| 67935-52030E0 |
NCP145,NSP141..F..CBU PLUM,TRIM0#,2#,4# |
1 | ||
| 67935-52030E0 |
NCP145,NSP141..(G,X)..CBU PLUM,TRIM0#,4# |
1 | ||
| 67935-52030E0 |
NCP145,NSP141..V,Y PLUM,TRIM4# |
1 | ||
| 67935-52030E0 |
NCP145,NSP141..F..CBU PLUM,TRIM0#,22,40,42 |
1 | ||
| 67935-52030C0 |
NCP145,NSP141..F..CBU BLACK,TRIM22,42 |
1 | ||
| 72615D - COVER, REAR SEAT BACK LOCK STRIKER, RH | ||||
| 72615-52010E0 |
NSP141..V PLUM,TRIM4# |
1 | ||
| 72615-52010E0 |
NCP145,NSP141..X..CBU PLUM,TRIM0#,4# |
1 | ||
| 72615E - COVER, REAR SEAT BACK LOCK STRIKER, RH | ||||
| 72615-52030E1 |
NCP145,NSP141..X..CBU PLUM,TRIM0#,4# |
1 | ||
| 72615-52030E1 |
NSP141..V PLUM,TRIM4# |
1 | ||
| 72616C - COVER, REAR SEAT BACK LOCK STRIKER, LH | ||||
| 72615-52010E0 |
NCP145,NSP141..X..CBU PLUM,TRIM0#,4# |
1 | ||
| 72615-52010E0 |
NSP141..V PLUM,TRIM4# |
1 | ||
| 72616D - COVER, REAR SEAT BACK LOCK STRIKER, LH | ||||
| 72615-52030E1 |
NSP141..V PLUM,TRIM4# |
1 | ||
| 72615-52030E1 |
NCP145,NSP141..X..CBU PLUM,TRIM0#,4# |
1 | ||
| Common parts | ||||
| 90159-50322 | ||||
| 90189-05079 | ||||
| 90467-08227 | ||||
| 90467-10161 | ||||
| 90468-05138 | ||||
| Linked diagrams | ||||
| 0901 | ||||
| 7104 | ||||
| 7403 | ||||
(1507- )NSP141..F,X
ｳｪﾙｷｬﾌﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58571H - CARPET, REAR FLOOR | ||||
| 58571-52060E0 |
NSP141..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ,PLUM,TRIM0#,4# |
1 | ||
| 58571-52060E0 |
NSP141..(F,X)..CBU ｻｲﾄﾞｱｸｾｽ車(脱着式)&ｸﾚｰﾝ,PLUM,TRIM0#,4# |
1 | ||
| 58571-52080E0 |
NSP141..(F,X)..CBU 助手席回転ﾁﾙﾄｼｰﾄ,PLUM,TRIM0#,4# |
1 | ||
| 58571-52060E0 |
NSP141..(F,X)..CBU 助手席回転ﾁﾙﾄｼｰﾄ&ｸﾚｰﾝ,PLUM,TRIM0#,4# |
1 | ||
| 58571-52080E0 |
NSP141..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ,PLUM,TRIM0#,4# |
1 | ||
| 58571-52040E1 |
NSP141..(G,X)..CBU PLUM,TRIM0#,4# |
1 | ||
| 58571-52040E1 |
NSP141..F..CBU PLUM,TRIM0#,2#,4# |
1 | ||
| 58571-52080E0 |
NSP141..(F,X)..CBU ｻｲﾄﾞｱｸｾｽ車(脱着式&車いす),PLUM,TRIM0#,4# |
1 | ||
| 58571-52080E0 |
NSP141..(F,X)..CBU ｻｲﾄﾞｱｸｾｽ車(脱着式),PLUM,TRIM0#,4# |
1 | ||
| 58571-52100E0 |
NSP141..X..CBU 助手席回転ﾁﾙﾄｼｰﾄ&車いす収納装置,PLUM,TRIM4# |
1 | ||
| 58571-52100E0 |
NSP141..X..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす収納装置,PLUM,TRIM4# |
1 | ||
| 58571-52100E0 |
NSP141..F..CBU 助手席回転ﾁﾙﾄｼｰﾄ&車いす収納装置,PLUM,TRIM0#,4# |
1 | ||
| 58571-52100E0 |
NSP141..F..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす収納装置,PLUM,TRIM0#,4# |
1 | ||
| 58571-52040E1 |
NSP141..V,Y PLUM,TRIM4# |
1 | ||
| 58571-52100E0 |
NSP141..F..CBU ｻｲﾄﾞｱｸｾｽ車(脱着式)&車いす収納装置,PLUM,TRIM0#,4# |
1 | ||
| 58571-52100E0 |
NSP141..X..CBU ｻｲﾄﾞｱｸｾｽ車(脱着式)&車いす収納装置,PLUM,TRIM4# |
1 | ||
| 58571H - CARPET, REAR FLOOR | ||||
| 58571-52060E0 |
NSP141..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ,PLUM,TRIM0#,4# |
1 | ||
| 58571-52060E0 |
NSP141..(F,X)..CBU ｻｲﾄﾞｱｸｾｽ車(脱着式)&ｸﾚｰﾝ,PLUM,TRIM0#,4# |
1 | ||
| 58571-52080E0 |
NSP141..(F,X)..CBU 助手席回転ﾁﾙﾄｼｰﾄ,PLUM,TRIM0#,4# |
1 | ||
| 58571-52060E0 |
NSP141..(F,X)..CBU 助手席回転ﾁﾙﾄｼｰﾄ&ｸﾚｰﾝ,PLUM,TRIM0#,4# |
1 | ||
| 58571-52080E0 |
NSP141..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ,PLUM,TRIM0#,4# |
1 | ||
| 58571-52040E1 |
NSP141..(G,X)..CBU PLUM,TRIM0#,4# |
1 | ||
| 58571-52040E1 |
NSP141..F..CBU PLUM,TRIM0#,2#,4# |
1 | ||
| 58571-52080E0 |
NSP141..(F,X)..CBU ｻｲﾄﾞｱｸｾｽ車(脱着式&車いす),PLUM,TRIM0#,4# |
1 | ||
| 58571-52080E0 |
NSP141..(F,X)..CBU ｻｲﾄﾞｱｸｾｽ車(脱着式),PLUM,TRIM0#,4# |
1 | ||
| 58571-52100E0 |
NSP141..X..CBU 助手席回転ﾁﾙﾄｼｰﾄ&車いす収納装置,PLUM,TRIM4# |
1 | ||
| 58571-52100E0 |
NSP141..X..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす収納装置,PLUM,TRIM4# |
1 | ||
| 58571-52100E0 |
NSP141..F..CBU 助手席回転ﾁﾙﾄｼｰﾄ&車いす収納装置,PLUM,TRIM0#,4# |
1 | ||
| 58571-52100E0 |
NSP141..F..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす収納装置,PLUM,TRIM0#,4# |
1 | ||
| 58571-52040E1 |
NSP141..V,Y PLUM,TRIM4# |
1 | ||
| 58571-52100E0 |
NSP141..F..CBU ｻｲﾄﾞｱｸｾｽ車(脱着式)&車いす収納装置,PLUM,TRIM0#,4# |
1 | ||
| 58571-52100E0 |
NSP141..X..CBU ｻｲﾄﾞｱｸｾｽ車(脱着式)&車いす収納装置,PLUM,TRIM4# |
1 | ||
| 58731C - CAP, REAR ABSORBER | ||||
| 58731-52050E1 |
NCP145,NSP141..V,Y PLUM,TRIM4# |
1 | ||
| 58731-52050C0 |
NCP145,NSP141..F..CBU BLACK,TRIM2#,42 |
1 | ||
| 58731-52050E1 |
NCP145,NSP141..F..CBU PLUM,TRIM0#,4# |
1 | ||
| 58731-52050E1 |
NCP145,NSP141..F..CBU PLUM,TRIM0#,40 |
1 | ||
| 58731-52050E1 |
NCP145,NSP141..(G,X)..CBU PLUM,TRIM0#,4# |
1 | ||
| 58732C - CAP, REAR ABSORBER | ||||
| 58732-52030E1 |
NCP145,NSP141..V,Y PLUM,TRIM4# |
1 | ||
| 58732-52030E1 |
NCP145,NSP141..F..CBU PLUM,TRIM0#,4# |
1 | ||
| 58732-52030C0 |
NCP145,NSP141..F..CBU BLACK,TRIM2#,42 |
1 | ||
| 58732-52030E1 |
NCP145,NSP141..F..CBU PLUM,TRIM0#,40 |
1 | ||
| 58732-52030E1 |
NCP145,NSP141..(G,X)..CBU PLUM,TRIM0#,4# |
1 | ||
| 64713F - COVER, DECK SIDE TRIM, FRONT LH | ||||
| 64713-52091E0 |
NCP145..X..CBU;NSP141..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ,PLUM,TRIM0#,4# |
1 | ||
| 64713-52101E0 |
NCP145..X..CBU;NSP141..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ&SRSｴｱﾊﾞｯｸﾞ−*DRS&*PAS&運転席ｻｲﾄﾞ&*CUSA(ｳｪﾙｷｬﾌﾞ)),PLUM,TRIM0#,4# |
1 | ||
| 64713-52091E0 |
NCP145..X..CBU;NSP141..(F,X)..CBU 助手席回転ﾁﾙﾄｼｰﾄ,PLUM,TRIM0#,4# |
1 | ||
| 64713-52101E0 |
NCP145..X..CBU;NSP141..(F,X)..CBU 助手席回転ﾁﾙﾄｼｰﾄ&ｸﾚｰﾝ&SRSｴｱﾊﾞｯｸﾞ−*DRS&*PAS&運転席ｻｲﾄﾞ&*CUSA(ｳｪﾙｷｬﾌﾞ)),PLUM,TRIM0#,4# |
1 | ||
| 64713-52120E0 |
NCP145,NSP141..V,Y PLUM,TRIM4# |
1 | ||
| 64713-52130E0 |
NCP145,NSP141..V,Y SRSｴｱﾊﾞｯｸﾞ−*DRS&*PAS&ｻｲﾄﾞ&*CUSA),PLUM,TRIM4# |
1 | ||
| 64713-52120E0 |
NCP145,NSP141..F..CBU PLUM,TRIM0#,4# |
1 | ||
| 64713-52091E0 |
NCP145..X..CBU;NSP141..(F,X)..CBU 助手席回転ﾁﾙﾄｼｰﾄ&車いす収納装置,PLUM,TRIM0#,4# |
1 | ||
| 64713-52091E0 |
NCP145..X..CBU;NSP141..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ,PLUM,TRIM0#,4# |
1 | ||
| 64713-52101E0 |
NCP145..X..CBU;NSP141..(F,X)..CBU 助手席回転ﾁﾙﾄｼｰﾄ&SRSｴｱﾊﾞｯｸﾞ−*DRS&*PAS&運転席ｻｲﾄﾞ&*CUSA(ｳｪﾙｷｬﾌﾞ)),PLUM,TRIM0#,4# |
1 | ||
| 64713-52101E0 |
NCP145..X..CBU;NSP141..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&SRSｴｱﾊﾞｯｸﾞ−*DRS&*PAS&運転席ｻｲﾄﾞ&*CUSA(ｳｪﾙｷｬﾌﾞ)),PLUM,TRIM0#,4# |
1 | ||
| 64713-52130E0 |
NCP145,NSP141..(G,X)..CBU SRSｴｱﾊﾞｯｸﾞ−*DRS&*PAS&ｻｲﾄﾞ&*CUSA),PLUM,TRIM0#,4# |
1 | ||
| 64713-52120E0 |
NCP145,NSP141..(G,X)..CBU PLUM,TRIM0#,4# |
1 | ||
| 64713-52091E0 |
NCP145..X..CBU;NSP141..(F,X)..CBU 助手席回転ﾁﾙﾄｼｰﾄ&ｸﾚｰﾝ,PLUM,TRIM0#,4# |
1 | ||
| 64713-52101E0 |
NCP145..X..CBU;NSP141..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす収納装置&SRSｴｱﾊﾞｯｸﾞ−*DRS&*PAS&運転席ｻｲﾄﾞ&*CUSA(ｳｪﾙｷｬﾌﾞ)),PLUM,TRIM0#,4# |
1 | ||
| 64713-52130E0 |
NCP145,NSP141..F..CBU SRSｴｱﾊﾞｯｸﾞ−*DRS&*PAS&ｻｲﾄﾞ&*CUSA),PLUM,TRIM0#,4# |
1 | ||
| 64713-52120C0 |
NCP145,NSP141..F..CBU BLACK,TRIM2#,42 |
1 | ||
| 64713-52130C0 |
NCP145,NSP141..F..CBU SRSｴｱﾊﾞｯｸﾞ−*DRS&*PAS&ｻｲﾄﾞ&*CUSA),BLACK,TRIM2#,42 |
1 | ||
| 64713-52091E0 |
NCP145..X..CBU;NSP141..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす収納装置,PLUM,TRIM0#,4# |
1 | ||
| 64713-52130E0 |
NCP145,NSP141..F..CBU SRSｴｱﾊﾞｯｸﾞ−*DRS&*PAS&ｻｲﾄﾞ&*CUSA),PLUM,TRIM0#,40 |
1 | ||
| 64713-52101E0 |
NCP145..X..CBU;NSP141..(F,X)..CBU 助手席回転ﾁﾙﾄｼｰﾄ&車いす収納装置&SRSｴｱﾊﾞｯｸﾞ−*DRS&*PAS&運転席ｻｲﾄﾞ&*CUSA(ｳｪﾙｷｬﾌﾞ)),PLUM,TRIM0#,4# |
1 | ||
| 64713-52120E0 |
NCP145,NSP141..F..CBU PLUM,TRIM0#,40 |
1 | ||
| 64714C - COVER, DECK SIDE TRIM, RH | ||||
| 64714-52240E0 |
NCP145,NSP141..F..CBU PLUM,TRIM0#,4# |
1 | ||
| 64714-52240C0 |
NCP145,NSP141..F..CBU BLACK,TRIM2#,42 |
1 | ||
| 64714-52240E0 |
NCP145,NSP141..(G,X)..CBU PLUM,TRIM0#,4# |
1 | ||
| 64714-52240E0 |
NCP145,NSP141..F..CBU PLUM,TRIM0#,40 |
1 | ||
| 64714-52240E0 |
NCP145,NSP141..V,Y PLUM,TRIM4# |
1 | ||
| 64715C - COVER, DECK SIDE TRIM, LH | ||||
| 64715-52300E0 |
NCP145,NSP141..V,Y PLUM,TRIM4# |
1 | ||
| 64715-52300E0 |
NCP145,NSP141..F..CBU PLUM,TRIM0#,4# |
1 | ||
| 64715-52300E0 |
NCP145,NSP141..(G,X)..CBU PLUM,TRIM0#,4# |
1 | ||
| 64715-52300C0 |
NCP145,NSP141..F..CBU BLACK,TRIM2#,42 |
1 | ||
| 64715-52300E0 |
NCP145,NSP141..F..CBU PLUM,TRIM0#,40 |
1 | ||
| 64730B - PANEL ASSY, DECK TRIM SIDE, RH | ||||
| 64730-52500E0 |
NCP145,NSP141..F..CBU PLUM,TRIM0#,4# |
1 | ||
| 64730-52500C0 |
NCP145,NSP141..F..CBU BLACK,TRIM2#,42 |
1 | ||
| 64730-52500E0 |
NCP145,NSP141..(G,X)..CBU PLUM,TRIM0#,4# |
1 | ||
| 64730-52500E0 |
NCP145,NSP141..F..CBU PLUM,TRIM0#,40 |
1 | ||
| 64730-52490E0 |
NSP141..V PLUM,TRIM4# |
1 | ||
| 64730D - PLUG, HOLE(FOR DECK TRIM SIDE BOARD) | ||||
| 90950-01851E7 |
NCP145,NSP141..X..CBU PLUM,TRIM0#,4# |
2 | ||
| 90950-01851E7 |
NSP141..V PLUM,TRIM4# |
2 | ||
| 64730D - PLUG, HOLE(FOR DECK TRIM SIDE BOARD) | ||||
| 90950-01851E7 |
NCP145,NSP141..X..CBU PLUM,TRIM0#,4# |
2 | ||
| 90950-01851E7 |
NSP141..V PLUM,TRIM4# |
2 | ||
| 64730E - CLIP(FOR DECK TRIM SIDE BOARD) | ||||
| 90467-10161 |
NCP145,NSP141..CBU |
5 | ||
| 64730F - CLAMP(FOR DECK TRIM SIDE BOARD) | ||||
| 90467-10161 |
NCP145,NSP141..CBU |
11 | ||
| 64740C - PANEL ASSY, DECK TRIM SIDE, LH | ||||
| 64740-52671E0 |
NSP141..PORTE..F..CBU;NCP145,NSP141..SPADE..X..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ,PLUM/BLACK,TRIM4# |
1 | ||
| 64740-52671E2 |
NSP141..PORTE..F..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ,PLUM/PINK,TRIM0# |
1 | ||
| 64740-52700E0 |
NSP141..V PLUM,TRIM4# |
1 | ||
| 64740-52671E0 |
NCP145,NSP141..PORTE..X..CBU ｻｲﾄﾞｱｸｾｽ車(脱着式)&ｸﾚｰﾝ,PLUM/BLACK,TRIM40 |
1 | ||
| 64740-52710E0 |
NSP141..PORTE..F..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&SRSｴｱﾊﾞｯｸﾞ−*DRS&*PAS&運転席ｻｲﾄﾞ&*CUSA(ｳｪﾙｷｬﾌﾞ)),PLUM/BLACK,TRIM4# |
1 | ||
| 64740-52710E0 |
NSP141..PORTE..F..CBU ｻｲﾄﾞｱｸｾｽ車(車いす)&SRSｴｱﾊﾞｯｸﾞ−*DRS&*PAS&運転席ｻｲﾄﾞ&*CUSA(ｳｪﾙｷｬﾌﾞ)),PLUM/BLACK,TRIM4# |
1 | ||
| 64740-52671E2 |
NSP141..PORTE..F..CBU ｻｲﾄﾞｱｸｾｽ車(脱着式)&ｸﾚｰﾝ,PLUM/PINK,TRIM0# |
1 | ||
| 64740-52710E0 |
NSP141..PORTE..F..CBU ｻｲﾄﾞｱｸｾｽ車(脱着式)&SRSｴｱﾊﾞｯｸﾞ−*DRS&*PAS&運転席ｻｲﾄﾞ&*CUSA(ｳｪﾙｷｬﾌﾞ)),PLUM/BLACK,TRIM4# |
1 | ||
| 64740-52710E0 |
NSP141..PORTE..F..CBU ｻｲﾄﾞｱｸｾｽ車(脱着式&車いす)&SRSｴｱﾊﾞｯｸﾞ−*DRS&*PAS&運転席ｻｲﾄﾞ&*CUSA(ｳｪﾙｷｬﾌﾞ)),PLUM/BLACK,TRIM4# |
1 | ||
| 64740-52671E0 |
NCP145,NSP141..PORTE..X..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ,PLUM/BLACK,TRIM40 |
1 | ||
| 64740-52710E0 |
NCP145,NSP141..PORTE..F..CBU “a la mode Deux”*(J)or*(K),PLUM/BLACK,TRIM00 |
1 | ||
| 64740-52671E2 |
NCP145,NSP141..PORTE..X..CBU ｻｲﾄﾞｱｸｾｽ車(脱着式)&ｸﾚｰﾝ,PLUM/PINK,TRIM41 |
1 | ||
| 64740-52710E1 |
NSP141..PORTE..F..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&SRSｴｱﾊﾞｯｸﾞ−*DRS&*PAS&運転席ｻｲﾄﾞ&*CUSA(ｳｪﾙｷｬﾌﾞ)),PLUM/PINK,TRIM0# |
1 | ||
| 64740-52710E1 |
NSP141..PORTE..F..CBU ｻｲﾄﾞｱｸｾｽ車(脱着式)&SRSｴｱﾊﾞｯｸﾞ−*DRS&*PAS&運転席ｻｲﾄﾞ&*CUSA(ｳｪﾙｷｬﾌﾞ)),PLUM/PINK,TRIM0# |
1 | ||
| 64740-52671E0 |
NCP145,NSP141..PORTE..X..CBU 助手席回転ﾁﾙﾄｼｰﾄ&ｸﾚｰﾝ,PLUM/BLACK,TRIM40 |
1 | ||
| 64740-52671E2 |
NSP141..PORTE..F..CBU 助手席回転ﾁﾙﾄｼｰﾄ&ｸﾚｰﾝ,PLUM/PINK,TRIM0# |
1 | ||
| 64740-52671E0 |
NSP141..PORTE..F..CBU;NCP145,NSP141..SPADE..X..CBU ｻｲﾄﾞｱｸｾｽ車(脱着式)&ｸﾚｰﾝ,PLUM/BLACK,TRIM4# |
1 | ||
| 64740-52710E1 |
NSP141..PORTE..F..CBU SRSｴｱﾊﾞｯｸﾞ−*DRS&*PAS&ｻｲﾄﾞ&*CUSA),PLUM/PINK,TRIM0# |
1 | ||
| 64740-52710E1 |
NSP141..PORTE..F..CBU ｻｲﾄﾞｱｸｾｽ車(車いす)&SRSｴｱﾊﾞｯｸﾞ−*DRS&*PAS&運転席ｻｲﾄﾞ&*CUSA(ｳｪﾙｷｬﾌﾞ)),PLUM/PINK,TRIM0# |
1 | ||
| 64740-52710E1 |
NSP141..PORTE..F..CBU 助手席回転ﾁﾙﾄｼｰﾄ&SRSｴｱﾊﾞｯｸﾞ−*DRS&*PAS&運転席ｻｲﾄﾞ&*CUSA(ｳｪﾙｷｬﾌﾞ)),PLUM/PINK,TRIM0# |
1 | ||
| 64740-52710E1 |
NSP141..PORTE..F..CBU ｻｲﾄﾞｱｸｾｽ車(脱着式&車いす)&SRSｴｱﾊﾞｯｸﾞ−*DRS&*PAS&運転席ｻｲﾄﾞ&*CUSA(ｳｪﾙｷｬﾌﾞ)),PLUM/PINK,TRIM0# |
1 | ||
| 64740-52710E0 |
NSP141..PORTE..F..CBU SRSｴｱﾊﾞｯｸﾞ−*DRS&*PAS&ｻｲﾄﾞ&*CUSA),PLUM/BLACK,TRIM4# |
1 | ||
| 64740-52600E1 |
NSP141..F..CBU ｻｲﾄﾞｱｸｾｽ車(脱着式)&車いす収納装置,PLUM/PINK,TRIM00 |
1 | ||
| 64740-52710E1 |
NCP145,NSP141..PORTE..X..CBU PLUM/PINK,TRIM41 |
1 | ||
| 64740-52600E1 |
NSP141..F..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす収納装置,PLUM/PINK,TRIM00 |
1 | ||
| 64740-52600E1 |
NCP145,NSP141..X..CBU 助手席回転ﾁﾙﾄｼｰﾄ&車いす収納装置,PLUM/PINK,TRIM41 |
1 | ||
| 64740-52600E1 |
NSP141..F..CBU 助手席回転ﾁﾙﾄｼｰﾄ&車いす収納装置,PLUM/PINK,TRIM00 |
1 | ||
| 64740-52671E2 |
NCP145,NSP141..PORTE..X..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ,PLUM/PINK,TRIM41 |
1 | ||
| 64740-52710E0 |
NSP141..PORTE..F..CBU 助手席回転ﾁﾙﾄｼｰﾄ&SRSｴｱﾊﾞｯｸﾞ−*DRS&*PAS&運転席ｻｲﾄﾞ&*CUSA(ｳｪﾙｷｬﾌﾞ)),PLUM/BLACK,TRIM4# |
1 | ||
| 64740-52710E0 |
NCP145,NSP141..PORTE..X..CBU PLUM/BLACK,TRIM40 |
1 | ||
| 64740-52600E0 |
NSP141..F..CBU 助手席回転ﾁﾙﾄｼｰﾄ&車いす収納装置,PLUM/BLACK,TRIM00,4# |
1 | ||
| 64740-52710E0 |
NCP145,NSP141..PORTE..F..CBU “a la mode Trois”*(M)or*(H),PLUM/BLACK,TRIM00 |
1 | ||
| 64740-52710E0 |
NCP145,NSP141..PORTE..F..CBU PLUM/BLACK,TRIM40 |
1 | ||
| 64740-52600E0 |
NCP145,NSP141..X..CBU 助手席回転ﾁﾙﾄｼｰﾄ&車いす収納装置,PLUM/BLACK,TRIM40,41 |
1 | ||
| 64740-52671E2 |
NCP145,NSP141..PORTE..X..CBU 助手席回転ﾁﾙﾄｼｰﾄ&ｸﾚｰﾝ,PLUM/PINK,TRIM41 |
1 | ||
| 64740-52600E0 |
NCP145,NSP141..X..CBU ｻｲﾄﾞｱｸｾｽ車(脱着式)&車いす収納装置,PLUM/BLACK,TRIM40,41 |
1 | ||
| 64740-52600E1 |
NCP145,NSP141..X..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす収納装置,PLUM/PINK,TRIM41 |
1 | ||
| 64740-52671E0 |
NSP141..PORTE..F..CBU;NCP145,NSP141..SPADE..X..CBU 助手席回転ﾁﾙﾄｼｰﾄ&ｸﾚｰﾝ,PLUM/BLACK,TRIM4# |
1 | ||
| 64740-52600E0 |
NSP141..F..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす収納装置,PLUM/BLACK,TRIM00,4# |
1 | ||
| 64740-52600E0 |
NCP145,NSP141..X..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす収納装置,PLUM/BLACK,TRIM40,41 |
1 | ||
| 64740-52710E1 |
NCP145,NSP141..PORTE..F..CBU PLUM/PINK,TRIM00 |
1 | ||
| 64740-52600E2 |
NCP145,NSP141..X..CBU 助手席回転ﾁﾙﾄｼｰﾄ&車いす収納装置,PLUM,TRIM41 |
1 | ||
| 64740-52710E0 |
NCP145,NSP141..PORTE..F..CBU “a la mode Brun”*(B),PLUM/BLACK,TRIM00 |
1 | ||
| 64740-52600E2 |
NCP145,NSP141..X..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす収納装置,PLUM,TRIM41 |
1 | ||
| 64740-52710E0 |
NCP145,NSP141..PORTE..F..CBU PLUM/BLACK,TRIM40 |
1 | ||
| 64740-52600E0 |
NSP141..F..CBU ｻｲﾄﾞｱｸｾｽ車(脱着式)&車いす収納装置,PLUM/BLACK,TRIM00,4# |
1 | ||
| 64740-52710E0 |
NSP141..PORTE..F..CBU ｻｲﾄﾞｱｸｾｽ車(脱着式)&SRSｴｱﾊﾞｯｸﾞ−*DRS&*PAS&運転席ｻｲﾄﾞ&*CUSA(ｳｪﾙｷｬﾌﾞ)),PLUM/BLACK,TRIM40 |
1 | ||
| 64740-52600E2 |
NSP141..F..CBU 助手席回転ﾁﾙﾄｼｰﾄ&車いす収納装置,PLUM,TRIM00 |
1 | ||
| 64740-52600E2 |
NCP145,NSP141..X..CBU ｻｲﾄﾞｱｸｾｽ車(脱着式)&車いす収納装置,PLUM,TRIM41 |
1 | ||
| 64740-52600E2 |
NSP141..F..CBU ｻｲﾄﾞｱｸｾｽ車(脱着式)&車いす収納装置,PLUM,TRIM00 |
1 | ||
| 64740-52710C0 |
NCP145,NSP141..F..CBU BLACK,TRIM2#,42 |
1 | ||
| 64740-52710E0 |
NSP141..PORTE..F..CBU SRSｴｱﾊﾞｯｸﾞ−*DRS&*PAS&ｻｲﾄﾞ&*CUSA),PLUM/BLACK,TRIM40 |
1 | ||
| 64740-52710E2 |
NCP145,NSP141..PORTE..X..CBU PLUM/BROOD ORANGE,TRIM41 |
1 | ||
| 64740-52710E0 |
NCP145,NSP141..PORTE..G;NCP145,NSP141..SPADE..(F,G,X)..CBU PLUM/BLACK,TRIM0#,40,41 |
1 | ||
| 64740-52710E0 |
NSP141..PORTE..F..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&SRSｴｱﾊﾞｯｸﾞ−*DRS&*PAS&運転席ｻｲﾄﾞ&*CUSA(ｳｪﾙｷｬﾌﾞ)),PLUM/BLACK,TRIM40 |
1 | ||
| 64740-52600E0 |
NCP145,NSP141..X..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす収納装置,PLUM/BLACK,TRIM4# |
1 | ||
| 64740-52710E0 |
NSP141..PORTE..F..CBU 助手席回転ﾁﾙﾄｼｰﾄ&SRSｴｱﾊﾞｯｸﾞ−*DRS&*PAS&運転席ｻｲﾄﾞ&*CUSA(ｳｪﾙｷｬﾌﾞ)),PLUM/BLACK,TRIM40 |
1 | ||
| 64740-52710E2 |
NCP145,NSP141..PORTE..F..CBU PLUM/BROOD ORANGE,TRIM00 |
1 | ||
| 64740-52600E1 |
NCP145,NSP141..X..CBU ｻｲﾄﾞｱｸｾｽ車(脱着式)&車いす収納装置,PLUM/PINK,TRIM41 |
1 | ||
| 64740-52600E0 |
NCP145,NSP141..X..CBU ｻｲﾄﾞｱｸｾｽ車(脱着式)&車いす収納装置,PLUM/BLACK,TRIM4# |
1 | ||
| 64740-52600E0 |
NSP141..F..CBU ｻｲﾄﾞｱｸｾｽ車(脱着式)&車いす収納装置,PLUM/BLACK,TRIM0#,4# |
1 | ||
| 64740-52600E2 |
NSP141..F..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす収納装置,PLUM,TRIM00 |
1 | ||
| 64740-52600E0 |
NCP145,NSP141..X..CBU 助手席回転ﾁﾙﾄｼｰﾄ&車いす収納装置,PLUM/BLACK,TRIM4# |
1 | ||
| 64740-52600E0 |
NSP141..F..CBU 助手席回転ﾁﾙﾄｼｰﾄ&車いす収納装置,PLUM/BLACK,TRIM0#,4# |
1 | ||
| 64740-52600E0 |
NSP141..F..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす収納装置,PLUM/BLACK,TRIM0#,4# |
1 | ||
| 64740-52710E0 |
NSP141..PORTE..F..CBU ｻｲﾄﾞｱｸｾｽ車(車いす)&SRSｴｱﾊﾞｯｸﾞ−*DRS&*PAS&運転席ｻｲﾄﾞ&*CUSA(ｳｪﾙｷｬﾌﾞ)),PLUM/BLACK,TRIM40 |
1 | ||
| 64740-52710E0 |
NCP145,NSP141..PORTE..X..CBU PLUM/BLACK,TRIM40,41 |
1 | ||
| 64740-52710E0 |
NCP145,NSP141..PORTE..F..CBU PLUM/BLACK,TRIM00,40 |
1 | ||
| 64740-52710E0 |
NSP141..PORTE..F..CBU ｻｲﾄﾞｱｸｾｽ車(脱着式&車いす)&SRSｴｱﾊﾞｯｸﾞ−*DRS&*PAS&運転席ｻｲﾄﾞ&*CUSA(ｳｪﾙｷｬﾌﾞ)),PLUM/BLACK,TRIM40 |
1 | ||
| 64779B - STOPPER, SPARE WHEEL COVER | ||||
| 64779-46010 |
NSP141..(F,X)..CBU ｻｲﾄﾞｱｸｾｽ車(脱着式)&ｸﾚｰﾝ&ｽﾍﾟｱﾀｲﾔ−T125/70 D16 |
1 | ||
| 64779-46010 |
NSP141..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ&ｽﾍﾟｱﾀｲﾔ−T125/70 D16 |
1 | ||
| 64779-46010 |
NCP145..X..CBU;NSP141..(F,X)..CBU ｻｲﾄﾞｱｸｾｽ車(脱着式)&ｽﾍﾟｱﾀｲﾔ−T125/70 D16 |
1 | ||
| 64779-46010 |
NSP141..(F,X)..CBU ｻｲﾄﾞｱｸｾｽ車(脱着式)&車いす収納装置&ｽﾍﾟｱﾀｲﾔ−T125/70 D16 |
1 | ||
| 64779-46010 |
NSP141..(F,X)..CBU ｻｲﾄﾞｱｸｾｽ車(脱着式&車いす)&ｽﾍﾟｱﾀｲﾔ−T125/70 D16 |
1 | ||
| 64779-46010 |
NCP145,NSP141..CBU ｽﾍﾟｱﾀｲﾔ−T125/70 D16 |
1 | ||
| 64779-46010 |
NSP141..(F,X)..CBU 助手席回転ﾁﾙﾄｼｰﾄ&ｸﾚｰﾝ&ｽﾍﾟｱﾀｲﾔ−T125/70 D16 |
1 | ||
| 64779-46010 |
NCP145..X..CBU;NSP141..(F,X)..CBU 助手席回転ﾁﾙﾄｼｰﾄ&ｽﾍﾟｱﾀｲﾔ−T125/70 D16 |
1 | ||
| 64779-46010 |
NSP141..(F,X)..CBU 助手席回転ﾁﾙﾄｼｰﾄ&車いす収納装置&ｽﾍﾟｱﾀｲﾔ−T125/70 D16 |
1 | ||
| 64779-46010 |
NCP145..X..CBU;NSP141..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｽﾍﾟｱﾀｲﾔ−T125/70 D16 |
1 | ||
| 64779-46010 |
NSP141..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす収納装置&ｽﾍﾟｱﾀｲﾔ−T125/70 D16 |
1 | ||
| 64993 - BOX, DECK FLOOR, REAR | ||||
| 64993-52120 |
NSP141..CBU |
1 | ||
| 67935A - PLATE, BACK DOOR SCUFF | ||||
| 67935-52030E0 |
NCP145,NSP141..F..CBU PLUM,TRIM0#,2#,4# |
1 | ||
| 67935-52030E0 |
NCP145,NSP141..(G,X)..CBU PLUM,TRIM0#,4# |
1 | ||
| 67935-52030E0 |
NCP145,NSP141..V,Y PLUM,TRIM4# |
1 | ||
| 67935-52030E0 |
NCP145,NSP141..F..CBU PLUM,TRIM0#,22,40,42 |
1 | ||
| 67935-52030C0 |
NCP145,NSP141..F..CBU BLACK,TRIM22,42 |
1 | ||
| 72615D - COVER, REAR SEAT BACK LOCK STRIKER, RH | ||||
| 72615-52010E0 |
NSP141..V PLUM,TRIM4# |
1 | ||
| 72615-52010E0 |
NCP145,NSP141..X..CBU PLUM,TRIM0#,4# |
1 | ||
| 72615E - COVER, REAR SEAT BACK LOCK STRIKER, RH | ||||
| 72615-52030E1 |
NCP145,NSP141..X..CBU PLUM,TRIM0#,4# |
1 | ||
| 72615-52030E1 |
NSP141..V PLUM,TRIM4# |
1 | ||
| 72616C - COVER, REAR SEAT BACK LOCK STRIKER, LH | ||||
| 72615-52010E0 |
NCP145,NSP141..X..CBU PLUM,TRIM0#,4# |
1 | ||
| 72615-52010E0 |
NSP141..V PLUM,TRIM4# |
1 | ||
| 72616D - COVER, REAR SEAT BACK LOCK STRIKER, LH | ||||
| 72615-52030E1 |
NSP141..V PLUM,TRIM4# |
1 | ||
| 72615-52030E1 |
NCP145,NSP141..X..CBU PLUM,TRIM0#,4# |
1 | ||
| Common parts | ||||
| 90159-50322 | ||||
| 90189-05079 | ||||
| 90467-08227 | ||||
| 90467-10161 | ||||
| 90468-05138 | ||||
| Linked diagrams | ||||
| 7104 | ||||
| 7403 | ||||
(1607- )NSP141..F,X
ｳｪﾙｷｬﾌﾞ,ｱﾘ(ｸﾙﾏｲｽ ｼｭｳﾉｳｿｳﾁ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58571H - CARPET, REAR FLOOR | ||||
| 58571-52060E0 |
NSP141..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ,PLUM,TRIM0#,4# |
1 | ||
| 58571-52060E0 |
NSP141..(F,X)..CBU ｻｲﾄﾞｱｸｾｽ車(脱着式)&ｸﾚｰﾝ,PLUM,TRIM0#,4# |
1 | ||
| 58571-52080E0 |
NSP141..(F,X)..CBU 助手席回転ﾁﾙﾄｼｰﾄ,PLUM,TRIM0#,4# |
1 | ||
| 58571-52060E0 |
NSP141..(F,X)..CBU 助手席回転ﾁﾙﾄｼｰﾄ&ｸﾚｰﾝ,PLUM,TRIM0#,4# |
1 | ||
| 58571-52080E0 |
NSP141..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ,PLUM,TRIM0#,4# |
1 | ||
| 58571-52040E1 |
NSP141..(G,X)..CBU PLUM,TRIM0#,4# |
1 | ||
| 58571-52040E1 |
NSP141..F..CBU PLUM,TRIM0#,2#,4# |
1 | ||
| 58571-52080E0 |
NSP141..(F,X)..CBU ｻｲﾄﾞｱｸｾｽ車(脱着式&車いす),PLUM,TRIM0#,4# |
1 | ||
| 58571-52080E0 |
NSP141..(F,X)..CBU ｻｲﾄﾞｱｸｾｽ車(脱着式),PLUM,TRIM0#,4# |
1 | ||
| 58571-52100E0 |
NSP141..X..CBU 助手席回転ﾁﾙﾄｼｰﾄ&車いす収納装置,PLUM,TRIM4# |
1 | ||
| 58571-52100E0 |
NSP141..X..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす収納装置,PLUM,TRIM4# |
1 | ||
| 58571-52100E0 |
NSP141..F..CBU 助手席回転ﾁﾙﾄｼｰﾄ&車いす収納装置,PLUM,TRIM0#,4# |
1 | ||
| 58571-52100E0 |
NSP141..F..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす収納装置,PLUM,TRIM0#,4# |
1 | ||
| 58571-52040E1 |
NSP141..V,Y PLUM,TRIM4# |
1 | ||
| 58571-52100E0 |
NSP141..F..CBU ｻｲﾄﾞｱｸｾｽ車(脱着式)&車いす収納装置,PLUM,TRIM0#,4# |
1 | ||
| 58571-52100E0 |
NSP141..X..CBU ｻｲﾄﾞｱｸｾｽ車(脱着式)&車いす収納装置,PLUM,TRIM4# |
1 | ||
| 58731C - CAP, REAR ABSORBER | ||||
| 58731-52050E1 |
NCP145,NSP141..V,Y PLUM,TRIM4# |
1 | ||
| 58731-52050C0 |
NCP145,NSP141..F..CBU BLACK,TRIM2#,42 |
1 | ||
| 58731-52050E1 |
NCP145,NSP141..F..CBU PLUM,TRIM0#,4# |
1 | ||
| 58731-52050E1 |
NCP145,NSP141..F..CBU PLUM,TRIM0#,40 |
1 | ||
| 58731-52050E1 |
NCP145,NSP141..(G,X)..CBU PLUM,TRIM0#,4# |
1 | ||
| 58732C - CAP, REAR ABSORBER | ||||
| 58732-52030E1 |
NCP145,NSP141..F..CBU PLUM,TRIM0#,4# |
1 | ||
| 58732-52030C0 |
NCP145,NSP141..F..CBU BLACK,TRIM2#,42 |
1 | ||
| 58732-52030E1 |
NCP145,NSP141..F..CBU PLUM,TRIM0#,40 |
1 | ||
| 58732-52030E1 |
NCP145,NSP141..V,Y PLUM,TRIM4# |
1 | ||
| 58732-52030E1 |
NCP145,NSP141..(G,X)..CBU PLUM,TRIM0#,4# |
1 | ||
| 64714C - COVER, DECK SIDE TRIM, RH | ||||
| 64714-52240E0 |
NCP145,NSP141..F..CBU PLUM,TRIM0#,4# |
1 | ||
| 64714-52240C0 |
NCP145,NSP141..F..CBU BLACK,TRIM2#,42 |
1 | ||
| 64714-52240E0 |
NCP145,NSP141..(G,X)..CBU PLUM,TRIM0#,4# |
1 | ||
| 64714-52240E0 |
NCP145,NSP141..F..CBU PLUM,TRIM0#,40 |
1 | ||
| 64714-52240E0 |
NCP145,NSP141..V,Y PLUM,TRIM4# |
1 | ||
| 64715C - COVER, DECK SIDE TRIM, LH | ||||
| 64715-52300E0 |
NCP145,NSP141..V,Y PLUM,TRIM4# |
1 | ||
| 64715-52300E0 |
NCP145,NSP141..F..CBU PLUM,TRIM0#,4# |
1 | ||
| 64715-52300E0 |
NCP145,NSP141..(G,X)..CBU PLUM,TRIM0#,4# |
1 | ||
| 64715-52300C0 |
NCP145,NSP141..F..CBU BLACK,TRIM2#,42 |
1 | ||
| 64715-52300E0 |
NCP145,NSP141..F..CBU PLUM,TRIM0#,40 |
1 | ||
| 64730B - PANEL ASSY, DECK TRIM SIDE, RH | ||||
| 64730-52500E0 |
NCP145,NSP141..F..CBU PLUM,TRIM0#,4# |
1 | ||
| 64730-52500C0 |
NCP145,NSP141..F..CBU BLACK,TRIM2#,42 |
1 | ||
| 64730-52500E0 |
NCP145,NSP141..(G,X)..CBU PLUM,TRIM0#,4# |
1 | ||
| 64730-52500E0 |
NCP145,NSP141..F..CBU PLUM,TRIM0#,40 |
1 | ||
| 64730-52490E0 |
NSP141..V PLUM,TRIM4# |
1 | ||
| 64730D - PLUG, HOLE(FOR DECK TRIM SIDE BOARD) | ||||
| 90950-01851E7 |
NCP145,NSP141..X..CBU PLUM,TRIM0#,4# |
2 | ||
| 90950-01851E7 |
NSP141..V PLUM,TRIM4# |
2 | ||
| 64730D - PLUG, HOLE(FOR DECK TRIM SIDE BOARD) | ||||
| 90950-01851E7 |
NCP145,NSP141..X..CBU PLUM,TRIM0#,4# |
2 | ||
| 90950-01851E7 |
NSP141..V PLUM,TRIM4# |
2 | ||
| 64730E - CLIP(FOR DECK TRIM SIDE BOARD) | ||||
| 90467-10161 |
NCP145,NSP141..CBU |
5 | ||
| 64730F - CLAMP(FOR DECK TRIM SIDE BOARD) | ||||
| 90467-10161 |
NCP145,NSP141..CBU |
11 | ||
| 64740C - PANEL ASSY, DECK TRIM SIDE, LH | ||||
| 64740-52710E0 |
NCP145,NSP141..PORTE..X..CBU PLUM/BLACK,TRIM40 |
1 | ||
| 64740-52671E0 |
NSP141..PORTE..F..CBU;NCP145,NSP141..SPADE..X..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ,PLUM/BLACK,TRIM4# |
1 | ||
| 64740-52671E2 |
NSP141..PORTE..F..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ,PLUM/PINK,TRIM0# |
1 | ||
| 64740-52700E0 |
NSP141..V PLUM,TRIM4# |
1 | ||
| 64740-52671E0 |
NCP145,NSP141..PORTE..X..CBU ｻｲﾄﾞｱｸｾｽ車(脱着式)&ｸﾚｰﾝ,PLUM/BLACK,TRIM40 |
1 | ||
| 64740-52710E0 |
NSP141..PORTE..F..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&SRSｴｱﾊﾞｯｸﾞ−*DRS&*PAS&運転席ｻｲﾄﾞ&*CUSA(ｳｪﾙｷｬﾌﾞ)),PLUM/BLACK,TRIM4# |
1 | ||
| 64740-52710E0 |
NSP141..PORTE..F..CBU ｻｲﾄﾞｱｸｾｽ車(車いす)&SRSｴｱﾊﾞｯｸﾞ−*DRS&*PAS&運転席ｻｲﾄﾞ&*CUSA(ｳｪﾙｷｬﾌﾞ)),PLUM/BLACK,TRIM4# |
1 | ||
| 64740-52671E2 |
NSP141..PORTE..F..CBU ｻｲﾄﾞｱｸｾｽ車(脱着式)&ｸﾚｰﾝ,PLUM/PINK,TRIM0# |
1 | ||
| 64740-52710E0 |
NSP141..PORTE..F..CBU ｻｲﾄﾞｱｸｾｽ車(脱着式)&SRSｴｱﾊﾞｯｸﾞ−*DRS&*PAS&運転席ｻｲﾄﾞ&*CUSA(ｳｪﾙｷｬﾌﾞ)),PLUM/BLACK,TRIM4# |
1 | ||
| 64740-52710E0 |
NSP141..PORTE..F..CBU ｻｲﾄﾞｱｸｾｽ車(脱着式&車いす)&SRSｴｱﾊﾞｯｸﾞ−*DRS&*PAS&運転席ｻｲﾄﾞ&*CUSA(ｳｪﾙｷｬﾌﾞ)),PLUM/BLACK,TRIM4# |
1 | ||
| 64740-52671E0 |
NCP145,NSP141..PORTE..X..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ,PLUM/BLACK,TRIM40 |
1 | ||
| 64740-52710E0 |
NCP145,NSP141..PORTE..F..CBU “a la mode Deux”*(J)or*(K),PLUM/BLACK,TRIM00 |
1 | ||
| 64740-52671E2 |
NCP145,NSP141..PORTE..X..CBU ｻｲﾄﾞｱｸｾｽ車(脱着式)&ｸﾚｰﾝ,PLUM/PINK,TRIM41 |
1 | ||
| 64740-52710E1 |
NSP141..PORTE..F..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&SRSｴｱﾊﾞｯｸﾞ−*DRS&*PAS&運転席ｻｲﾄﾞ&*CUSA(ｳｪﾙｷｬﾌﾞ)),PLUM/PINK,TRIM0# |
1 | ||
| 64740-52710E1 |
NSP141..PORTE..F..CBU ｻｲﾄﾞｱｸｾｽ車(脱着式)&SRSｴｱﾊﾞｯｸﾞ−*DRS&*PAS&運転席ｻｲﾄﾞ&*CUSA(ｳｪﾙｷｬﾌﾞ)),PLUM/PINK,TRIM0# |
1 | ||
| 64740-52671E0 |
NCP145,NSP141..PORTE..X..CBU 助手席回転ﾁﾙﾄｼｰﾄ&ｸﾚｰﾝ,PLUM/BLACK,TRIM40 |
1 | ||
| 64740-52671E2 |
NSP141..PORTE..F..CBU 助手席回転ﾁﾙﾄｼｰﾄ&ｸﾚｰﾝ,PLUM/PINK,TRIM0# |
1 | ||
| 64740-52671E0 |
NSP141..PORTE..F..CBU;NCP145,NSP141..SPADE..X..CBU ｻｲﾄﾞｱｸｾｽ車(脱着式)&ｸﾚｰﾝ,PLUM/BLACK,TRIM4# |
1 | ||
| 64740-52710E1 |
NSP141..PORTE..F..CBU SRSｴｱﾊﾞｯｸﾞ−*DRS&*PAS&ｻｲﾄﾞ&*CUSA),PLUM/PINK,TRIM0# |
1 | ||
| 64740-52710E1 |
NSP141..PORTE..F..CBU ｻｲﾄﾞｱｸｾｽ車(車いす)&SRSｴｱﾊﾞｯｸﾞ−*DRS&*PAS&運転席ｻｲﾄﾞ&*CUSA(ｳｪﾙｷｬﾌﾞ)),PLUM/PINK,TRIM0# |
1 | ||
| 64740-52710E1 |
NSP141..PORTE..F..CBU 助手席回転ﾁﾙﾄｼｰﾄ&SRSｴｱﾊﾞｯｸﾞ−*DRS&*PAS&運転席ｻｲﾄﾞ&*CUSA(ｳｪﾙｷｬﾌﾞ)),PLUM/PINK,TRIM0# |
1 | ||
| 64740-52710E1 |
NSP141..PORTE..F..CBU ｻｲﾄﾞｱｸｾｽ車(脱着式&車いす)&SRSｴｱﾊﾞｯｸﾞ−*DRS&*PAS&運転席ｻｲﾄﾞ&*CUSA(ｳｪﾙｷｬﾌﾞ)),PLUM/PINK,TRIM0# |
1 | ||
| 64740-52710E0 |
NSP141..PORTE..F..CBU SRSｴｱﾊﾞｯｸﾞ−*DRS&*PAS&ｻｲﾄﾞ&*CUSA),PLUM/BLACK,TRIM4# |
1 | ||
| 64740-52600E1 |
NSP141..F..CBU ｻｲﾄﾞｱｸｾｽ車(脱着式)&車いす収納装置,PLUM/PINK,TRIM00 |
1 | ||
| 64740-52710E1 |
NCP145,NSP141..PORTE..X..CBU PLUM/PINK,TRIM41 |
1 | ||
| 64740-52600E1 |
NSP141..F..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす収納装置,PLUM/PINK,TRIM00 |
1 | ||
| 64740-52600E1 |
NCP145,NSP141..X..CBU 助手席回転ﾁﾙﾄｼｰﾄ&車いす収納装置,PLUM/PINK,TRIM41 |
1 | ||
| 64740-52600E1 |
NSP141..F..CBU 助手席回転ﾁﾙﾄｼｰﾄ&車いす収納装置,PLUM/PINK,TRIM00 |
1 | ||
| 64740-52671E2 |
NCP145,NSP141..PORTE..X..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ,PLUM/PINK,TRIM41 |
1 | ||
| 64740-52710E0 |
NSP141..PORTE..F..CBU 助手席回転ﾁﾙﾄｼｰﾄ&SRSｴｱﾊﾞｯｸﾞ−*DRS&*PAS&運転席ｻｲﾄﾞ&*CUSA(ｳｪﾙｷｬﾌﾞ)),PLUM/BLACK,TRIM4# |
1 | ||
| 64740-52600E0 |
NSP141..F..CBU 助手席回転ﾁﾙﾄｼｰﾄ&車いす収納装置,PLUM/BLACK,TRIM00,4# |
1 | ||
| 64740-52710E0 |
NCP145,NSP141..PORTE..F..CBU “a la mode Trois”*(M)or*(H),PLUM/BLACK,TRIM00 |
1 | ||
| 64740-52710E0 |
NCP145,NSP141..PORTE..F..CBU PLUM/BLACK,TRIM40 |
1 | ||
| 64740-52600E0 |
NCP145,NSP141..X..CBU 助手席回転ﾁﾙﾄｼｰﾄ&車いす収納装置,PLUM/BLACK,TRIM40,41 |
1 | ||
| 64740-52671E2 |
NCP145,NSP141..PORTE..X..CBU 助手席回転ﾁﾙﾄｼｰﾄ&ｸﾚｰﾝ,PLUM/PINK,TRIM41 |
1 | ||
| 64740-52600E0 |
NCP145,NSP141..X..CBU ｻｲﾄﾞｱｸｾｽ車(脱着式)&車いす収納装置,PLUM/BLACK,TRIM40,41 |
1 | ||
| 64740-52600E1 |
NCP145,NSP141..X..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす収納装置,PLUM/PINK,TRIM41 |
1 | ||
| 64740-52671E0 |
NSP141..PORTE..F..CBU;NCP145,NSP141..SPADE..X..CBU 助手席回転ﾁﾙﾄｼｰﾄ&ｸﾚｰﾝ,PLUM/BLACK,TRIM4# |
1 | ||
| 64740-52600E0 |
NSP141..F..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす収納装置,PLUM/BLACK,TRIM00,4# |
1 | ||
| 64740-52600E0 |
NCP145,NSP141..X..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす収納装置,PLUM/BLACK,TRIM40,41 |
1 | ||
| 64740-52710E1 |
NCP145,NSP141..PORTE..F..CBU PLUM/PINK,TRIM00 |
1 | ||
| 64740-52600E2 |
NCP145,NSP141..X..CBU 助手席回転ﾁﾙﾄｼｰﾄ&車いす収納装置,PLUM,TRIM41 |
1 | ||
| 64740-52710E0 |
NCP145,NSP141..PORTE..F..CBU “a la mode Brun”*(B),PLUM/BLACK,TRIM00 |
1 | ||
| 64740-52600E2 |
NCP145,NSP141..X..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす収納装置,PLUM,TRIM41 |
1 | ||
| 64740-52710E0 |
NCP145,NSP141..PORTE..F..CBU PLUM/BLACK,TRIM40 |
1 | ||
| 64740-52600E0 |
NSP141..F..CBU ｻｲﾄﾞｱｸｾｽ車(脱着式)&車いす収納装置,PLUM/BLACK,TRIM00,4# |
1 | ||
| 64740-52710E0 |
NSP141..PORTE..F..CBU ｻｲﾄﾞｱｸｾｽ車(脱着式)&SRSｴｱﾊﾞｯｸﾞ−*DRS&*PAS&運転席ｻｲﾄﾞ&*CUSA(ｳｪﾙｷｬﾌﾞ)),PLUM/BLACK,TRIM40 |
1 | ||
| 64740-52600E2 |
NSP141..F..CBU 助手席回転ﾁﾙﾄｼｰﾄ&車いす収納装置,PLUM,TRIM00 |
1 | ||
| 64740-52600E2 |
NCP145,NSP141..X..CBU ｻｲﾄﾞｱｸｾｽ車(脱着式)&車いす収納装置,PLUM,TRIM41 |
1 | ||
| 64740-52600E2 |
NSP141..F..CBU ｻｲﾄﾞｱｸｾｽ車(脱着式)&車いす収納装置,PLUM,TRIM00 |
1 | ||
| 64740-52710C0 |
NCP145,NSP141..F..CBU BLACK,TRIM2#,42 |
1 | ||
| 64740-52710E0 |
NSP141..PORTE..F..CBU SRSｴｱﾊﾞｯｸﾞ−*DRS&*PAS&ｻｲﾄﾞ&*CUSA),PLUM/BLACK,TRIM40 |
1 | ||
| 64740-52710E2 |
NCP145,NSP141..PORTE..X..CBU PLUM/BROOD ORANGE,TRIM41 |
1 | ||
| 64740-52710E0 |
NCP145,NSP141..PORTE..G;NCP145,NSP141..SPADE..(F,G,X)..CBU PLUM/BLACK,TRIM0#,40,41 |
1 | ||
| 64740-52710E0 |
NSP141..PORTE..F..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&SRSｴｱﾊﾞｯｸﾞ−*DRS&*PAS&運転席ｻｲﾄﾞ&*CUSA(ｳｪﾙｷｬﾌﾞ)),PLUM/BLACK,TRIM40 |
1 | ||
| 64740-52600E0 |
NCP145,NSP141..X..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす収納装置,PLUM/BLACK,TRIM4# |
1 | ||
| 64740-52710E0 |
NSP141..PORTE..F..CBU 助手席回転ﾁﾙﾄｼｰﾄ&SRSｴｱﾊﾞｯｸﾞ−*DRS&*PAS&運転席ｻｲﾄﾞ&*CUSA(ｳｪﾙｷｬﾌﾞ)),PLUM/BLACK,TRIM40 |
1 | ||
| 64740-52710E2 |
NCP145,NSP141..PORTE..F..CBU PLUM/BROOD ORANGE,TRIM00 |
1 | ||
| 64740-52600E1 |
NCP145,NSP141..X..CBU ｻｲﾄﾞｱｸｾｽ車(脱着式)&車いす収納装置,PLUM/PINK,TRIM41 |
1 | ||
| 64740-52600E0 |
NCP145,NSP141..X..CBU ｻｲﾄﾞｱｸｾｽ車(脱着式)&車いす収納装置,PLUM/BLACK,TRIM4# |
1 | ||
| 64740-52600E0 |
NSP141..F..CBU ｻｲﾄﾞｱｸｾｽ車(脱着式)&車いす収納装置,PLUM/BLACK,TRIM0#,4# |
1 | ||
| 64740-52600E2 |
NSP141..F..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす収納装置,PLUM,TRIM00 |
1 | ||
| 64740-52600E0 |
NCP145,NSP141..X..CBU 助手席回転ﾁﾙﾄｼｰﾄ&車いす収納装置,PLUM/BLACK,TRIM4# |
1 | ||
| 64740-52600E0 |
NSP141..F..CBU 助手席回転ﾁﾙﾄｼｰﾄ&車いす収納装置,PLUM/BLACK,TRIM0#,4# |
1 | ||
| 64740-52600E0 |
NSP141..F..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす収納装置,PLUM/BLACK,TRIM0#,4# |
1 | ||
| 64740-52710E0 |
NSP141..PORTE..F..CBU ｻｲﾄﾞｱｸｾｽ車(車いす)&SRSｴｱﾊﾞｯｸﾞ−*DRS&*PAS&運転席ｻｲﾄﾞ&*CUSA(ｳｪﾙｷｬﾌﾞ)),PLUM/BLACK,TRIM40 |
1 | ||
| 64740-52710E0 |
NCP145,NSP141..PORTE..X..CBU PLUM/BLACK,TRIM40,41 |
1 | ||
| 64740-52710E0 |
NCP145,NSP141..PORTE..F..CBU PLUM/BLACK,TRIM00,40 |
1 | ||
| 64740-52710E0 |
NSP141..PORTE..F..CBU ｻｲﾄﾞｱｸｾｽ車(脱着式&車いす)&SRSｴｱﾊﾞｯｸﾞ−*DRS&*PAS&運転席ｻｲﾄﾞ&*CUSA(ｳｪﾙｷｬﾌﾞ)),PLUM/BLACK,TRIM40 |
1 | ||
| 64779B - STOPPER, SPARE WHEEL COVER | ||||
| 64779-46010 |
NSP141..(F,X)..CBU ｻｲﾄﾞｱｸｾｽ車(脱着式)&ｸﾚｰﾝ&ｽﾍﾟｱﾀｲﾔ−T125/70 D16 |
1 | ||
| 64779-46010 |
NSP141..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ&ｽﾍﾟｱﾀｲﾔ−T125/70 D16 |
1 | ||
| 64779-46010 |
NCP145..X..CBU;NSP141..(F,X)..CBU ｻｲﾄﾞｱｸｾｽ車(脱着式)&ｽﾍﾟｱﾀｲﾔ−T125/70 D16 |
1 | ||
| 64779-46010 |
NSP141..(F,X)..CBU ｻｲﾄﾞｱｸｾｽ車(脱着式)&車いす収納装置&ｽﾍﾟｱﾀｲﾔ−T125/70 D16 |
1 | ||
| 64779-46010 |
NSP141..(F,X)..CBU ｻｲﾄﾞｱｸｾｽ車(脱着式&車いす)&ｽﾍﾟｱﾀｲﾔ−T125/70 D16 |
1 | ||
| 64779-46010 |
NCP145,NSP141..CBU ｽﾍﾟｱﾀｲﾔ−T125/70 D16 |
1 | ||
| 64779-46010 |
NSP141..(F,X)..CBU 助手席回転ﾁﾙﾄｼｰﾄ&ｸﾚｰﾝ&ｽﾍﾟｱﾀｲﾔ−T125/70 D16 |
1 | ||
| 64779-46010 |
NCP145..X..CBU;NSP141..(F,X)..CBU 助手席回転ﾁﾙﾄｼｰﾄ&ｽﾍﾟｱﾀｲﾔ−T125/70 D16 |
1 | ||
| 64779-46010 |
NSP141..(F,X)..CBU 助手席回転ﾁﾙﾄｼｰﾄ&車いす収納装置&ｽﾍﾟｱﾀｲﾔ−T125/70 D16 |
1 | ||
| 64779-46010 |
NCP145..X..CBU;NSP141..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｽﾍﾟｱﾀｲﾔ−T125/70 D16 |
1 | ||
| 64779-46010 |
NSP141..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす収納装置&ｽﾍﾟｱﾀｲﾔ−T125/70 D16 |
1 | ||
| 64993 - BOX, DECK FLOOR, REAR | ||||
| 64993-52120 |
NSP141..CBU |
1 | ||
| 67935A - PLATE, BACK DOOR SCUFF | ||||
| 67935-52030E0 |
NCP145,NSP141..F..CBU PLUM,TRIM0#,2#,4# |
1 | ||
| 67935-52030E0 |
NCP145,NSP141..(G,X)..CBU PLUM,TRIM0#,4# |
1 | ||
| 67935-52030E0 |
NCP145,NSP141..V,Y PLUM,TRIM4# |
1 | ||
| 67935-52030E0 |
NCP145,NSP141..F..CBU PLUM,TRIM0#,22,40,42 |
1 | ||
| 67935-52030C0 |
NCP145,NSP141..F..CBU BLACK,TRIM22,42 |
1 | ||
| 72615D - COVER, REAR SEAT BACK LOCK STRIKER, RH | ||||
| 72615-52010E0 |
NSP141..V PLUM,TRIM4# |
1 | ||
| 72615-52010E0 |
NCP145,NSP141..X..CBU PLUM,TRIM0#,4# |
1 | ||
| 72615E - COVER, REAR SEAT BACK LOCK STRIKER, RH | ||||
| 72615-52030E1 |
NCP145,NSP141..X..CBU PLUM,TRIM0#,4# |
1 | ||
| 72615-52030E1 |
NSP141..V PLUM,TRIM4# |
1 | ||
| 72616C - COVER, REAR SEAT BACK LOCK STRIKER, LH | ||||
| 72615-52010E0 |
NCP145,NSP141..X..CBU PLUM,TRIM0#,4# |
1 | ||
| 72615-52010E0 |
NSP141..V PLUM,TRIM4# |
1 | ||
| 72616D - COVER, REAR SEAT BACK LOCK STRIKER, LH | ||||
| 72615-52030E1 |
NSP141..V PLUM,TRIM4# |
1 | ||
| 72615-52030E1 |
NCP145,NSP141..X..CBU PLUM,TRIM0#,4# |
1 | ||
| C5193 - SPACER, PANEL, NO.1 | ||||
| C5193-52010 |
NCP145..X..CBU;NSP141..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす収納装置 |
1 | ||
| C5193-52010 |
NCP145..X..CBU;NSP141..(F,X)..CBU ｻｲﾄﾞｱｸｾｽ車(脱着式)&車いす収納装置 |
1 | ||
| C5193-52010 |
NCP145..X..CBU;NSP141..(F,X)..CBU 助手席回転ﾁﾙﾄｼｰﾄ&車いす収納装置 |
1 | ||
| C5193A - CLIP, PANEL SPACER | ||||
| 90467-0504522 |
NCP145..X..CBU;NSP141..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&車いす収納装置,BLACK |
2 | ||
| 90467-0504522 |
NCP145..X..CBU;NSP141..(F,X)..CBU 助手席回転ﾁﾙﾄｼｰﾄ&車いす収納装置,BLACK |
2 | ||
| 90467-0504522 |
NCP145..X..CBU;NSP141..(F,X)..CBU ｻｲﾄﾞｱｸｾｽ車(脱着式)&車いす収納装置,BLACK |
2 | ||
| Common parts | ||||
| 90159-50322 | ||||
| 90189-05079 | ||||
| 90467-10161 | ||||
| Linked diagrams | ||||
| 7104 | ||||
| 7403 | ||||
| 8121 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
