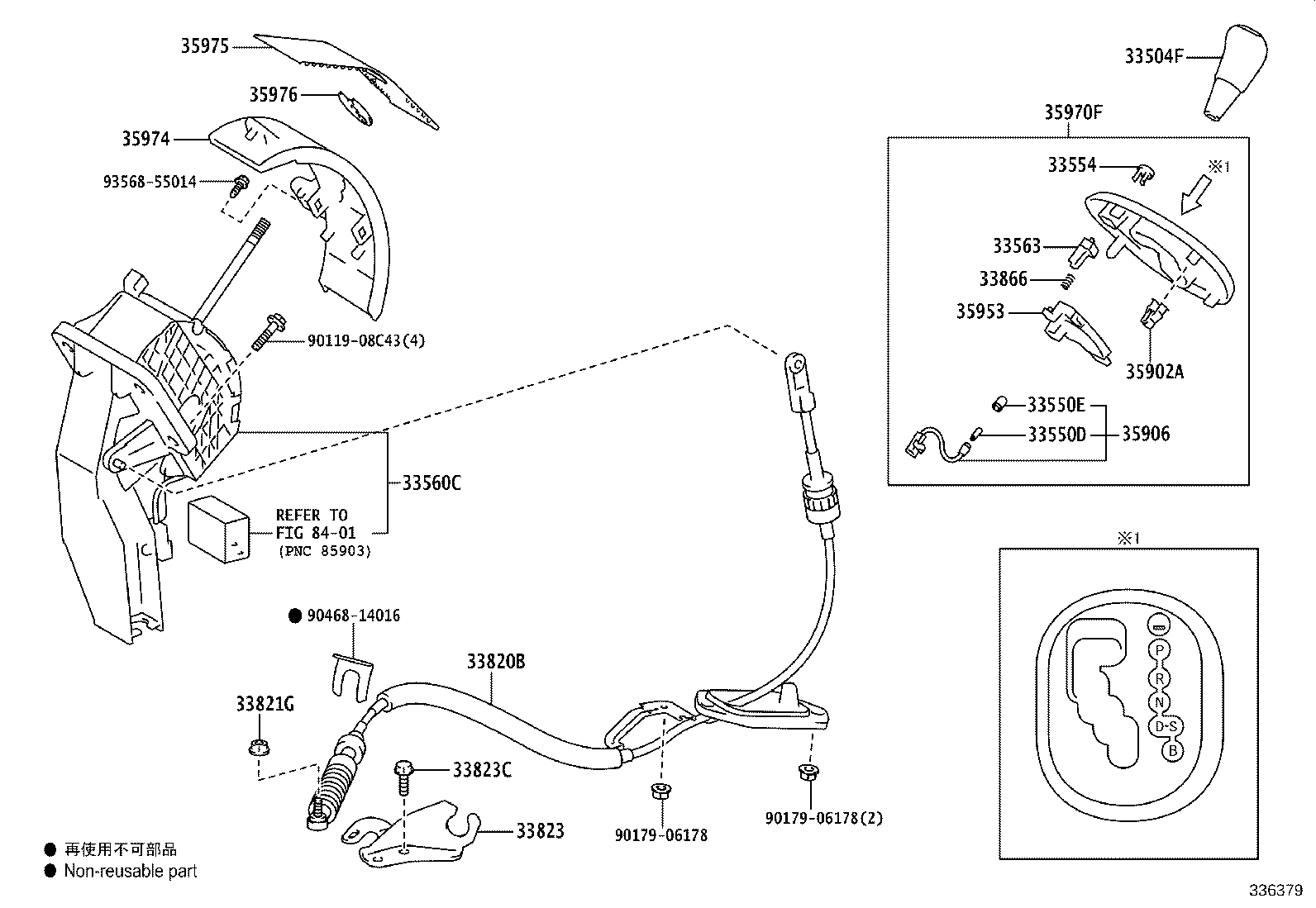

NSP141-AEXFB (2015)
Toyota Porte/Spade
(1507-1911)NSP141
W/O(PROTECTOR)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33504-52350C0 |
NCP145,NSP141..PORTE..F..CBU “Raffine”*(U)&ｽﾋﾟｰﾄﾞﾒｰﾀ−ﾃﾞｼﾞﾀﾙKM/H ﾄﾞﾚｽｱｯﾌﾟ,BLACK,TRIM2#,4# |
1 | ||
| 33504-46010E1 |
NCP145,NSP141..X..CBU PLUM,TRIM0#,41 |
1 | ||
| 33504-46010C0 |
NCP145,NSP141..F..CBU BLACK,TRIM2#,4# |
1 | ||
| 33504-46010C0 |
NCP145,NSP141..X..CBU BLACK,TRIM40 |
1 | ||
| 33504-46010C0 |
NCP145,NSP141..V,Y BLACK,TRIM4# |
1 | ||
| 33504-52350C0 |
NCP145,NSP141..PORTE..F..CBU “Raffine”*(W),BLACK,TRIM2#,4# |
1 | ||
| 33504-46010E1 |
NCP145,NSP141..F..CBU PLUM,TRIM0# |
1 | ||
| 33550D - BULB, POSITION INDICATOR LAMP | ||||
| 90981-11018 |
NCP145,NSP141..CBU 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 33550E - CAP, POSITION INDICATOR LAMP | ||||
| 35956-64020 |
NCP145,NSP141..CBU |
1 | ||
| 33554 - CAP, SHIFT LEVER | ||||
| 33554-52081C0 |
NCP145,NSP141..(G,X)..CBU BLACK,TRIM40 |
1 | ||
| 33554-52081C0 |
NCP145,NSP141..(F,V,Y)..CBU BLACK,TRIM4# |
1 | ||
| 33554-52081C0 |
NCP145,NSP141..PORTE..F..CBU “Raffine”*(W),BLACK,TRIM2#,4# |
1 | ||
| 33554-52081E0 |
NCP145,NSP141..F..CBU PLUM,TRIM0# |
1 | ||
| 33554-52081C0 |
NCP145,NSP141..PORTE..F..CBU “a la mode Deux”*(J)or*(K),BLACK,TRIM2#,4# |
1 | ||
| 33554-52081C0 |
NCP145,NSP141..F..CBU ｽﾋﾟｰﾄﾞﾒｰﾀ−ｱﾅﾛｸﾞKM/H ﾄﾞﾚｽｱｯﾌﾟ 照明,BLACK,TRIM2#,4# |
1 | ||
| 33554-52081C0 |
NCP145,NSP141..PORTE..F..CBU “a la mode Trois”*(M)or*(H),BLACK,TRIM2#,4# |
1 | ||
| 33554-52081E0 |
NCP145,NSP141..(G,X)..CBU PLUM,TRIM0#,41 |
1 | ||
| 33554-52081C0 |
NCP145,NSP141..F..CBU ｽﾋﾟｰﾄﾞﾒｰﾀ−ﾃﾞｼﾞﾀﾙKM/H ﾄﾞﾚｽｱｯﾌﾟ,BLACK,TRIM2#,4# |
1 | ||
| 33554-52081C0 |
NCP145,NSP141..PORTE..F..CBU “a la mode Brun”*(B),BLACK,TRIM2#,4# |
1 | ||
| 33554-52081C0 |
NCP145,NSP141..F..CBU ﾄﾞﾚｽｱｯﾌﾟﾊﾟｯｹｰｼﾞ,BLACK,TRIM2#,4# |
1 | ||
| 33560C - LEVER ASSY, SHIFT, LOWER | ||||
| 33560-52610 |
NCP145,NSP141..(F,G,X,Y)..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘｰ) |
1 | ||
| 33560-52610 |
NCP145,NSP141..CBU |
1 | ||
| 33560-52600 |
NCP145,NSP141..CBU |
1 | ||
| 33563 - BUTTON, SHIFT LOCK RELEASE | ||||
| 33563-52270 |
NCP145,NSP141..CBU |
1 | ||
| 33820B - CABLE ASSY, TRANSMISSION CONTROL | ||||
| 33820-52831 |
NSP141..CBU 有り(ﾌﾟﾛﾃｸﾀ) |
1 | ||
| 33820-52830 |
NSP141..CBU 無し(ﾌﾟﾛﾃｸﾀ) |
1 | ||
| 33821G - NUT (FOR TRANSMISSION CONTROL CABLE) | ||||
| 94151-80800 |
NSP141..CBU |
1 | ||
| 33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1 | ||||
| 33823-52150 |
NSP141..CBU |
1 | ||
| 33823C - BOLT (FOR TRANSMISSION CONTROL CABLE BRACKET) | ||||
| 91611-B0816 |
NCP145,NSP141..CBU |
2 | ||
| 33866 - SPRING, SHIFT LOCK RELEASE | ||||
| 33866-64010 |
NCP145,NSP141..CBU |
1 | ||
| 35902A - CLIP, COVER SUB-ASSY, POSITION INDICATOR HOUSING | ||||
| 90467-10201 |
NCP145,NSP141..CBU |
3 | ||
| 35906 - WIRE SUB-ASSY, INDICATOR LAMP | ||||
| 35906-52250 |
NCP145,NSP141..CBU |
1 | ||
| 35953 - GUIDE, POSITION INDICATOR LIGHT | ||||
| 35953-52150 |
NCP145,NSP141..CBU |
1 | ||
| 35970F - HOUSING ASSY, POSITION INDICATOR | ||||
| 35970-52141E0 |
NCP145,NSP141..F..CBU ｽﾋﾟｰﾄﾞﾒｰﾀ−ｱﾅﾛｸﾞKM/H ﾄﾞﾚｽｱｯﾌﾟ 照明,PLUM,TRIM0# |
1 | ||
| 35970-52141E0 |
NCP145,NSP141..PORTE..F..CBU “a la mode Deux”*(J)or*(K),PLUM,TRIM0# |
1 | ||
| 35970-52141C0 |
NCP145,NSP141..(G,X)..CBU ｽﾋﾟｰﾄﾞﾒｰﾀ−ｱﾅﾛｸﾞKM/H ﾄﾞﾚｽｱｯﾌﾟ 照明,BLACK,TRIM40 |
1 | ||
| 35970-52141E0 |
NCP145,NSP141..(G,X)..CBU ｽﾋﾟｰﾄﾞﾒｰﾀ−ｱﾅﾛｸﾞKM/H ﾄﾞﾚｽｱｯﾌﾟ 照明,PLUM,TRIM0#,41 |
1 | ||
| 35970-52141E0 |
NCP145,NSP141..F..CBU ｽﾋﾟｰﾄﾞﾒｰﾀ−ﾃﾞｼﾞﾀﾙKM/H ﾄﾞﾚｽｱｯﾌﾟ,PLUM,TRIM0# |
1 | ||
| 35970-52141C0 |
NCP145,NSP141..F..CBU ｽﾋﾟｰﾄﾞﾒｰﾀ−ｱﾅﾛｸﾞKM/H ﾄﾞﾚｽｱｯﾌﾟ 照明,BLACK,TRIM2#,4# |
1 | ||
| 35970-52141C0 |
NCP145,NSP141..PORTE..F..CBU “a la mode Trois”*(M)or*(H),BLACK,TRIM2#,4# |
1 | ||
| 35970-52141E0 |
NCP145,NSP141..PORTE..F..CBU “a la mode Trois”*(M)or*(H),PLUM,TRIM0# |
1 | ||
| 35970-52141E0 |
NCP145,NSP141..(G,X)..CBU ｽﾋﾟｰﾄﾞﾒｰﾀ−ﾃﾞｼﾞﾀﾙKM/H ﾄﾞﾚｽｱｯﾌﾟ,PLUM,TRIM0#,41 |
1 | ||
| 35970-52141E0 |
NCP145,NSP141..PORTE..F..CBU “a la mode Brun”*(B),PLUM,TRIM0# |
1 | ||
| 35970-52141C0 |
NCP145,NSP141..PORTE..F..CBU “a la mode Brun”*(B),BLACK,TRIM2#,4# |
1 | ||
| 35970-52131C0 |
NCP145,NSP141..(G,X)..CBU BLACK,TRIM40 |
1 | ||
| 35970-52131E0 |
NCP145,NSP141..F..CBU PLUM,TRIM0# |
1 | ||
| 35970-52131C0 |
NCP145,NSP141..(F,V,Y)..CBU BLACK,TRIM4# |
1 | ||
| 35970-52141C0 |
NCP145,NSP141..PORTE..F..CBU “a la mode Deux”*(J)or*(K),BLACK,TRIM2#,4# |
1 | ||
| 35970-52141C0 |
NCP145,NSP141..(G,X)..CBU ﾄﾞﾚｽｱｯﾌﾟﾊﾟｯｹｰｼﾞ,BLACK,TRIM40 |
1 | ||
| 35970-52141C0 |
NCP145,NSP141..(G,X)..CBU ｽﾋﾟｰﾄﾞﾒｰﾀ−ﾃﾞｼﾞﾀﾙKM/H ﾄﾞﾚｽｱｯﾌﾟ,BLACK,TRIM40 |
1 | ||
| 35970-52141C0 |
NCP145,NSP141..F..CBU ｽﾋﾟｰﾄﾞﾒｰﾀ−ﾃﾞｼﾞﾀﾙKM/H ﾄﾞﾚｽｱｯﾌﾟ,BLACK,TRIM2#,4# |
1 | ||
| 35970-52131E0 |
NCP145,NSP141..(G,X)..CBU PLUM,TRIM0#,41 |
1 | ||
| 35970-52141E0 |
NCP145,NSP141..F..CBU ﾄﾞﾚｽｱｯﾌﾟﾊﾟｯｹｰｼﾞ,PLUM,TRIM0# |
1 | ||
| 35970-52141E0 |
NCP145,NSP141..(G,X)..CBU ﾄﾞﾚｽｱｯﾌﾟﾊﾟｯｹｰｼﾞ,PLUM,TRIM0#,41 |
1 | ||
| 35970-52141E0 |
NCP145,NSP141..PORTE..F..CBU “Raffine”*(W),PLUM,TRIM0# |
1 | ||
| 35970-52141C0 |
NCP145,NSP141..F..CBU ﾄﾞﾚｽｱｯﾌﾟﾊﾟｯｹｰｼﾞ,BLACK,TRIM2#,4# |
1 | ||
| 35970-52141C0 |
NCP145,NSP141..PORTE..F..CBU “Raffine”*(W),BLACK,TRIM2#,4# |
1 | ||
| 35974 - HOUSING, POSITION INDICATOR, LOWER | ||||
| 35974-52130 |
NCP145,NSP141..CBU |
1 | ||
| 35975 - COVER, SLIDE (FOR POSITION INDICATOR) | ||||
| 35975-28040 |
NCP145,NSP141..CBU |
1 | ||
| 35976 - COVER, SLIDE, NO.2 (FOR POSITION INDICATOR) | ||||
| 35976-28010 |
NCP145,NSP141..CBU |
1 | ||
| Common parts | ||||
| 90119-08C43 | ||||
| 90179-06178 | ||||
| 90468-14016 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 8401 | ||||
(1911- )NSP141
W/(PROTECTOR)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33504-52350C0 |
NCP145,NSP141..PORTE..F..CBU “Raffine”*(U)&ｽﾋﾟｰﾄﾞﾒｰﾀ−ﾃﾞｼﾞﾀﾙKM/H ﾄﾞﾚｽｱｯﾌﾟ,BLACK,TRIM2#,4# |
1 | ||
| 33504-46010E1 |
NCP145,NSP141..X..CBU PLUM,TRIM0#,41 |
1 | ||
| 33504-46010C0 |
NCP145,NSP141..F..CBU BLACK,TRIM2#,4# |
1 | ||
| 33504-46010C0 |
NCP145,NSP141..X..CBU BLACK,TRIM40 |
1 | ||
| 33504-46010C0 |
NCP145,NSP141..V,Y BLACK,TRIM4# |
1 | ||
| 33504-52350C0 |
NCP145,NSP141..PORTE..F..CBU “Raffine”*(W),BLACK,TRIM2#,4# |
1 | ||
| 33504-46010E1 |
NCP145,NSP141..F..CBU PLUM,TRIM0# |
1 | ||
| 33550D - BULB, POSITION INDICATOR LAMP | ||||
| 90981-11018 |
NCP145,NSP141..CBU 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 33550E - CAP, POSITION INDICATOR LAMP | ||||
| 35956-64020 |
NCP145,NSP141..CBU |
1 | ||
| 33554 - CAP, SHIFT LEVER | ||||
| 33554-52081C0 |
NCP145,NSP141..(G,X)..CBU BLACK,TRIM40 |
1 | ||
| 33554-52081C0 |
NCP145,NSP141..(F,V,Y)..CBU BLACK,TRIM4# |
1 | ||
| 33554-52081C0 |
NCP145,NSP141..PORTE..F..CBU “Raffine”*(W),BLACK,TRIM2#,4# |
1 | ||
| 33554-52081E0 |
NCP145,NSP141..F..CBU PLUM,TRIM0# |
1 | ||
| 33554-52081C0 |
NCP145,NSP141..PORTE..F..CBU “a la mode Deux”*(J)or*(K),BLACK,TRIM2#,4# |
1 | ||
| 33554-52081C0 |
NCP145,NSP141..F..CBU ｽﾋﾟｰﾄﾞﾒｰﾀ−ｱﾅﾛｸﾞKM/H ﾄﾞﾚｽｱｯﾌﾟ 照明,BLACK,TRIM2#,4# |
1 | ||
| 33554-52081C0 |
NCP145,NSP141..PORTE..F..CBU “a la mode Trois”*(M)or*(H),BLACK,TRIM2#,4# |
1 | ||
| 33554-52081E0 |
NCP145,NSP141..(G,X)..CBU PLUM,TRIM0#,41 |
1 | ||
| 33554-52081C0 |
NCP145,NSP141..F..CBU ｽﾋﾟｰﾄﾞﾒｰﾀ−ﾃﾞｼﾞﾀﾙKM/H ﾄﾞﾚｽｱｯﾌﾟ,BLACK,TRIM2#,4# |
1 | ||
| 33554-52081C0 |
NCP145,NSP141..PORTE..F..CBU “a la mode Brun”*(B),BLACK,TRIM2#,4# |
1 | ||
| 33554-52081C0 |
NCP145,NSP141..F..CBU ﾄﾞﾚｽｱｯﾌﾟﾊﾟｯｹｰｼﾞ,BLACK,TRIM2#,4# |
1 | ||
| 33560C - LEVER ASSY, SHIFT, LOWER | ||||
| 33560-52610 |
NCP145,NSP141..(F,G,X,Y)..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘｰ) |
1 | ||
| 33560-52610 |
NCP145,NSP141..CBU |
1 | ||
| 33560-52600 |
NCP145,NSP141..CBU |
1 | ||
| 33563 - BUTTON, SHIFT LOCK RELEASE | ||||
| 33563-52270 |
NCP145,NSP141..CBU |
1 | ||
| 33820B - CABLE ASSY, TRANSMISSION CONTROL | ||||
| 33820-52831 |
NSP141..CBU 有り(ﾌﾟﾛﾃｸﾀ) |
1 | ||
| 33820-52830 |
NSP141..CBU 無し(ﾌﾟﾛﾃｸﾀ) |
1 | ||
| 33821G - NUT (FOR TRANSMISSION CONTROL CABLE) | ||||
| 94151-80800 |
NSP141..CBU |
1 | ||
| 33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1 | ||||
| 33823-52150 |
NSP141..CBU |
1 | ||
| 33823C - BOLT (FOR TRANSMISSION CONTROL CABLE BRACKET) | ||||
| 91611-B0816 |
NCP145,NSP141..CBU |
2 | ||
| 33866 - SPRING, SHIFT LOCK RELEASE | ||||
| 33866-64010 |
NCP145,NSP141..CBU |
1 | ||
| 35902A - CLIP, COVER SUB-ASSY, POSITION INDICATOR HOUSING | ||||
| 90467-10201 |
NCP145,NSP141..CBU |
3 | ||
| 35906 - WIRE SUB-ASSY, INDICATOR LAMP | ||||
| 35906-52250 |
NCP145,NSP141..CBU |
1 | ||
| 35953 - GUIDE, POSITION INDICATOR LIGHT | ||||
| 35953-52150 |
NCP145,NSP141..CBU |
1 | ||
| 35970F - HOUSING ASSY, POSITION INDICATOR | ||||
| 35970-52141E0 |
NCP145,NSP141..F..CBU ｽﾋﾟｰﾄﾞﾒｰﾀ−ｱﾅﾛｸﾞKM/H ﾄﾞﾚｽｱｯﾌﾟ 照明,PLUM,TRIM0# |
1 | ||
| 35970-52141E0 |
NCP145,NSP141..PORTE..F..CBU “a la mode Deux”*(J)or*(K),PLUM,TRIM0# |
1 | ||
| 35970-52141C0 |
NCP145,NSP141..(G,X)..CBU ｽﾋﾟｰﾄﾞﾒｰﾀ−ｱﾅﾛｸﾞKM/H ﾄﾞﾚｽｱｯﾌﾟ 照明,BLACK,TRIM40 |
1 | ||
| 35970-52141E0 |
NCP145,NSP141..(G,X)..CBU ｽﾋﾟｰﾄﾞﾒｰﾀ−ｱﾅﾛｸﾞKM/H ﾄﾞﾚｽｱｯﾌﾟ 照明,PLUM,TRIM0#,41 |
1 | ||
| 35970-52141E0 |
NCP145,NSP141..F..CBU ｽﾋﾟｰﾄﾞﾒｰﾀ−ﾃﾞｼﾞﾀﾙKM/H ﾄﾞﾚｽｱｯﾌﾟ,PLUM,TRIM0# |
1 | ||
| 35970-52141C0 |
NCP145,NSP141..F..CBU ｽﾋﾟｰﾄﾞﾒｰﾀ−ｱﾅﾛｸﾞKM/H ﾄﾞﾚｽｱｯﾌﾟ 照明,BLACK,TRIM2#,4# |
1 | ||
| 35970-52141C0 |
NCP145,NSP141..PORTE..F..CBU “a la mode Trois”*(M)or*(H),BLACK,TRIM2#,4# |
1 | ||
| 35970-52141E0 |
NCP145,NSP141..PORTE..F..CBU “a la mode Trois”*(M)or*(H),PLUM,TRIM0# |
1 | ||
| 35970-52141E0 |
NCP145,NSP141..(G,X)..CBU ｽﾋﾟｰﾄﾞﾒｰﾀ−ﾃﾞｼﾞﾀﾙKM/H ﾄﾞﾚｽｱｯﾌﾟ,PLUM,TRIM0#,41 |
1 | ||
| 35970-52141E0 |
NCP145,NSP141..PORTE..F..CBU “a la mode Brun”*(B),PLUM,TRIM0# |
1 | ||
| 35970-52141C0 |
NCP145,NSP141..PORTE..F..CBU “a la mode Brun”*(B),BLACK,TRIM2#,4# |
1 | ||
| 35970-52131C0 |
NCP145,NSP141..(G,X)..CBU BLACK,TRIM40 |
1 | ||
| 35970-52131E0 |
NCP145,NSP141..F..CBU PLUM,TRIM0# |
1 | ||
| 35970-52131C0 |
NCP145,NSP141..(F,V,Y)..CBU BLACK,TRIM4# |
1 | ||
| 35970-52141C0 |
NCP145,NSP141..PORTE..F..CBU “a la mode Deux”*(J)or*(K),BLACK,TRIM2#,4# |
1 | ||
| 35970-52141C0 |
NCP145,NSP141..(G,X)..CBU ﾄﾞﾚｽｱｯﾌﾟﾊﾟｯｹｰｼﾞ,BLACK,TRIM40 |
1 | ||
| 35970-52141C0 |
NCP145,NSP141..(G,X)..CBU ｽﾋﾟｰﾄﾞﾒｰﾀ−ﾃﾞｼﾞﾀﾙKM/H ﾄﾞﾚｽｱｯﾌﾟ,BLACK,TRIM40 |
1 | ||
| 35970-52141C0 |
NCP145,NSP141..F..CBU ｽﾋﾟｰﾄﾞﾒｰﾀ−ﾃﾞｼﾞﾀﾙKM/H ﾄﾞﾚｽｱｯﾌﾟ,BLACK,TRIM2#,4# |
1 | ||
| 35970-52131E0 |
NCP145,NSP141..(G,X)..CBU PLUM,TRIM0#,41 |
1 | ||
| 35970-52141E0 |
NCP145,NSP141..F..CBU ﾄﾞﾚｽｱｯﾌﾟﾊﾟｯｹｰｼﾞ,PLUM,TRIM0# |
1 | ||
| 35970-52141E0 |
NCP145,NSP141..(G,X)..CBU ﾄﾞﾚｽｱｯﾌﾟﾊﾟｯｹｰｼﾞ,PLUM,TRIM0#,41 |
1 | ||
| 35970-52141E0 |
NCP145,NSP141..PORTE..F..CBU “Raffine”*(W),PLUM,TRIM0# |
1 | ||
| 35970-52141C0 |
NCP145,NSP141..F..CBU ﾄﾞﾚｽｱｯﾌﾟﾊﾟｯｹｰｼﾞ,BLACK,TRIM2#,4# |
1 | ||
| 35970-52141C0 |
NCP145,NSP141..PORTE..F..CBU “Raffine”*(W),BLACK,TRIM2#,4# |
1 | ||
| 35974 - HOUSING, POSITION INDICATOR, LOWER | ||||
| 35974-52130 |
NCP145,NSP141..CBU |
1 | ||
| 35975 - COVER, SLIDE (FOR POSITION INDICATOR) | ||||
| 35975-28040 |
NCP145,NSP141..CBU |
1 | ||
| 35976 - COVER, SLIDE, NO.2 (FOR POSITION INDICATOR) | ||||
| 35976-28010 |
NCP145,NSP141..CBU |
1 | ||
| Common parts | ||||
| 90119-08C43 | ||||
| 90179-06178 | ||||
| 90468-14016 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 8401 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
