NSP141-AEXFB (2015)

Toyota Porte/Spade

Production Jul 2015 - Sep 9999
Engine 2NRFKE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1507- )2NRFKE

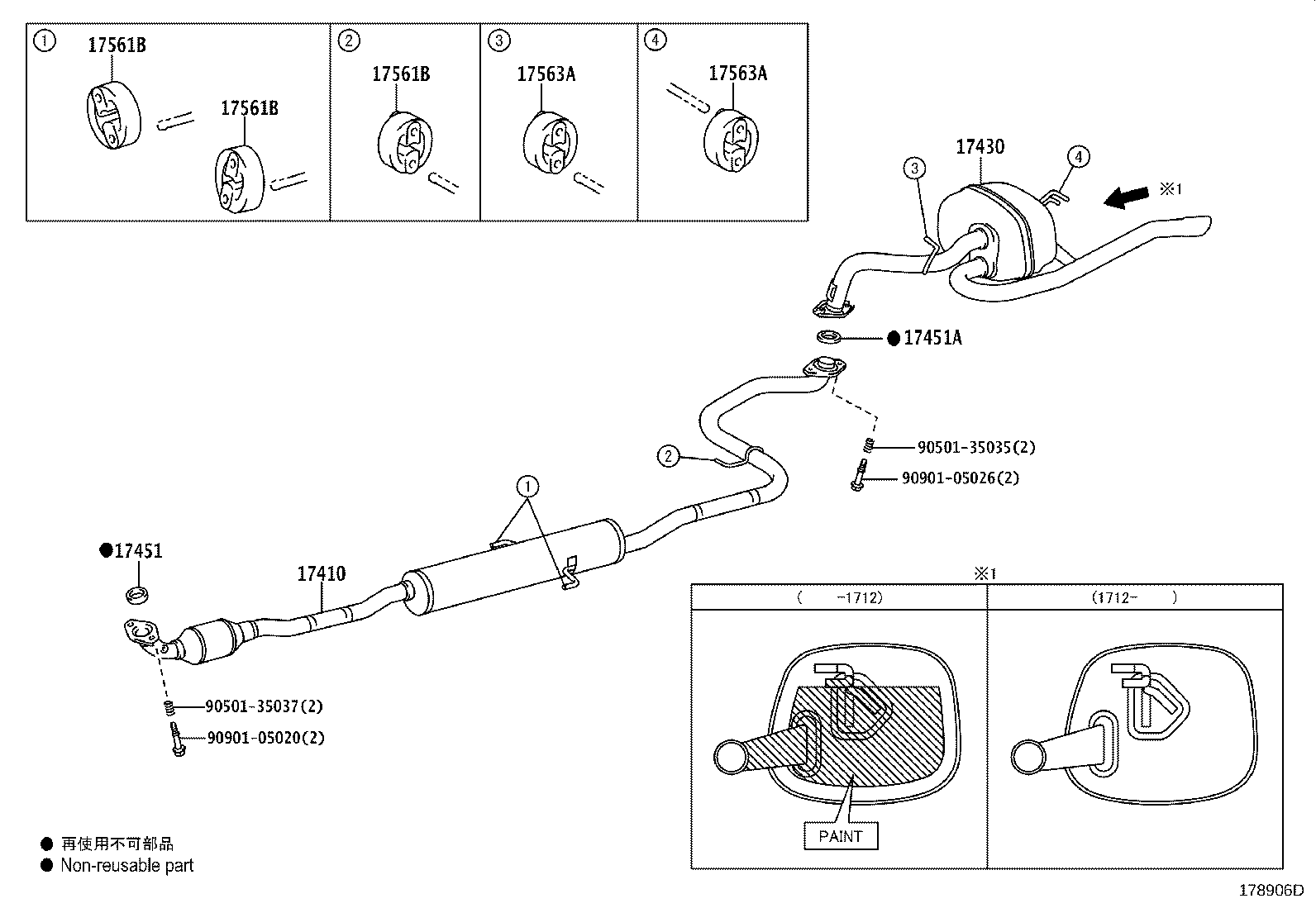

Click highlighted areas on diagram

diagram 17410 17430 17451 17451A 17561B 17561B 17561B 17563A 17563A 9050135035 9050135037 9090105020 9090105026
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-47311

2NRFKE..NSP141..CBU

 1
17410-47310

2NRFKE..NSP141..CBU

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-21A21

2NRFKE..NSP141..CBU

識別ﾍﾟｲﾝﾄ=無し

 1
17430-21A20

2NRFKE..NSP141..CBU

識別ﾍﾟｲﾝﾄ=黒

 1
17451 - GASKET, EXHAUST PIPE
17451-21070

1NZFE,2NRFKE..NCP145,NSP141..CBU

 1
17451A - GASKET, EXHAUST PIPE, NO.2
17451-23042

2NRFKE..NSP141..CBU

 1
17561B - SUPPORT, EXHAUST PIPE, NO.1
17565-47010

2NRFKE..NSP141..CBU

 3
17561B - SUPPORT, EXHAUST PIPE, NO.1
17565-47010

2NRFKE..NSP141..CBU

 3
17561B - SUPPORT, EXHAUST PIPE, NO.1
17565-47010

2NRFKE..NSP141..CBU

 3
17563A - SUPPORT, EXHAUST PIPE, NO.3
17565-47010

1NZFE,2NRFKE..NCP145,NSP141..CBU

 2
17563A - SUPPORT, EXHAUST PIPE, NO.3
17565-47010

1NZFE,2NRFKE..NCP145,NSP141..CBU

 2
Common parts
90501-35035
90501-35037
90901-05020
90901-05026
