NSP140-BEXXK (2012)
Toyota Porte/Spade

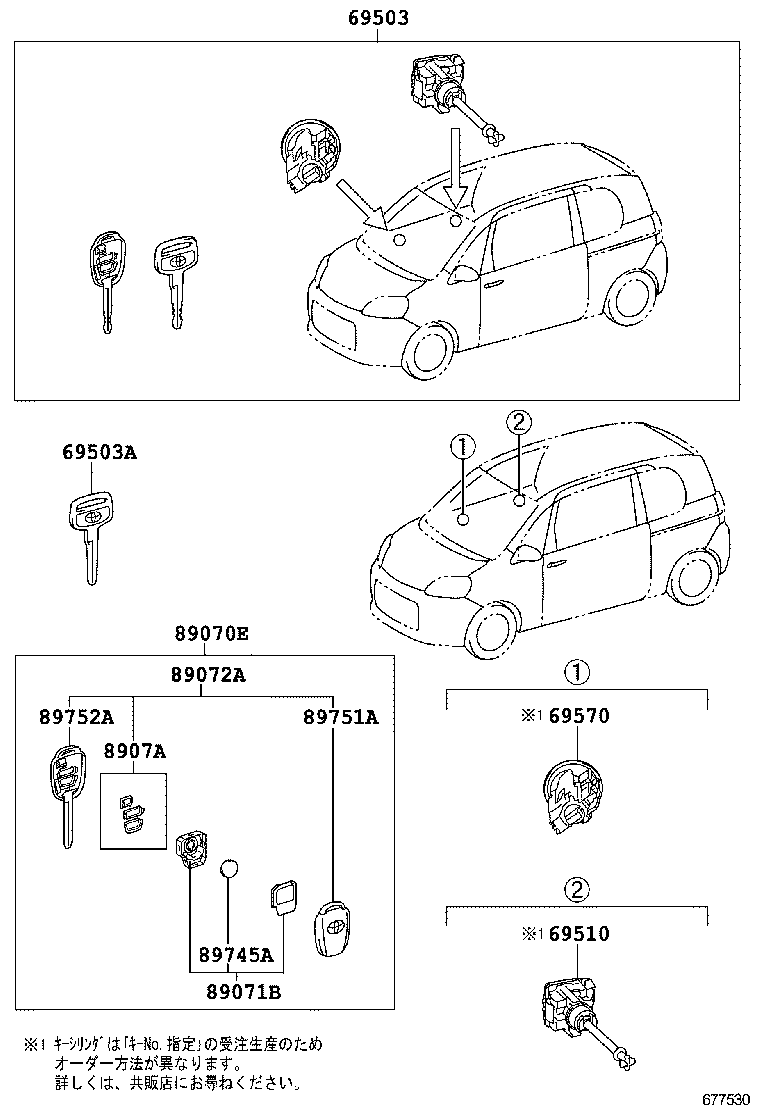

ILLUST NO. 1 OF 2(1207-1712)
ﾅｼ(ｽﾏｰﾄｴﾝﾄﾘ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69503 - CYLINDER SET, LOCK | ||||
| 69005-52P10 |
NCP14#,NSP140..(F,G,X,Y)..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘｰ) |
1 | ||
| 69005-52P00 |
NCP14#,NSP140..CBU |
1 | ||
| 69503A - KEY, BLANK | ||||
| 90999-00186 |
NCP14#,NSP140..CBU ﾏｽﾀｰｷｰ |
1 | ||
| 69515-52180 |
NCP14#,NSP140..(F,G,X,Y)..CBU ﾏｽﾀｰｷｰ,ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘｰ) |
1 | ||
| 69510 - CYLINDER ASSY, FRONT DOOR LOCK, RH | ||||
| 69510-52370 |
NCP14#,NSP140..CBU |
1 | ||
| 69570 - CYLINDER ASSY, IGNITION SWITCH LOCK | ||||
| 69570-52080 |
NCP14#,NSP140..CBU |
1 | ||
| 89070E - TRANSMITTER ASSY, DOOR CONTROL | ||||
| 89070-52F80 |
NCP14#,NSP140..CBU |
1 | ||
| 89071B - MODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL | ||||
| 89071-52310 |
NCP14#,NSP140..CBU |
1 | ||
| 89072A - HOUSING SET, DOOR CONTROL TRANSMITTER | ||||
| 89072-52880 |
NCP14#,NSP140..CBU |
1 | ||
| 8907A - SWITCH SET, TRANSMITTER | ||||
| 8907A-52030 |
NCP14#,NSP140..CBU |
1 | ||
| 89745A - BATTERY, TRANSMITTER | ||||
| 89745-48030 |
NCP14#,NSP140..CBU |
1 | ||
| 89751A - COVER, TRANSMITTER HOUSING | ||||
| 89751-42090 |
NCP14#,NSP140..CBU |
1 | ||
| 89752A - CASE, TRANSMITTER HOUSING | ||||
| 89752-52230 |
NCP14#,NSP140..CBU |
1 | ||

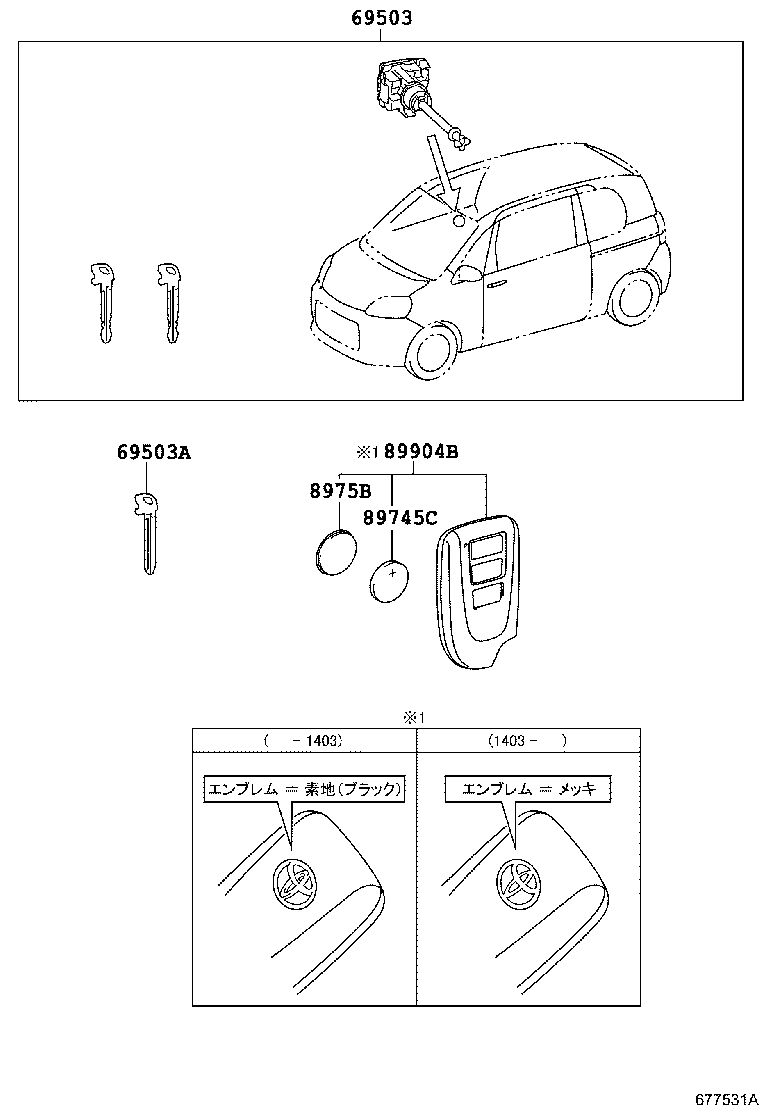

ILLUST NO. 2 OF 2(1207-1507)F,G,X,Y
ｱﾘ(ｽﾏｰﾄｴﾝﾄﾘ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69503 - CYLINDER SET, LOCK | ||||
| 69005-52P10 |
NCP14#,NSP140..(F,G,X,Y)..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘｰ) |
1 | ||
| 69005-52P00 |
NCP14#,NSP140..CBU |
1 | ||
| 69503A - KEY, BLANK | ||||
| 90999-00186 |
NCP14#,NSP140..CBU ﾏｽﾀｰｷｰ |
1 | ||
| 69515-52180 |
NCP14#,NSP140..(F,G,X,Y)..CBU ﾏｽﾀｰｷｰ,ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘｰ) |
1 | ||
| 89745C - BATTERY, TRANSMITTER | ||||
| 89745-50020 |
NCP14#,NSP140..(F,G,X,Y)..CBU CR2032,ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘｰ) |
1 | ||
| 8975B - COVER, TRANSMITTER BATTERY HOUSING | ||||
| 8975B-52010 |
NCP14#,NSP140..(F,G,X,Y)..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘｰ) |
2 | ||
| 89904B - TRANSMITTER SUB-ASSY, ELECTRICAL KEY | ||||
| 89904-52080 |
NCP14#,NSP140..(F,G,X,Y)..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘｰ) |
2 | ||
| 89904-52371 |
NCP14#,NSP140..(F,G,X,Y)..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘｰ) |
2 | ||
| 89904-52370 |
NCP14#,NSP140..(F,G,X,Y)..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘｰ) |
2 | ||
| 89904-52081 |
NCP14#,NSP140..(F,G,X,Y)..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘｰ) |
2 | ||
| 89904-52372 |
NCP14#,NSP140..(F,G,X,Y)..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘｰ) |
2 | ||
