Manufacturers Home
Toyota
JP
PORTE/SPADE
NSP140-BEXXK (2012)
4103 - DISC WHEEL & WHEEL CAP

NSP140-BEXXK (2012)

Toyota Porte/Spade

Production Jul 2012 - Jul 2015

Engine 1NRFE

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

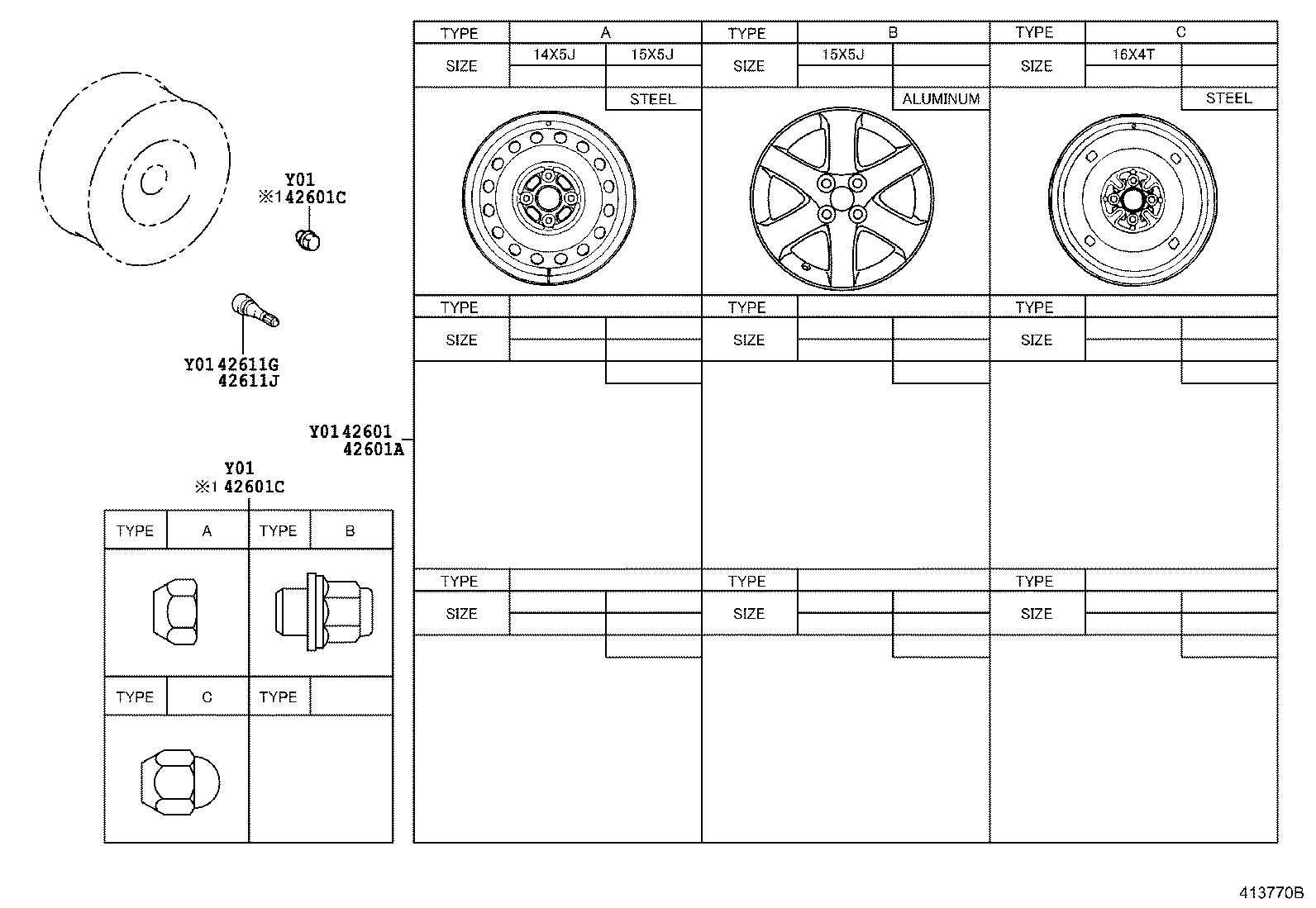

ILLUST NO. 1 OF 4(1207- )

Click highlighted areas on diagram

diagram

Part #	Description	Period	Qty	Price
42601 - WHEEL, DISC
42611-52542	NSP140..V 14X5J,#,TYPE A:ｲﾗｽﾄ参照	07/2012 - 07/2015	4
42611-52493	NSP140..X..CBU 14×5J,#,TYPE A:ｲﾗｽﾄ参照	07/2012 - 07/2015	4
42611-52870	NCP14#,NSP140..(F,G,X,Y)..CBU 15X5J,#,ﾀｲﾔ&ﾃﾞｨｽｸﾎｲｰﾙ−175/65R15 5J ｱﾙﾐ,TYPE B:ｲﾗｽﾄ参照	07/2012 - 07/2015	4
42601A - WHEEL, DISC (FOR SPARE)
42611-1A240	NCP14#,NSP140..CBU 16X4T,ｽﾍﾟｱﾀｲﾔ−T125/70 D16,TYPE C:ｲﾗｽﾄ参照	07/2012 - 07/2015	1
42601C - NUT, HUB (FOR AXLE)
90942-01007	NCP14#,NSP140..(F,G,X,Y)..CBU TYPE A:ｲﾗｽﾄ参照	07/2012 - 07/2015	16
90942-01021	NSP140..V TYPE C:ｲﾗｽﾄ参照	07/2012 - 07/2015	16
90942-01033	NCP14#,NSP140..(F,G,X,Y)..CBU ﾀｲﾔ&ﾃﾞｨｽｸﾎｲｰﾙ−175/65R15 5J ｱﾙﾐ,TYPE B:ｲﾗｽﾄQ照	07/2012 - 07/2015	16
42601C - NUT, HUB (FOR AXLE)
90942-01007	NCP14#,NSP140..(F,G,X,Y)..CBU TYPE A:ｲﾗｽﾄ参照	07/2012 - 07/2015	16
90942-01021	NSP140..V TYPE C:ｲﾗｽﾄ参照	07/2012 - 07/2015	16
90942-01033	NCP14#,NSP140..(F,G,X,Y)..CBU ﾀｲﾔ&ﾃﾞｨｽｸﾎｲｰﾙ−175/65R15 5J ｱﾙﾐ,TYPE B:ｲﾗｽﾄQ照	07/2012 - 07/2015	16
42611G - VALVE (FOR TUBELESS TIRE)
90942-05009	NCP14#,NSP140..CBU	07/2012 - 07/2015	4
42611J - VALVE (FOR TUBELESS TIRE SPARE)
90942-05009	NCP14#,NSP140..CBU ｽﾍﾟｱﾀｲﾔ−T125/70 D16	07/2012 - 07/2015	1

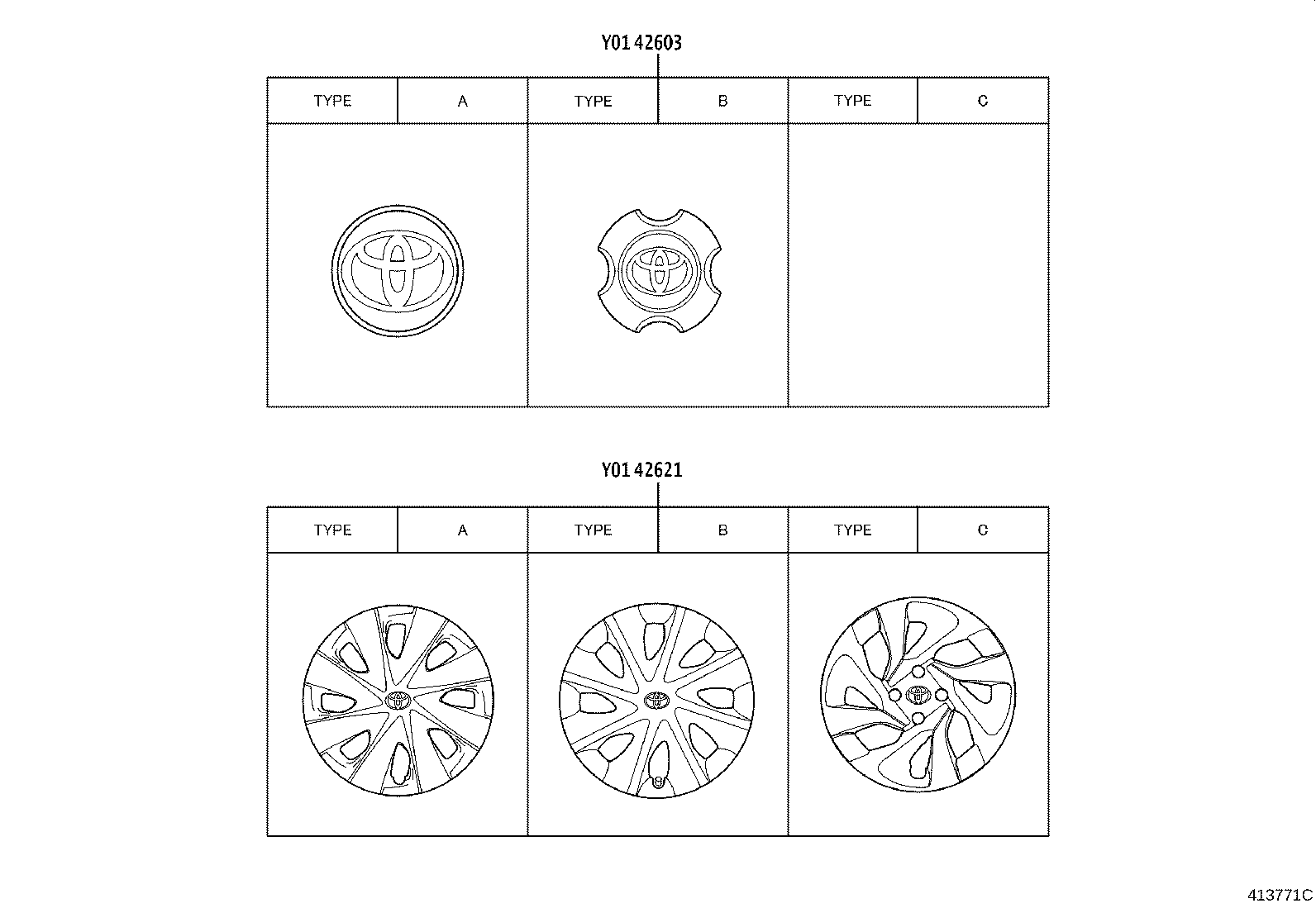

ILLUST NO. 2 OF 4(1207- )

Click highlighted areas on diagram

diagram

Part #	Description	Period	Qty	Price
42603 - ORNAMENT SUB-ASSY, WHEEL HUB
42638-52020	NSP140..V *STE,TYPE B:ｲﾗｽﾄ参照	07/2012 - 07/2015	4
42603-52150	NCP14#,NSP140..(F,G,X,Y)..CBU *ALU,ﾀｲﾔ&ﾃﾞｨｽｸﾎｲｰﾙ−175/65R15 5J ｱﾙﾐ,TYPE A:ｲﾗｽﾄ参照	07/2012 - 07/2015	4
42621 - CAP, WHEEL
42602-52500	NSP140..X..CBU TYPE A:ｲﾗｽﾄ参照	07/2012 - 07/2015	4

ILLUST NO. 3 OF 4(1207- )

Click highlighted areas on diagram

diagram

Part #	Description	Period	Qty	Price

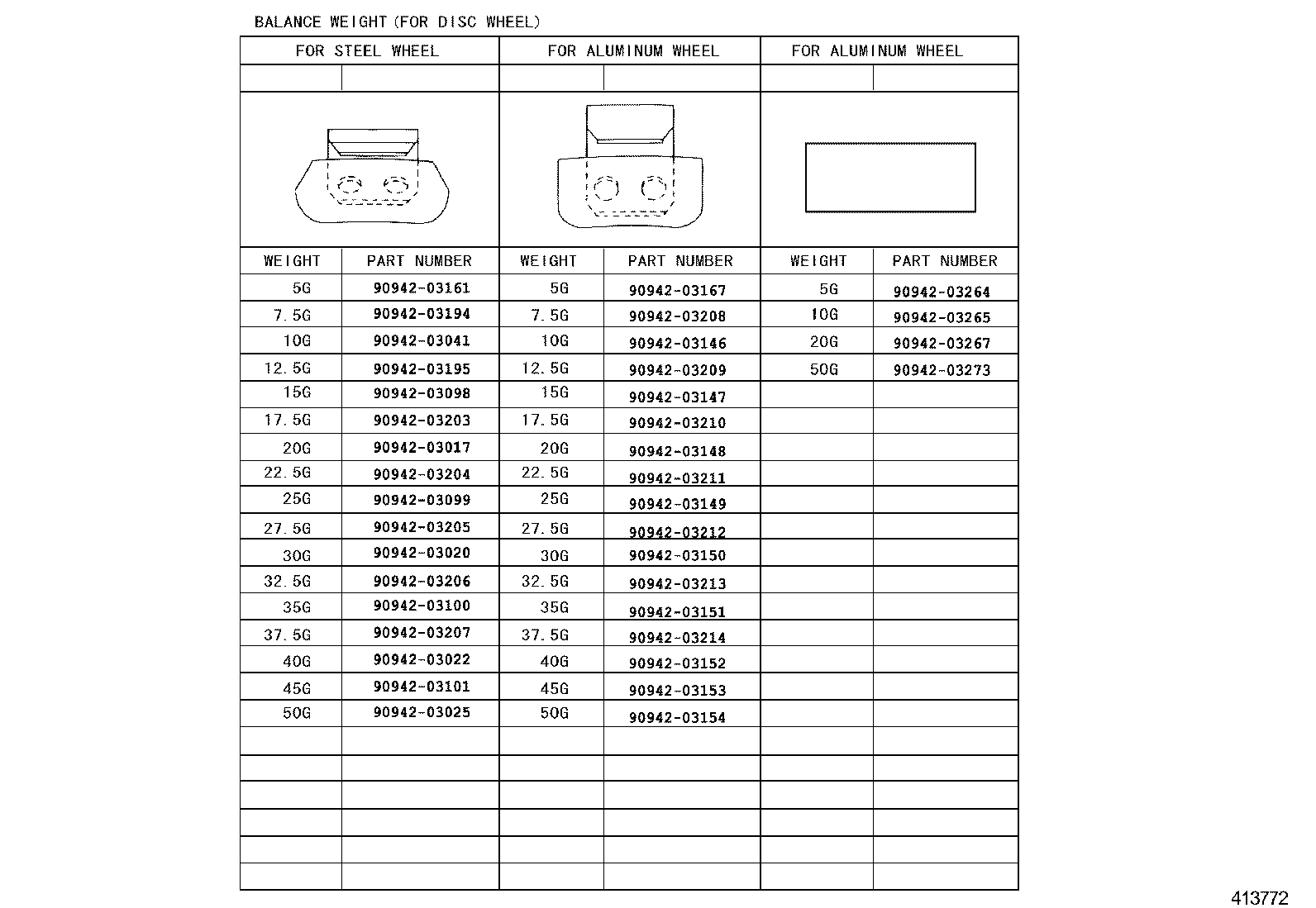

Common parts
90942-03017
90942-03020
90942-03022
90942-03025
90942-03041
90942-03098
90942-03099
90942-03100
90942-03101
90942-03146
90942-03147
90942-03148
90942-03149
90942-03150
90942-03151
90942-03152
90942-03153
90942-03154
90942-03161
90942-03167
90942-03194
90942-03195
90942-03203
90942-03204
90942-03205
90942-03206
90942-03207
90942-03208
90942-03209
90942-03210
90942-03211
90942-03212
90942-03213
90942-03214
90942-03264
90942-03265
90942-03267
90942-03273

ILLUST NO. 4 OF 4(1207- )

Click highlighted areas on diagram

diagram

Part #	Description	Period	Qty	Price
