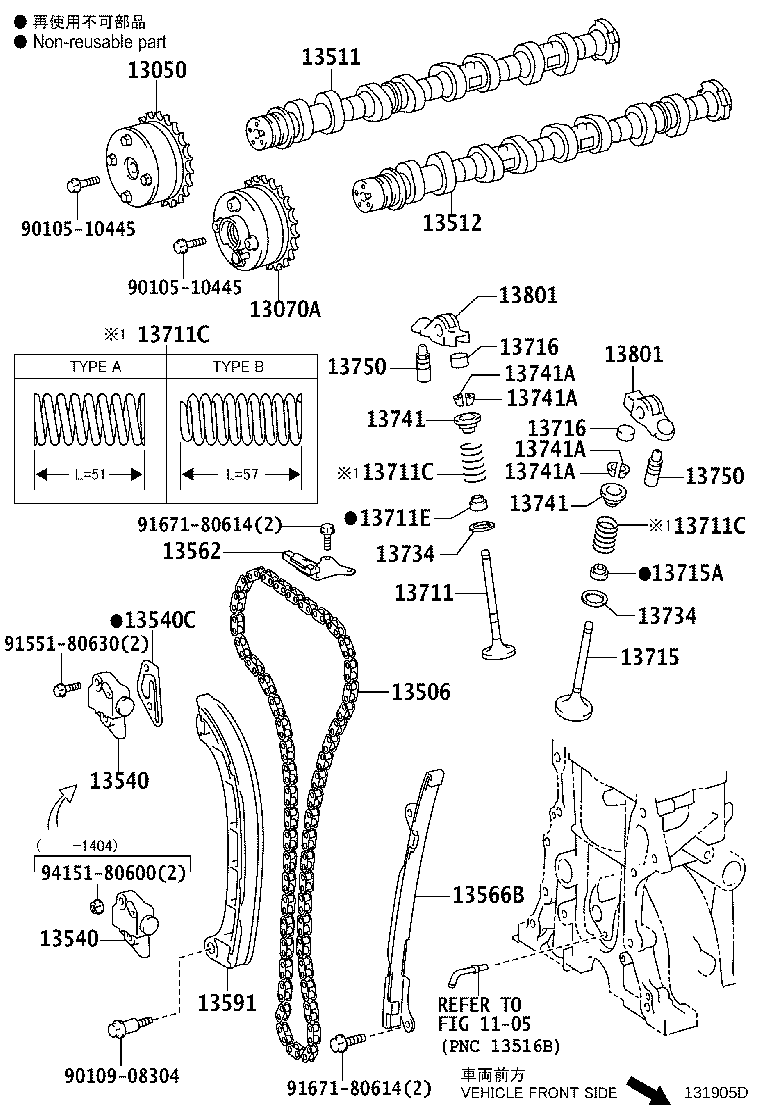

Toyota Porte/spade NSP140 CAMSHAFT & VALVE

Part #	Description	Period	Qty
13050 - GEAR ASSY, CAMSHAFT TIMING
13050-47011	1NRFE..NSP140..CBU	07/2012 - 07/2015	1
13070A - GEAR ASSY, CAMSHAFT TIMING EXHAUST
13070-47010	1NRFE..NSP140..CBU	07/2012 - 07/2015	1
13506 - CHAIN SUB-ASSY
13506-47010	1NRFE..NSP140	07/2012 - 10/2012	1
13506-47030	1NRFE..NSP140..CBU	10/2012 - 07/2015	1
13511 - CAMSHAFT
13501-47020	1NRFE..NSP140..CBU	07/2012 - 07/2015	1
13512 - CAMSHAFT, NO.2
13502-47010	1NRFE..NSP140..CBU	07/2012 - 07/2015	1
13540 - TENSIONER ASSY, CHAIN, NO.1
13540-47011	1NRFE..NSP140..CBU	12/2013 - 07/2015	1
13540-47010	1NRFE..NSP140..CBU	07/2012 - 12/2013	1
13540 - TENSIONER ASSY, CHAIN, NO.1
13540-47011	1NRFE..NSP140..CBU	12/2013 - 07/2015	1
13540-47010	1NRFE..NSP140..CBU	07/2012 - 12/2013	1
13540C - GASKET(FOR CHAIN TENSIONER)
13552-47010	1NRFE..NSP140..CBU	07/2012 - 07/2015	1
13562 - DAMPER, CHAIN VIBRATION, NO.2
13562-47010	1NRFE..NSP140	07/2012 - 10/2012	1
13562-47020	1NRFE..NSP140..CBU	10/2012 - 07/2015	1
13566B - GUIDE, TIMING CHAIN
13566-47030	1NRFE..NSP140..CBU	10/2012 - 07/2015	1
13566-47010	1NRFE..NSP140	07/2012 - 10/2012	1
13591 - ARM, TIMING CHAIN TENSION
13591-47030	1NRFE..NSP140..CBU	10/2012 - 07/2015	1
13591-47010	1NRFE..NSP140	07/2012 - 10/2012	1
13711 - VALVE, INTAKE
13711-47010	1NRFE..NSP140..CBU	07/2012 - 07/2015	8
13711C - SPRING, COMPRESSION(FOR OUTER)
90501-32062	1NRFE..NSP140..CBU TYPE A:ｲﾗｽﾄ参照	07/2012 - 01/2014	16
90501-29066	1NRFE..NSP140..CBU TYPE B:ｲﾗｽﾄ参照	01/2015 - 07/2015	16
90501-29062	1NRFE..NSP140..CBU TYPE B:ｲﾗｽﾄ参照	01/2014 - 12/2014	16
13711C - SPRING, COMPRESSION(FOR OUTER)
90501-32062	1NRFE..NSP140..CBU TYPE A:ｲﾗｽﾄ参照	07/2012 - 01/2014	16
90501-29066	1NRFE..NSP140..CBU TYPE B:ｲﾗｽﾄ参照	01/2015 - 07/2015	16
90501-29062	1NRFE..NSP140..CBU TYPE B:ｲﾗｽﾄ参照	01/2014 - 12/2014	16
13711C - SPRING, COMPRESSION(FOR OUTER)
90501-32062	1NRFE..NSP140..CBU TYPE A:ｲﾗｽﾄ参照	07/2012 - 01/2014	16
90501-29066	1NRFE..NSP140..CBU TYPE B:ｲﾗｽﾄ参照	01/2015 - 07/2015	16
90501-29062	1NRFE..NSP140..CBU TYPE B:ｲﾗｽﾄ参照	01/2014 - 12/2014	16
13711E - SEAL, INTAKE VALVE STEM OIL
90913-02101	1N#..NCP14#,NSP140..CBU	07/2012 - 07/2015	8
13715 - VALVE, EXHAUST
13715-47010	1NRFE..NSP140..CBU	07/2012 - 07/2015	8
13715A - SEAL, EXHAUST VALVE STEM OIL
90913-02112	1N#..NCP14#,NSP140..CBU	07/2012 - 07/2015	8
13716 - CAP, VALVE STEM
13716-75020	1N#..NCP14#,NSP140..CBU	07/2012 - 07/2015	16
13716 - CAP, VALVE STEM
13716-75020	1N#..NCP14#,NSP140..CBU	07/2012 - 07/2015	16
13734 - SEAT, VALVE SPRING
13734-62020	1N#..NCP14#,NSP140..CBU	07/2012 - 07/2015	16
13734 - SEAT, VALVE SPRING
13734-62020	1N#..NCP14#,NSP140..CBU	07/2012 - 07/2015	16
13741 - RETAINER, VALVE SPRING
13741-20021	1NRFE..NSP140..CBU PNC 13711C=TYPE A	07/2012 - 01/2014	16
13741-36010	1NRFE..NSP140..CBU PNC 13711C=TYPE B	01/2014 - 07/2015	16
13741 - RETAINER, VALVE SPRING
13741-20021	1NRFE..NSP140..CBU PNC 13711C=TYPE A	07/2012 - 01/2014	16
13741-36010	1NRFE..NSP140..CBU PNC 13711C=TYPE B	01/2014 - 07/2015	16
13741A - LOCK, VALVE SPRING RETAINER
90913-03028	1N#..NCP14#,NSP140..CBU	07/2012 - 07/2015	32
13741A - LOCK, VALVE SPRING RETAINER
90913-03028	1N#..NCP14#,NSP140..CBU	07/2012 - 07/2015	32
13741A - LOCK, VALVE SPRING RETAINER
90913-03028	1N#..NCP14#,NSP140..CBU	07/2012 - 07/2015	32
13741A - LOCK, VALVE SPRING RETAINER
90913-03028	1N#..NCP14#,NSP140..CBU	07/2012 - 07/2015	32
13750 - ADJUSTER ASSY, VALVE LASH
13750-21010	1NRFE..NSP140..CBU PNC 13711C=TYPE B	01/2014 - 07/2015	16
13750-75020	1NRFE..NSP140..CBU PNC 13711C=TYPE A	07/2012 - 01/2014	16
13750 - ADJUSTER ASSY, VALVE LASH
13750-21010	1NRFE..NSP140..CBU PNC 13711C=TYPE B	01/2014 - 07/2015	16
13750-75020	1NRFE..NSP140..CBU PNC 13711C=TYPE A	07/2012 - 01/2014	16
13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1
13801-36020	1NRFE..NSP140..CBU PNC 13711C=TYPE B	01/2014 - 07/2015	16
13801-47010	1NRFE..NSP140..CBU PNC 13711C=TYPE A	07/2012 - 01/2014	16
13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1
13801-36020	1NRFE..NSP140..CBU PNC 13711C=TYPE B	01/2014 - 07/2015	16
13801-47010	1NRFE..NSP140..CBU PNC 13711C=TYPE A	07/2012 - 01/2014	16
Common parts
90105-10445
90109-08304
91551-80630
91671-80614
94151-80600
Linked diagrams
1105

NSP140-BEXXK (2012)

(1207- )1NRFE
