NSP140-BEXVK (2012)

Toyota Porte/Spade

Production Jul 2012 - Jul 2015
Engine 1NRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1207-1507)NCP141,NSP140..F,G,X,Y ; (1207- )NCP145 ; (1507- )NSP141..F,G,X,Y

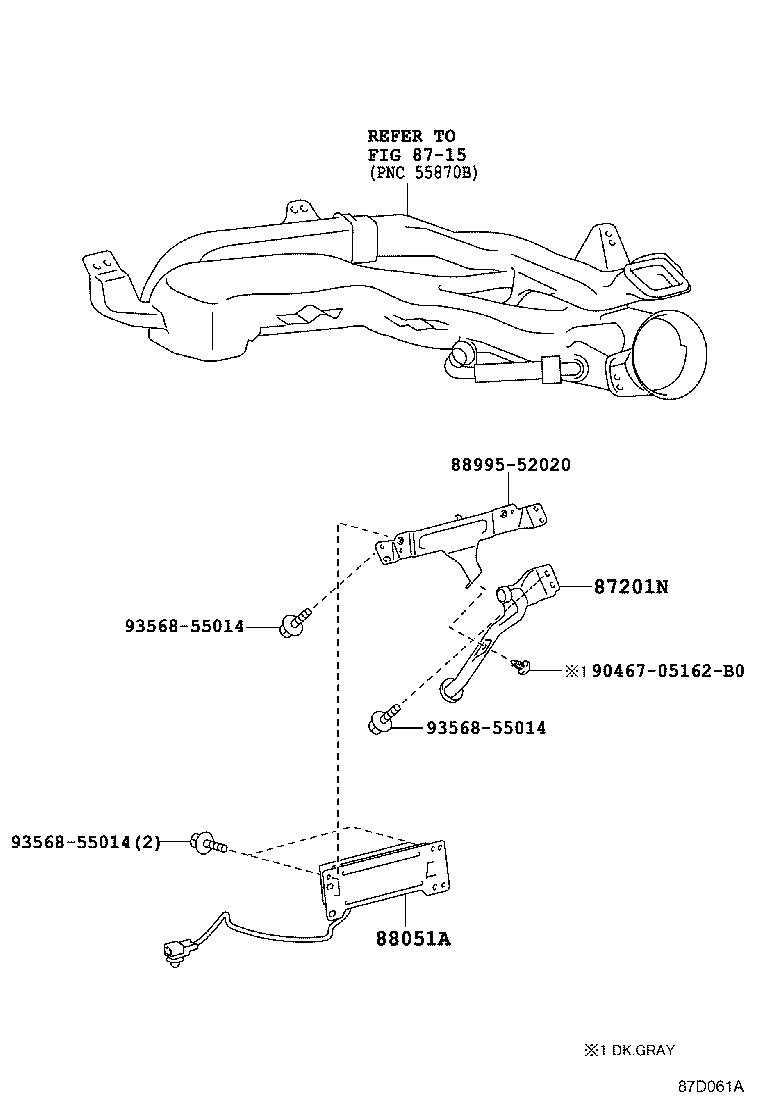

Click highlighted areas on diagram

diagram 8715 87201N 88051A 8899552020 9046705162B0 9356855014 9356855014 9356855014
Part # Description Qty Price
87201N - DUCT SUB-ASSY, AIR
87201-52210

NCP14#,NSP140..(F,X,Y)..CBU

ﾌﾛﾝﾄｴｱｺﾝ−有り(ｵｰﾄｴｱｺﾝ)

 1
88051A - GENERATOR SUB-ASSY,ION
88051-52030

NCP14#,NSP140..(F,X,Y)..CBU

ﾌﾛﾝﾄｴｱｺﾝ−有り(ｵｰﾄｴｱｺﾝ)

 1
Common parts
88995-52020
90467-05162B0
93568-55014
Linked diagrams
8715
