NSP140-BEXVK (2012)

Toyota Porte/Spade

Production Jul 2012 - Jul 2015
Engine 1NRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1207-1507)NCP141,NSP140 ; (1207- )NCP145 ; (1507- )NSP141

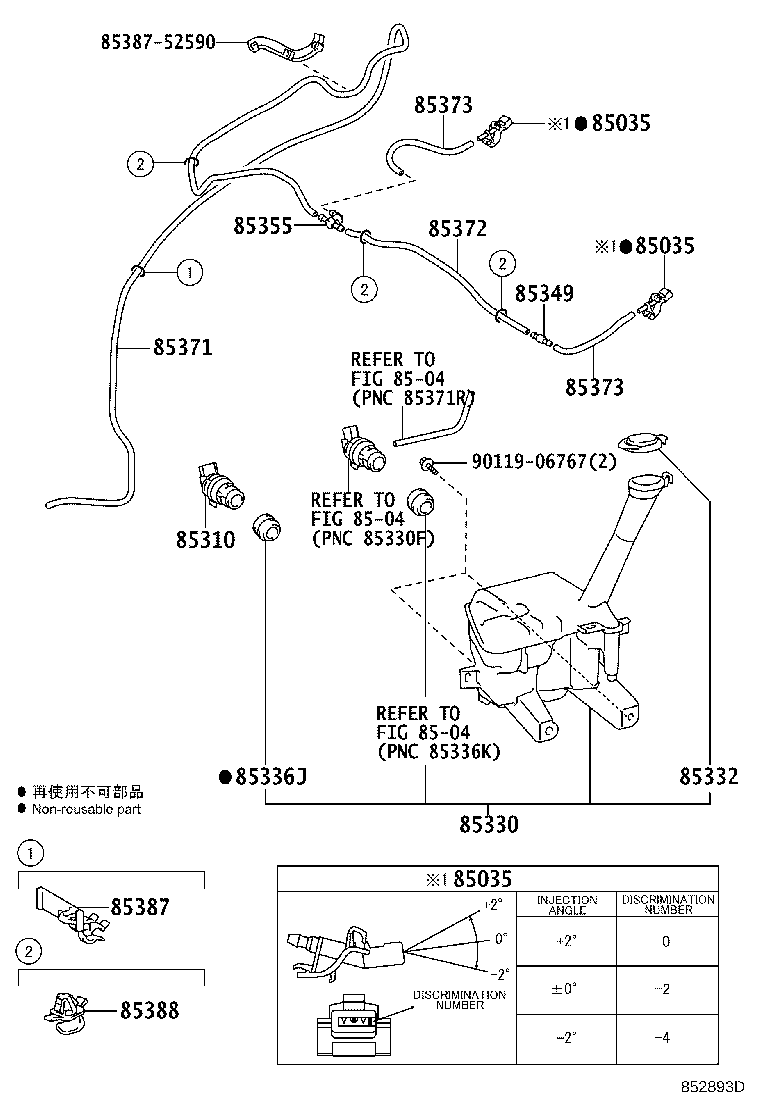

Click highlighted areas on diagram

diagram 85035 85035 85035 8504 8504 8504 85310 85330 85332 85336J 85349 85355 85371 85372 85373 85373 85387 8538752590 85388 9011906767
Part # Description Qty Price
85035 - NOZZLE SUB-ASSY, WASHER
85381-12400

NCP14#,NSP140..CBU

角度 0

 2
85381-12410

NCP14#,NSP140..CBU

角度 −2

 2
85381-12420

NCP14#,NSP140..CBU

角度 +2

 2
85035 - NOZZLE SUB-ASSY, WASHER
85381-12400

NCP14#,NSP140..CBU

角度 0

 2
85381-12410

NCP14#,NSP140..CBU

角度 −2

 2
85381-12420

NCP14#,NSP140..CBU

角度 +2

 2
85035 - NOZZLE SUB-ASSY, WASHER
85381-12400

NCP14#,NSP140..CBU

角度 0

 2
85381-12410

NCP14#,NSP140..CBU

角度 −2

 2
85381-12420

NCP14#,NSP140..CBU

角度 +2

 2
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85330-21010

NCP14#,NSP140..CBU

 1
85330 - JAR ASSY, WINDSHIELD WASHER
85315-52480

NCP14#,NSP140..CBU

 1
85315-52420

NCP14#,NSP140..CBU

寒冷地仕様

 1
85332 - CAP, WINDSHIELD WASHER JAR
85316-16070

NCP14#,NSP140..CBU

 1
85336J - PROTECTOR, WASHER JAR
85336-60300

NCP14#,NSP140..CBU

 1
85349 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85375-10260

NCP14#,NSP140..CBU

 1
85355 - VALVE, WINDSHIELD WASHER HOSE
85321-28020

NCP14#,NSP140..CBU

 1
85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
90099-62097

NCP14#,NSP140..CBU

長さ=2100

 1
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
90099-62099

NCP14#,NSP140..CBU

長さ=440

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-62102

NCP14#,NSP140..CBU

長さ=150

 6
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-62102

NCP14#,NSP140..CBU

長さ=150

 6
85387 - CLAMP NO.1 (FOR WINDSEIELD WASHER)
82711-2C060

NCP14#,NSP140..CBU

 1
85388 - CLAMP NO.2 (FOR WINDSEIELD WASHER)
85371-12040

NCP14#,NSP140..CBU

 3
Common parts
85387-52590
90119-06767
Linked diagrams
8504
