NSP140-BEXVK (2012)
Toyota Porte/Spade
(1207- )

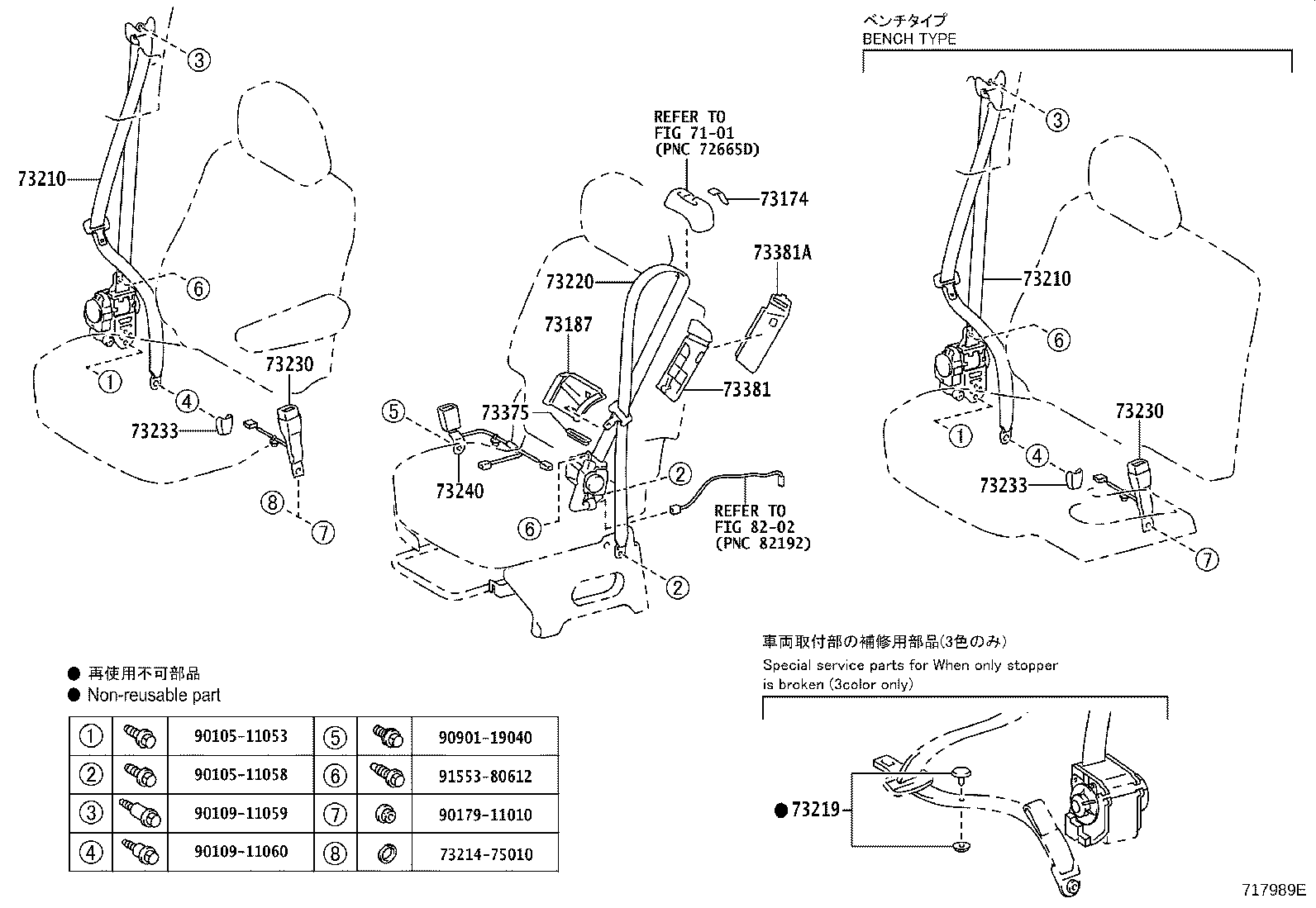

ﾌﾛﾝﾄｼｰﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73174 - COVER, FRONT SEAT BELT HOLE, LH | ||||
| 73173-52020C0 |
NCP14#,NSP140..CBU BLACK,TRIM4# |
1 | ||
| 73187 - GUIDE, FRONT SEAT SHOULDER BELT | ||||
| 73187-52010 |
NCP14#,NSP140..CBU |
1 | ||
| 73210 - BELT ASSY, FRONT SEAT OUTER, RH | ||||
| 73210-52850B1 |
NCP14#,NSP140..CBU BLACK/LT.GRAY/BLACK,TRIM4# |
1 | ||
| 73210 - BELT ASSY, FRONT SEAT OUTER, RH | ||||
| 73210-52850B1 |
NCP14#,NSP140..CBU BLACK/LT.GRAY/BLACK,TRIM4# |
1 | ||
| 73219 - STOPPER, TONGUE PLATE | ||||
| 73219-33030 |
NCP14#,NSP140..CBU ﾍﾞｰｼﾞｭ |
1 | ||
| 73219-33020 |
NCP14#,NSP140..CBU ｸﾞﾚｰ |
1 | ||
| 73219-33010 |
NCP14#,NSP140..CBU ﾌﾞﾗｯｸ |
1 | ||
| 73220 - BELT ASSY, FRONT SEAT OUTER, LH | ||||
| 73260-52160B1 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ,LT.GRAY/BLACK,TRIM4# |
1 | ||
| 73260-52160B1 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ,LT.GRAY/BLACK,TRIM4# |
1 | ||
| 73220-52840C0 |
NCP14#,NSP140 BLACK/BLACK,TRIM4# |
1 | ||
| 73220-52841C0 |
NCP14#,NSP140..CBU BLACK/BLACK,TRIM4# |
1 | ||
| 73230 - BELT ASSY, FRONT SEAT INNER, RH | ||||
| 73230-52B30C0 |
NCP14#,NSP140..CBU BLACK,TRIM4# |
1 | ||
| 73230 - BELT ASSY, FRONT SEAT INNER, RH | ||||
| 73230-52B30C0 |
NCP14#,NSP140..CBU BLACK,TRIM4# |
1 | ||
| 73233 - COVER, LAP BELT OUTER ANCHOR | ||||
| 73233-60020C0 |
NCP14#,NSP140..(G,V,X)..CBU BLACK,TRIM4# |
1 | ||
| 73233 - COVER, LAP BELT OUTER ANCHOR | ||||
| 73233-60020C0 |
NCP14#,NSP140..(G,V,X)..CBU BLACK,TRIM4# |
1 | ||
| 73240 - BELT ASSY, FRONT SEAT INNER, LH | ||||
| 73230-D1230C0 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ,BLACK,TRIM4# |
1 | ||
| 73230-D1230C0 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ,BLACK,TRIM4# |
1 | ||
| 73240-52070C0 |
NCP14#,NSP140..CBU BLACK,TRIM4# |
1 | ||
| 73375 - COVER, REAR SEAT SHOULDER BELT, LH | ||||
| 73375-46010C0 |
NCP14#,NSP140..CBU BLACK,TRIM4# |
1 | ||
| 73381 - HOLDER, REAR SEAT BELT | ||||
| 73381-52021 |
NCP14#,NSP140..CBU |
1 | ||
| 73381A - HOLDER, REAR SEAT BELT NO.2 | ||||
| 73381-52031 |
NCP14#,NSP140..CBU |
1 | ||
| Common parts | ||||
| 73214-75010 | ||||
| 90105-11053 | ||||
| 90105-11058 | ||||
| 90109-11059 | ||||
| 90109-11060 | ||||
| 90179-11010 | ||||
| 90901-19040 | ||||
| 91553-80612 | ||||
| Linked diagrams | ||||
| 7101 | ||||
| 8202 | ||||

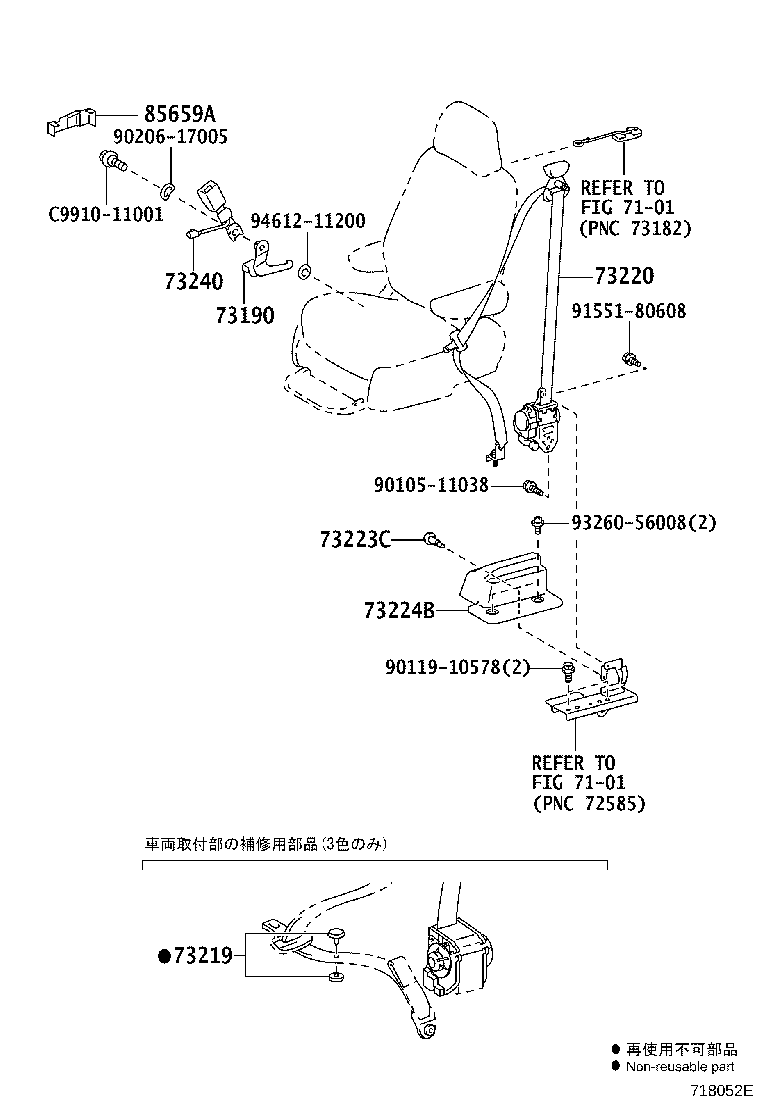

(1207- )NCP145..X ; (1207- )NCP141,NSP14#..F,X
ｼﾞｮｼｭｾｷ ﾘﾌﾄｱｯﾌﾟ ｼｰﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73190 - BRACKET ASSY, SEAT BELT INNER ANCHOR, LH | ||||
| 73190-D1010 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ |
1 | ||
| 73190-D1010 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
1 | ||
| 73219 - STOPPER, TONGUE PLATE | ||||
| 73219-33030 |
NCP14#,NSP140..CBU ﾍﾞｰｼﾞｭ |
1 | ||
| 73219-33020 |
NCP14#,NSP140..CBU ｸﾞﾚｰ |
1 | ||
| 73219-33010 |
NCP14#,NSP140..CBU ﾌﾞﾗｯｸ |
1 | ||
| 73220 - BELT ASSY, FRONT SEAT OUTER, LH | ||||
| 73260-52160B1 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ,LT.GRAY/BLACK,TRIM4# |
1 | ||
| 73260-52160B1 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ,LT.GRAY/BLACK,TRIM4# |
1 | ||
| 73220-52840C0 |
NCP14#,NSP140 BLACK/BLACK,TRIM4# |
1 | ||
| 73220-52841C0 |
NCP14#,NSP140..CBU BLACK/BLACK,TRIM4# |
1 | ||
| 73223C - CLIP, FRONT SEAT BELT RETRACTOR COVER | ||||
| 90467-07055C0 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ,BLACK |
1 | ||
| 90467-07055C0 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ,BLACK |
1 | ||
| 73224B - COVER, FRONT SEAT BELT RETRACTOR, LH | ||||
| 73224-52010E0 |
NCP141,NSP140..X..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ,PLUM,TRIM4# |
1 | ||
| 73224-52010E0 |
NCP141,NSP140..X..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ,PLUM,TRIM4# |
1 | ||
| 73240 - BELT ASSY, FRONT SEAT INNER, LH | ||||
| 73230-D1230C0 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ,BLACK,TRIM4# |
1 | ||
| 73230-D1230C0 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ,BLACK,TRIM4# |
1 | ||
| 73240-52070C0 |
NCP14#,NSP140..CBU BLACK,TRIM4# |
1 | ||
| Common parts | ||||
| 90105-11038 | ||||
| 90119-10578 | ||||
| 90206-17005 | ||||
| 91551-80608 | ||||
| 93260-56008 | ||||
| 94612-11200 | ||||
| C9910-11001 | ||||
| Linked diagrams | ||||
| 7101 | ||||

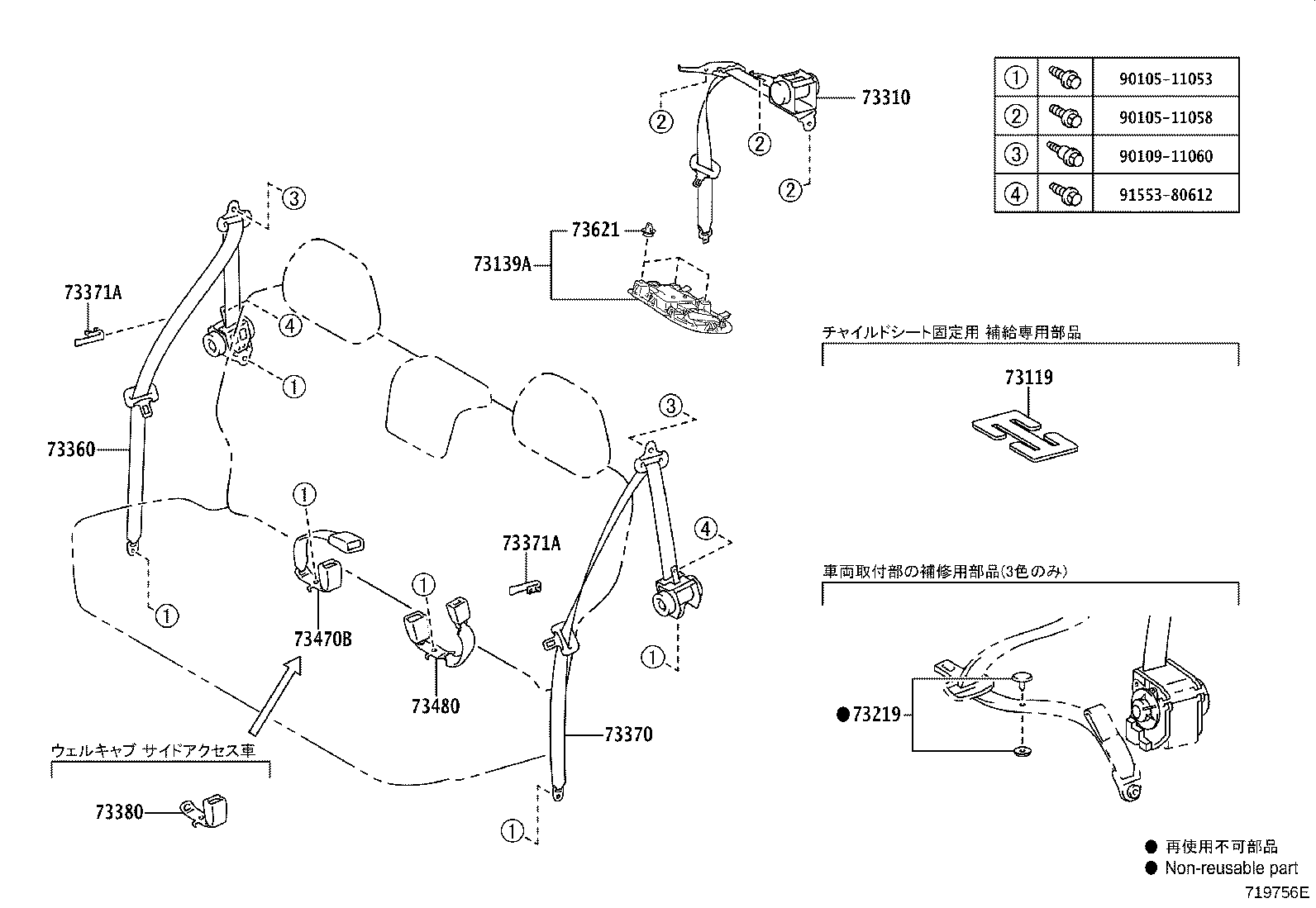

(1207-1507)NCP141..X ; (1207-1507)NCP145,NSP140; (1507- )
ﾘﾔｼｰﾄｺﾃｲﾀｲﾌﾟ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73119 - PLATE, SEAT BELT WEBBING CLIP | ||||
| 73119-22010 |
NCP14#,NSP140..CBU |
1 | ||
| 73139A - COVER, SEAT BELT ANCHOR | ||||
| 73139-52100B0 |
NCP14#,NSP140..(G,V,X)..CBU LT.GRAY,TRIM4# |
1 | ||
| 73219 - STOPPER, TONGUE PLATE | ||||
| 73219-33030 |
NCP14#,NSP140..CBU ﾍﾞｰｼﾞｭ |
1 | ||
| 73219-33020 |
NCP14#,NSP140..CBU ｸﾞﾚｰ |
1 | ||
| 73219-33010 |
NCP14#,NSP140..CBU ﾌﾞﾗｯｸ |
1 | ||
| 73310 - BELT ASSY, REAR SEAT 3 POINT TYPE, RH | ||||
| 73310-52180C0 |
NCP14#,NSP140..CBU BLACK/BLACK,TRIM4# |
1 | ||
| 73360 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH | ||||
| 73360-52420C0 |
NCP14#,NSP140..CBU BLACK/BLACK,TRIM4# |
1 | ||
| 73370 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH | ||||
| 73370-52390C0 |
NCP14#,NSP140..CBU BLACK/BLACK,TRIM4# |
1 | ||
| 73371A - HANGER REAR SEAT SHOULDER BELT | ||||
| 73371-44020B8 |
NCP14#,NSP140..X..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ,LT.GRAY,TRIM4# |
1 | ||
| 73371-44020B8 |
NCP14#,NSP140..X..CBU ｻｲﾄﾞｱｸｾｽ(脱着式),LT.GRAY,TRIM4# |
1 | ||
| 73371-16050E5 |
NCP14#,NSP140..(G,V,X)..CBU PLUM,TRIM4# |
2 | ||
| 73371-44020B8 |
NCP14#,NSP140..X..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ,LT.GRAY,TRIM4# |
1 | ||
| 73371-44020B8 |
NCP141,NSP140..X..CBU ｻｲﾄﾞｱｸｾｽ(車いす),LT.GRAY,TRIM4# |
1 | ||
| 73371-44020B8 |
NCP14#,NSP140..X..CBU ｻｲﾄﾞｱｸｾｽ(脱着式)&ｸﾚｰﾝ,LT.GRAY,TRIM4# |
1 | ||
| 73371-44020B8 |
NCP141,NSP140..X..CBU ｻｲﾄﾞｱｸｾｽ(脱着式&車いす),LT.GRAY,TRIM4# |
1 | ||
| 73371A - HANGER REAR SEAT SHOULDER BELT | ||||
| 73371-44020B8 |
NCP14#,NSP140..X..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ,LT.GRAY,TRIM4# |
1 | ||
| 73371-44020B8 |
NCP14#,NSP140..X..CBU ｻｲﾄﾞｱｸｾｽ(脱着式),LT.GRAY,TRIM4# |
1 | ||
| 73371-16050E5 |
NCP14#,NSP140..(G,V,X)..CBU PLUM,TRIM4# |
2 | ||
| 73371-44020B8 |
NCP14#,NSP140..X..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ,LT.GRAY,TRIM4# |
1 | ||
| 73371-44020B8 |
NCP141,NSP140..X..CBU ｻｲﾄﾞｱｸｾｽ(車いす),LT.GRAY,TRIM4# |
1 | ||
| 73371-44020B8 |
NCP14#,NSP140..X..CBU ｻｲﾄﾞｱｸｾｽ(脱着式)&ｸﾚｰﾝ,LT.GRAY,TRIM4# |
1 | ||
| 73371-44020B8 |
NCP141,NSP140..X..CBU ｻｲﾄﾞｱｸｾｽ(脱着式&車いす),LT.GRAY,TRIM4# |
1 | ||
| 73380 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, RH | ||||
| 73380-52200C0 |
NCP14#,NSP140..X..CBU ｻｲﾄﾞｱｸｾｽ(脱着式),BLACK,TRIM4# |
1 | ||
| 73380-52200C0 |
NCP141,NSP140..X..CBU ｻｲﾄﾞｱｸｾｽ(車いす),BLACK,TRIM4# |
1 | ||
| 73380-52200C0 |
NCP141,NSP140..X..CBU ｻｲﾄﾞｱｸｾｽ(脱着式&車いす),BLACK,TRIM4# |
1 | ||
| 73380-52200C0 |
NCP14#,NSP140..X..CBU ｻｲﾄﾞｱｸｾｽ(脱着式)&ｸﾚｰﾝ,BLACK,TRIM4# |
1 | ||
| 73470B - BELT ASSY, REAR SEAT INNER W/CENTER, RH | ||||
| 73470-52480C0 |
NCP141..X..CBU;NCP145,NSP140..CBU BLACK/BLACK,TRIM4# |
1 | ||
| 73480 - BELT ASSY, REAR SEAT INNER W/CENTER, LH | ||||
| 73480-52440C0 |
NCP141,NSP140..CBU BLACK/BLACK,TRIM4# |
1 | ||
| Common parts | ||||
| 90105-11053 | ||||
| 90105-11058 | ||||
| 90109-11060 | ||||
| 91553-80612 | ||||
