NSP140-BEXVK (2012)

Toyota Porte/Spade

Production Jul 2012 - Jul 2015
Engine 1NRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1207-1507)NSP140 ; (1507- )NSP141

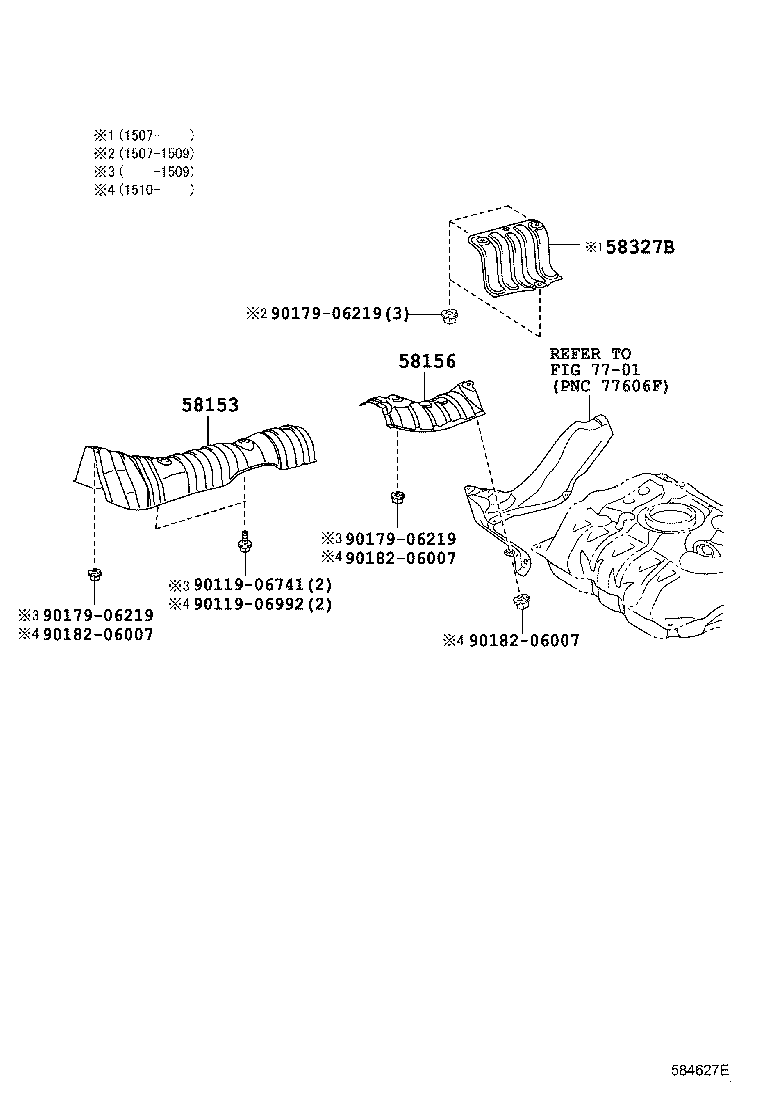

Click highlighted areas on diagram

diagram 58153 58156 58327B 7701 9011906741 9011906992 9017906219 9017906219 9017906219 9018206007 9018206007 9018206007
Part # Description Qty Price
58153 - INSULATOR, FRONT FLOOR HEAT, NO.2
58153-52091

NSP140..CBU

 1
58156 - INSULATOR, FRONT FLOOR HEAT, NO.4
58156-52020

NCP141,NSP140..CBU

 1
Common parts
90119-06741
90119-06992
90179-06219
90182-06007
Linked diagrams
7701
