NSP140-AEXXK (2012)
Toyota Porte/Spade

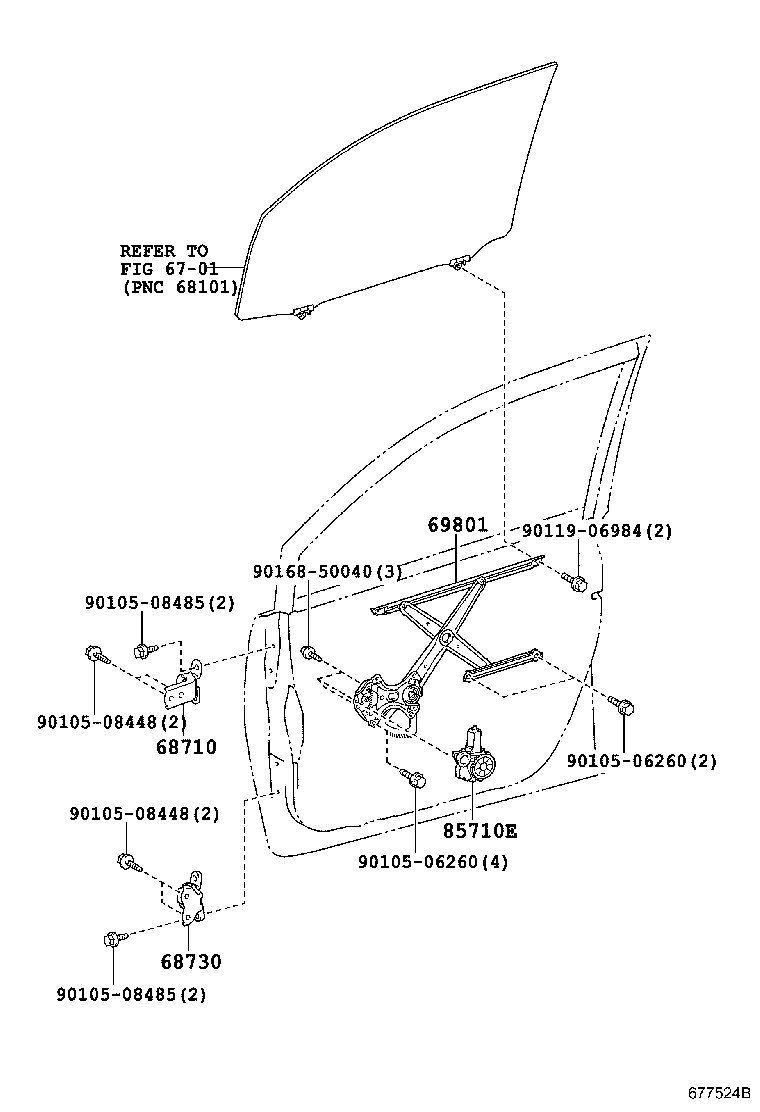

ILLUST NO. 1 OF 2(1207- )
ｳﾝﾃﾝｾｷｶﾞﾜ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 68710 - HINGE ASSY, FRONT DOOR, UPPER RH | ||||
| 68710-12151 |
NCP14#,NSP140..CBU |
1 | ||
| 68730 - HINGE ASSY, FRONT DOOR, LOWER RH | ||||
| 68730-12120 |
NCP14#,NSP140..CBU |
1 | ||
| 69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH | ||||
| 69801-52160 |
NCP14#,NSP140..CBU |
1 | ||
| 85710E - MOTOR ASSY, POWER WINDOW REGULATOR, RH | ||||
| 85710-12490 |
NCP14#,NSP140..CBU |
1 | ||
| Common parts | ||||
| 90105-06260 | ||||
| 90105-08448 | ||||
| 90105-08485 | ||||
| 90119-06984 | ||||
| 90168-50040 | ||||
| Linked diagrams | ||||
| 6701 | ||||

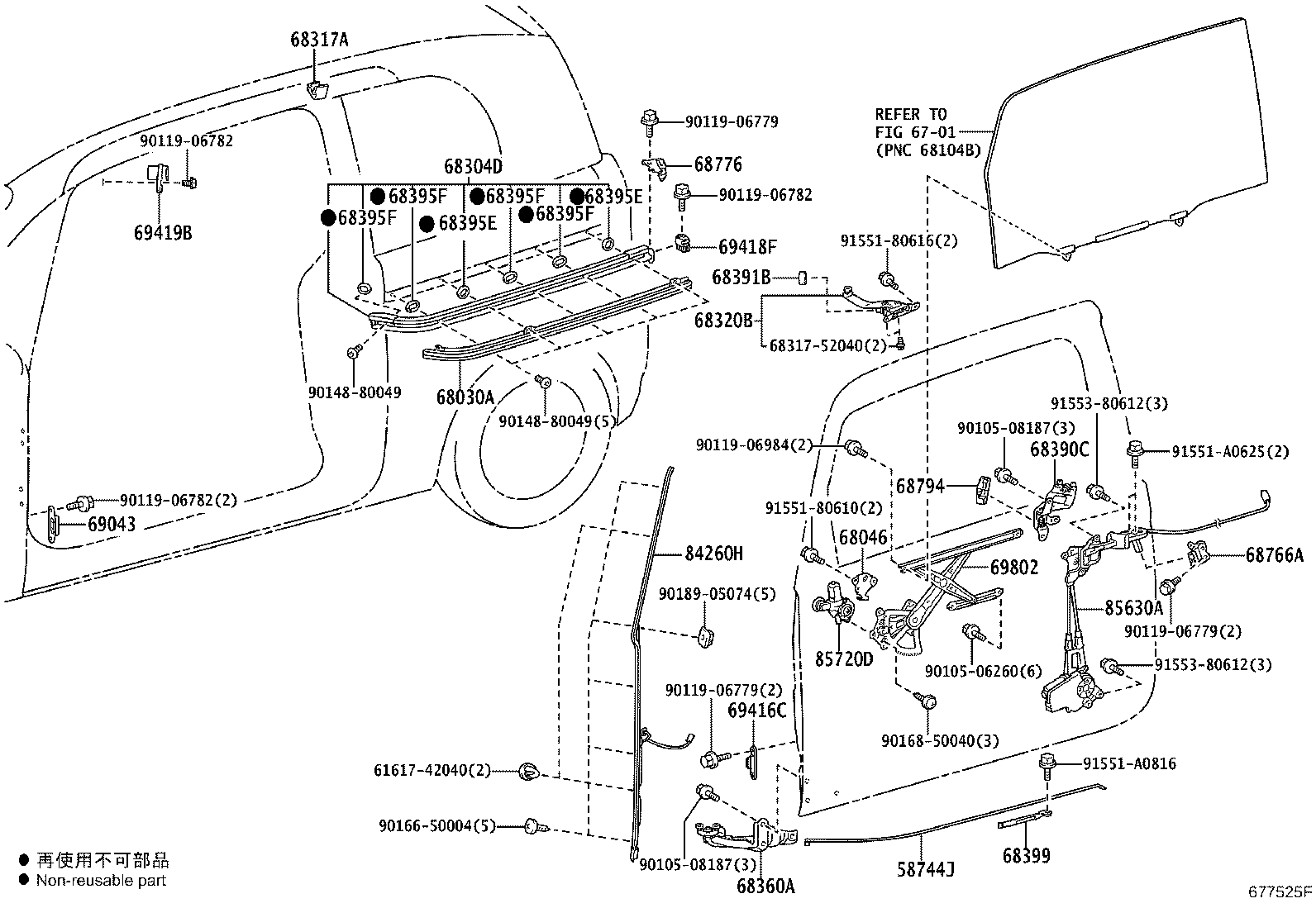

ILLUST NO. 2 OF 2(1207- )
ｼﾞｮｼｭｾｷｶﾞﾜ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58744J - PROTECTOR, SLIDE DOOR PANEL, NO.1 LH | ||||
| 58744-52030 |
NCP14#,NSP140..CBU |
1 | ||
| 68030A - GUIDE ASSY, SLIDE DOOR CABLE, NO.1 | ||||
| 68030-52030 |
NCP14#,NSP140..CBU |
1 | ||
| 68046 - LEVER SUB-ASSY, FR SIDE DOOR RAIL STOP | ||||
| 68046-52010 |
NCP14#,NSP140..CBU |
1 | ||
| 68304D - RAIL SUB-ASSY, SLIDE DOOR, CENTER LH | ||||
| 68304-52050 |
NCP14#,NSP140..CBU |
1 | ||
| 68317A - STOPPER, SLIDE DOOR UPPER RAIL | ||||
| 68317-52030 |
NCP14#,NSP140..CBU |
1 | ||
| 68320B - ROLLER ASSY, SLIDE DOOR, UPR, LH | ||||
| 68320-52030 |
NCP14#,NSP140..CBU |
1 | ||
| 68320-52031 |
NCP14#,NSP140..CBU |
1 | ||
| 68360A - ROLLER ASSY, SLIDE DOOR, LWR LH | ||||
| 68360-52060 |
NCP14#,NSP140..CBU |
1 | ||
| 68390C - HINGE ASSY, SLIDE DOOR, CENTER LH | ||||
| 68390-52050 |
NCP14#,NSP140..CBU |
1 | ||
| 68391B - CUSHION, SLIDE DOOR UPPER ROLLER | ||||
| 68391-28040 |
NCP14#,NSP140..CBU |
1 | ||
| 68395E - PACKING, SLIDE DOOR CENTER RAIL, NO.1 | ||||
| 68395-52020 |
NCP14#,NSP140..CBU |
2 | ||
| 68395E - PACKING, SLIDE DOOR CENTER RAIL, NO.1 | ||||
| 68395-52020 |
NCP14#,NSP140..CBU |
2 | ||
| 68395F - PACKING, SLIDE DOOR CENTER RAIL, NO.2 | ||||
| 68395-52050 |
NCP14#,NSP140..CBU |
4 | ||
| 68395F - PACKING, SLIDE DOOR CENTER RAIL, NO.2 | ||||
| 68395-52050 |
NCP14#,NSP140..CBU |
4 | ||
| 68395F - PACKING, SLIDE DOOR CENTER RAIL, NO.2 | ||||
| 68395-52050 |
NCP14#,NSP140..CBU |
4 | ||
| 68395F - PACKING, SLIDE DOOR CENTER RAIL, NO.2 | ||||
| 68395-52050 |
NCP14#,NSP140..CBU |
4 | ||
| 68399 - PLATE, SLIDE DOOR LOWER RAIL, LH | ||||
| 68399-52030 |
NCP14#,NSP140..CBU |
1 | ||
| 68766A - BRACKET, SLIDE DOOR, CENTER NO.1 LH | ||||
| 68766-52010 |
NCP14#,NSP140..CBU |
1 | ||
| 68776 - BRACKET, SLIDE DOOR, CENTER NO.2 LH | ||||
| 68776-52010 |
NCP14#,NSP140..CBU |
1 | ||
| 68794 - PROTECTOR, DOOR HINGE ARM | ||||
| 68794-52010 |
NCP14#,NSP140..CBU |
1 | ||
| 69043 - STOPPER SUB-ASSY, SLIDE DOOR DOWN FEMALE | ||||
| 69046-46011 |
NCP14#,NSP140..CBU |
1 | ||
| 69416C - STOPPER, SLIDE DOOR DOWN MALE, NO.1 | ||||
| 69416-46011 |
NCP14#,NSP140..CBU |
1 | ||
| 69416-52020 |
NCP14#,NSP140..CBU |
1 | ||
| 69418F - CUSHION, SLIDE DOOR OPEN STOPPER, LH | ||||
| 69417-52010 |
NCP14#,NSP140..CBU |
1 | ||
| 69419B - STOP, SLIDE DOOR OPEN, LH | ||||
| 69419-46010 |
NCP14#,NSP140..CBU |
1 | ||
| 69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH | ||||
| 69802-52150 |
NCP14#,NSP140..CBU |
1 | ||
| 84260H - SENSOR ASSY, POWER SLIDE DOOR, LH | ||||
| 84260-52030 |
NCP14#,NSP140..CBU |
1 | ||
| 85630A - MOTOR ASSY, SLIDE DOOR NO.1 | ||||
| 85006-52040 |
NCP145..X;NCP141,NSP140..F,X ｻｲﾄﾞｱｸｾｽ(脱着式)&ｸﾚｰﾝ |
1 | ||
| 85006-52041 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
1 | ||
| 85006-52040 |
NCP145..X;NCP141,NSP140..F,X ｻｲﾄﾞｱｸｾｽ(脱着式) |
1 | ||
| 85006-52040 |
NCP145..X;NCP141,NSP140..F,X 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
1 | ||
| 85006-52040 |
NCP141,NSP140..F,X ｻｲﾄﾞｱｸｾｽ(脱着式&車いす) |
1 | ||
| 85006-52041 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU ｻｲﾄﾞｱｸｾｽ(脱着式)&ｸﾚｰﾝ |
1 | ||
| 85006-52040 |
NCP145..X;NCP141,NSP140..F,X 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ |
1 | ||
| 85006-52041 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ |
1 | ||
| 85006-52030 |
NCP14#,NSP140 |
1 | ||
| 85006-52031 |
NCP14#,NSP140..CBU |
1 | ||
| 85006-52042 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU ｻｲﾄﾞｱｸｾｽ(脱着式) |
1 | ||
| 85006-52041 |
NCP141,NSP140..(F,X)..CBU ｻｲﾄﾞｱｸｾｽ(車いす) |
1 | ||
| 85006-52042 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ |
1 | ||
| 85006-52040 |
NCP141,NSP140..F,X ｻｲﾄﾞｱｸｾｽ(車いす) |
1 | ||
| 85006-52043 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
1 | ||
| 85006-52042 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ｸﾚｰﾝ |
1 | ||
| 85006-52042 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU ｻｲﾄﾞｱｸｾｽ(脱着式)&ｸﾚｰﾝ |
1 | ||
| 85006-52042 |
NCP141,NSP140..(F,X)..CBU ｻｲﾄﾞｱｸｾｽ(脱着式&車いす) |
1 | ||
| 85006-52041 |
NCP141,NSP140..(F,X)..CBU ｻｲﾄﾞｱｸｾｽ(脱着式&車いす) |
1 | ||
| 85006-52041 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU ｻｲﾄﾞｱｸｾｽ(脱着式) |
1 | ||
| 85006-52043 |
NCP141,NSP140..(F,X)..CBU ｻｲﾄﾞｱｸｾｽ(車いす) |
1 | ||
| 85006-52043 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU ｻｲﾄﾞｱｸｾｽ(脱着式) |
1 | ||
| 85006-52043 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU ｻｲﾄﾞｱｸｾｽ(脱着式)&ｸﾚｰﾝ |
1 | ||
| 85006-52043 |
NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ |
1 | ||
| 85006-52042 |
NCP141,NSP140..(F,X)..CBU ｻｲﾄﾞｱｸｾｽ(車いす) |
1 | ||
| 85006-52032 |
NCP14#,NSP140..CBU |
1 | ||
| 85006-52033 |
NCP14#,NSP140..CBU |
1 | ||
| 85006-52043 |
NCP141,NSP140..(F,X)..CBU ｻｲﾄﾞｱｸｾｽ(脱着式&車いす) |
1 | ||
| 85720D - MOTOR ASSY, POWER WINDOW REGULATOR, LH | ||||
| 85720-35140 |
NCP14#,NSP140..CBU |
1 | ||
| Common parts | ||||
| 61617-42040 | ||||
| 68317-52040 | ||||
| 90105-06260 | ||||
| 90105-08187 | ||||
| 90119-06779 | ||||
| 90119-06782 | ||||
| 90119-06984 | ||||
| 90148-80049 | ||||
| 90166-50004 | ||||
| 90168-50040 | ||||
| 90189-05074 | ||||
| 91551-80610 | ||||
| 91551-80616 | ||||
| 91551-A0625 | ||||
| 91551-A0816 | ||||
| 91553-80612 | ||||
| Linked diagrams | ||||
| 6701 | ||||
