NSP140-AEXVK (2012)
Toyota Porte/Spade
Production
Jul 2012
-
Jul 2015
Engine
1NRFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(1207- )NCP14#,NSP140..PORTE ; (1507- )PORTE

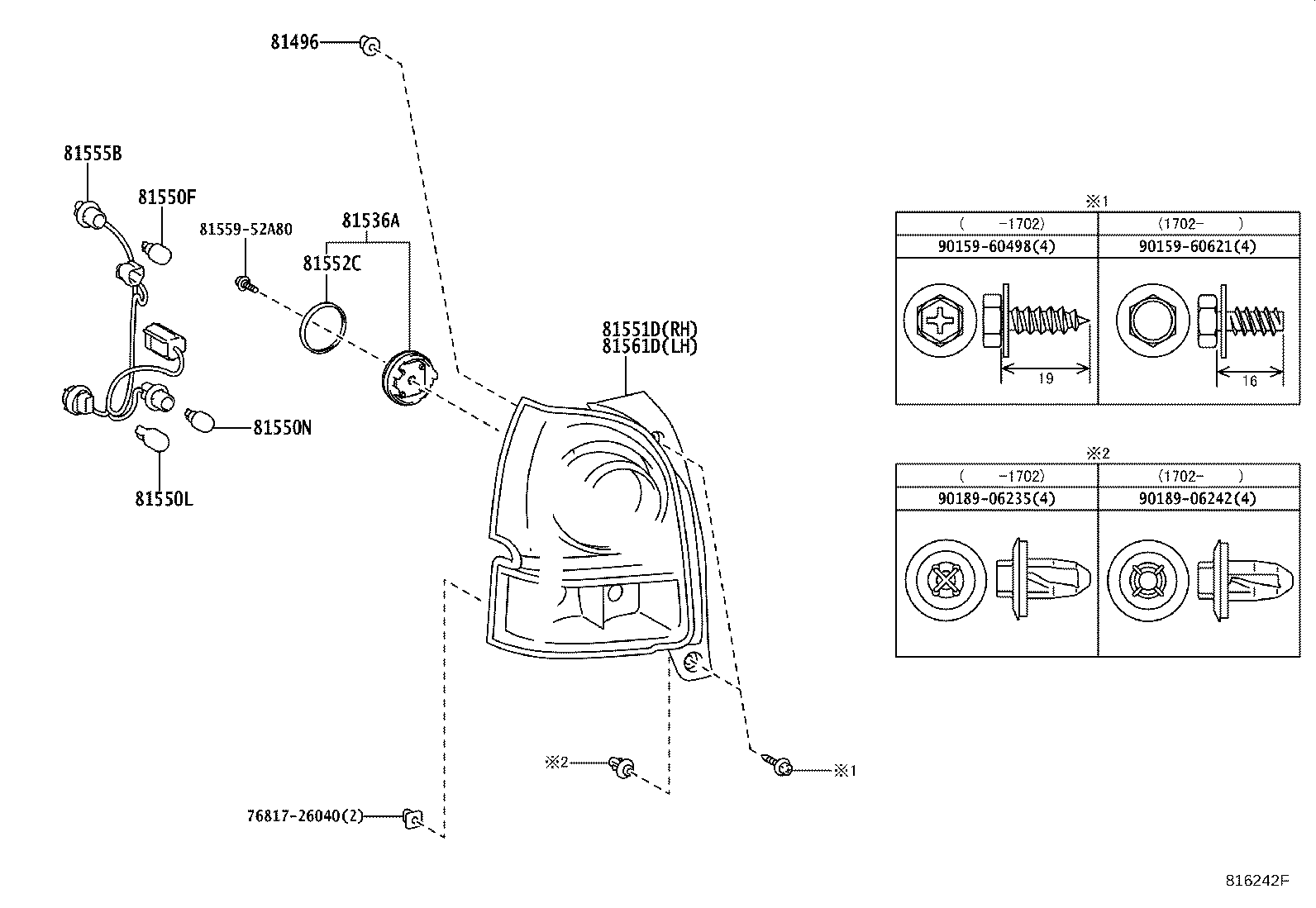

Click highlighted areas on diagram
PORTE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81496 - GUIDE, REAR COMBINATION LAMP | ||||
| 81496-52020 |
NCP14#,NSP140..CBU |
2 | ||
| 81536A - LED, REAR COMBINATION LAMP | ||||
| 81536-52A80 |
NCP14#,NSP140..PORTE..CBU |
2 | ||
| 81550F - BULB, TAIL LAMP | ||||
| 99132-12050 |
NCP14#,NSP140..CBU 12V 5W |
2 | ||
| 81550L - BULB, REAR TURN SIGNAL LAMP | ||||
| 90981-15011 |
NCP14#,NSP140..CBU |
2 | ||
| 81550N - BULB, BACK UP LAMP | ||||
| 90981-11059 |
NCP14#,NSP140..CBU 12V 16W |
2 | ||
| 81551D - LENS & BODY, REAR COMBINATION LAMP, RH | ||||
| 81551-52B20 |
NCP14#,NSP140..PORTE..CBU |
1 | ||
| 81552C - GASKET, REAR COMBINATION LAMP | ||||
| 81538-52A80 |
NCP14#,NSP140..PORTE..CBU |
2 | ||
| 81555B - SOCKET PLUG, NO.1 | ||||
| 81555-52A30 |
NCP14#,NSP140..CBU |
2 | ||
| 81561D - LENS & BODY, REAR COMBINATION LAMP, LH | ||||
| 81561-52A30 |
NCP14#,NSP140..PORTE..CBU |
1 | ||
| Common parts | ||||
| 76817-26040 | ||||
| 81559-52A80 | ||||
| 90159-60498 | ||||
| 90159-60621 | ||||
| 90189-06235 | ||||
| 90189-06242 | ||||
